Ignition System: Service and Repair

Ignition Coil:

REMOVAL & INSTALLATION

REMOVAL




1. DISCONNECT IGNITION COIL (WITH IGNITER) CONNECTORS

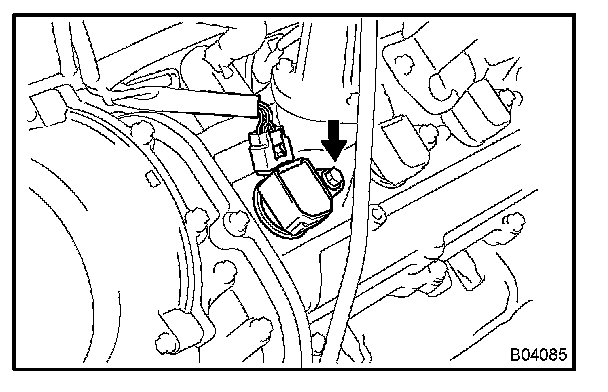

2. REMOVE IGNITION COILS (WITH IGNITER)

Remove the bolt, and pull out the ignition coil (with igniter). Remove the 8 ignition coils (with igniter).

INSTALLATION

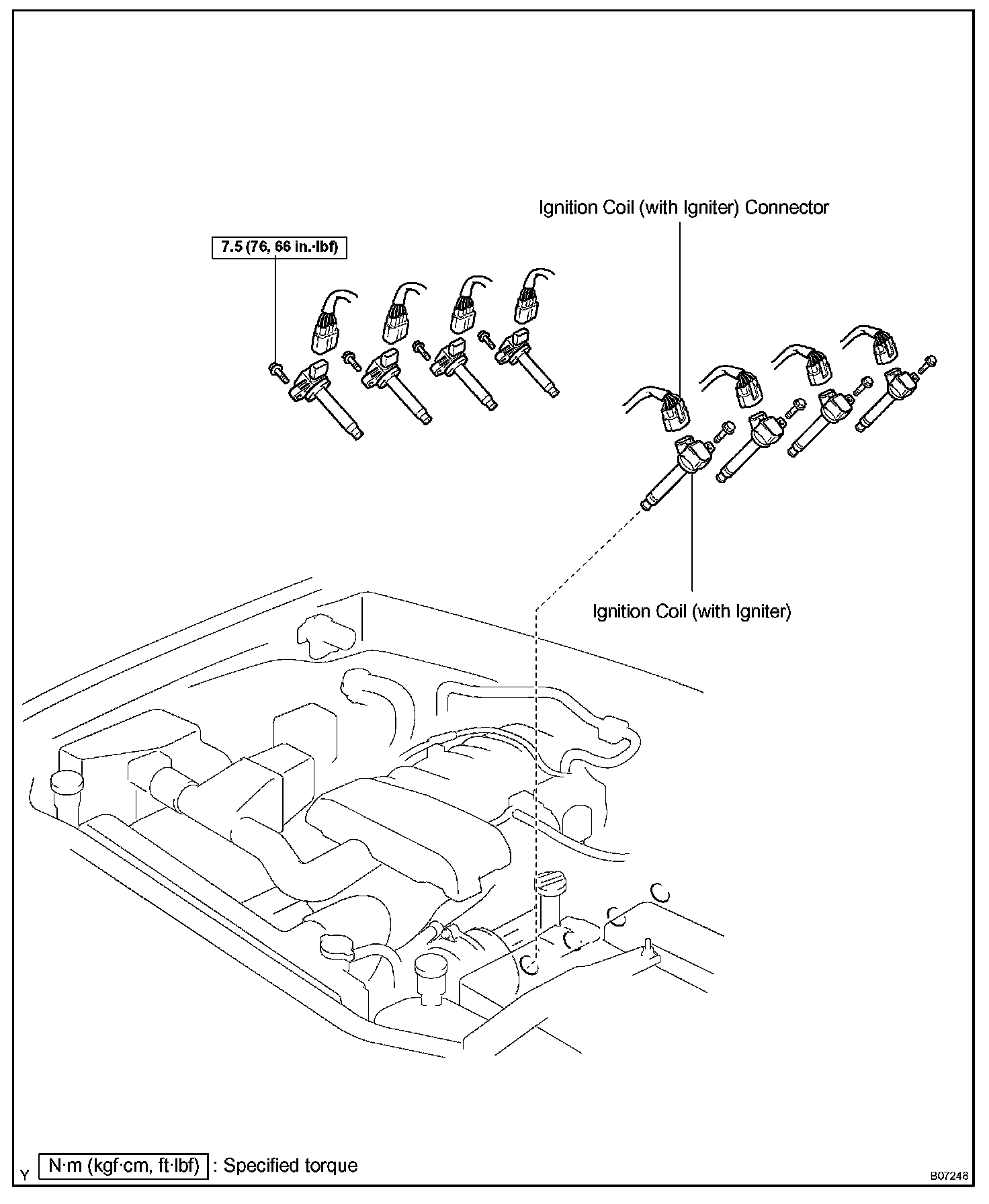

1. INSTALL IGNITION COILS (WITH IGNITER)

Install the ignition coil (with igniter) with the bolt. Install the 8 ignition coils (with igniter).

Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf.

2. CONNECT IGNITION COIL (WITH IGNITER) CONNECTORS
