System Specifications

Crankshaft Pulley
Torque 245 Nm (2,500 kgf-cm, 181 ft. lbs.)

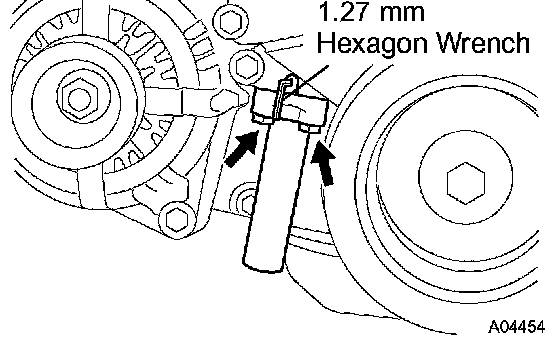

Timing Belt Tensioner
Using a press, slowly press in the push rod using 981 - 9,807 N (100 - 1,000 kgf, 220 - 2,205 lbs.) of pressure.





Temporarily install the belt tensioner with the 2 bolts.
Alternately tighten the 2 bolts.
Torque 26 Nm (270 kgf-cm, 19 ft. lbs.)

Timing Cover
NO.2 TIMING BELT COVER
Torque 16 Nm (160 kgf-cm, 12 ft. lbs.)

RH NO.3 TIMING BELT COVER
Fit the RH No.3 timing belt cover, matching it with the fan bracket.
Torque 7.5 Nm (76 kgf-cm, 66 inch lbs.)

LH NO.3 TIMING BELT COVER
Install the oil cooler pipe with the bolt and nut.
Install the LH No.3 timing belt cover with the 4 bolts and nut.
Torque 7.5 Nm (76 kgf-cm, 66 inch lbs.)
