Home >> Toyota >> 2005 >> Solara L4-2.4L (2AZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Oil Pump, Engine

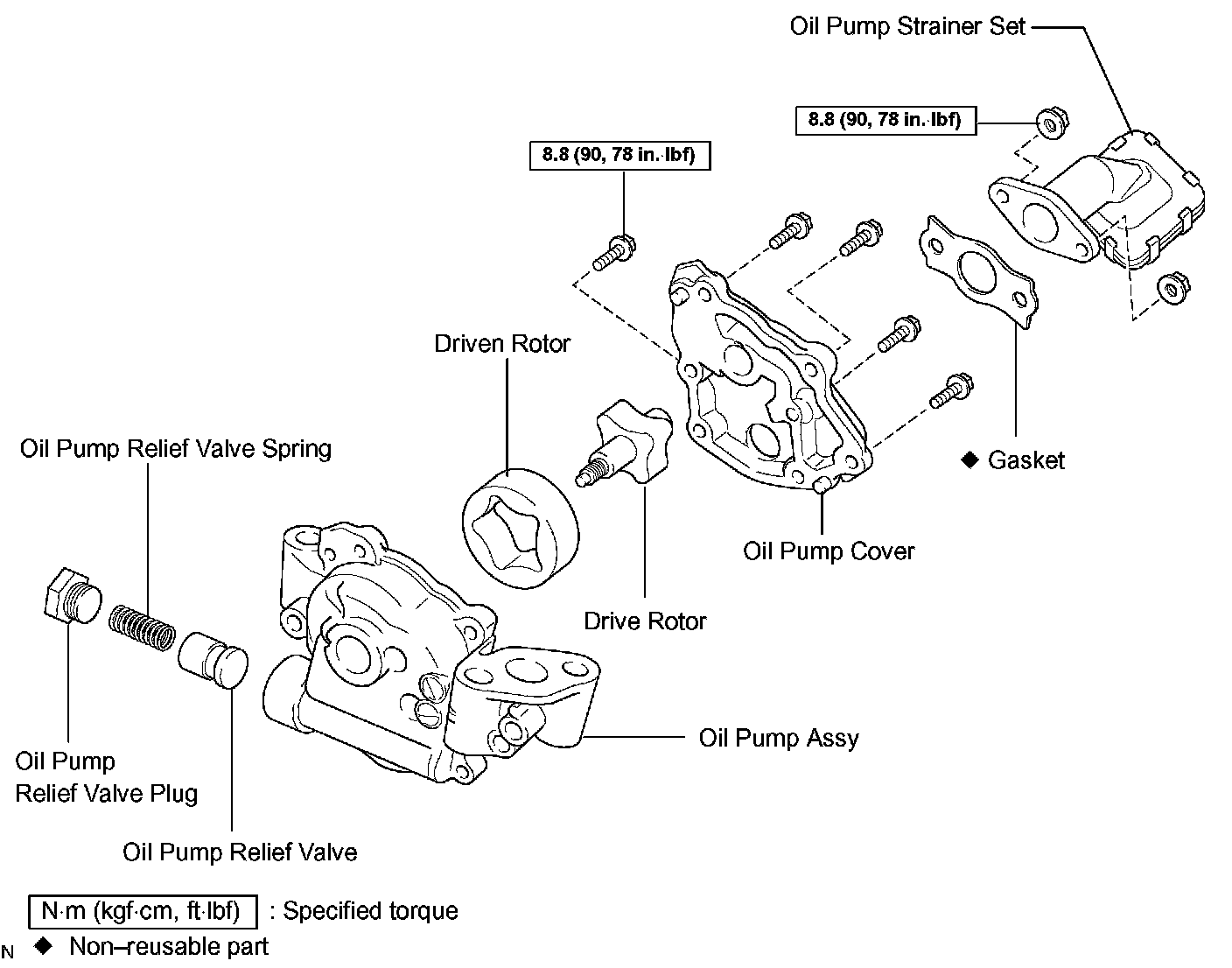

Oil Pump, Engine

Part 3 Of 3:
