Fail-Safe Chart
Fail-Safe Chart

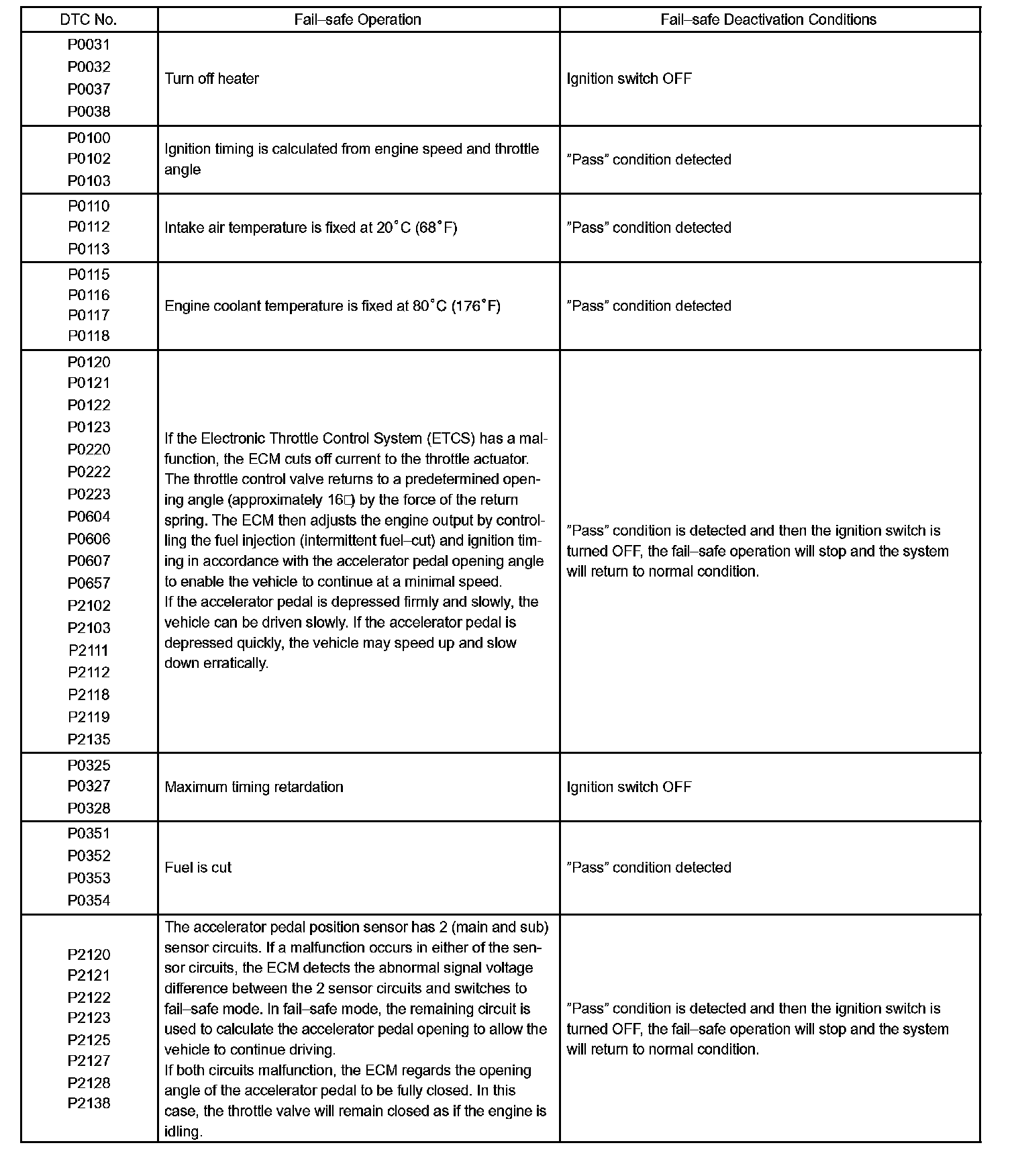

FAIL-SAFE CHART
Fail-Safe Chart:
If any of the following codes are recorded, the ECM enters fail-safe mode.
