Operation CHARM
: Car repair manuals for everyone.
Home
>>
Toyota
>>
2005
>>
Solara L4-2.4L (2AZ-FE)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Starting System
>>
Diagrams
>>
Exploded Views
Exploded Views

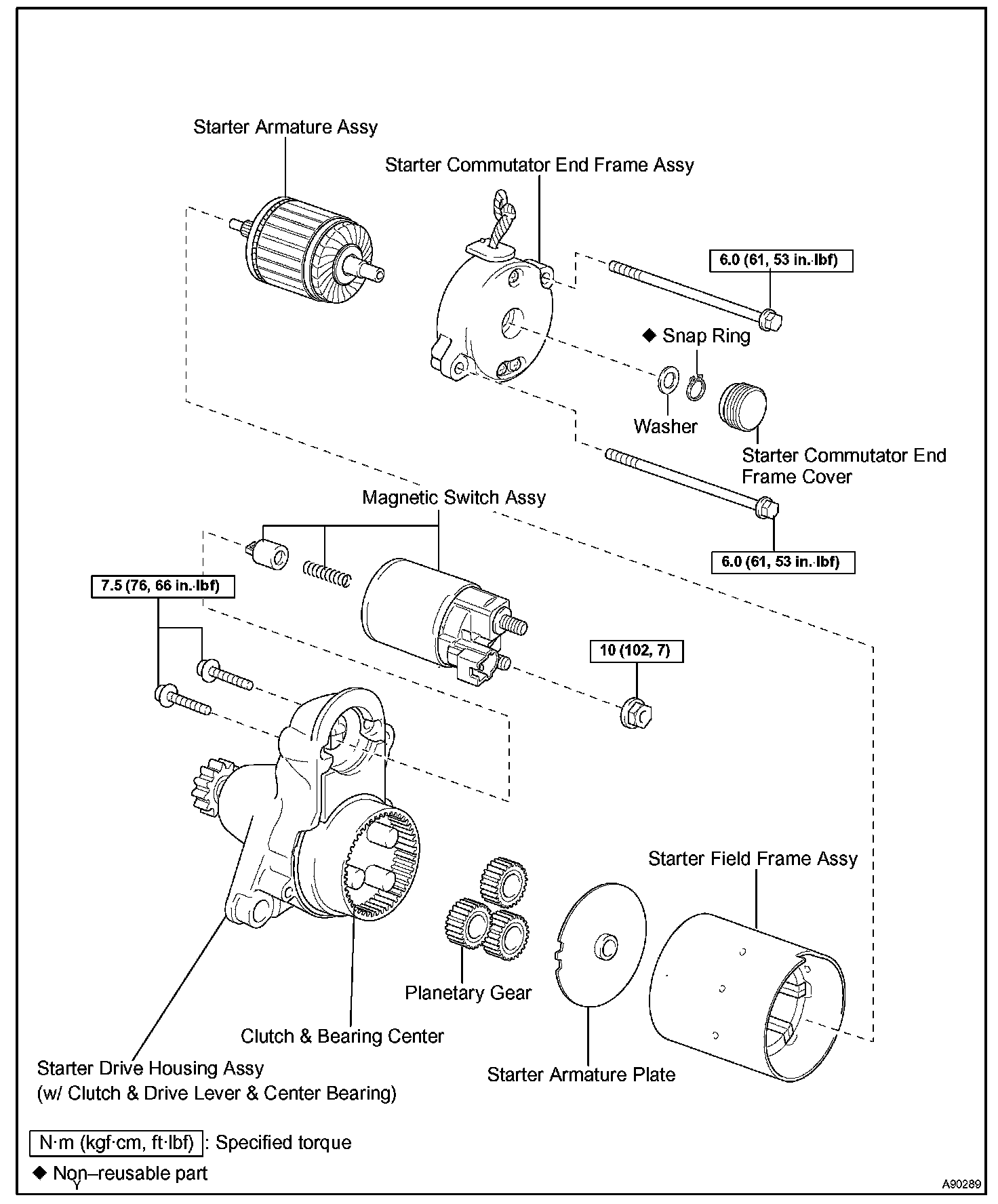

Starter Assy (2AZ-FE):
