Electronic Brake Control Module
>>
Testing and Inspection
>>
With EBD System
With EBD System

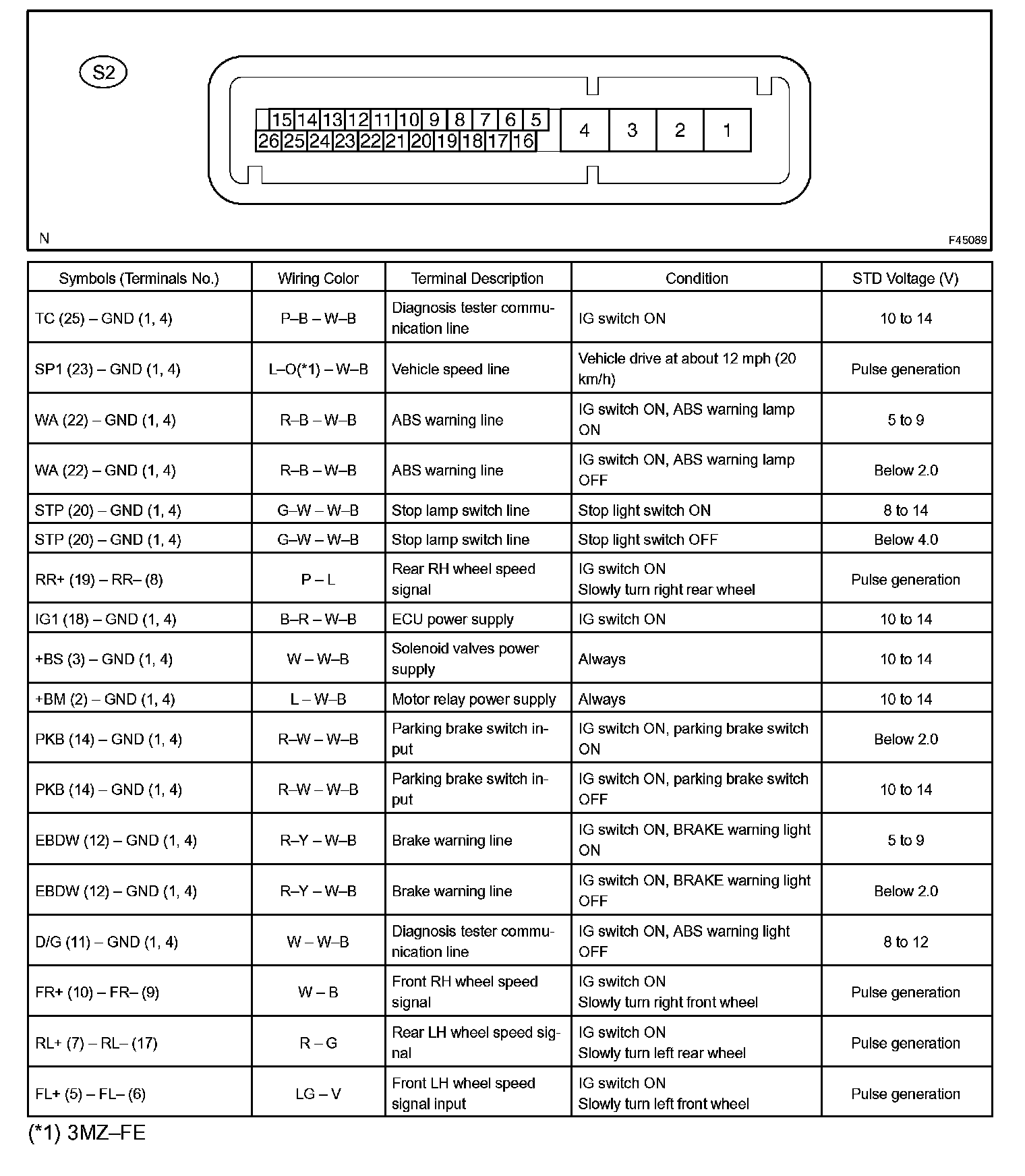

Terminals Of Control Modules/Pinouts:
