System Specifications

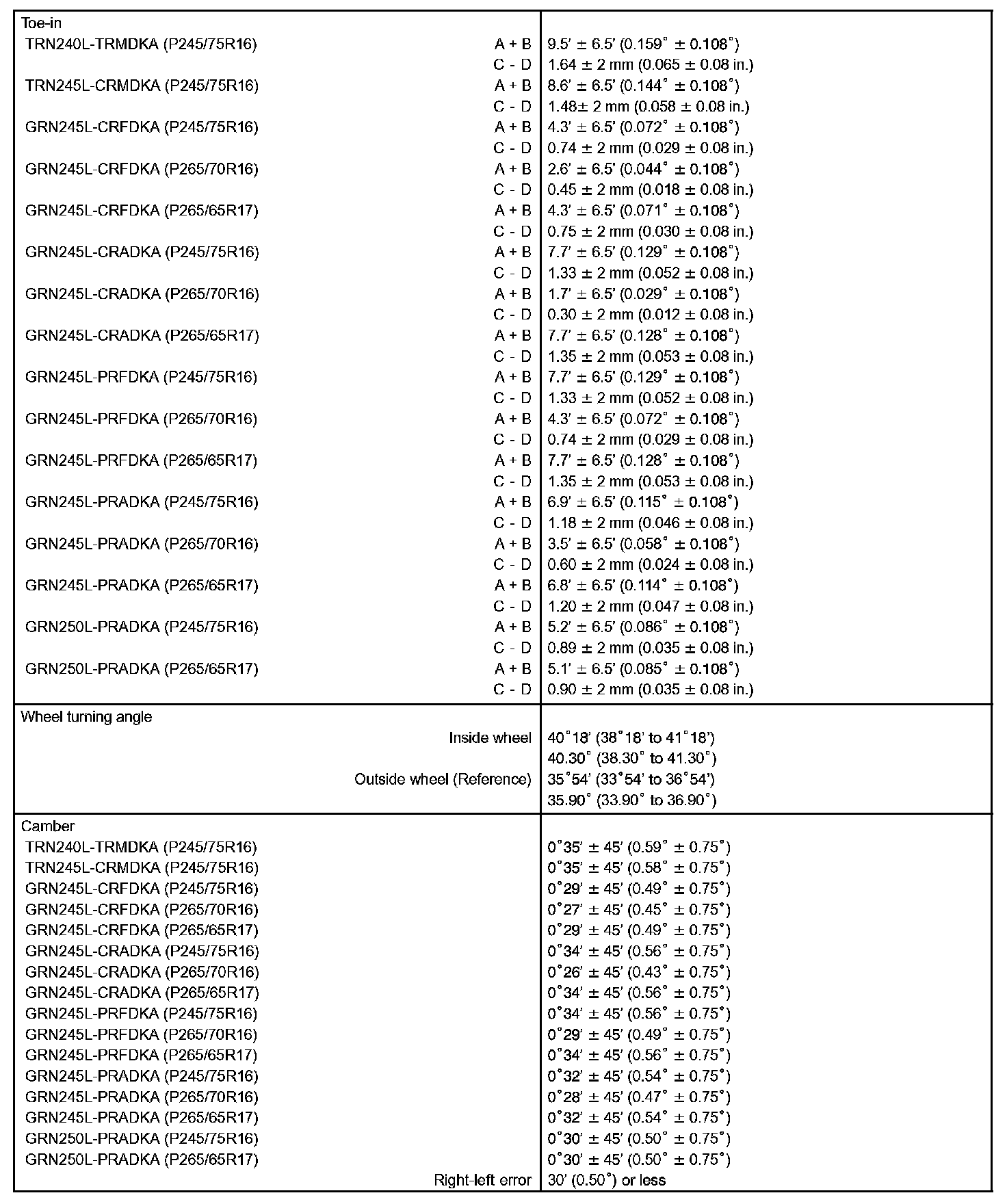

Front Suspension - Service Data Part 1:

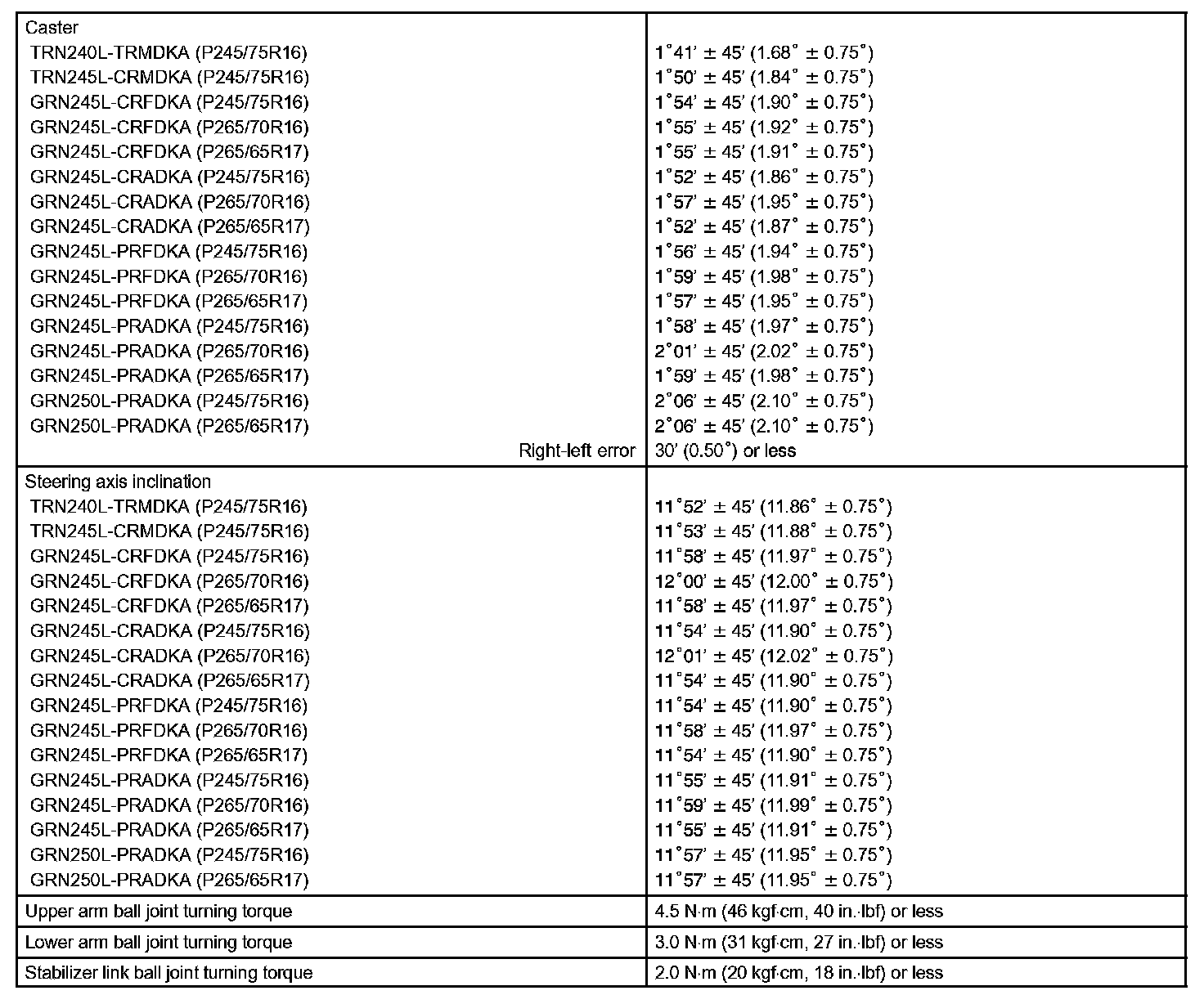

Front Suspension - Service Data Part 2:

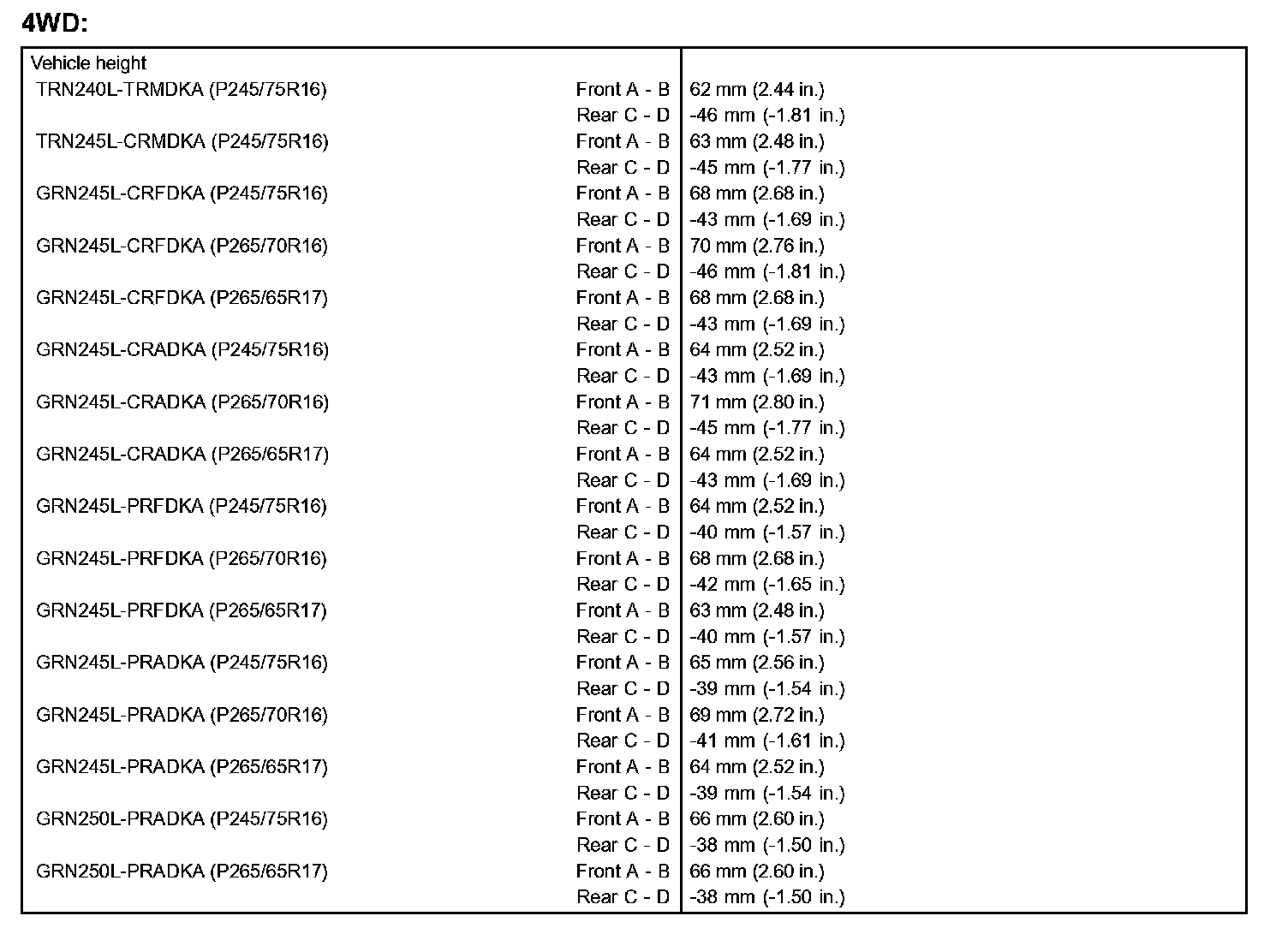

Front Suspension - Service Data Part 3:

Front Suspension - Torque Specification:

Rear Suspension - Service Data:

Rear Suspension - Torque Specification:
