Clutch Switch: Service and Repair

Clutch Switch Assy:

CLUTCH SWITCH ASSEMBLY

REPLACEMENT

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE FRONT FLOOR FOOTREST
3. REMOVE FRONT DOOR SCUFF PLATE LH
4. REMOVE COWL SIDE TRIM BOARD LH
5. REMOVE INSTRUMENT PANEL HOLE COVER (M/T TRANSMISSION)
6. REMOVE INSTRUMENT PANEL UNDER TRAY (A/T TRANSMISSION)
7. SEPARATE HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
8. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER NO.1

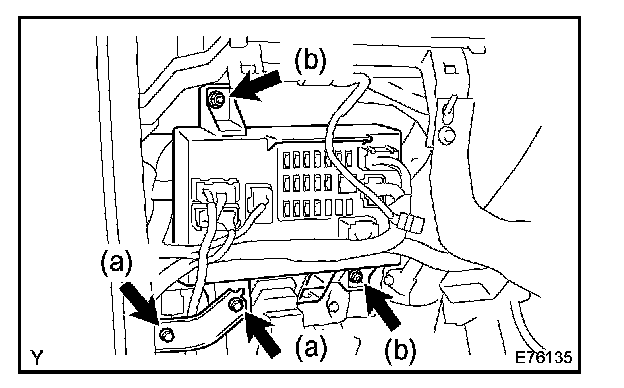

9. SEPARATE DRIVER SIDE JUNCTION BLOCK
a. Remove the 2 bolts and bracket.
b. Remove the 2 nuts and separate the driver side junction block assembly.

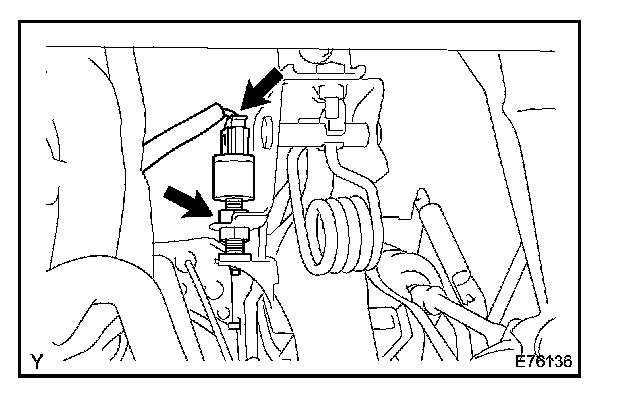

10. REMOVE CLUTCH SWITCH ASSEMBLY
a. Disconnect the connector.
b. Loosen the nut and remove the clutch switch assembly.

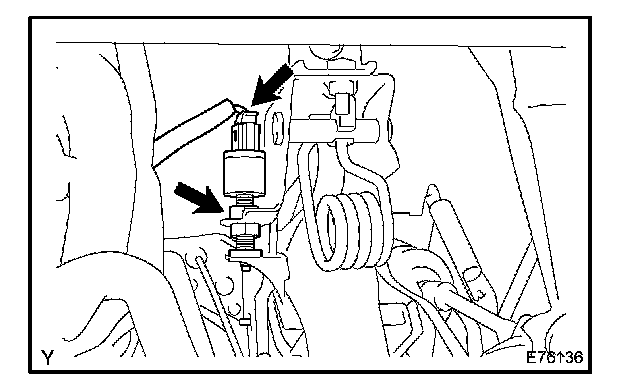

11. INSTALL CLUTCH SWITCH ASSEMBLY
a. Install the clutch switch assembly and tighten the nut.
b. Connect the connector.

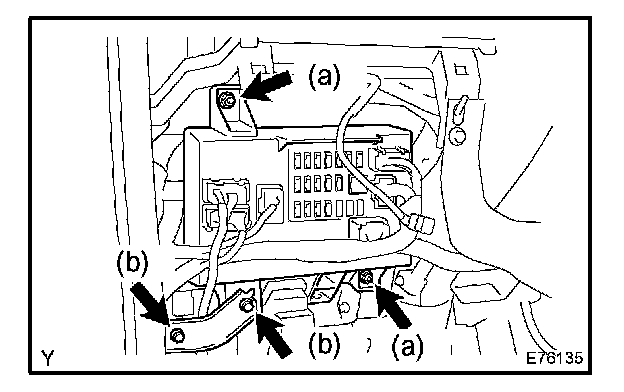

12. INSTALL DRIVER SIDE JUNCTION BLOCK
a. Install the driver side junction block assembly with the 2 nuts.

Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

b. Install the bracket with the 2 bolts.

Torque:8.0 N.m (82 kgf.cm, 71 in.lbf)

13. INSTALL INSTRUMENT PANEL FINISH PANEL LOWER NO.1
14. CONNECT HOOD LOCK CONTROL LEVER SUB-ASSEMBLY
15. INSTALL INSTRUMENT PANEL UNDER TRAY (A/T TRANSMISSION)
16. INSTALL INSTRUMENT PANEL HOLE COVER (M/T TRANSMISSION)
17. INSTALL COWL SIDE TRIM BOARD LH
18. INSTALL FRONT DOOR SCUFF PLATE LH
19. INSTALL FRONT FLOOR FOOTREST

20. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
