Rear Bumper

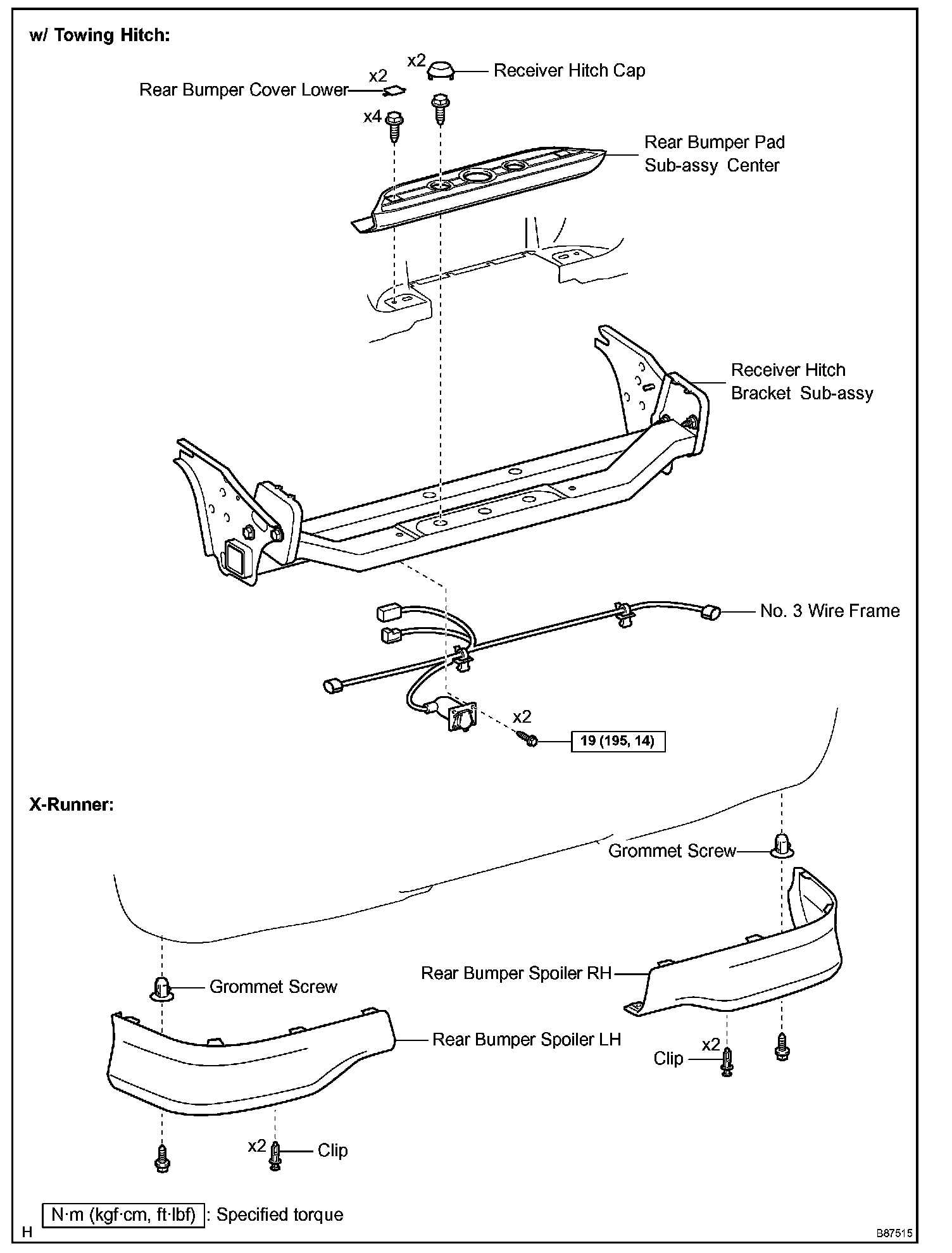

Rear Bumper Bar:

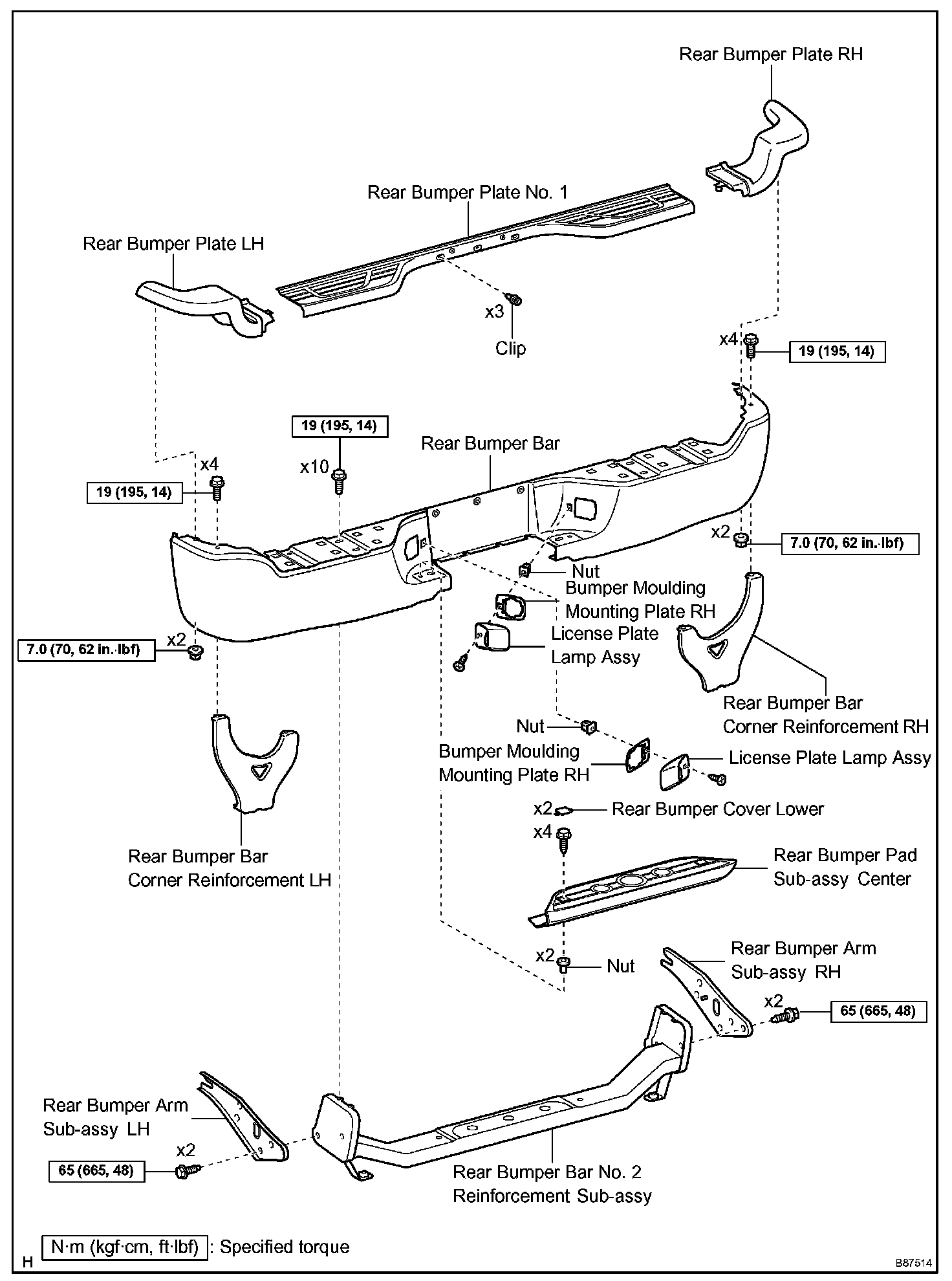

Rear Bumper Bar:

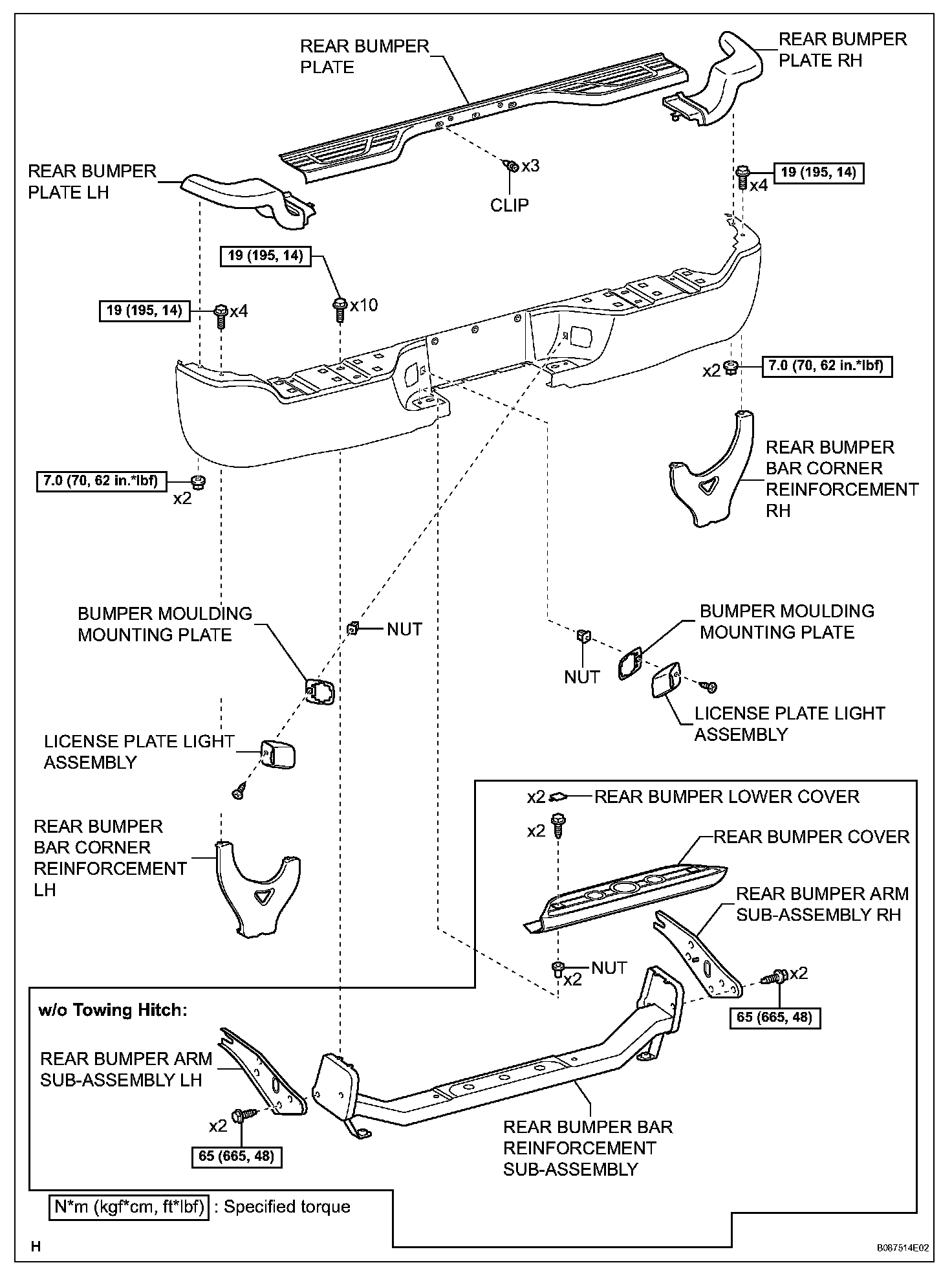

Rear Bumper Bar:

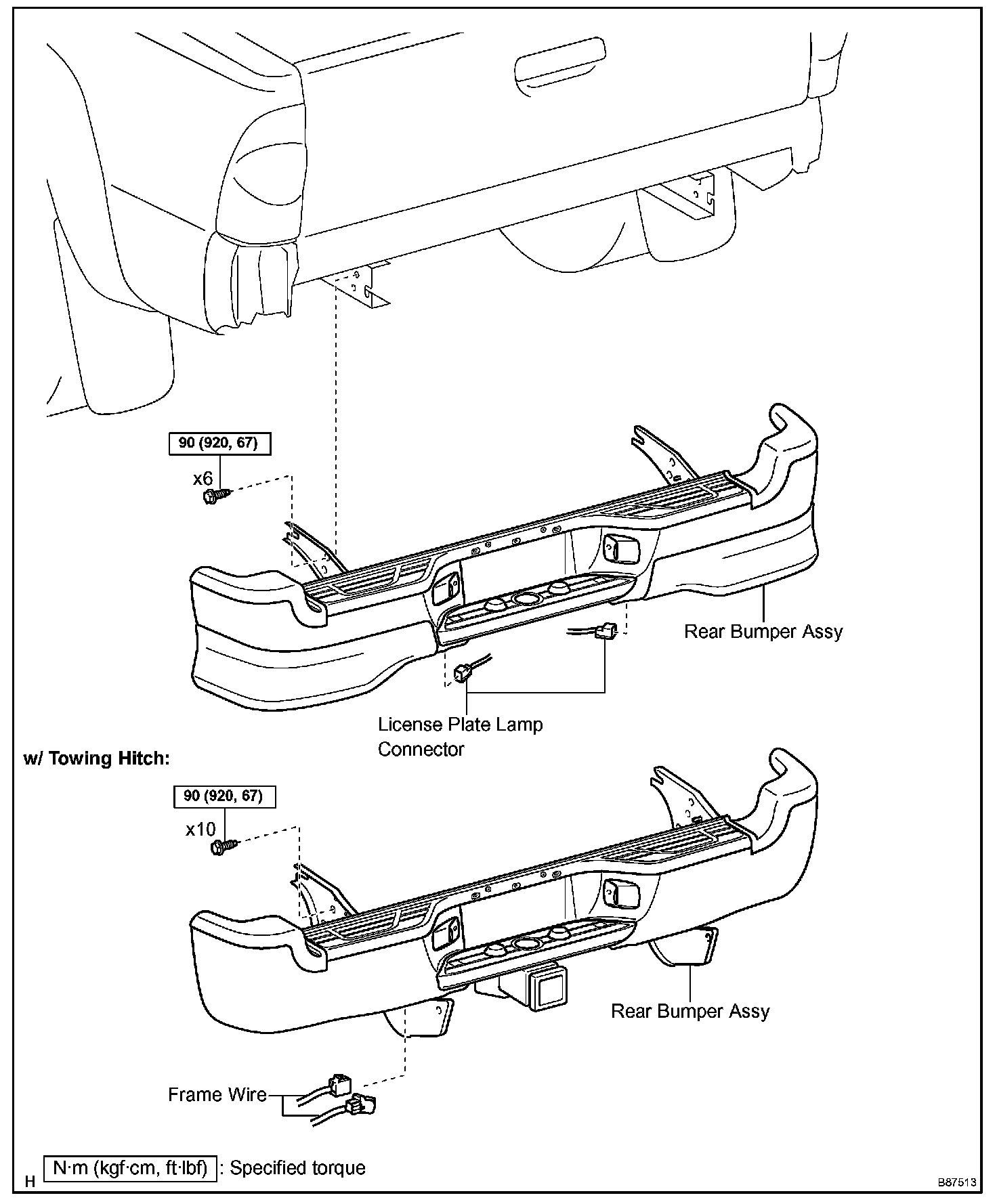

Rear Bumper:



Rear Bumper:



Rear Bumper:
