Control Assembly: Service and Repair

Air Conditioning Control Assy:

AIR-CONDITIONING CONTROL ASSEMBLY

REPLACEMENT

1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL




2. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

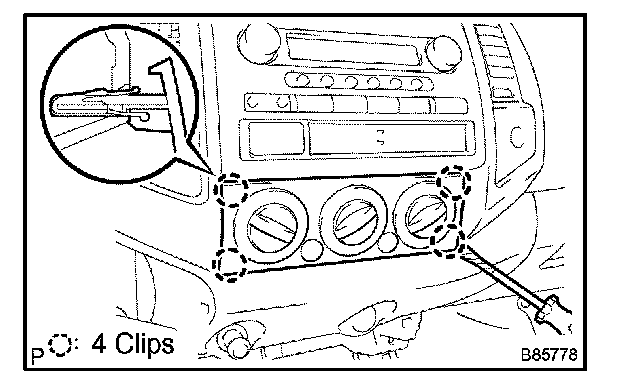

a. Using a screwdriver, disengage the 4 clips and remove the air conditioner control assembly.

HINT: Tape up the screwdriver tip before use.

b. Disconnect the 2 connectors.




3. REMOVE CONTROL KNOB SUB-ASSEMBLY

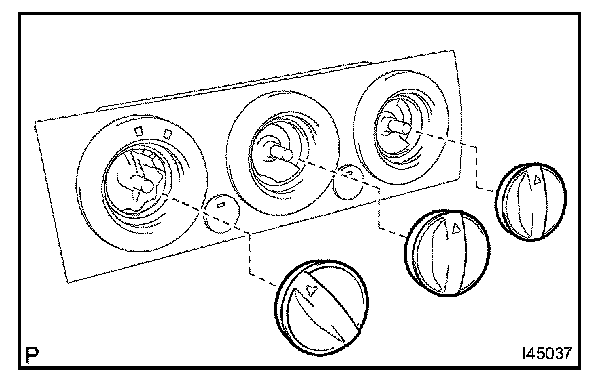

a. Remove the 3 control knob sub-assemblies.




4. REMOVE HEATER CONTROL PANEL

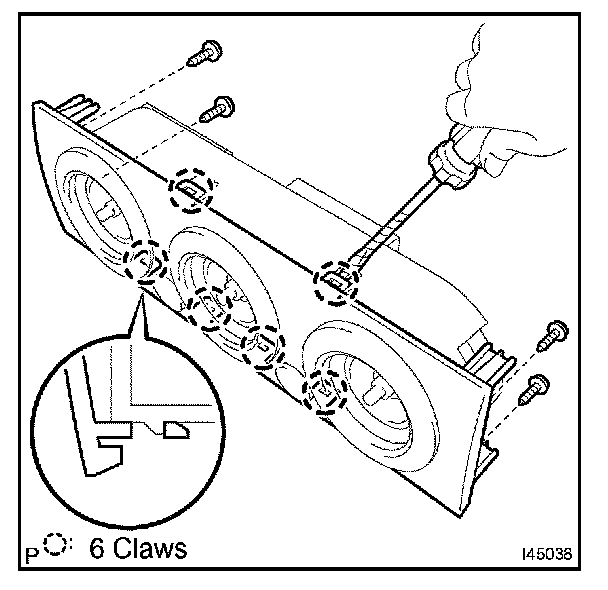

a. Remove the 4 screws.
b. Using a screwdriver, disengage the 6 claws and remove the heater control panel.

HINT: Tape up the screwdriver tip before use.




5. REMOVE A/C SWITCH

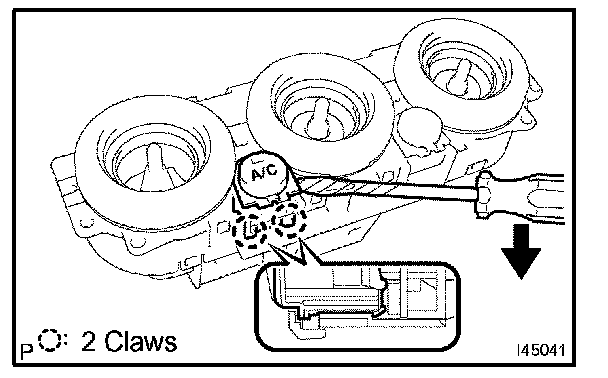

a. Using a screwdriver, pry out the A/C switch.

HINT: Tape up the screwdriver tip before use.




6. REMOVE REC SWITCH

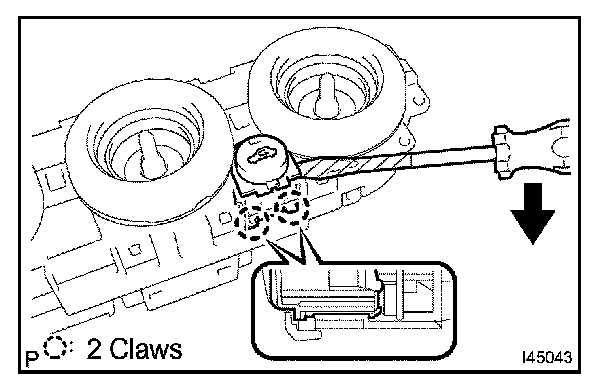

a. Using a screwdriver, pry out the REC switch.

HINT: Tape up the screwdriver tip before use.

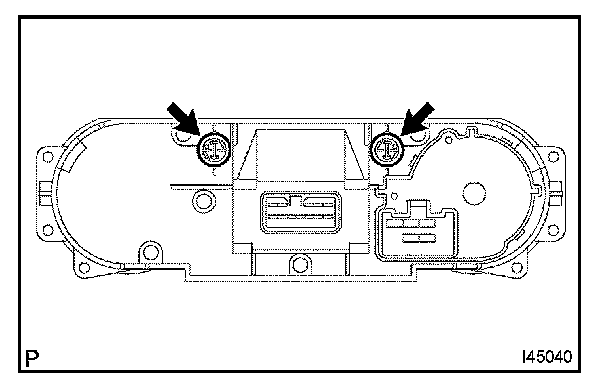

7. REMOVE BULB

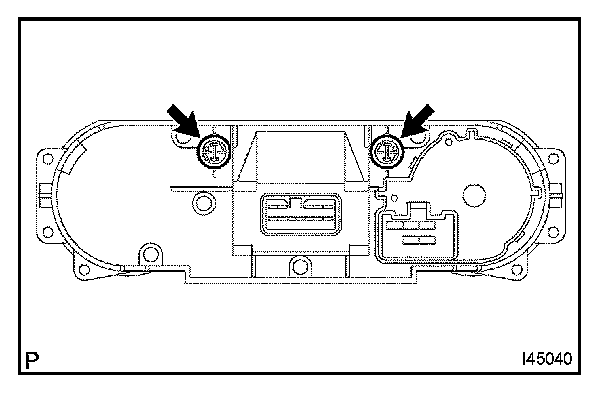

a. Using a screwdriver, turn the 2 bulbs counterclockwise and pull them out.




8. INSTALL BULB
a. Using a screwdriver, turn the 2 bulbs clockwise to install them.




9. INSTALL REC SWITCH

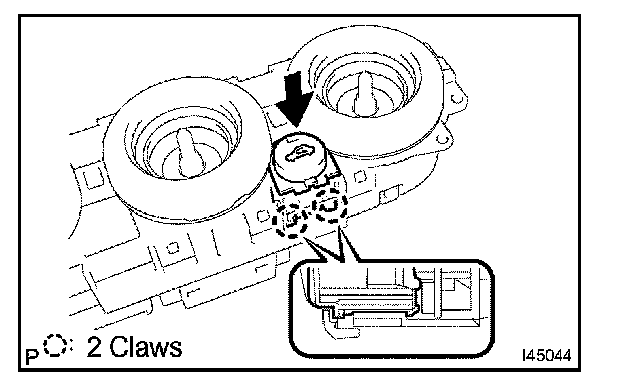

a. Engage the 2 claws and install the REC switch.

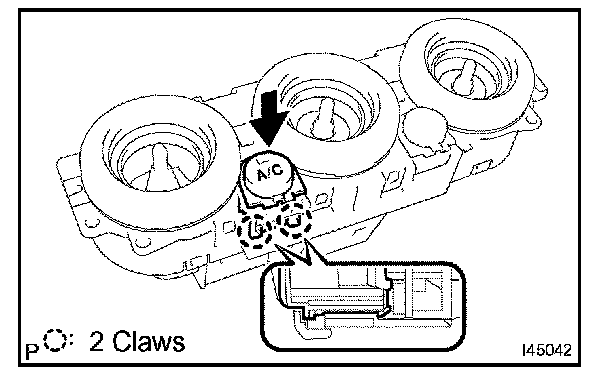

10. INSTALL A/C SWITCH
a. Engage the 2 claws and install the A/C switch.




11. INSTALL HEATER CONTROL PANEL

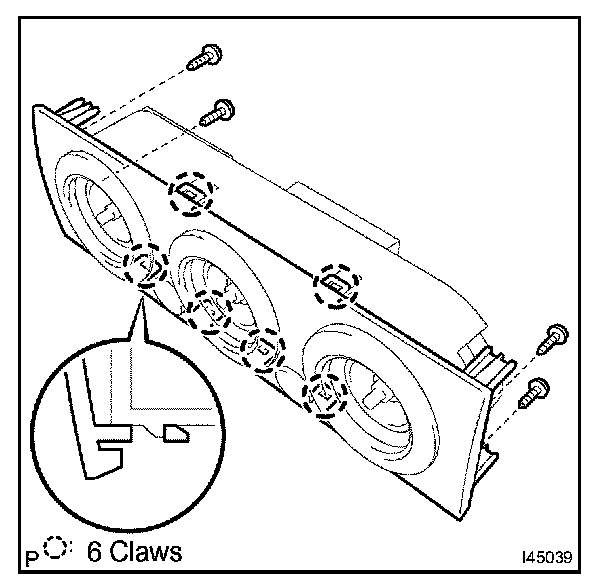

a. Engage the 6 claws and install the heater control panel.
b. Install the 4 screws.




12. INSTALL CONTROL KNOB SUB-ASSEMBLY
a. Install the 3 control knob sub-assemblies.




13. INSTALL AIR CONDITIONING CONTROL ASSEMBLY
a. Connect the 2 connectors.

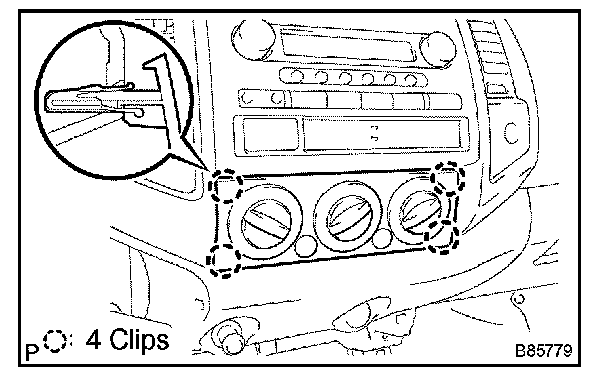

b. Engage the 4 clips and install the air conditioning control assembly.

14. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
