Pinout Values and Diagnostic Parameters

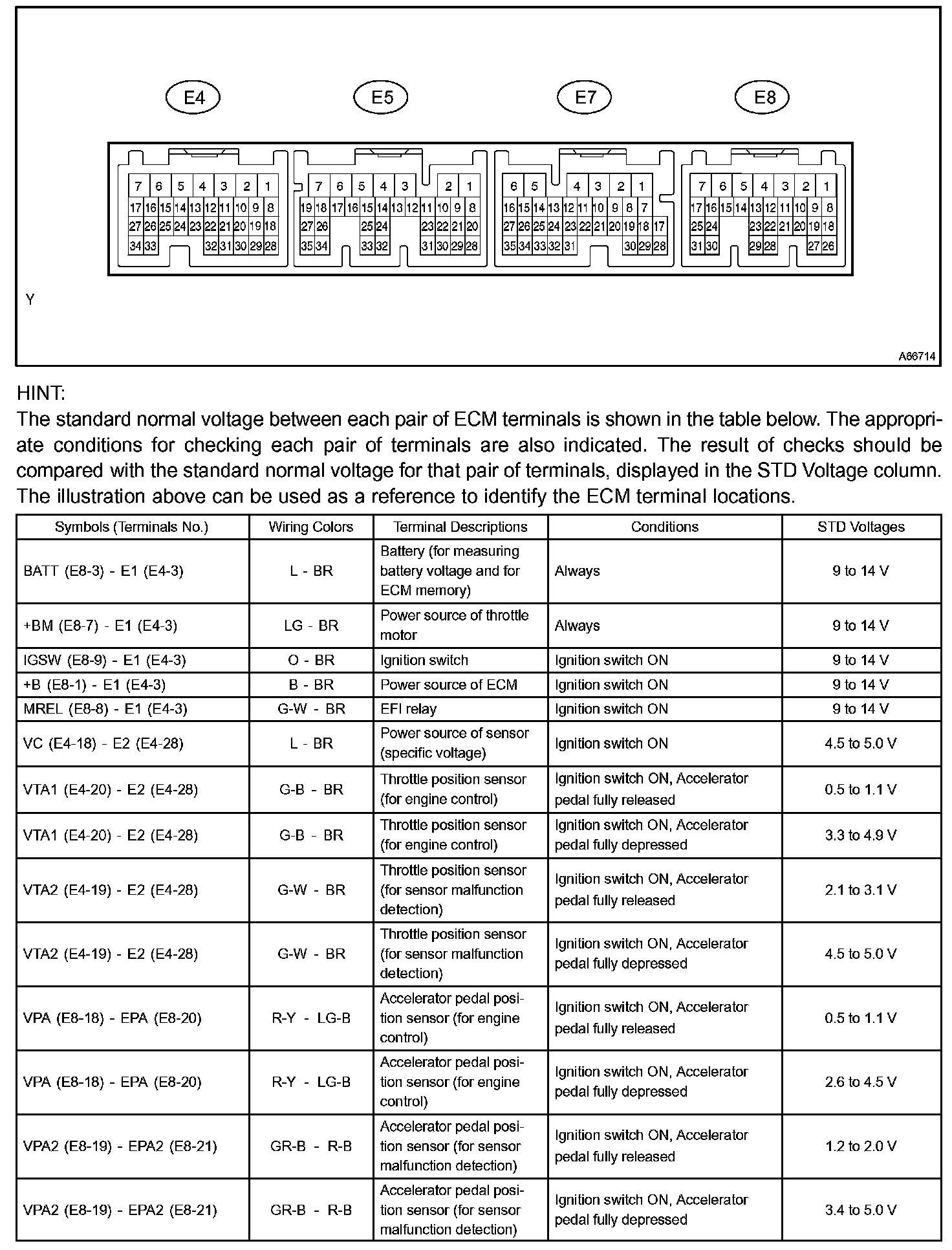

Terminals Of ECM / Pinouts Part 1:

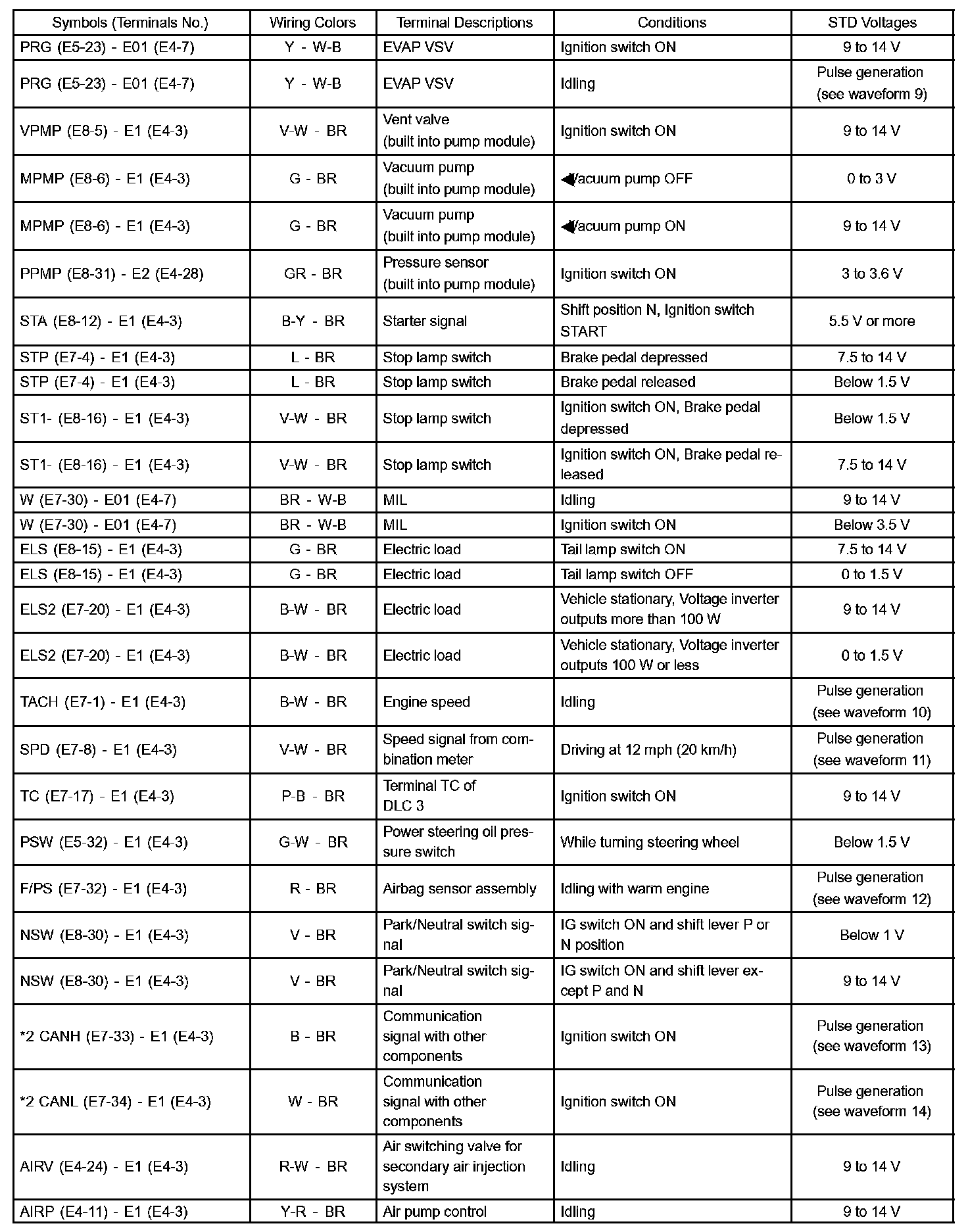

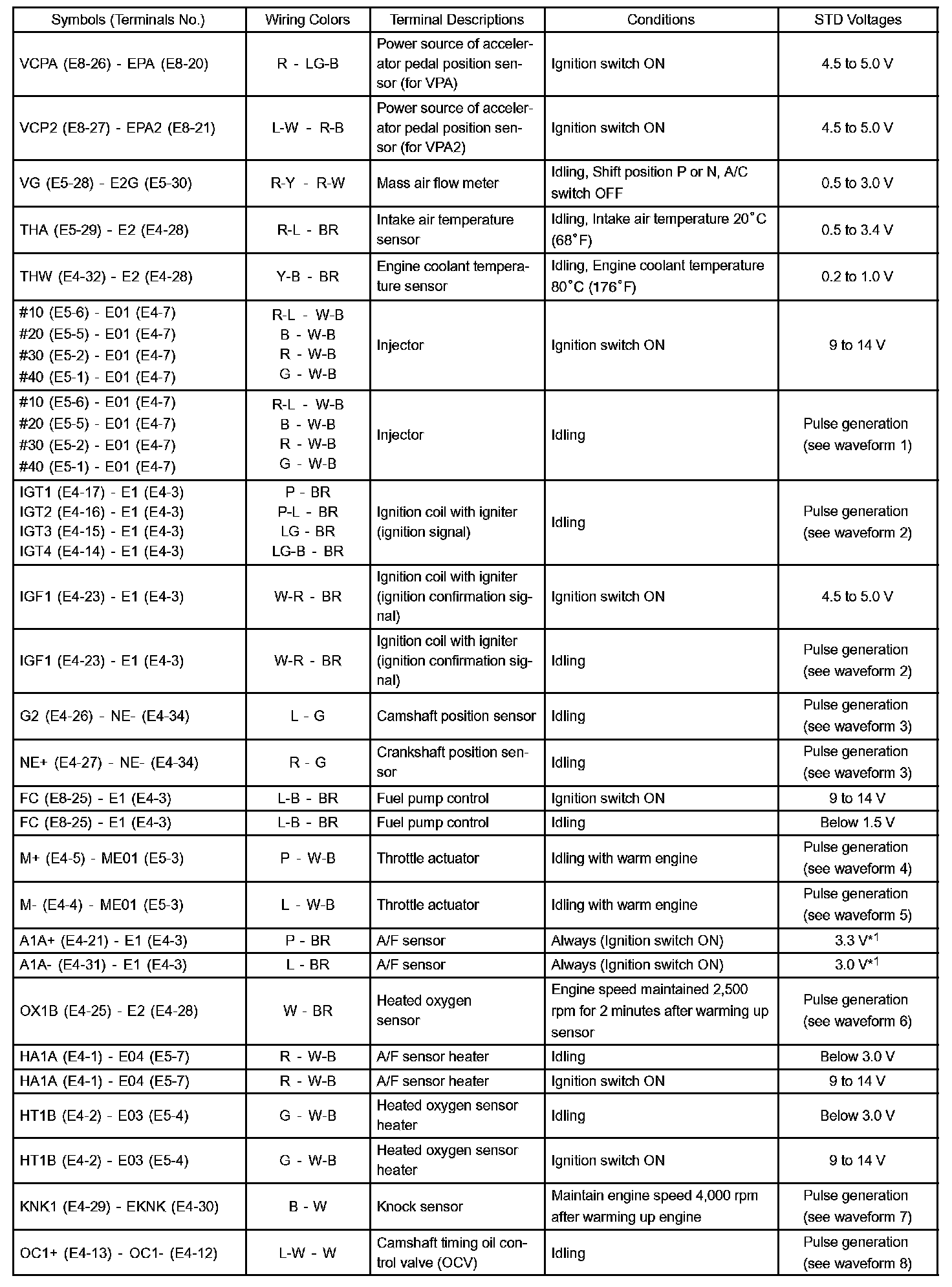

Terminals Of ECM / Pinouts Part 2:



Terminals Of ECM / Pinouts Part 3:

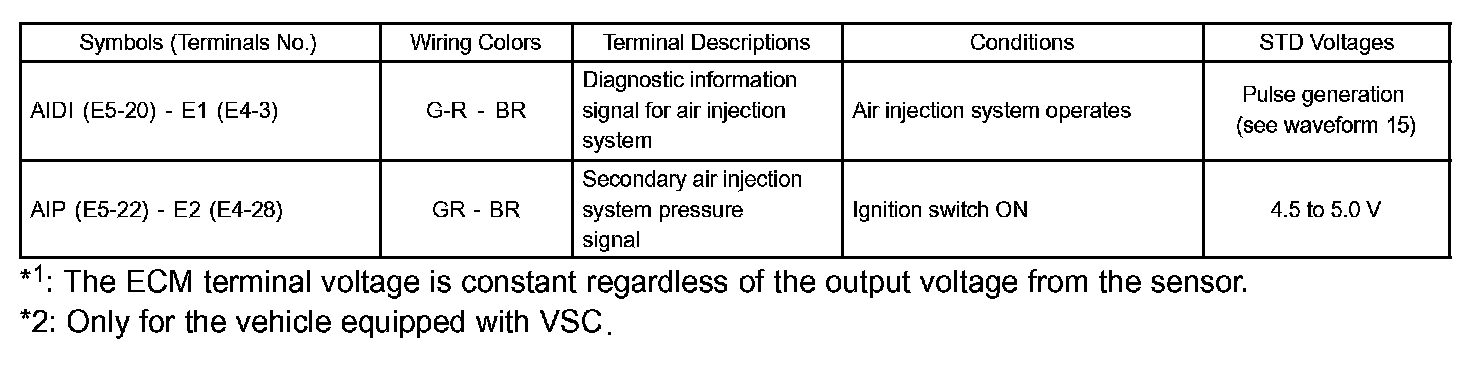

Terminals Of ECM / Pinouts Part 4:

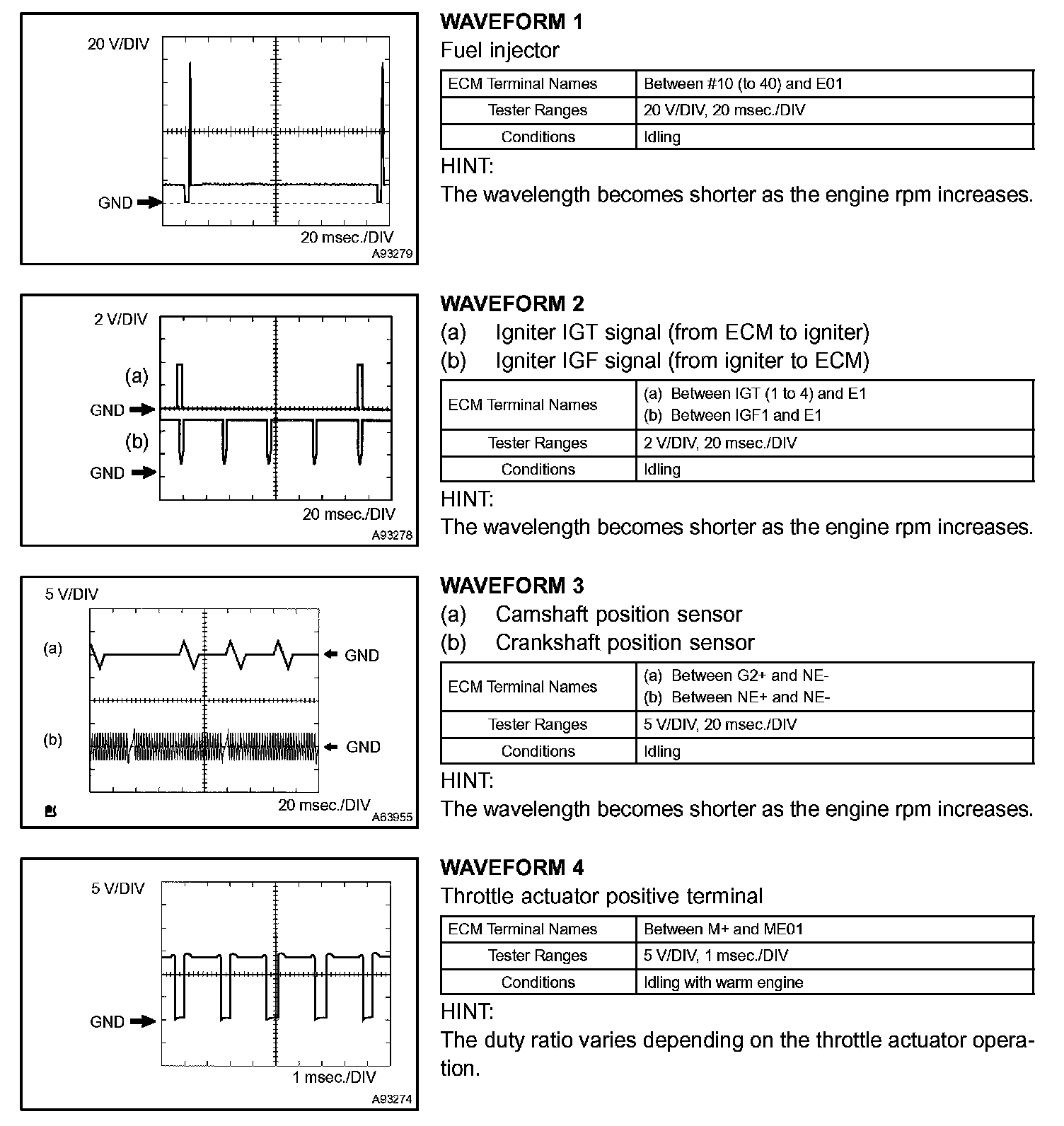

Oscilloscope Waveforms:

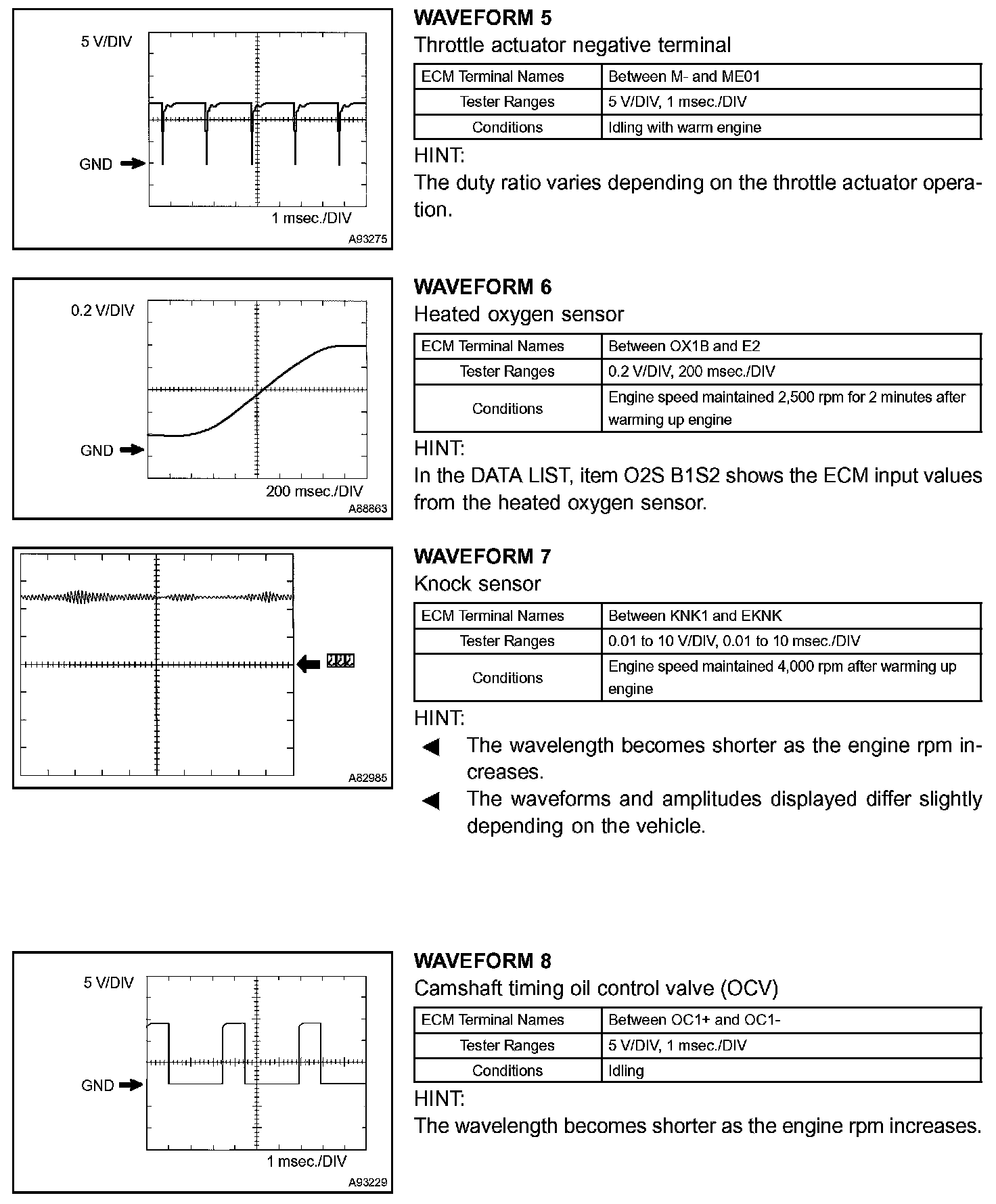

Oscilloscope Waveforms:

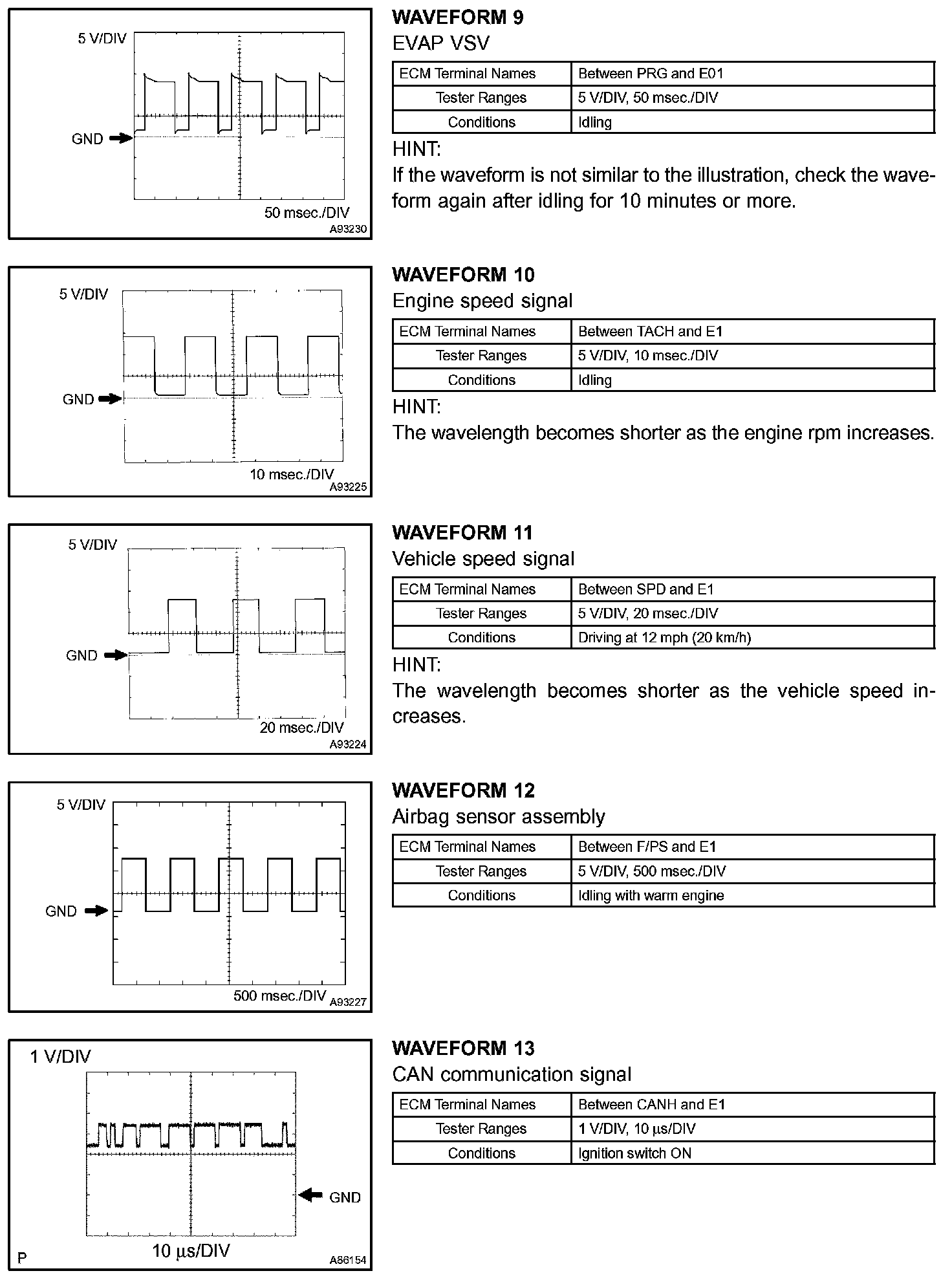

Oscilloscope Waveforms:

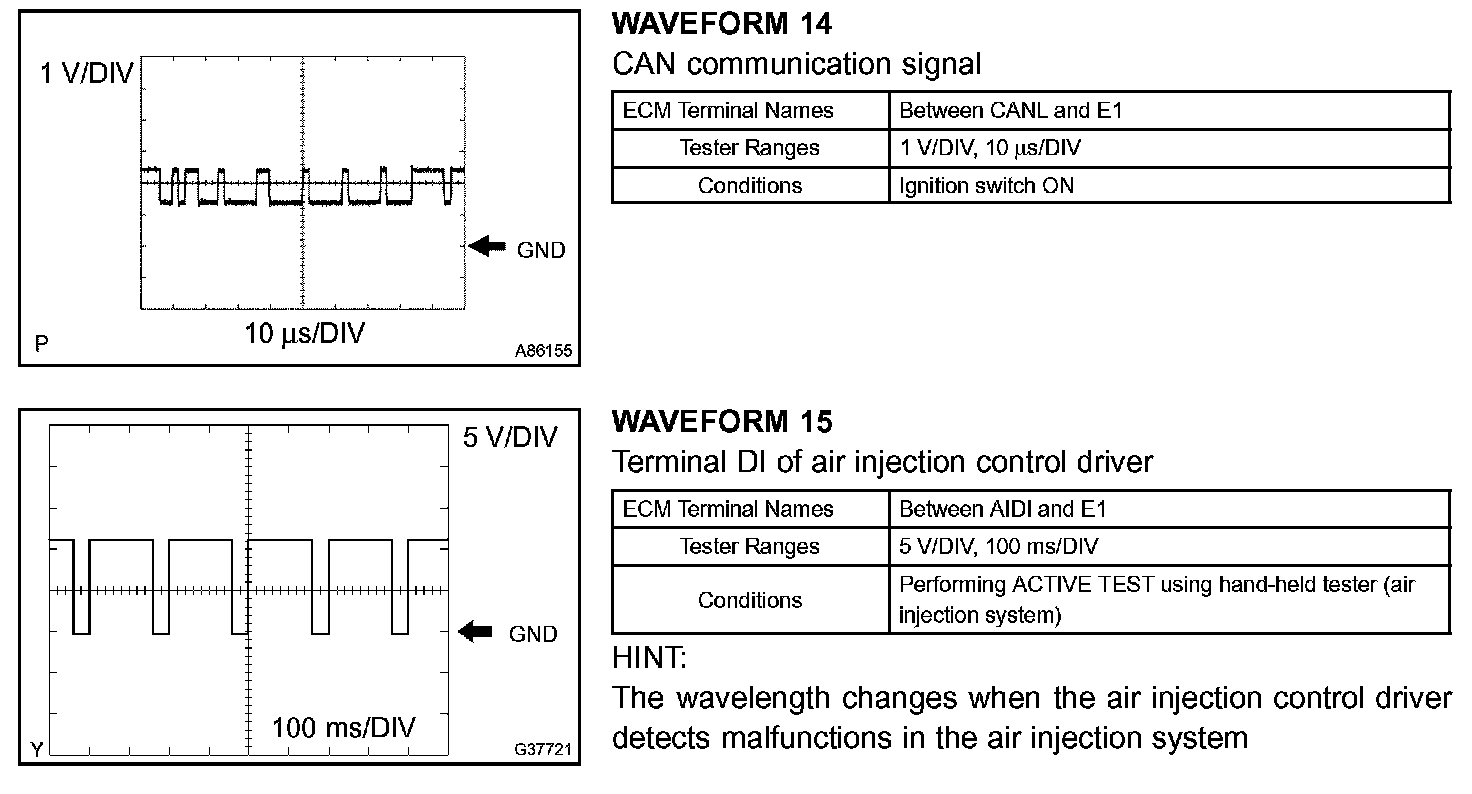

Oscilloscope Waveforms:
