Engine Control Module: Service and Repair
REPLACEMENTNOTE: Perform REGISTRATION (VIN registration) when replacing the ECM.
1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY
3. REMOVE INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER RH

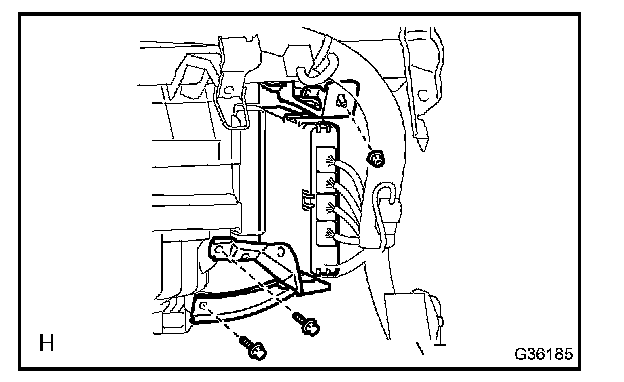

4. REMOVE ECM
a. Disconnect the 4 connectors.
b. Remove the 2 bolts and nut, then remove the ECM.

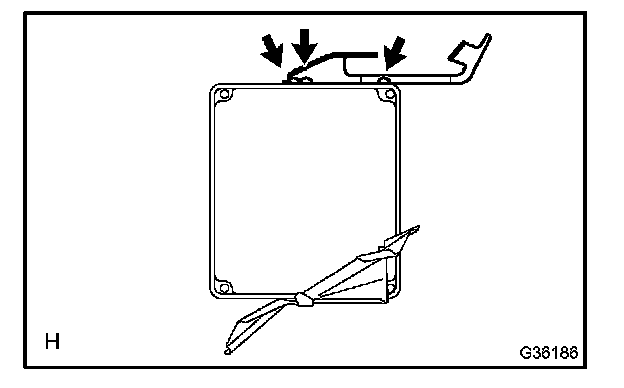

5. REMOVE ECM BRACKET
a. Remove the 3 screws, then remove the ECM bracket.

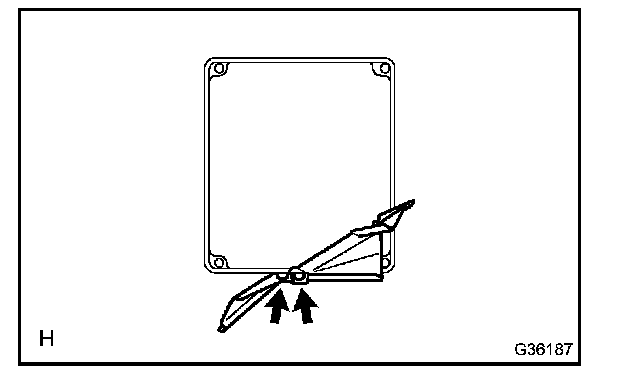

6. REMOVE ECM BRACKET NO.2
a. Remove the 2 screws, then remove the ECM bracket No.2.
7. INSTALL ECM BRACKET NO.2
Torque: 3 N.m (32 kgf.cm, 28 in.lbf)
8. INSTALL ECM BRACKET
Torque: 3 N.m (32 kgf.cm, 28 in.lbf)
9. INSTALL ECM
Torque: 5 N.m (51 kgf.cm, 44 in.lbf)
10. INSTALL INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LOWER RH
11. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Torque: 3.9 N.m (40 kgf.cm, 35 in.lbf)
