Oil Pan, Engine

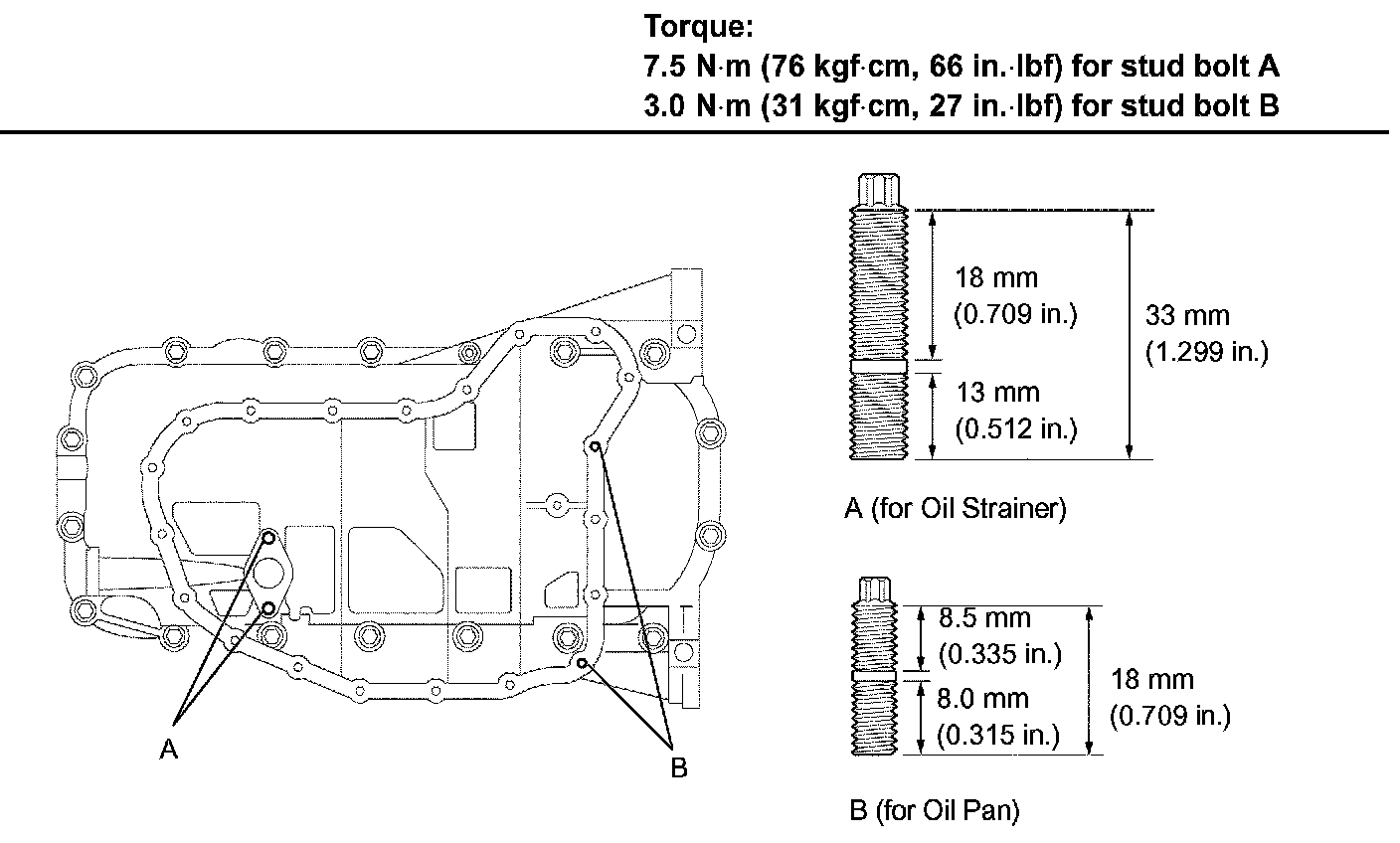

OIL PANInstall the stud bolt.
Using an E5 torx socket wrench, install the stud bolts labeled A for the oil pan as shown in the illustration.
Using an E7 torx socket wrench, install the stud bolts labeled B for the oil strainer as shown in the illustration.
Torque:
7.5 Nm (76 kgf-cm, 66 inch lbs.) for stud bolt A
3.0 Nm (31 kgf-cm, 27 inch lbs.) for stud bolt B

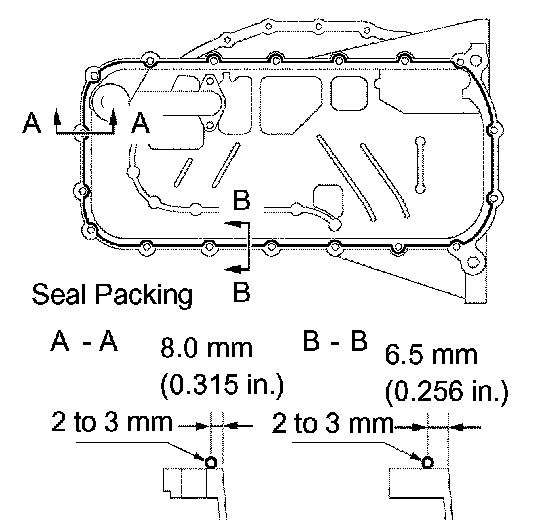

Apply seal packing in a continuous bead as shown in the illustration.
Seal packing: Part No.08826-00080 or equivalent
Seal width: 2 to 3 mm (0.08 to 0.12 inch)
NOTICE:
Remove any oil from the contact surface.
Install the crankcase within 3 minutes after applying seal packing.
Do not start the engine for at least 4 hours after installing.

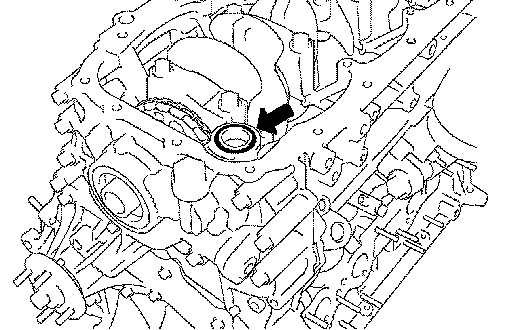

Install a new O-ring.
Temporarily install the oil pan with the 16 bolts and 2 nuts.
HINT: Bolt length:
20 mm (0.79 inch) for bolt A
40 mm (1.57 inch) for bolt B

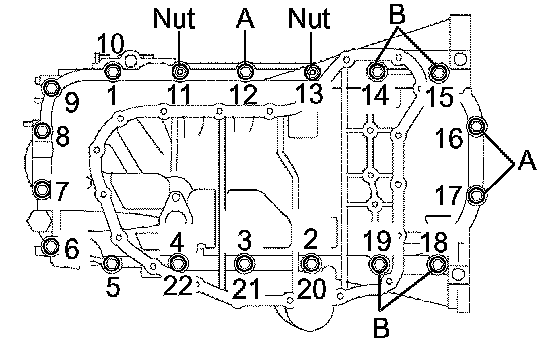

Uniformly tighten the 16 bolts and 2 nuts in the sequence shown in the illustration.
Torque 26 Nm (265 kgf-cm, 19 ft. lbs.)
