B2796

DTC B2796 NO COMMUNICATION IN IMMOBILIZER SYSTEM

CIRCUIT DESCRIPTION

DTC Detection Condition:

This DTC is output when a key that does not have a transponder chip is inserted into the ignition key cylinder or if communication between the key and transponder key ECU is not possible.

Wiring Diagram:

Step 1 - 3:

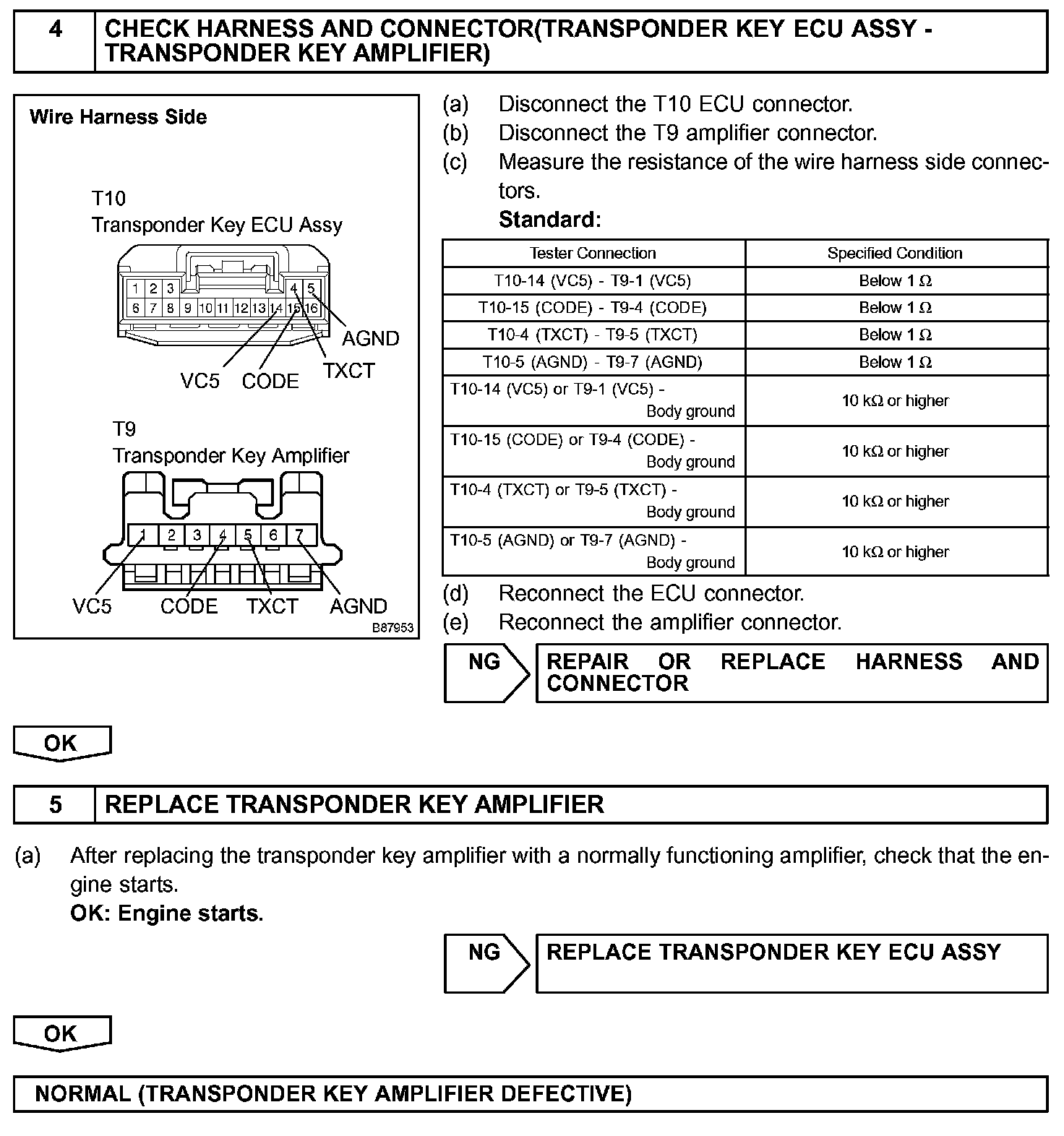

Step 4 - 5:

INSPECTION PROCEDURE
