C1202

DTC C1202 BRAKE FLUID LEVEL LOW/OPEN CIRCUIT IN BRAKE FLUID LEVEL WARNING SWITCH CIRCUIT

CIRCUIT DESCRIPTION

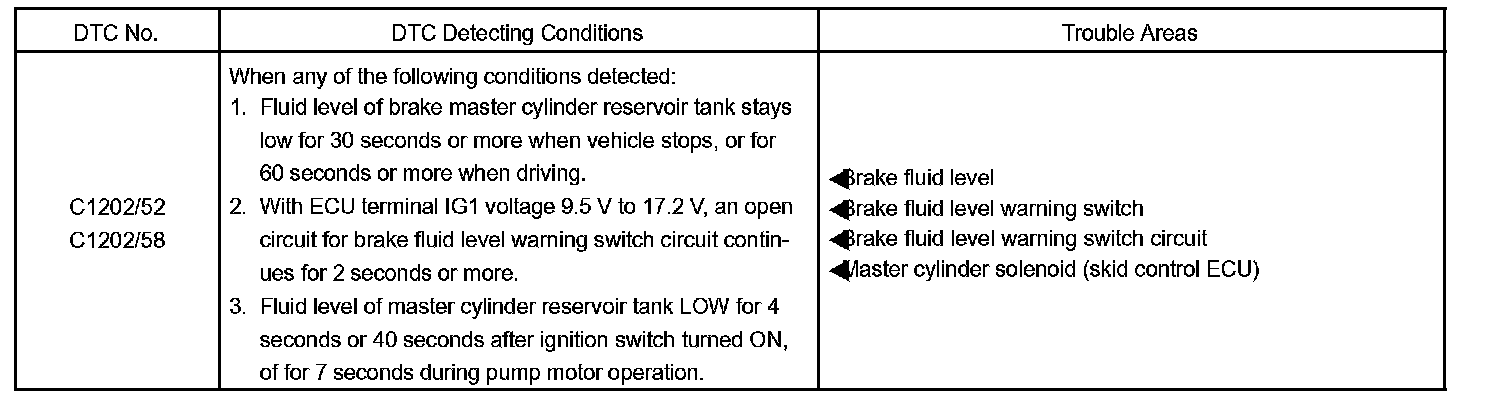

DTC Detecting Conditions:

The brake fluid level warning switch sends the appropriate signal to the skid control ECU when the brake fluid level drops.

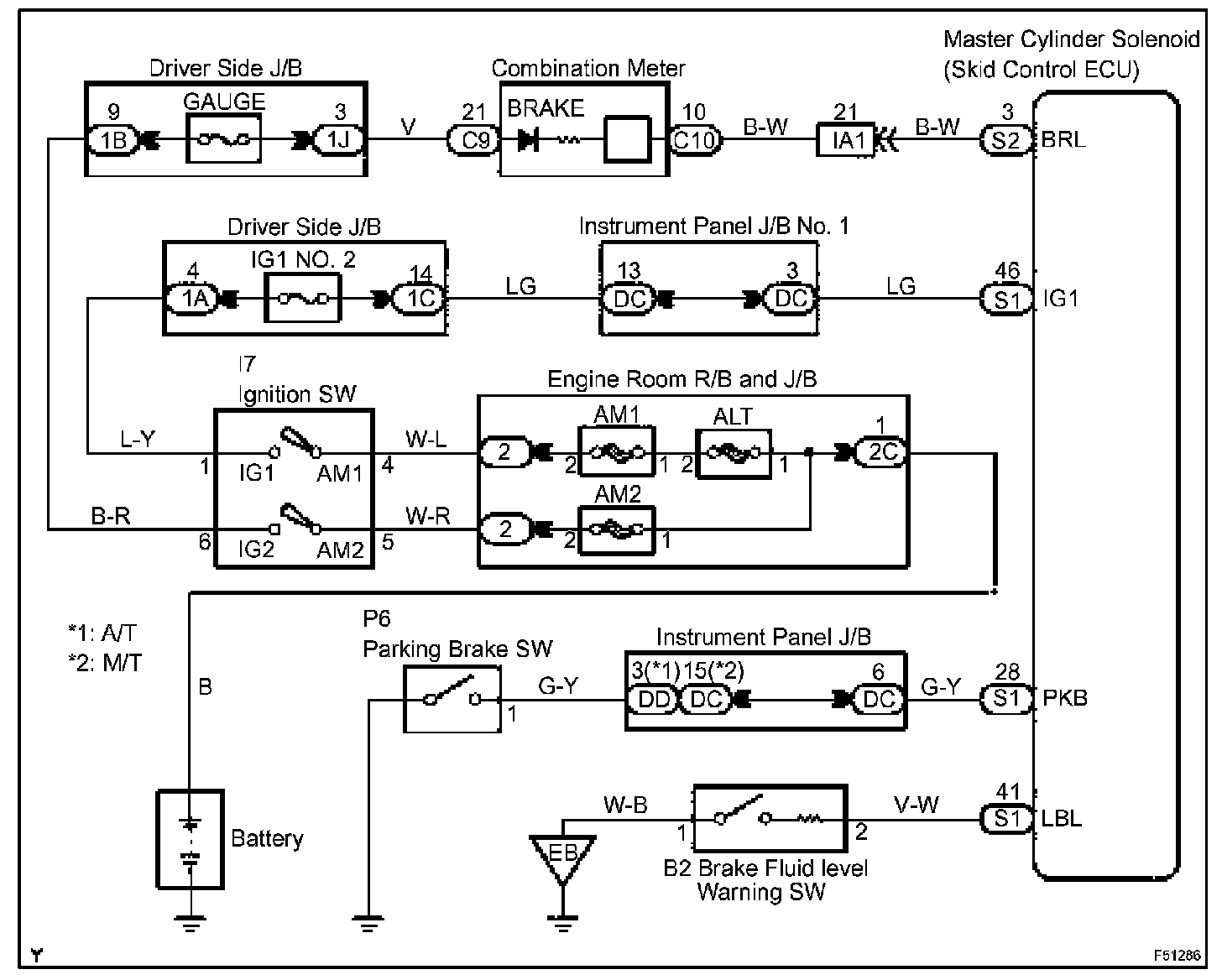

Wiring Diagram:

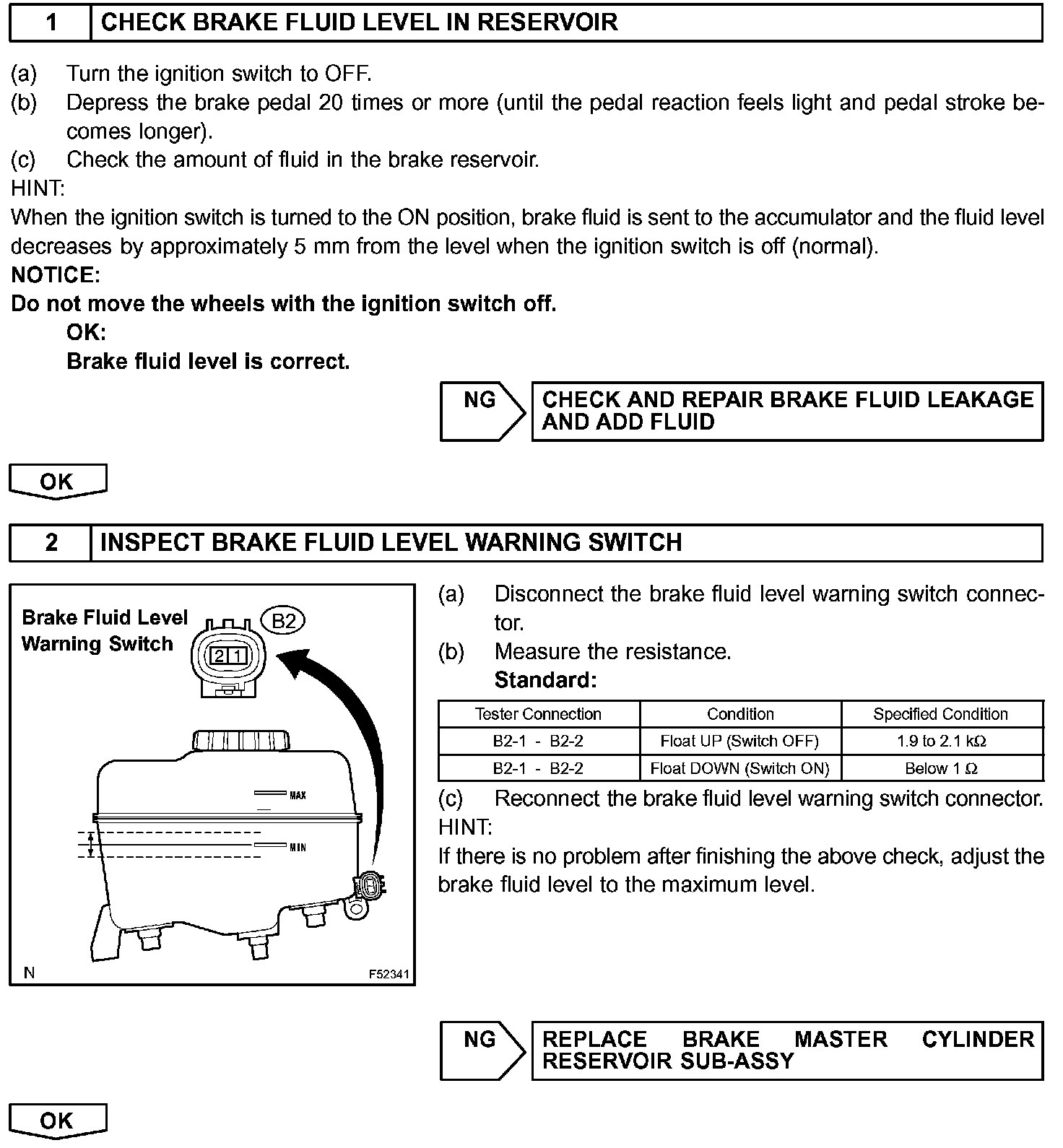

Step 1 - 2:

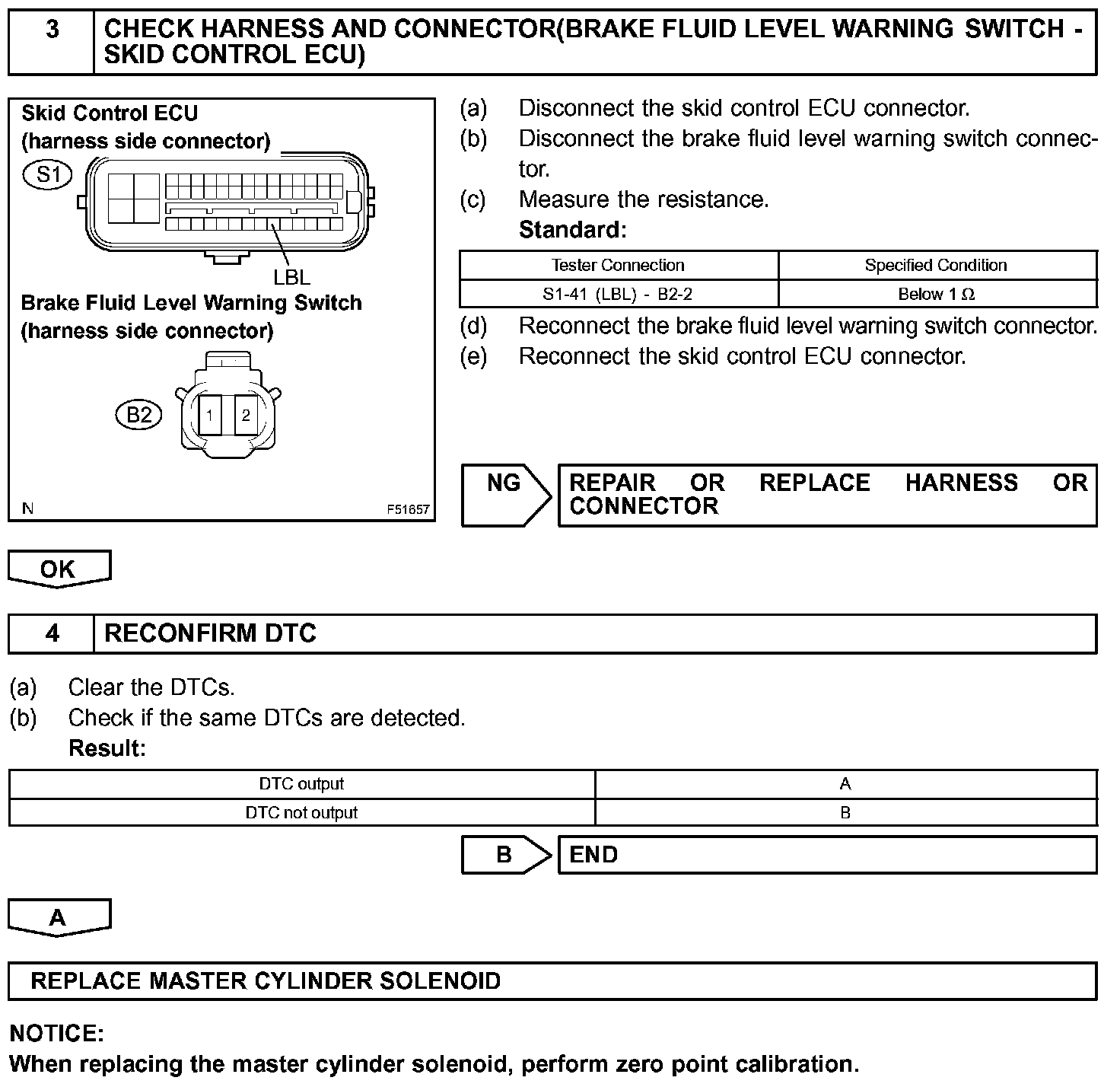

Step 3 - 4:

INSPECTION PROCEDURE

HINT: When C1241/41 is output together with C1202/52 or C1202/58, inspect and repair the trouble areas indicated by C1241/41 first.
