ABS W/EBD System

DTC C1239 METAL STICK TO SPEED SENSOR (RL)

CIRCUIT DESCRIPTION

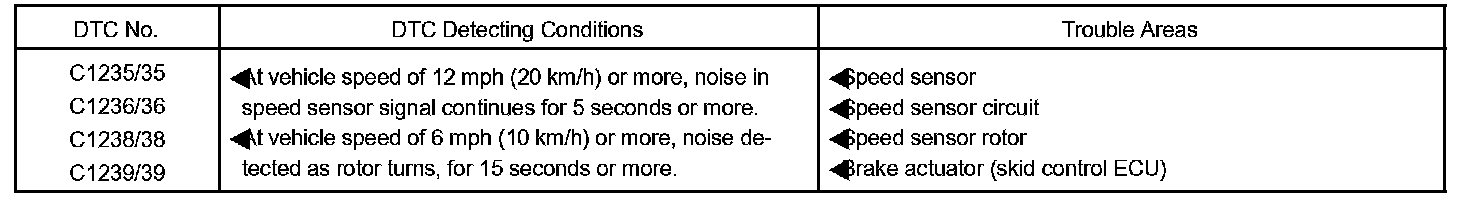

DTC Detecting Conditions:

The Skid Control ECU sets this DTC if, according to abnormal signals input by the sensor, it detects that foreign material is adhering to the speed sensor tip or the sensor rotor, or the rotor has any missing teeth. This DTC may be set if parts such as the speed sensor circuit connector or wire harness are malfunctioning.

HINT:
DTC C1235/35 relates to the right front speed sensor.
DTC C1236/36 relates to the left front speed sensor.
DTC C1238/38 relates to the right rear speed sensor.
DTC C1239/39 relates to the left rear speed sensor.

Wiring Diagram:

Step 1:

Step 2 - 3:

Step 4:

INSPECTION PROCEDURE
