ABS W/EBD System

DTC 12 +B SHORT CIRCUIT IN ABS SOLENOID RELAY CIRCUIT

CIRCUIT DESCRIPTION

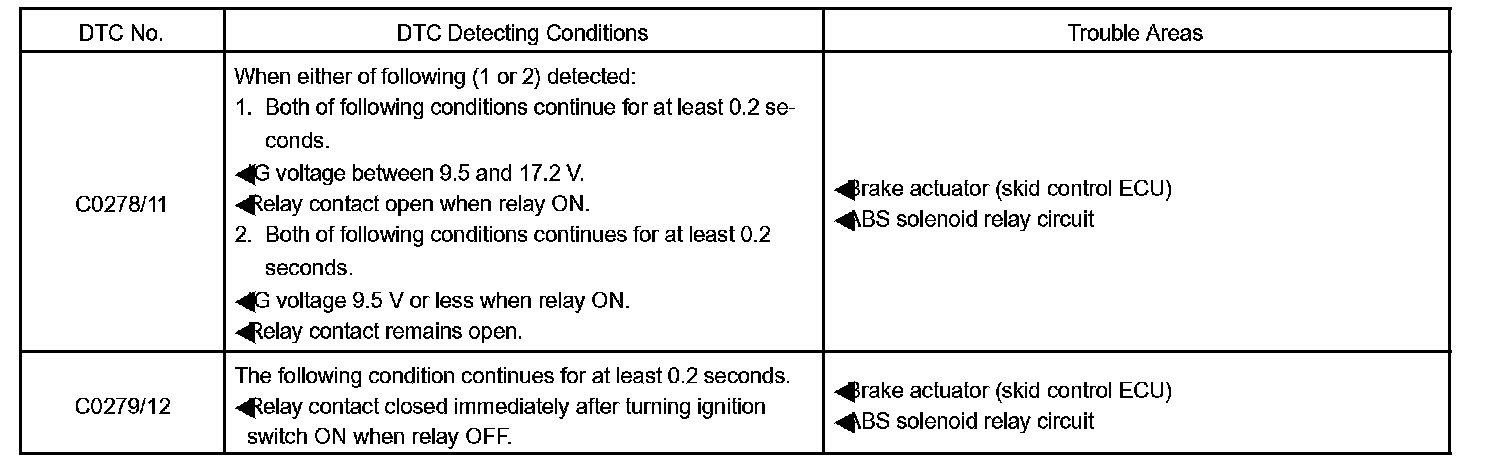

DTC Detecting Conditions:

This relay supplies power to each ABS solenoid. After the ignition switch is turned ON, if the results of initial check are normal, the relay goes on.

Wiring Diagram:

Step 1 - 2:

INSPECTION PROCEDURE
