P0986

DTC P0986 SHIFT SOLENOID "E" CONTROL CIRCUIT HIGH (SHIFT SOLENOID VALVE SR)

CIRCUIT DESCRIPTION

DTC Detection Conditions:

Shifting from 1st to 5th is performed in combination with the ON and OFF operation of the shift solenoid valves S1, S2, SR, SL1 and SL2 which are controlled by the ECM. If an open or short circuit occurs in any of the shift solenoid valves, the ECM controls the remaining normal shift solenoid valves to allow the vehicle to be driven smoothly (Fail-safe functions).

MONITOR DESCRIPTION

Monitor Strategy:

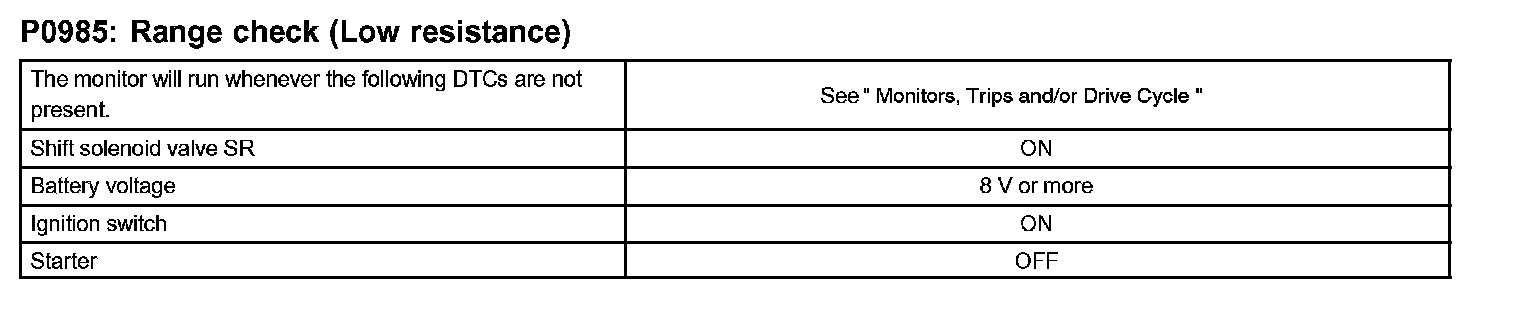

Typical Enabling Conditions Part 1:

Typical Enabling Conditions Part 2:

Typical Malfunction Thresholds:

Component Operating Range:

These DTCs indicate an open or short in the shift solenoid valve SR circuit. When there is an open or short circuit in any shift solenoid valve circuits, the ECM detects the problem and illuminates the MIL and stores the DTC. When the shift solenoid valve SR is on, if the resistance is 8 ohm or less, the ECM determines that there is a short malfunction in the shift solenoid valve SR circuit.

When the shift solenoid valve SR is off, if the resistance is 100 kOhms or more, the ECM determines that the shift solenoid valve SR circuit is open.

Wiring Diagram:

Step 1 - 3:

Step 3 (contd.):

INSPECTION PROCEDURE






HINT: The shift solenoid valve SR is turned on/off normally when the shift lever is in the D position:
