Check Mode Procedure

CHECK MODE PROCEDURE

CHECK MODE (SIGNAL CHECK) (USING HAND-HELD TESTER)

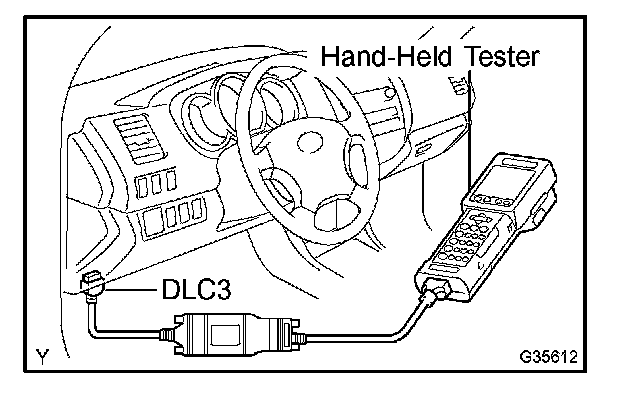

a. Connect the hand-held tester to the DLC3.
b. Turn the ignition switch to the ON position and turn the tester on.
c. Select the SIGNAL CHECK on the tester, and proceed checking with the tester.
