P2197
DTC P2197 OXYGEN (A/F) SENSOR SIGNAL STUCK LEAN (BANK 2 SENSOR 1)HINT:
- Although the DTC titles say oxygen sensor, these DTCs relate to the Air-Fuel Ratio (A/F) sensor.
- Sensor 1 refers to the sensor mounted in front of the Three-Way Catalytic Converter (TWC) and located near the engine assembly.
CIRCUIT DESCRIPTION
DTC Detection Conditions:
The A/F sensor generates a voltage* that corresponds to the actual air-fuel ratio. This sensor voltage is used to provide the ECM with feedback so that it can control the air-fuel ratio. The ECM determines the deviation from the stoichiometric air-fuel ratio level, and regulates the fuel injection time. If the A/F sensor malfunctions, the ECM is unable to control the air-fuel ratio accurately.
The A/F sensor is the planar type and is integrated with the heater, which heats the solid electrolyte (zirconia element). This heater is controlled by the ECM. When the intake air volume is low (the exhaust gas temperature is low), a current flows into the heater to heat the sensor, in order to facilitate accurate air-fuel ratio detection. In addition, the sensor and heater portions are narrower than the conventional type. The heat generated by the heater is conducted to the solid electrolyte though the alumina, therefore the sensor activation is accelerated.
In order to obtain a high purification rate of the carbon monoxide (CO), hydrocarbon (HC) and nitrogen oxide (NOx) components in the exhaust gas, a TWC is used. For the most efficient use of the TWC, the air-fuel ratio must be precisely controlled so that it is always close to the stoichiometric level.
*: Value changes inside the ECM. Since the A/F sensor is the current output element, a current is converted to a voltage inside the ECM. Any measurements taken at the A/F sensor or ECM connectors will show a constant voltage.
HINT:
- When any of these DTCs are set, check the A/F sensor voltage output by selecting the following menu items on a hand-held tester: DIAGNOSIS / ENHANCED OBD II / DATA LIST / ALL / AFS B1S1.
- Short-term fuel trim values can also be read using a hand-held tester.
MONITOR DESCRIPTION
Monitor Strategy:
Typical Enabling Conditions:
Typical Malfunction Thresholds:
A rich air-fuel mixture causes a low air-fuel ratio sensor current, and a lean air fuel mixture causes a high air fuel ratio sensor current. Therefore, the sensor output becomes high during acceleration, and the sensor becomes low during deceleration.
The ECM monitors the air-fuel ratio sensor current during fuel-cut and detects an unusual current value. If the cumulative time the sensor output is out of range exceeds more than 3 seconds, the ECM interprets a malfunction in the air-fuel ratio sensor and sets a DTC.
MONITOR RESULT
Refer to Monitors, Trips and/or Drive Cycle for detailed information.
The test value and test limit information are described as shown in the table. Check the monitor result and test values after performing the monitor drive pattern.
- TID (Test Identification Data) is assigned to each emissions-related component.
- TLT (Test Limit Type):
If TLT is 0, the component is malfunctioning when the test value is higher than the test limit.
If TLT is 1, the component is malfunctioning when the test value is lower than the test limit.
- CID (Component Identification Data) is assigned to each test value.
- Unit Conversion is used to calculate the test value indicated on generic OBD scan tools.
Wiring Diagram:
CONFIRMATION DRIVING PATTERN
HINT: This confirmation driving pattern is used in steps 2, 4, 7, 17 and 21 of the diagnostic troubleshooting procedure when using a hand-held tester.
a. Connect the hand-held tester to DLC3.
b. Turn the ignition switch to ON and turn the tester ON.
c. Clear DTC.
d. Start the engine, and warm it up until the ECT reaches 75°C (167°F) or higher.
e. On the hand-held tester, select the following menu items: DIAGNOSIS/ENHANCED OBD II/DATA LIST/FC IDL.
f. Drive the vehicle at 40 mph (64 km/h) or more for at least 10 minutes.
g. Change the transmission to 2nd gear.
h. Drive the vehicle at proper vehicle speed to perform fuel-cut operation.
HINT:
Fuel-cut is performed under following conditions met:
- Accelerator pedal fully released.
- Engine speed 2,500 rpm or more (fuel injection returns at 1,000 rpm).
i. Accelerate the vehicle to 30 mph (48 km/h) or more by depressing the accelerator pedal for at least 10 seconds.
j. Soon after performing step (8) above, release the accelerator pedal for at least 4 seconds without depressing the brake pedal, in order to execute fuel-cut control.
k. Stop the vehicle and allow the engine to idle for 10 seconds or more.
l. Allow the vehicle to decelerate until the vehicle speed declines to less than 6 mph (10 km/h).
m. Repeat steps from (8) through (10) above at least 3 times in one driving cycle.
HINT: Completing all A/F sensor monitors are required to change the value in TEST RESULT.
CAUTION: Strictly observe of posted speed limits, traffic laws, and road conditions when performing these drive pattern.
Step 1 - 2:
Step 3:
Step 3 (Continued) - 5:
Step 6 - 9:
Step 10 - 11:
Step 12:
Step 12 (continued) - 15:
Step 16 - 19:

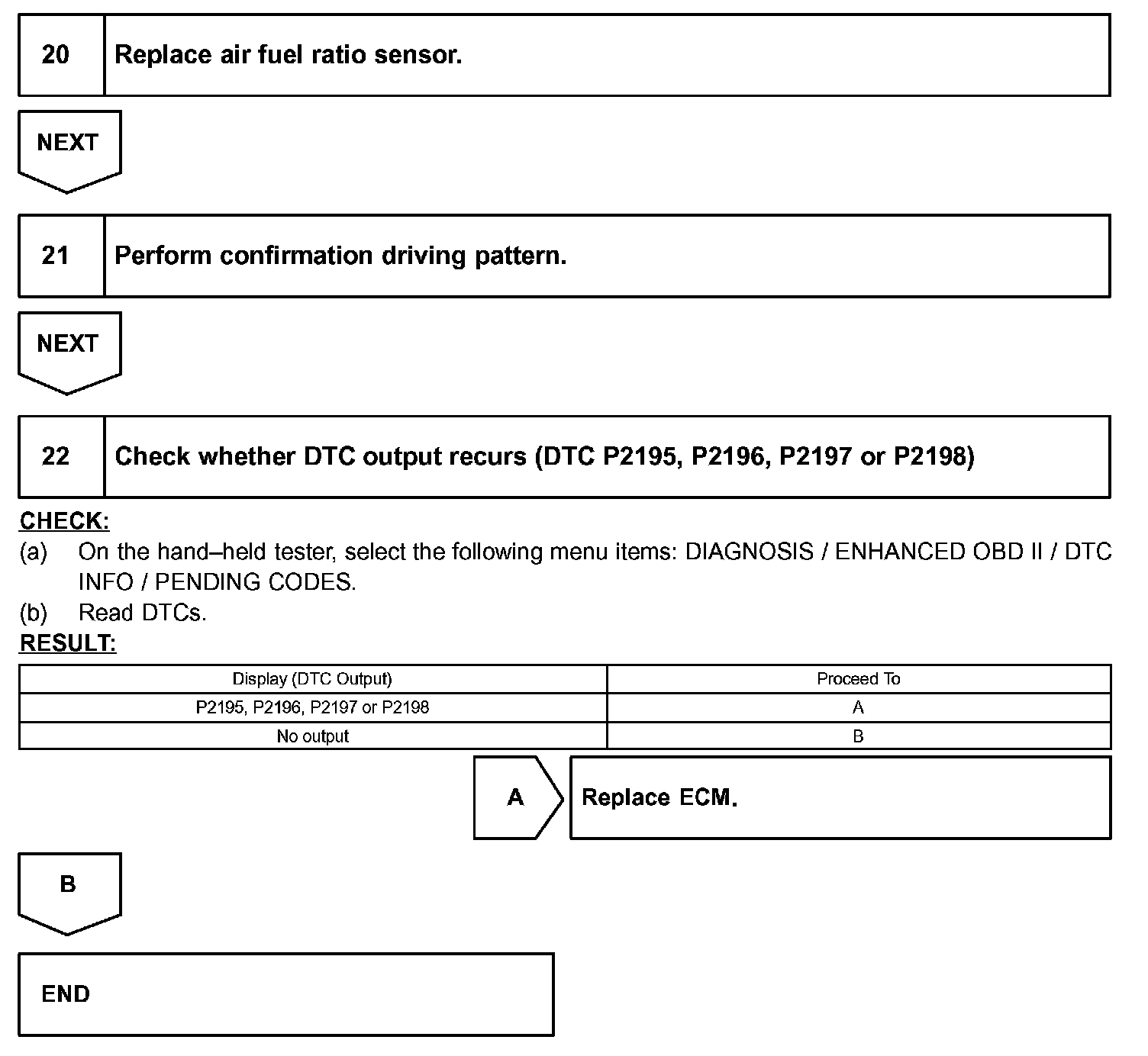

Step 20 - 22:
INSPECTION PROCEDURE
HINT: Malfunctioning areas can be identified by performing the A/F CONTROL function provided in the ACTIVE TEST. The A/F CONTROL function can help to determine whether the Air-Fuel Ratio (A/F) sensor, Heated Oxygen (HO2) sensor and other potential trouble areas are malfunctioning.
The following instructions describe how to conduct the A/F CONTROL operation using a hand-held tester.
1. Connect a hand-held tester to the DLC3.
2. Start the engine and turn the tester ON.
3. Warm up the engine at an engine speed of 2,500 rpm for approximately 90 seconds.
4. On the tester, select the following menu items: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / A/F CONTROL.
5. Perform the A/F CONTROL operation with the engine in an idling condition (press the RIGHT or LEFT button to change the fuel injection volume).
6. Monitor the voltage outputs of the A/F and HO2 sensors (AFS B1S1 (AFS B2S1) and OS2 B1S2 (O2S B2S2)) displayed on the tester.
HINT:
- The A/F CONTROL operation lowers the fuel injection volume by 12.5% or increases the injection volume by 25%.
- Each sensor reacts in accordance with increases and decreases in the fuel injection volume.
NOTE: The Air-Fuel Ratio (A/F) sensor has an output delay of a few seconds and the Heated Oxygen (HO2) sensor has a maximum output delay of approximately 20 seconds.
- Following the A/F CONTROL procedure enables technicians to check and graph the voltage outputs of both the A/F and HO2 sensors.
- To display the graph, select the following menu items on the tester: DIAGNOSIS / ENHANCED OBD II / ACTIVE TEST / A/F CONTROL / USER DATA / AFS B1S1 and O2S B1S2, and press the YES button and then the ENTER button followed by the F4 button.
HINT:
- Read freeze frame data using a hand-held tester or OBD II scan tool. Freeze frame data record the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data, from the time the malfunction occurred.
- A low A/F sensor voltage could be caused by a rich air-fuel mixture. Check for conditions that would cause the engine to run rich.
- A high A/F sensor voltage could be caused by a lean air-fuel mixture. Check for conditions that would cause the engine to run lean..
CHECK FOR INTERMITTENT PROBLEMS
HINT:
Hand-held tester only:
Inspect the vehicle's ECM using check mode. Intermittent problems are easier to detect with a hand-held tester when the ECM is in check mode. In check mode, the ECM uses 1trip detection logic, which is more sensitive to malfunctions than normal mode (default), which uses 2trip detection logic.
a. Clear DTCs.
b. Switch the ECM from normal mode to check mode using a hand-held tester.
c. Perform a simulation test.
d. Check and wiggle the harness(es), connector(s) and terminal(s).
