Navigation Module: Testing and Inspection

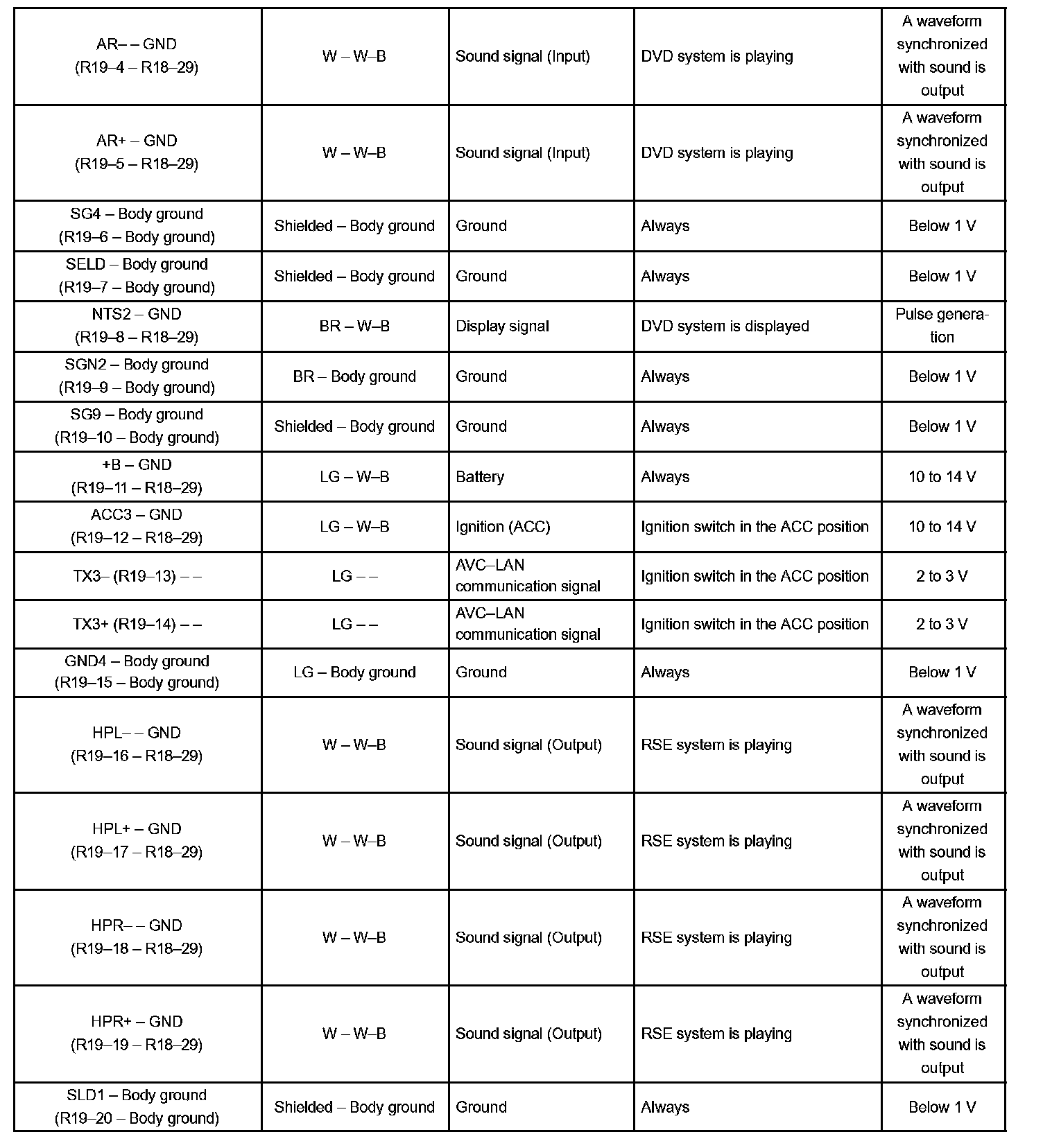

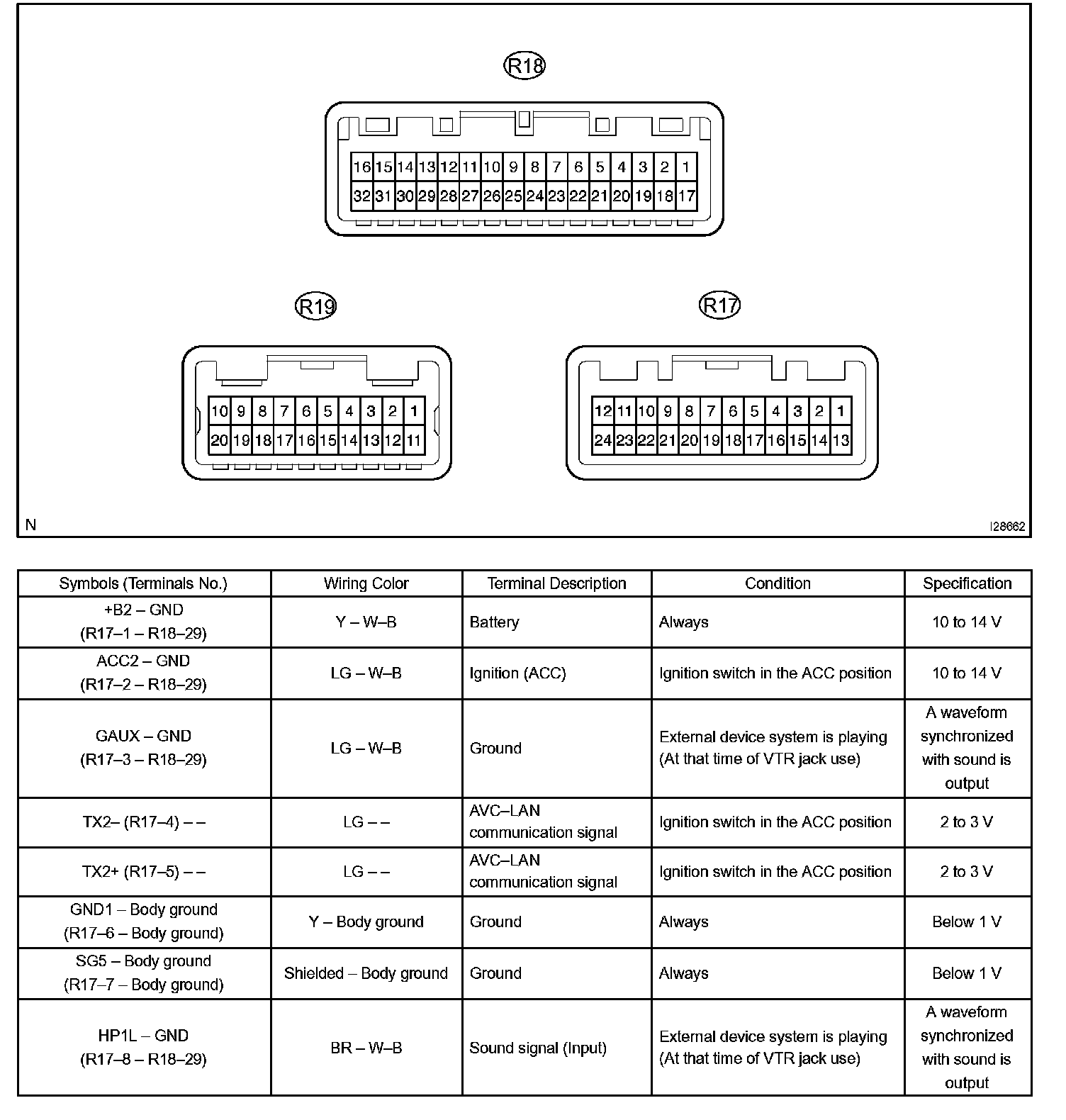

TERMINALS OF ECU

Terminals Of Control Module / Pinouts Part 1:

Terminals Of Control Module / Pinouts Part 2:

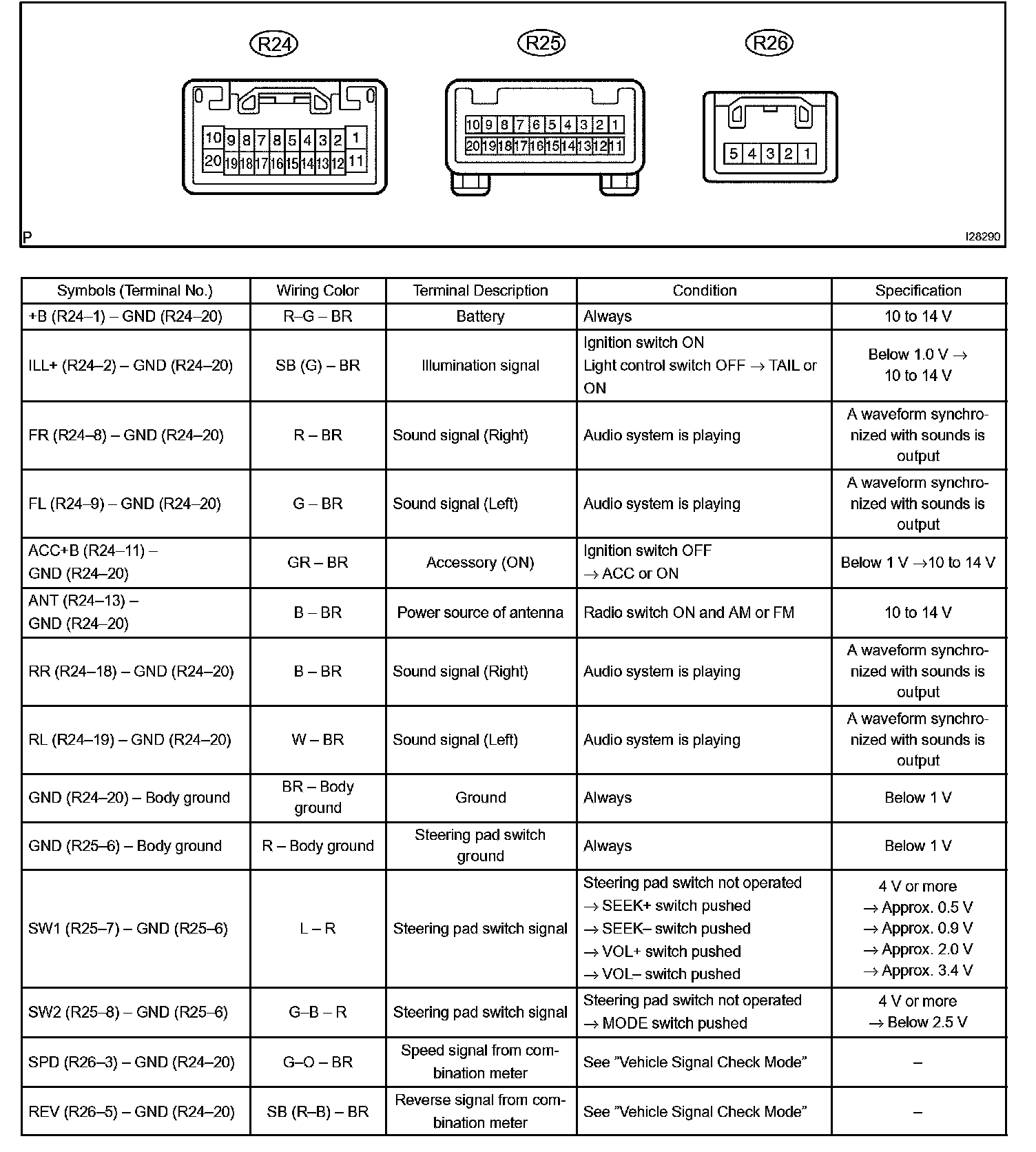

1. RADIO AND NAVIGATION ASSEMBLY (Double Cab)

Terminals Of Control Module / Pinouts:

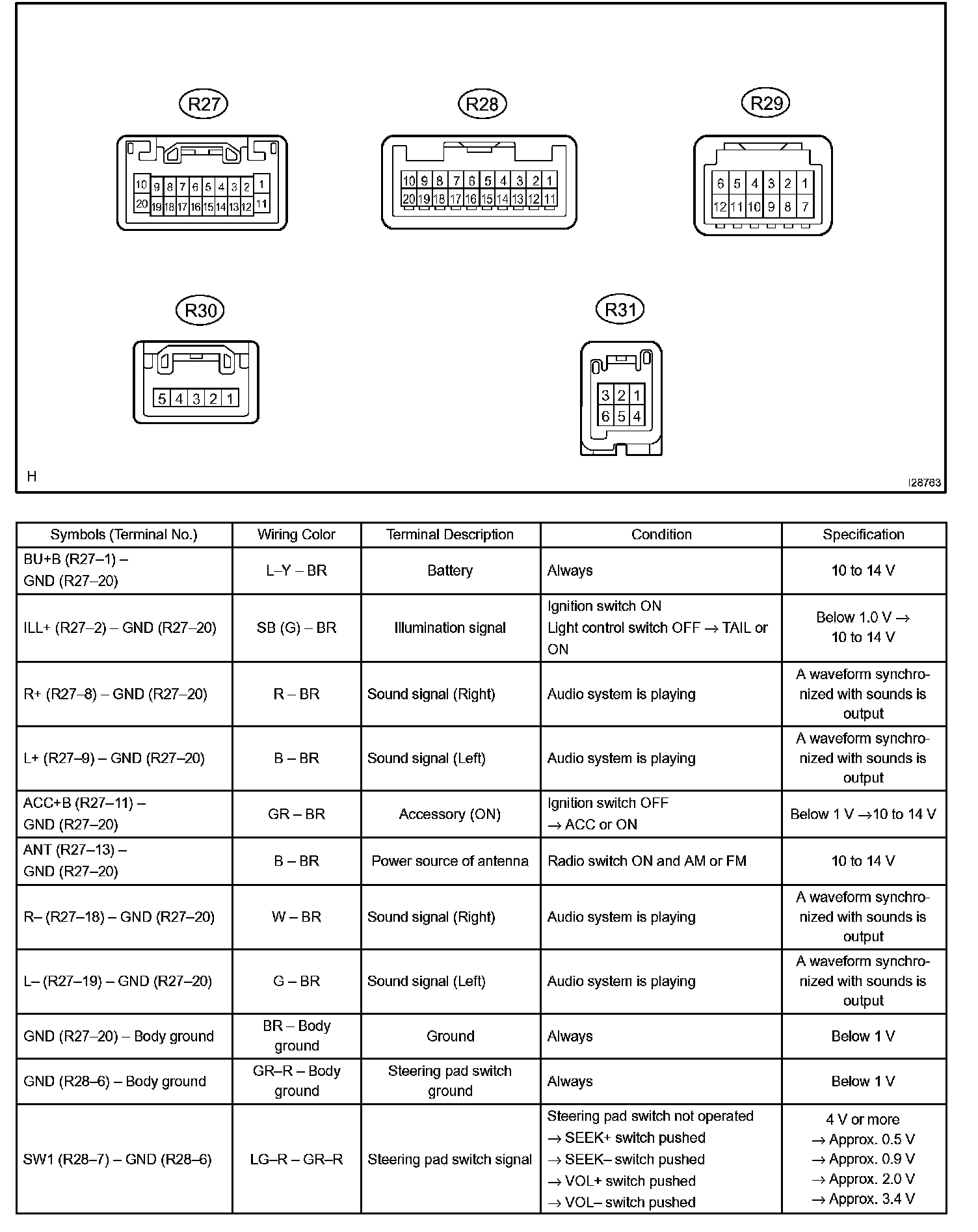

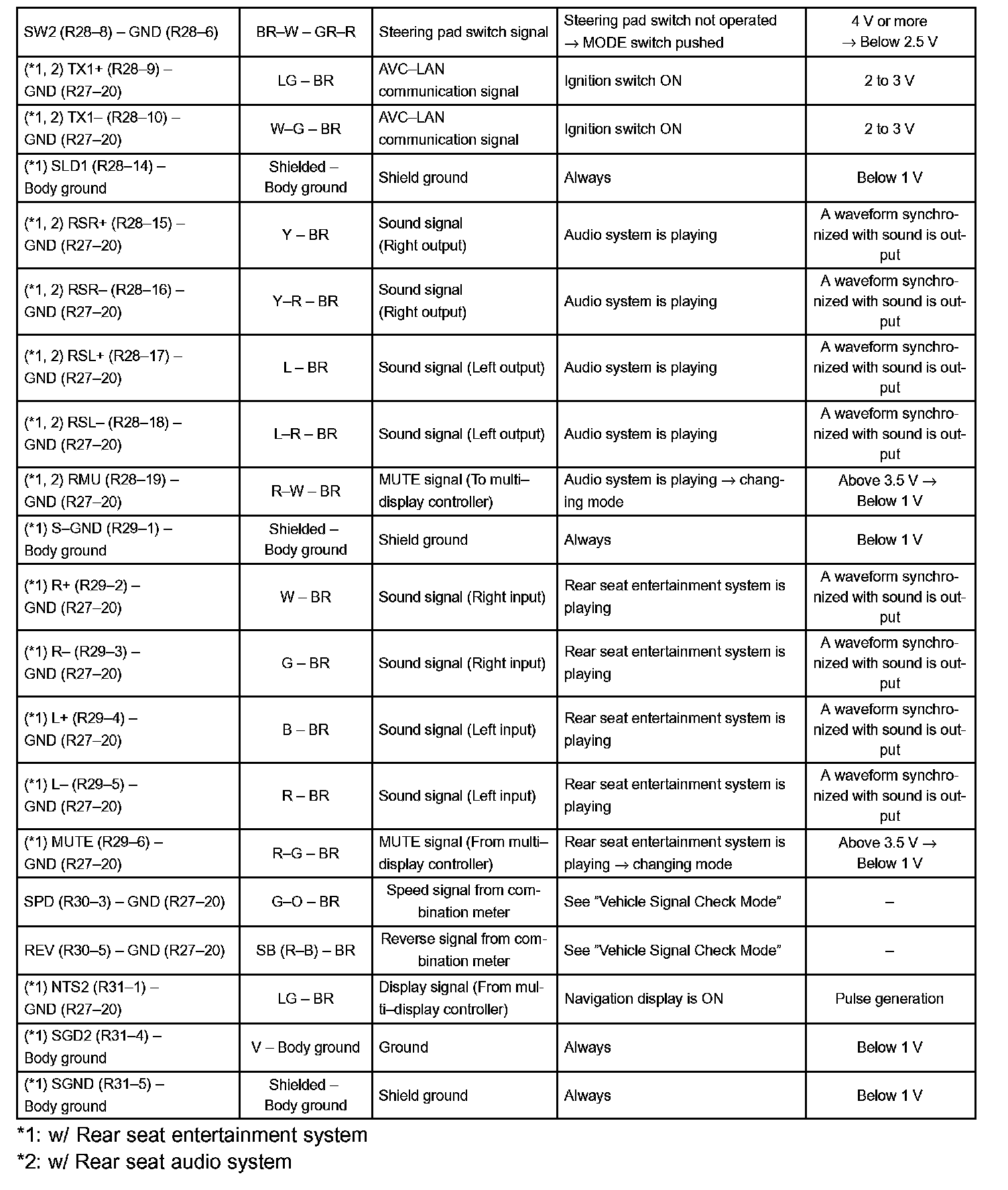

2. RADIO AND NAVIGATION ASSEMBLY (Except Double Cab)

Terminals Of Control Module / Pinouts Part 1:

Terminals Of Control Module / Pinouts Part 2:

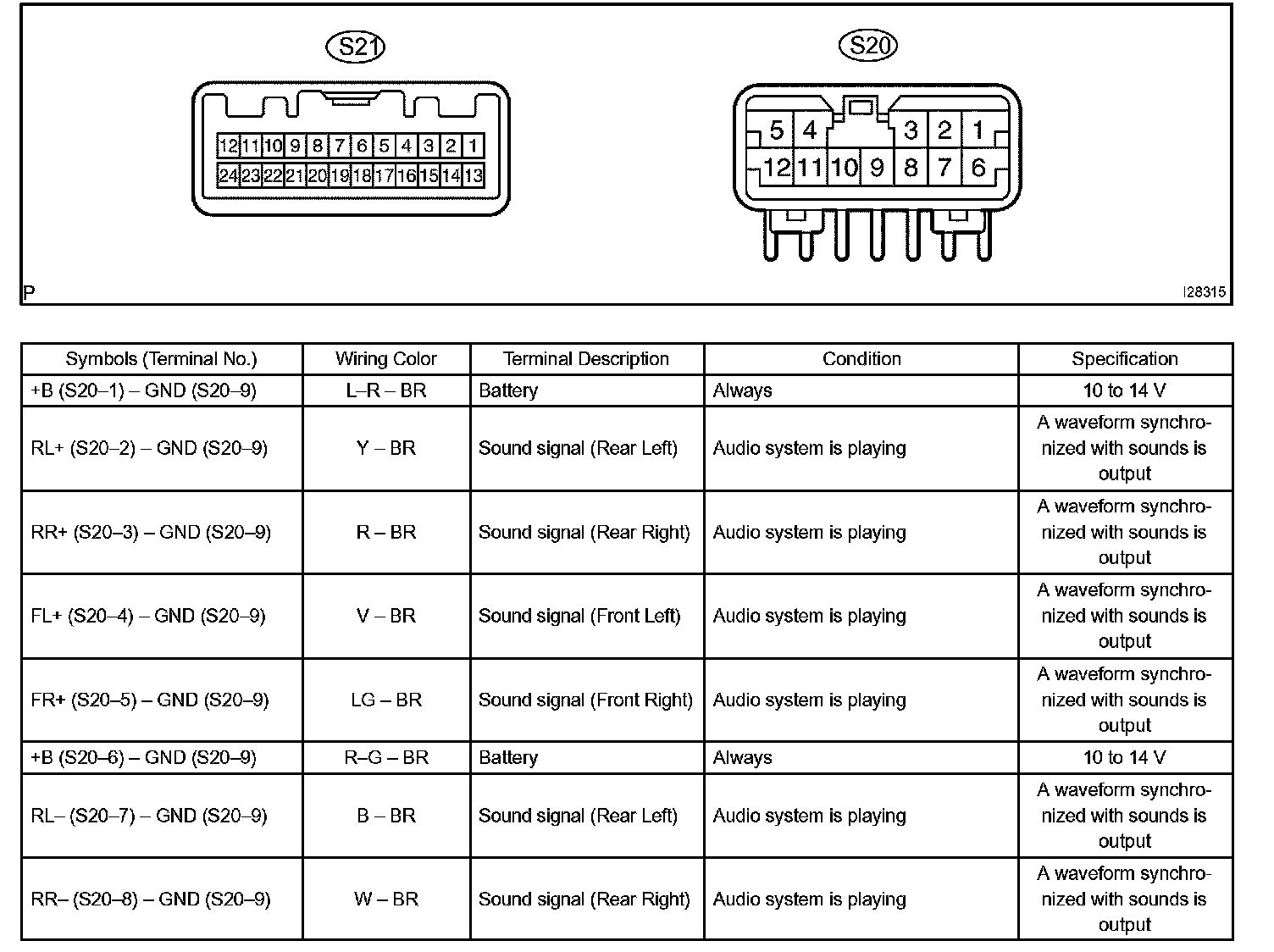

3. STEREO COMPONENT AMPLIFIER ASSEMBLY (Double Cab)

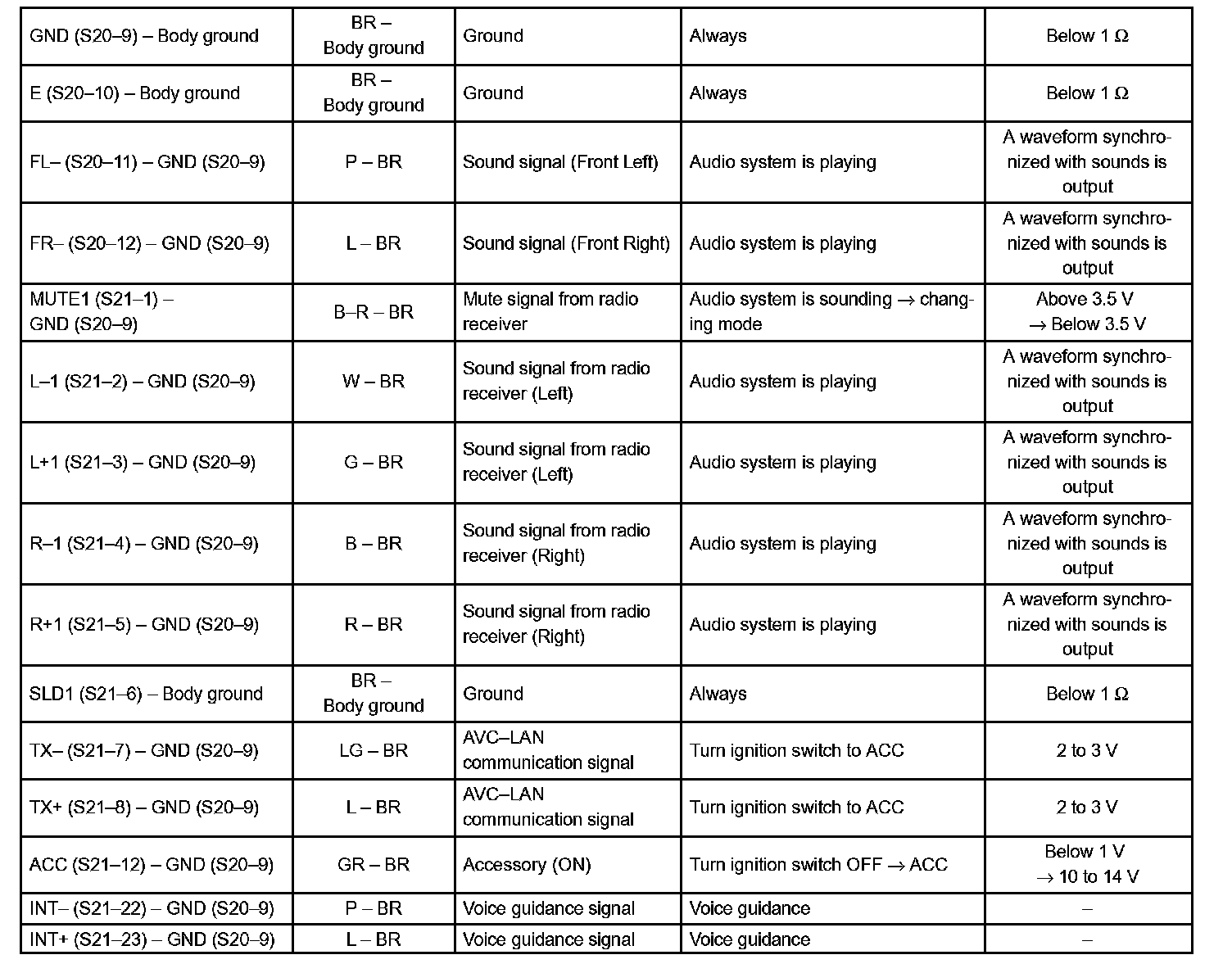

Terminals Of Control Module / Pinouts Part 1:

Terminals Of Control Module / Pinouts Part 2:

4. STEREO COMPONENT AMPLIFIER ASSEMBLY (Except Double Cab)

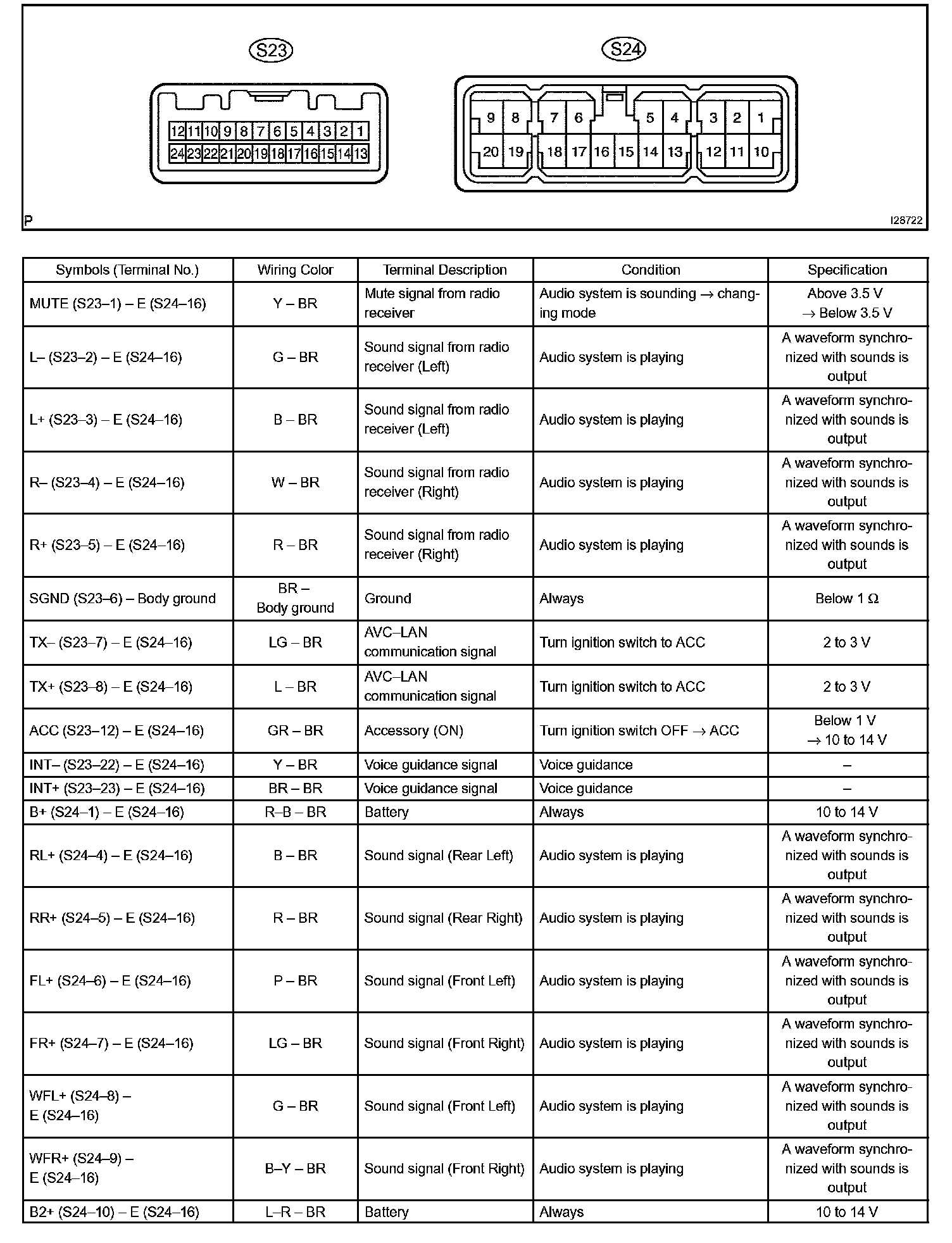

Terminals Of Control Module / Pinouts Part 1:

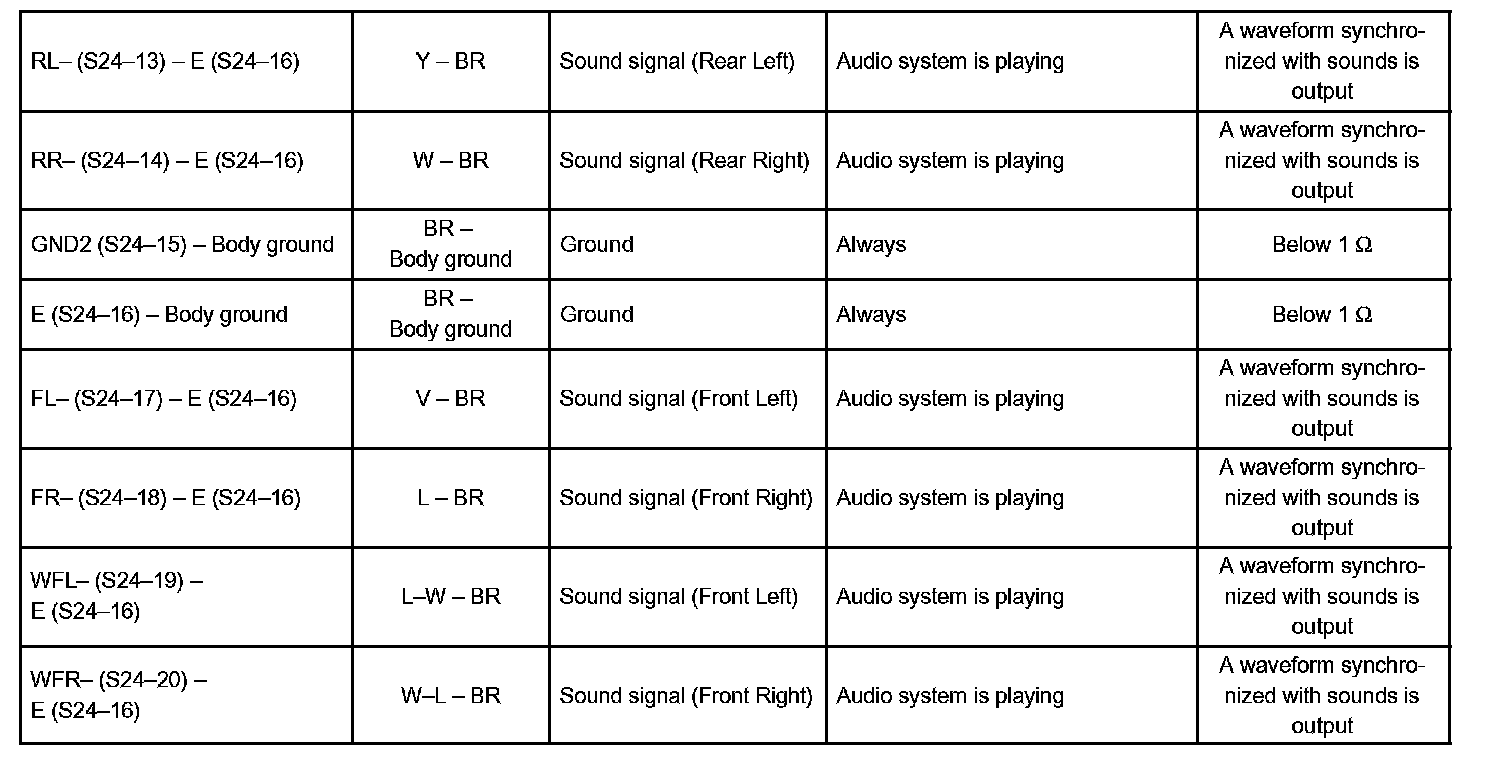

Terminals Of Control Module / Pinouts Part 2:

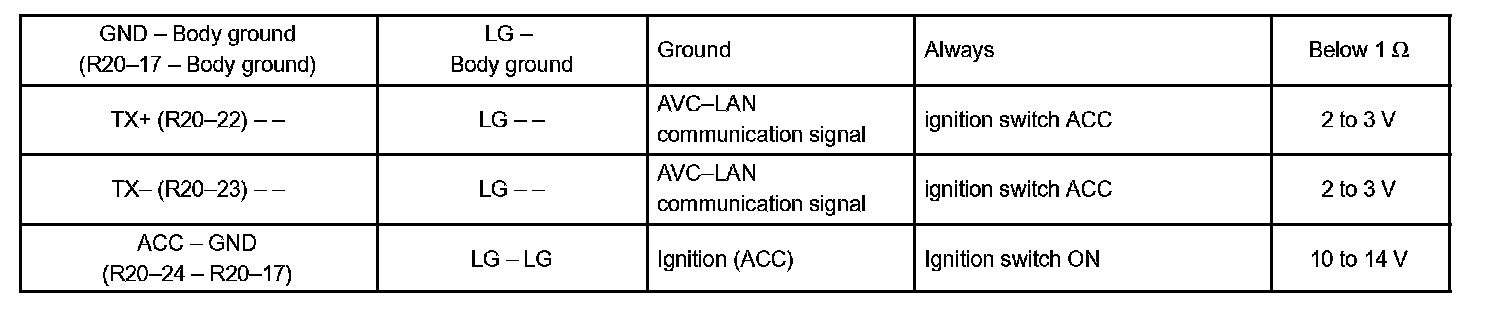

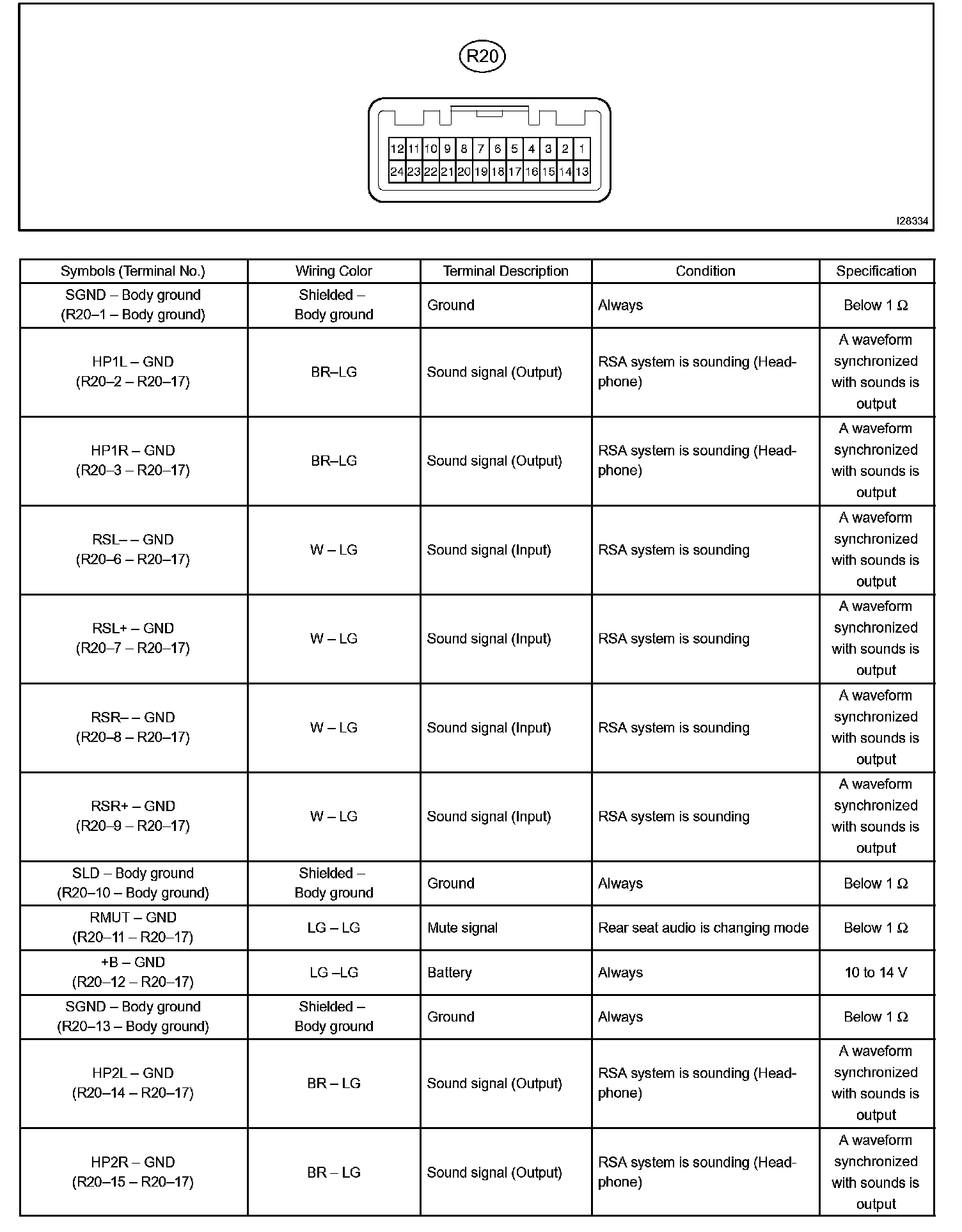

5. REAR SEAT AUDIO CONTROLLER

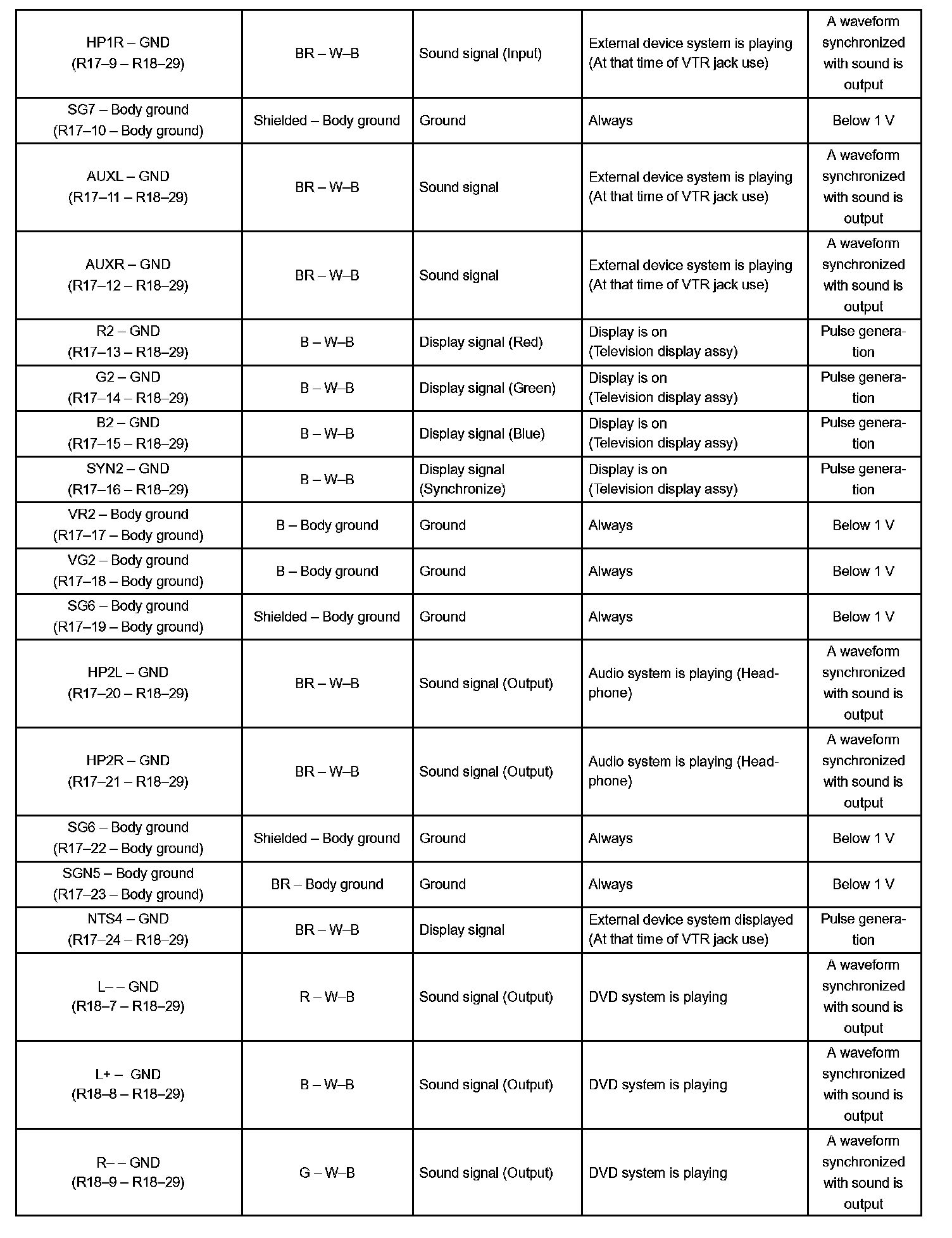

Terminals Of Control Module / Pinouts Part 1:

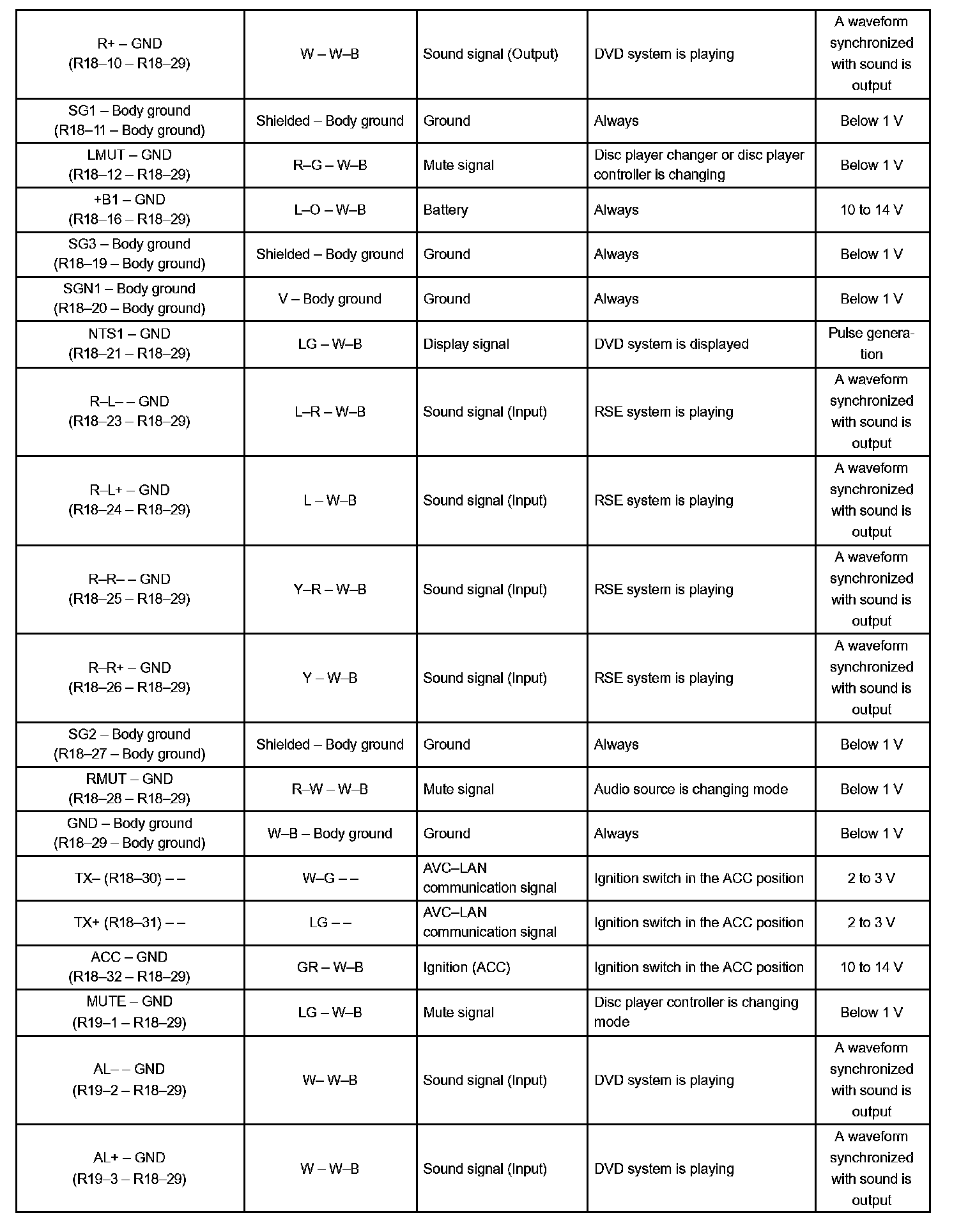

Terminals Of Control Module / Pinouts Part 2:

Terminals Of Control Module / Pinouts Part 3:

Terminals Of Control Module / Pinouts Part 4:

6. MULTI-DISPLAY CONTROLLER SUB-ASSEMBLY
