Window Lock Switch Circuit

WINDOW LOCK SWITCH CIRCUIT

CIRCUIT DESCRIPTION
The window lock switch circuit can be checked using DTC check.

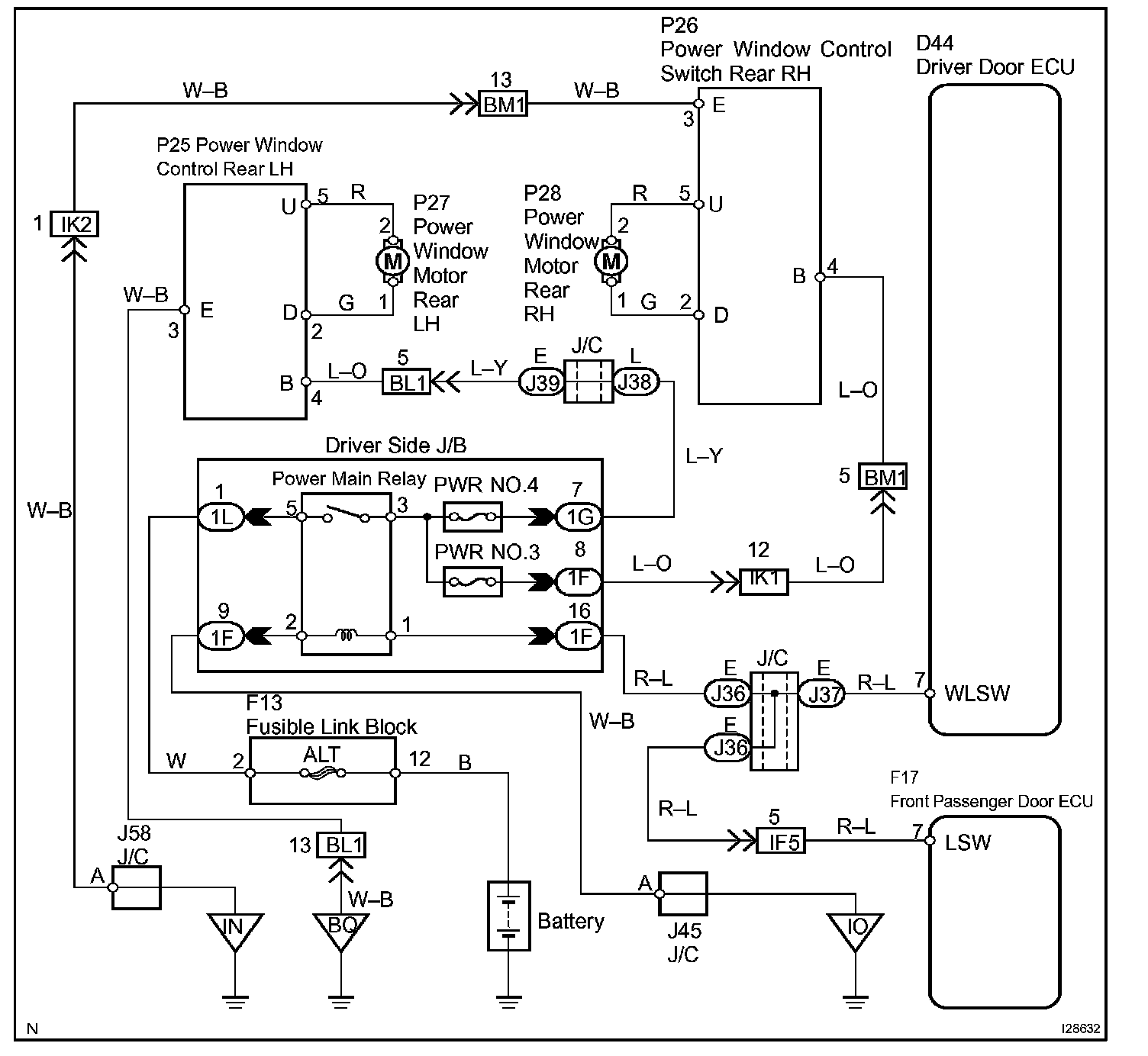

Wiring Diagram:

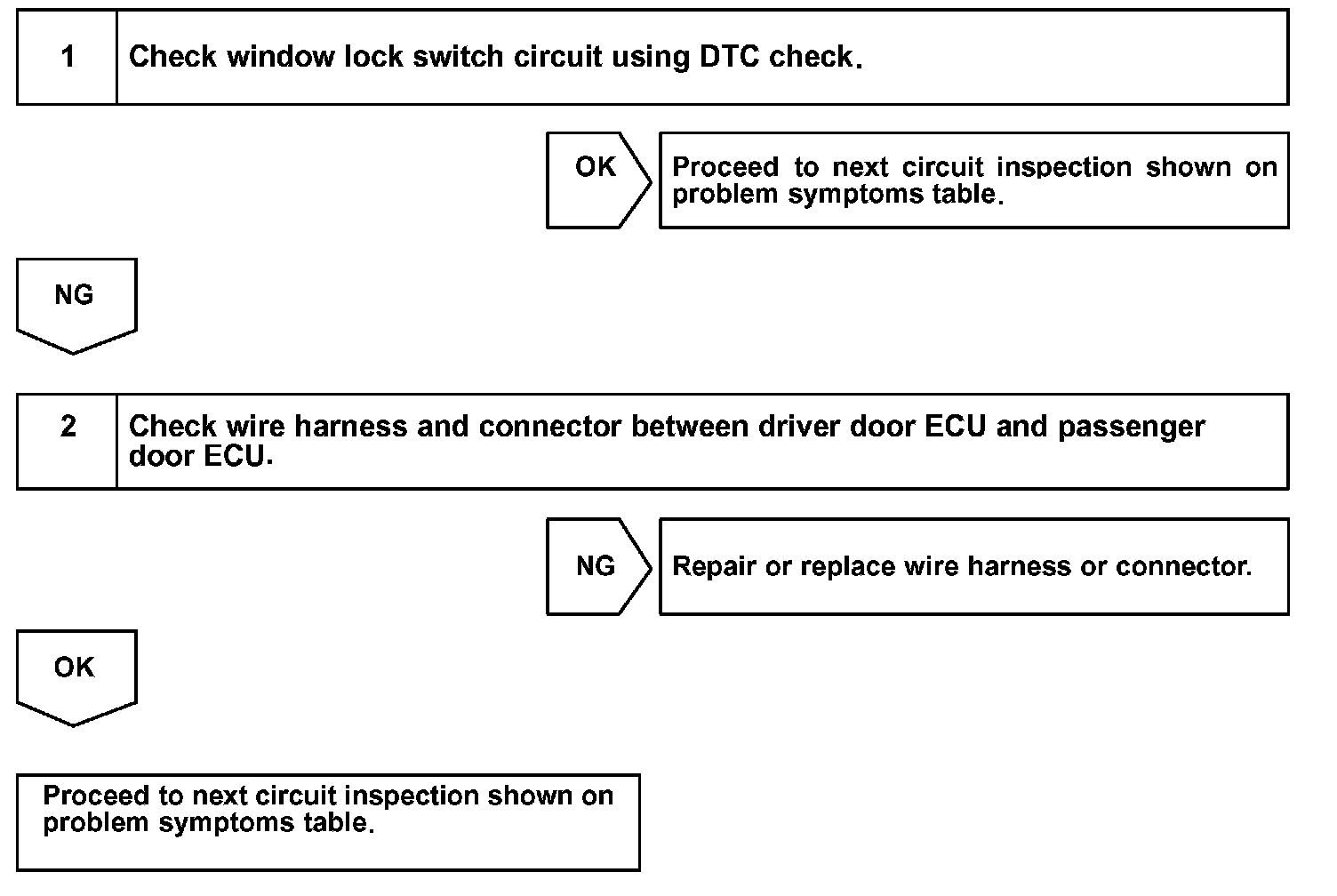

Step 1 - 2:




INSPECTION PROCEDURE
