Impact Sensor
Impact Sensor

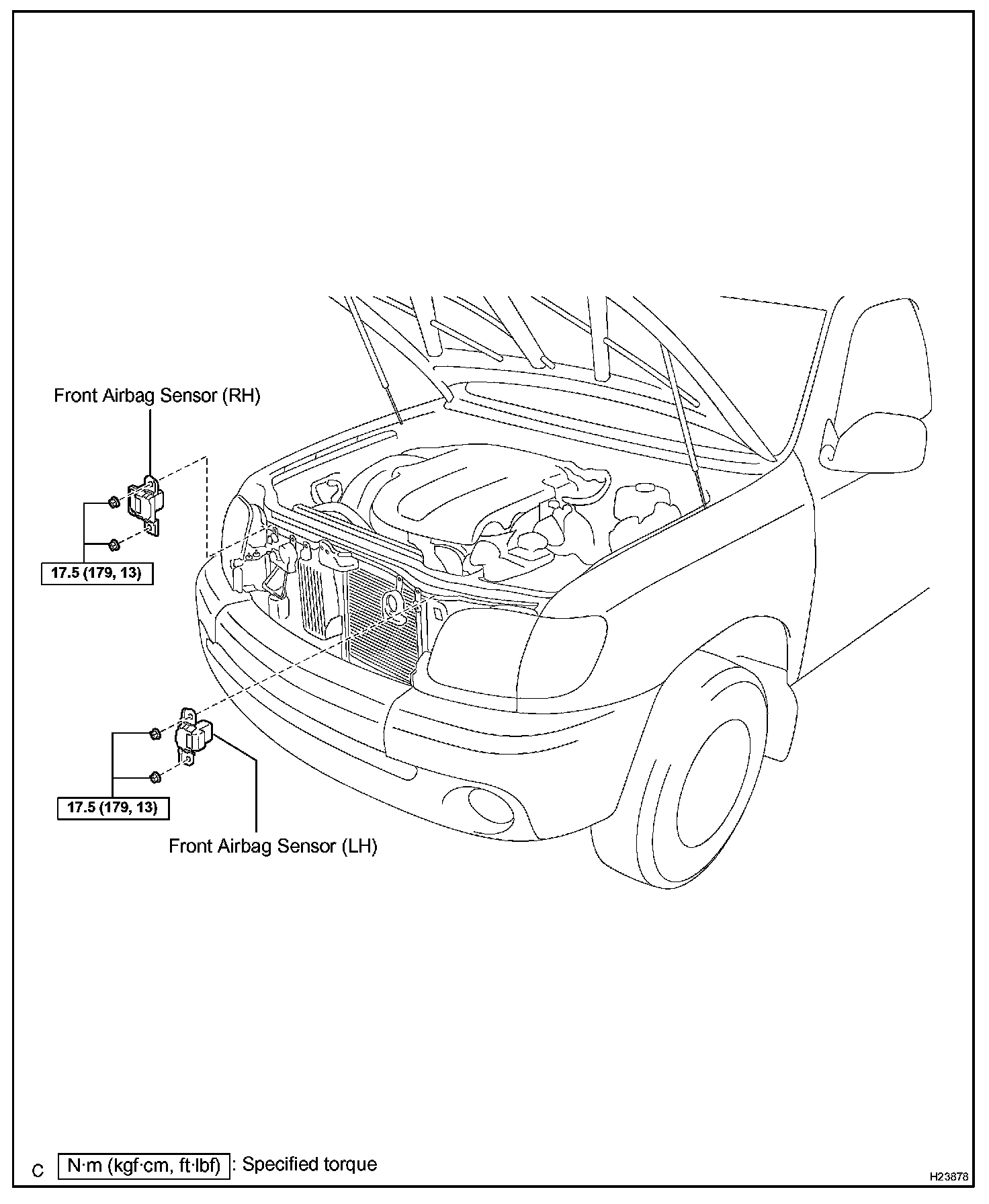

Front Airbag Sensor:
Side Airbag Sensor Assembly:

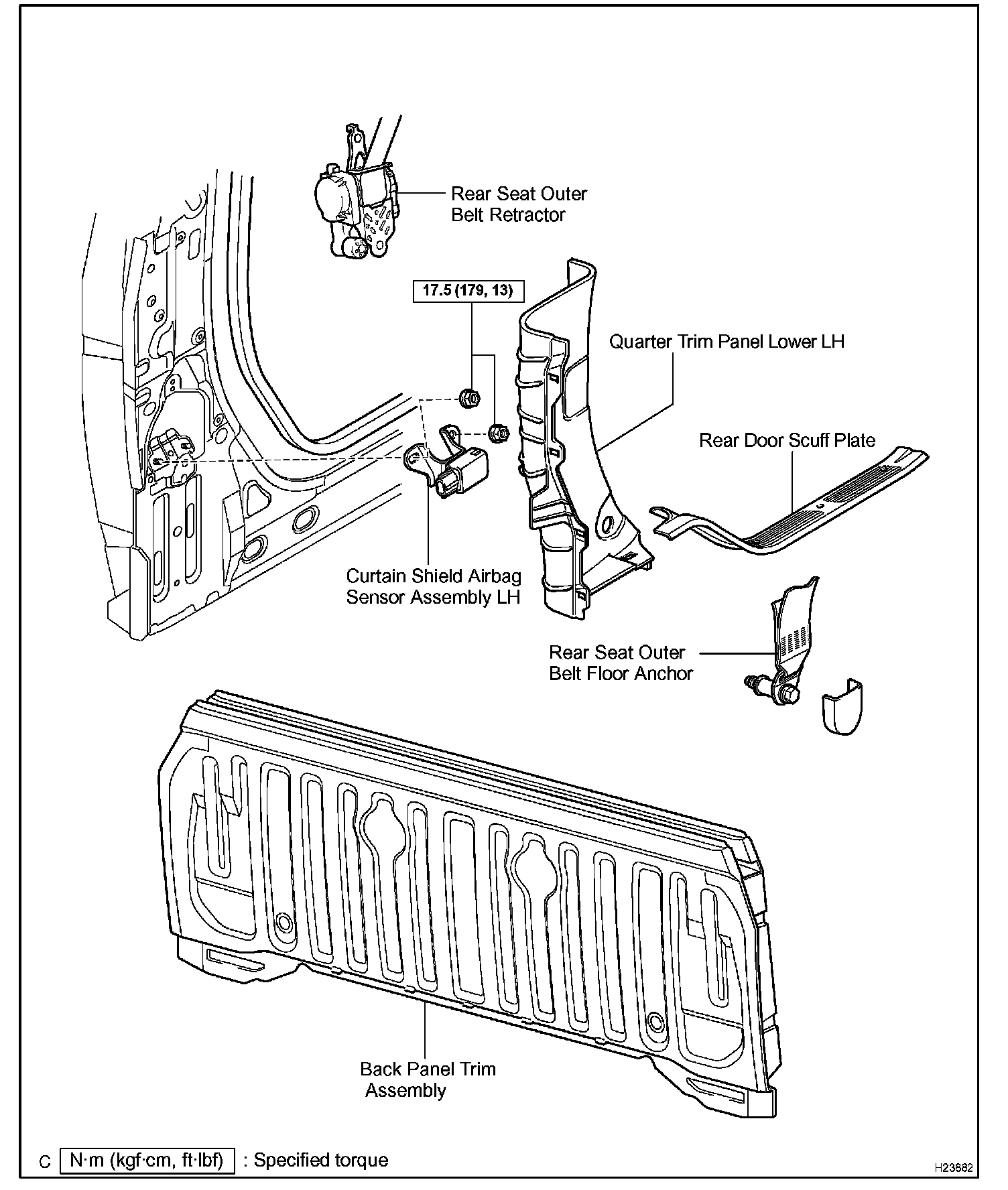

Curtain Shield Airbag Sensor Assembly:

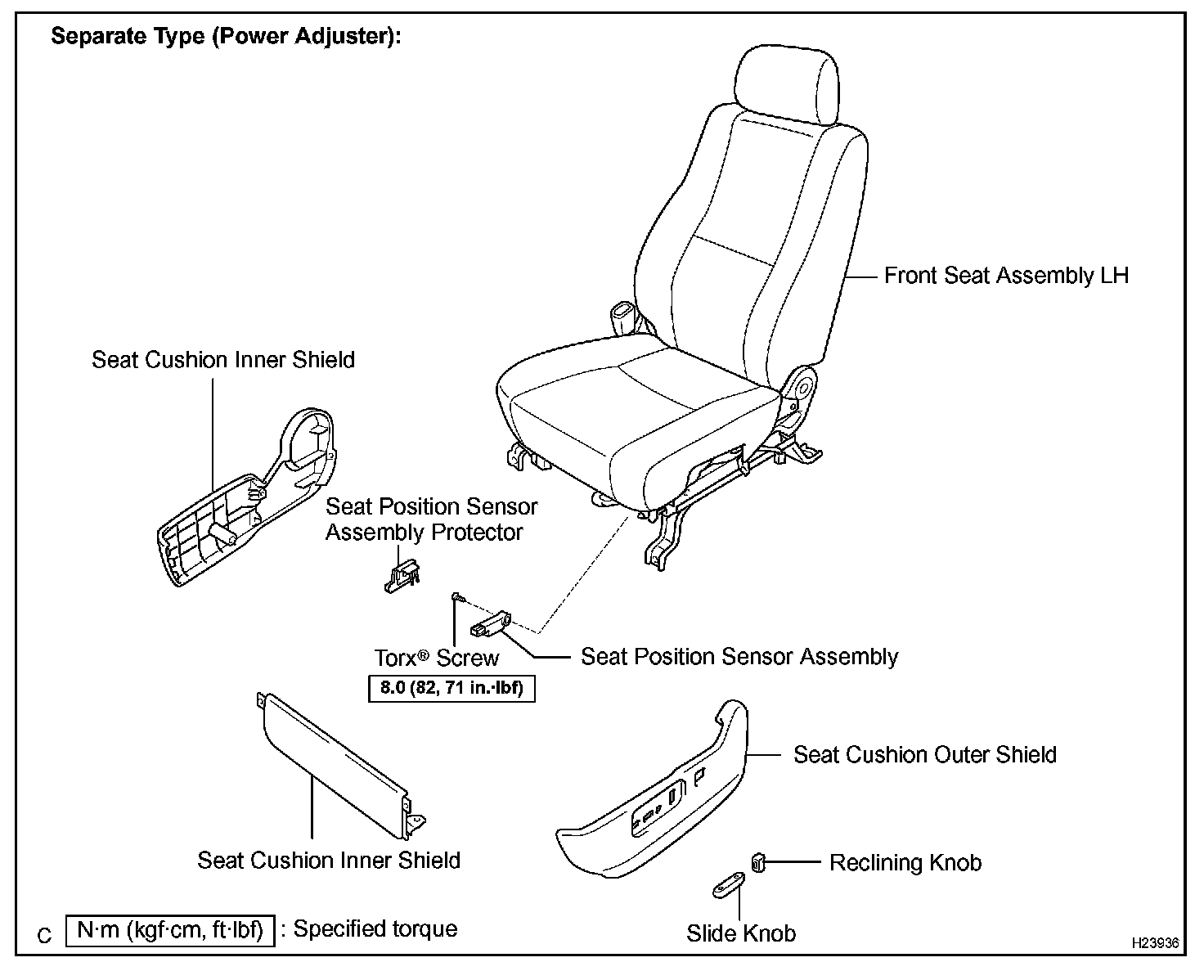

Seat Position Sensor Assembly:

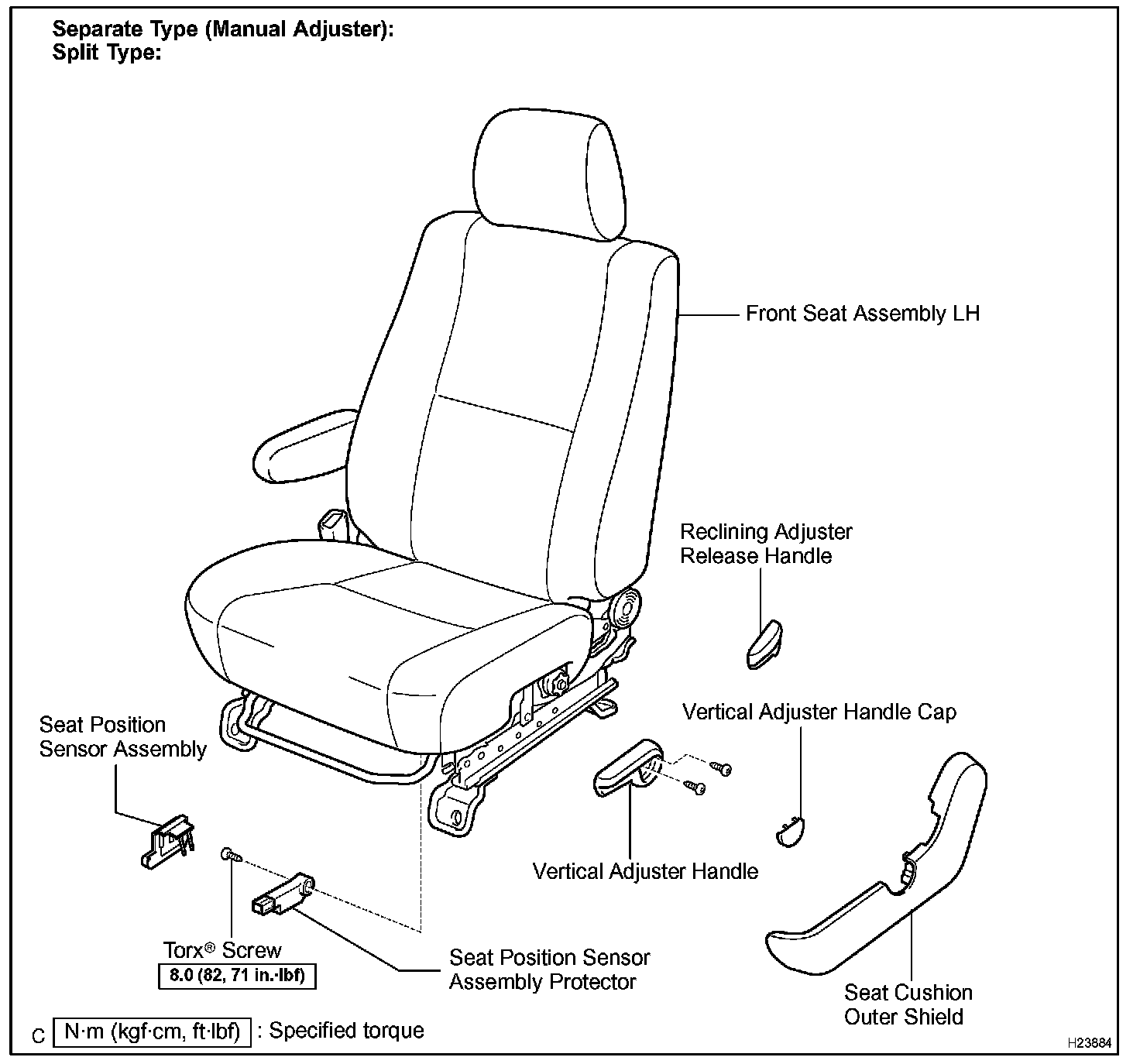

Seat Position Sensor Assembly:
Seat Position Sensor Assembly:
