Starting System
Starting System

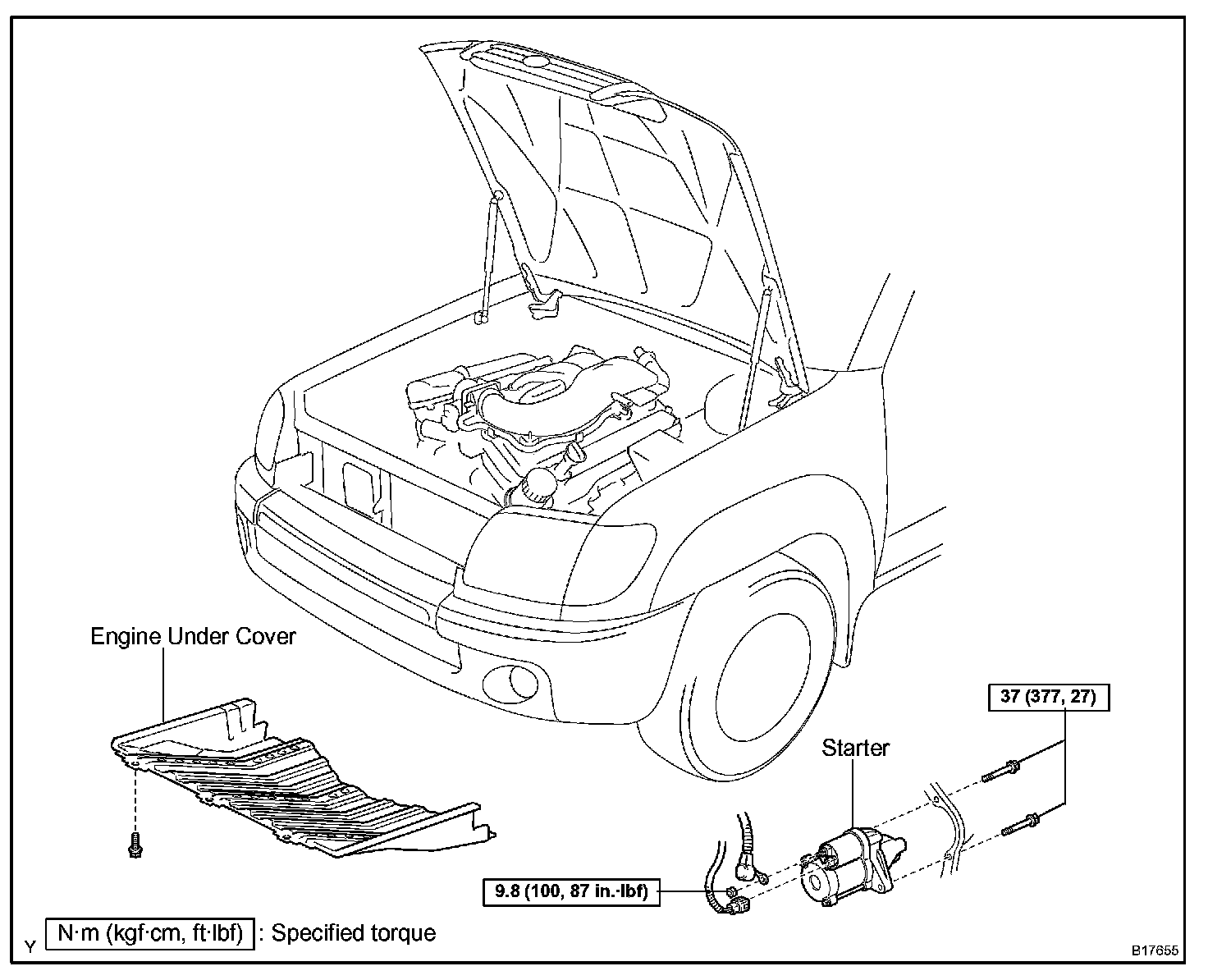

Starter (1.6 KW):

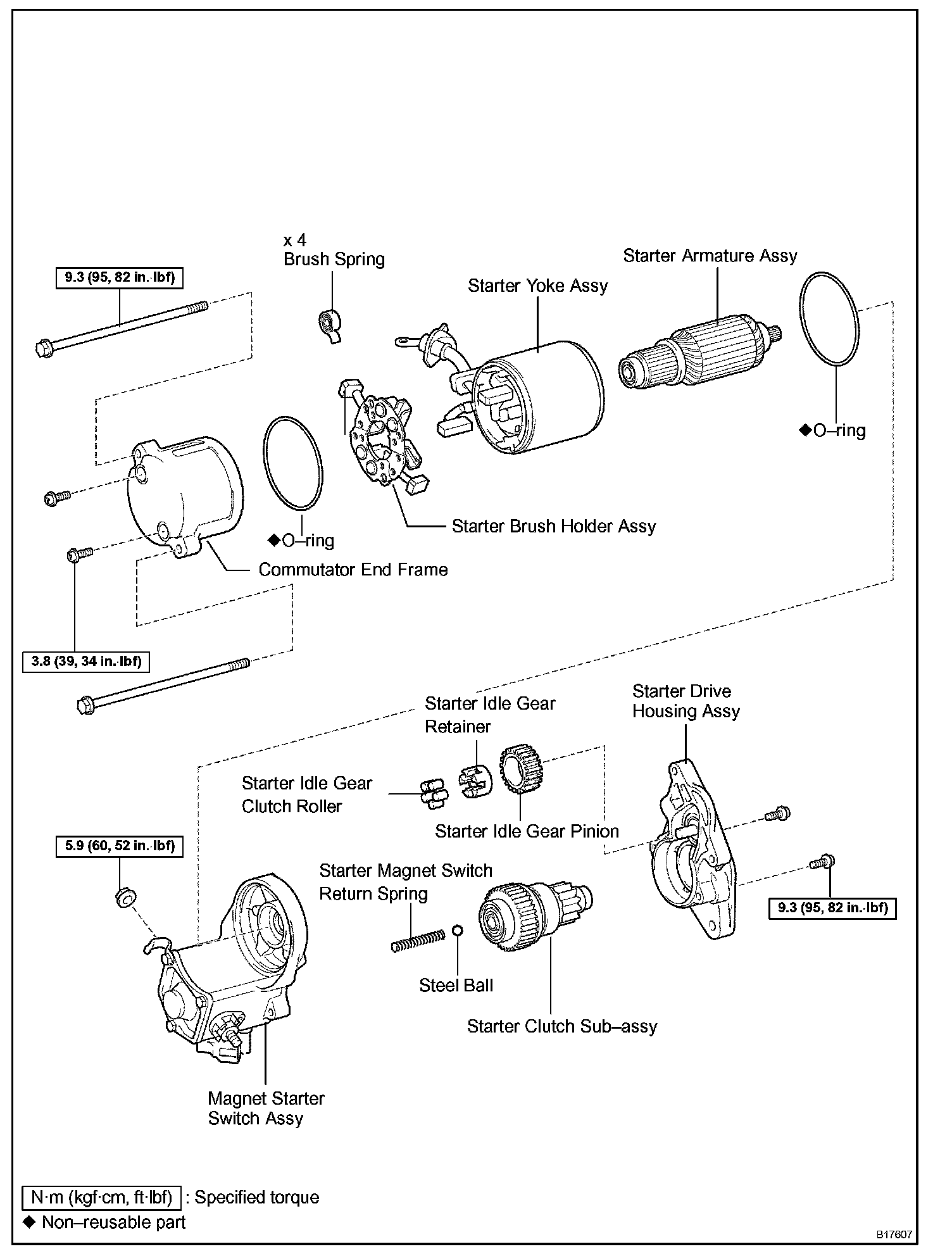

Starter (1.6 KW):

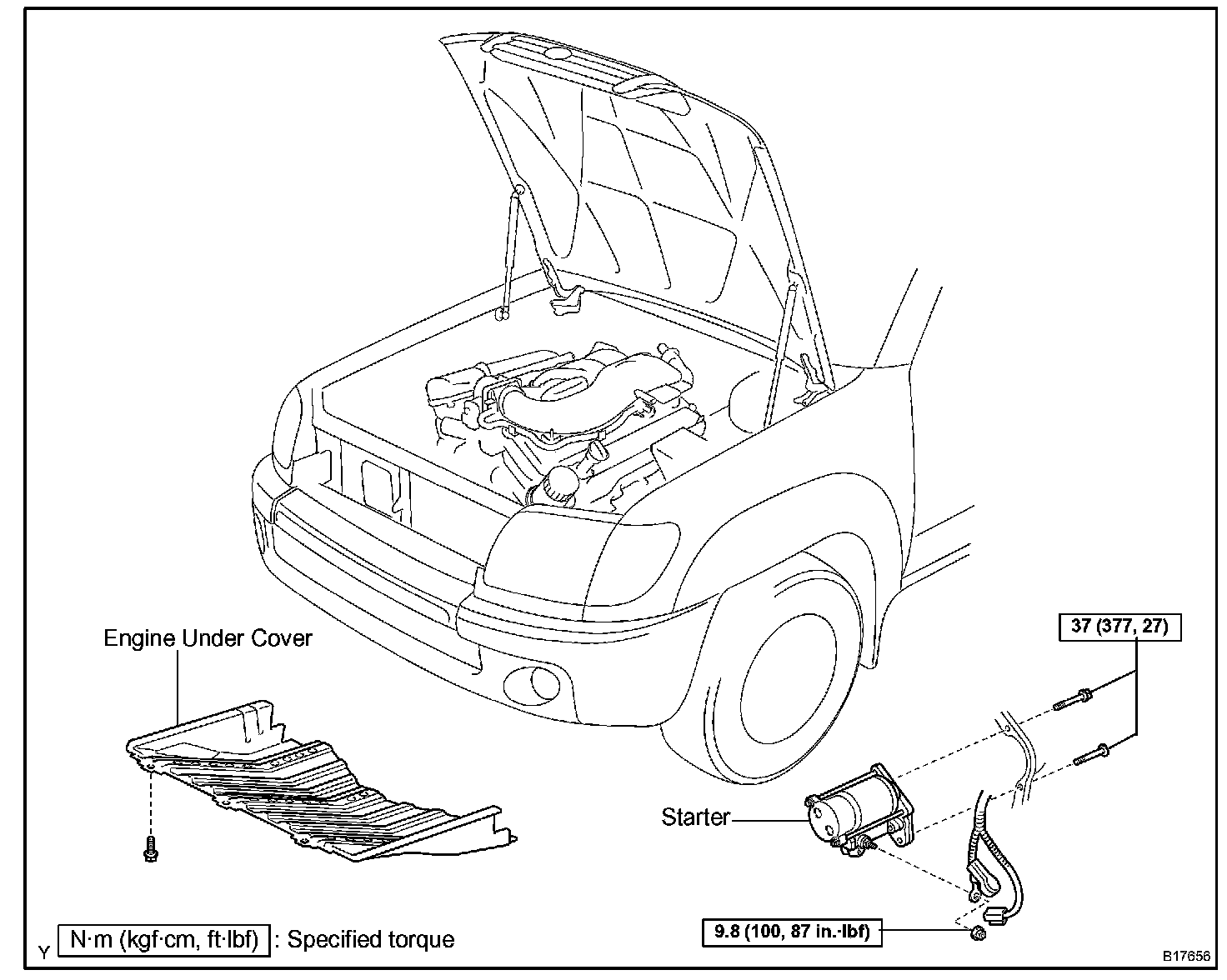

Starter (2.0 KW):

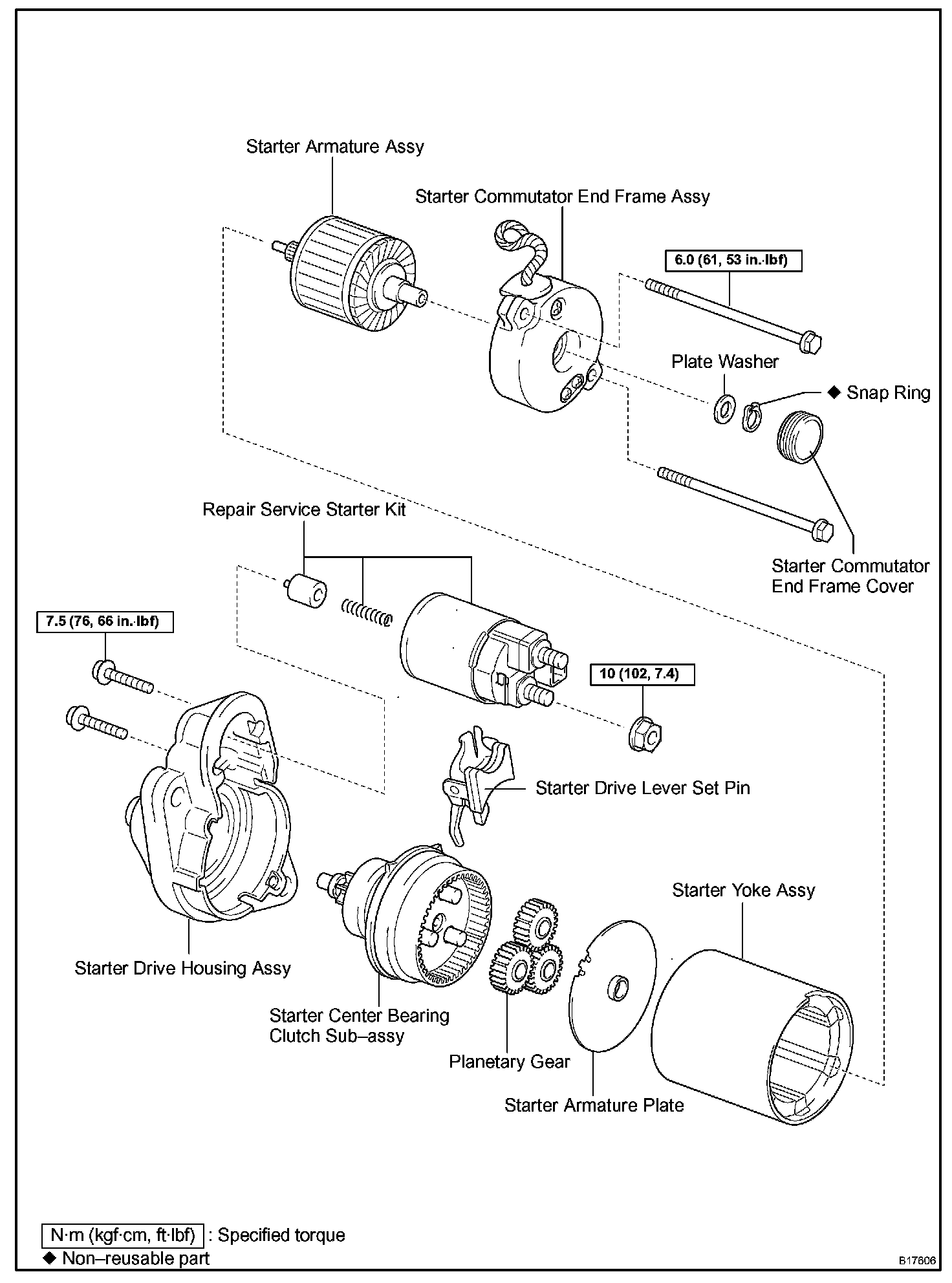

Starter(2.0 KW):
