Compressor Speed Sensor: Testing and Inspection
INSPECT COMPRESSOR LOCK SENSOR RESISTANCE
a.
Disconnect the connector.
b.

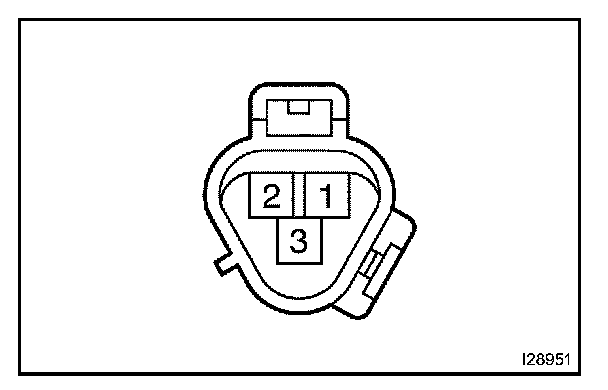

Measure the resistance between terminals 1 and 2.
Standard resistance:
165 to 205 Ohms at
20 °C (68 °F) If resistance is not as specified, replace the compressor.
