Disassembly and Reassembly

DISASSEMBLY




1. Access cab, Standard cab:
REMOVE AIRBAG INDICATOR CIRCUIT

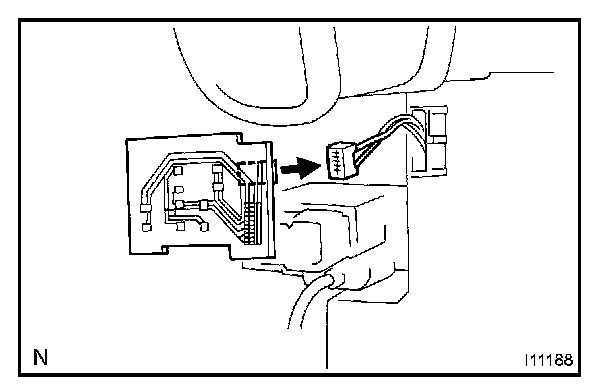

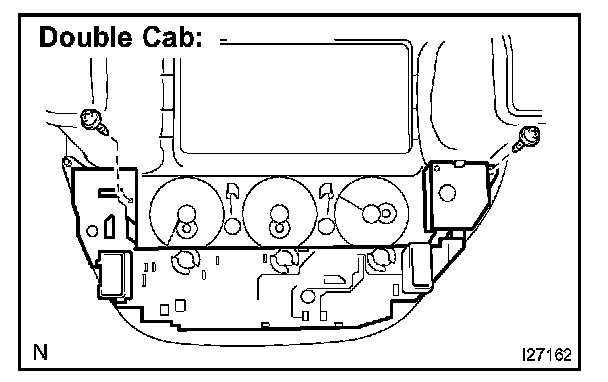

Release the 2 claws and remove the indicator circuit, then disconnect the connector.

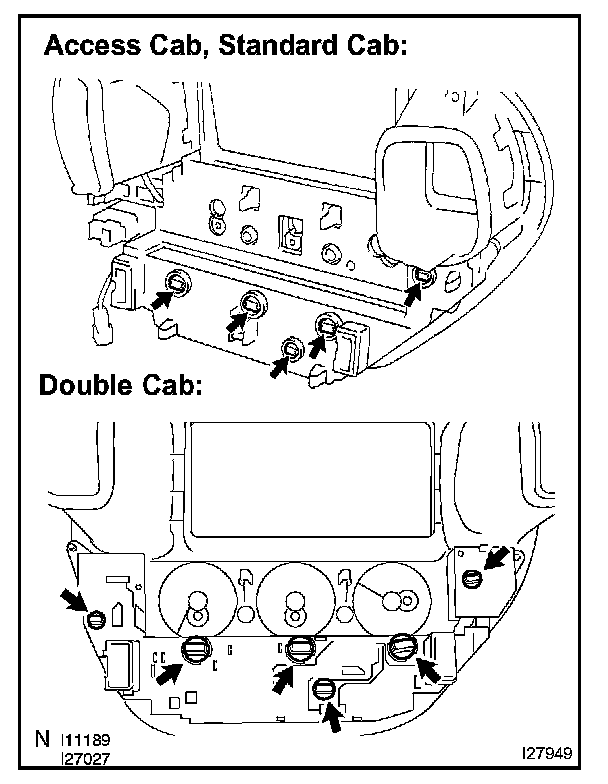

2. REMOVE BULBS
a. Access cab, standard cab:
Remove the 5 bulbs.
b. Double cab:
Remove the 6 bulbs.




3. Access cab, Standard cab:
REMOVE HEATER CONTROL HOUSING

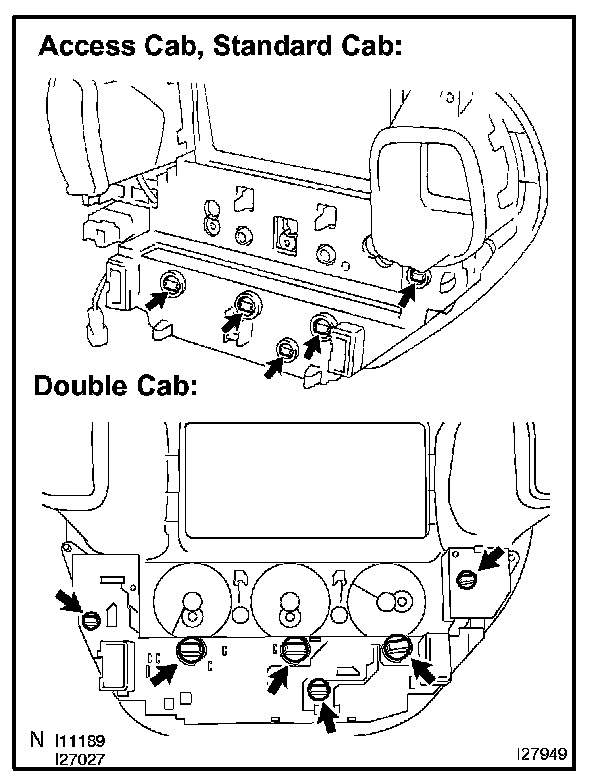

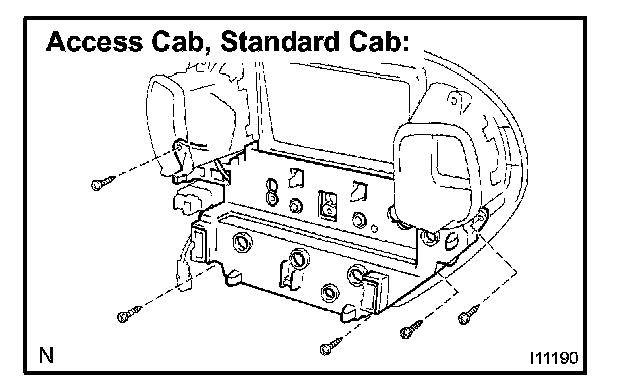

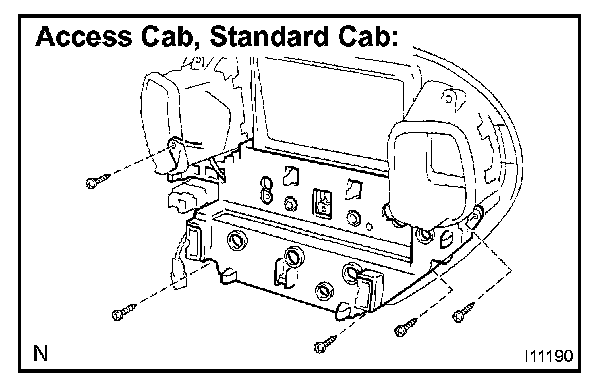

a. Remove the 5 screws.
b. Remove the heater control housing.

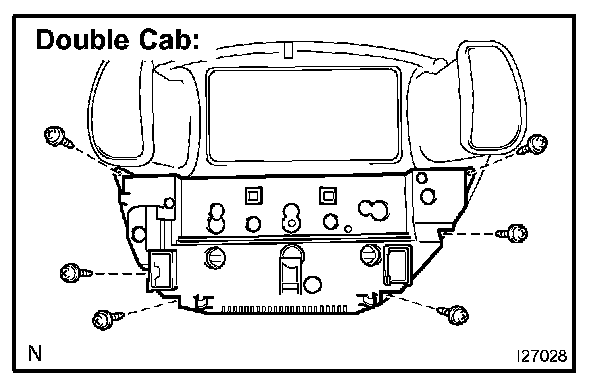

4. Double cab:
REMOVE HEATER CONTROL HOUSING
a. Remove the 5 screws.
b. Remove the heater control housing.

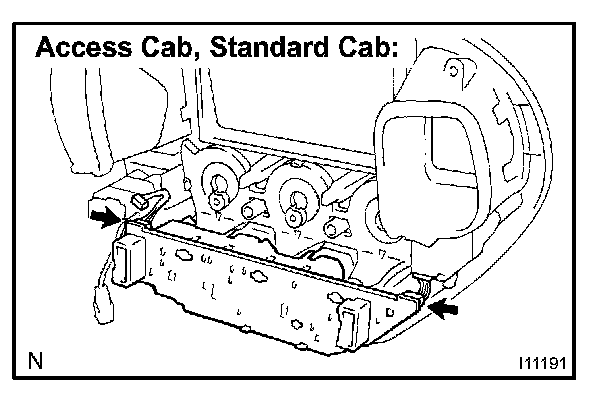

5. Access cab, Standard cab:

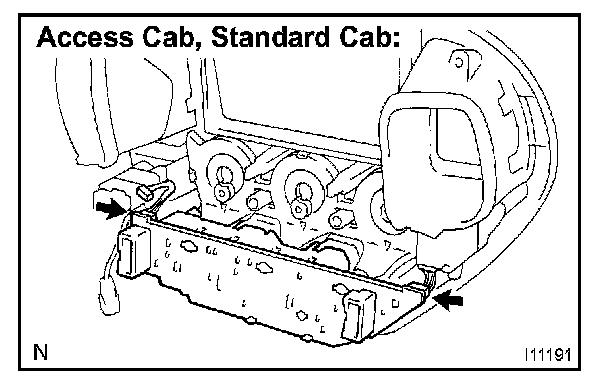

REMOVE INTEGRATION CIRCUIT
a. Disconnect the 2 connectors.
b. Remove the circuit.




6. Double cab:
REMOVE INTEGRATION CIRCUIT

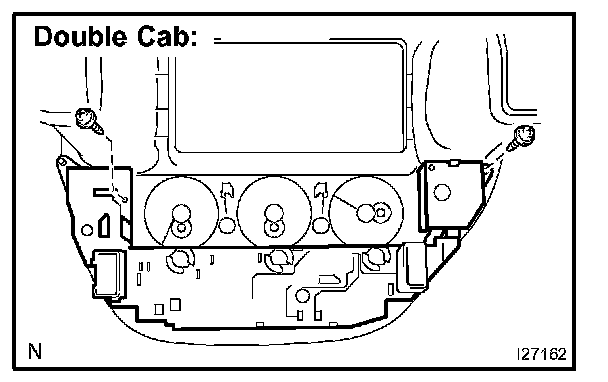

a. Remove the 2 screws.
b. Remove the circuit.

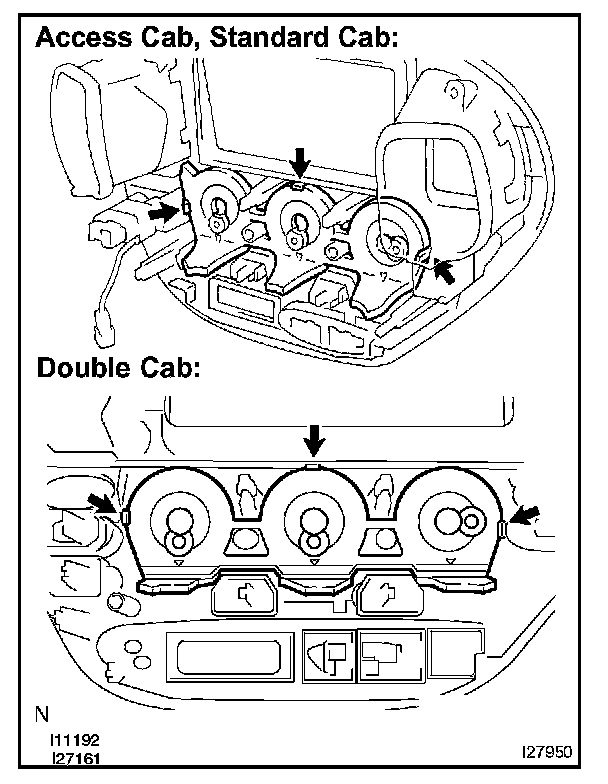

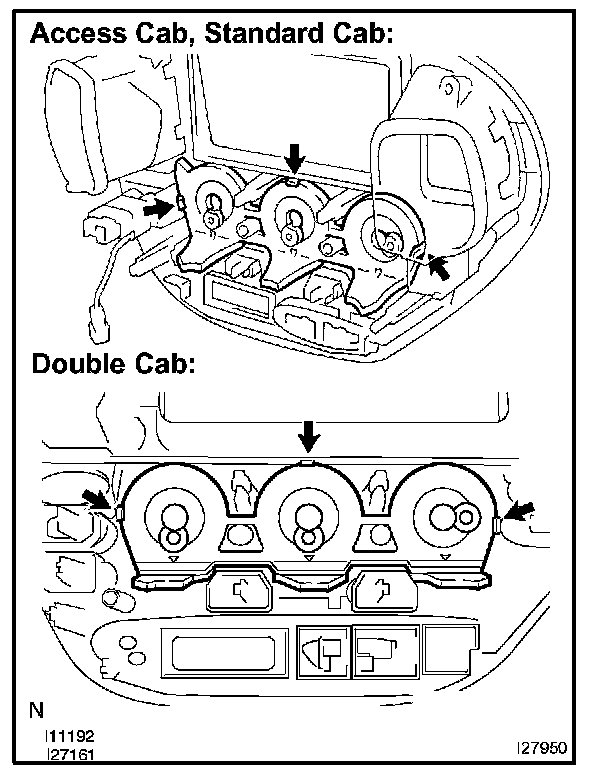

7. REMOVE LENS
Release the 3 claws, then remove the lens.

REASSEMBLY




1. INSTALL LENS
Install the lens.




2. Access cab, Standard cab:
INSTALL INTEGRATION CIRCUIT
a. Connect the 2 connectors.
b. Install the circuit.




3. Double cab:
INSTALL INTEGRATION CIRCUIT
a. Install the circuit.
b. Install the 2 screws.




4. Access cab, Standard cab:
INSTALL HEATER CONTROL HOUSING
a. Connect the connector.
b. Install the heater control housing.
c. Install the 5 screws.

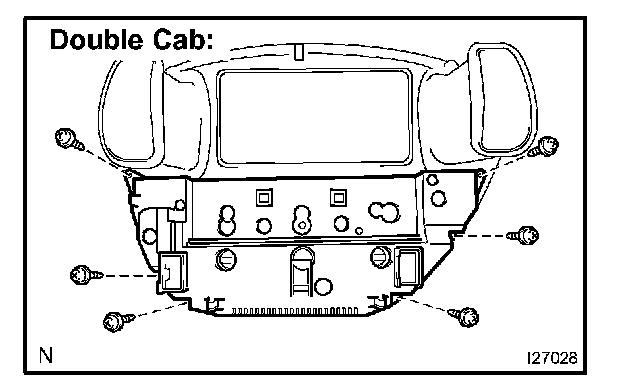

5. Double cab:
INSTALL HEATER CONTROL HOUSING
a. Install the heater control housing.
b. Install the 6 screws.




6. INSTALL BULBS
a. Access cab, standard cab:
Install the 5 bulbs.
b. Double cab:
Install the 6 bulbs.




7. Access cab, Standard cab:
INSTALL AIRBAG INDICATOR CIRCUIT
a. Connect the connector.
b. Install the circuit.
