Heater Control

HEATER CONTROL ASSEMBLY

ON-VEHICLE INSPECTION




INSPECT HEATER CONTROL DIAL AND LEVER OPERATION

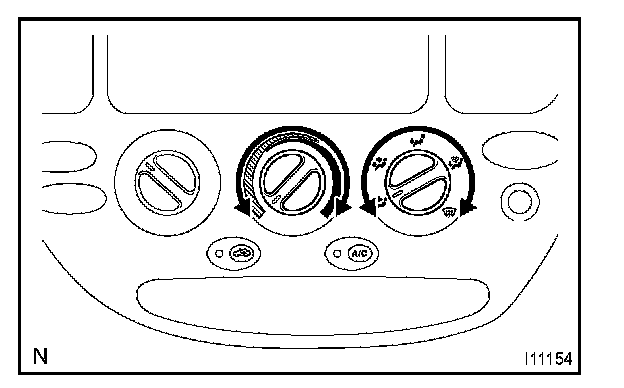

Move the control dial and lever left and right and check for stiffness and binding through the full range of the levers.
If a click sound cannot be heard or recoil is felt, adjust the control cable or check the control cable and heater control assembly.
