Check CAN Bus Line
CHECK CAN BUS LINECIRCUIT DESCRIPTION
When any DTC of the CAN communication system is output, first measure the resistance between the terminals of the DLC3 to specify the trouble area.

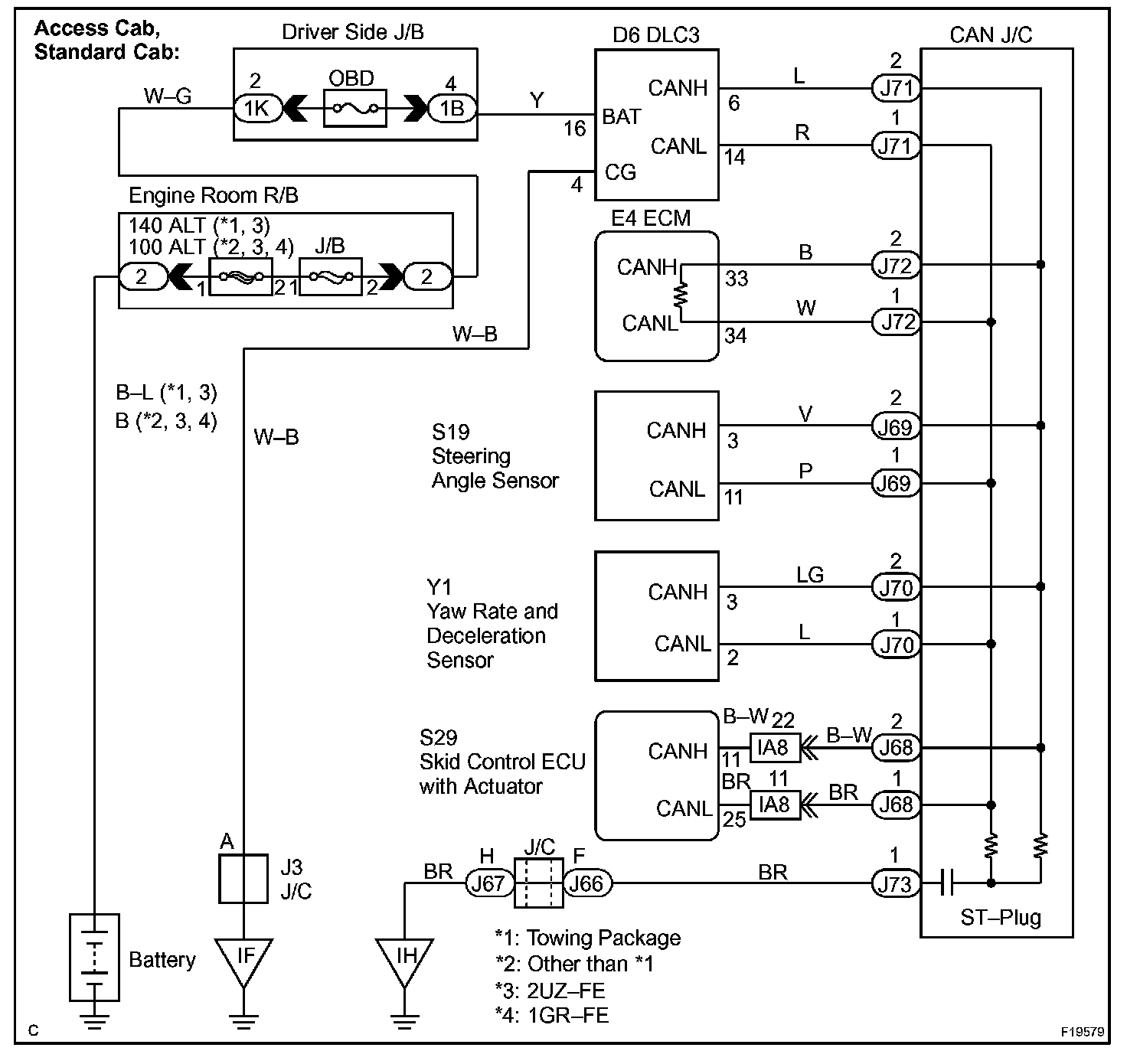

Wiring Diagram:

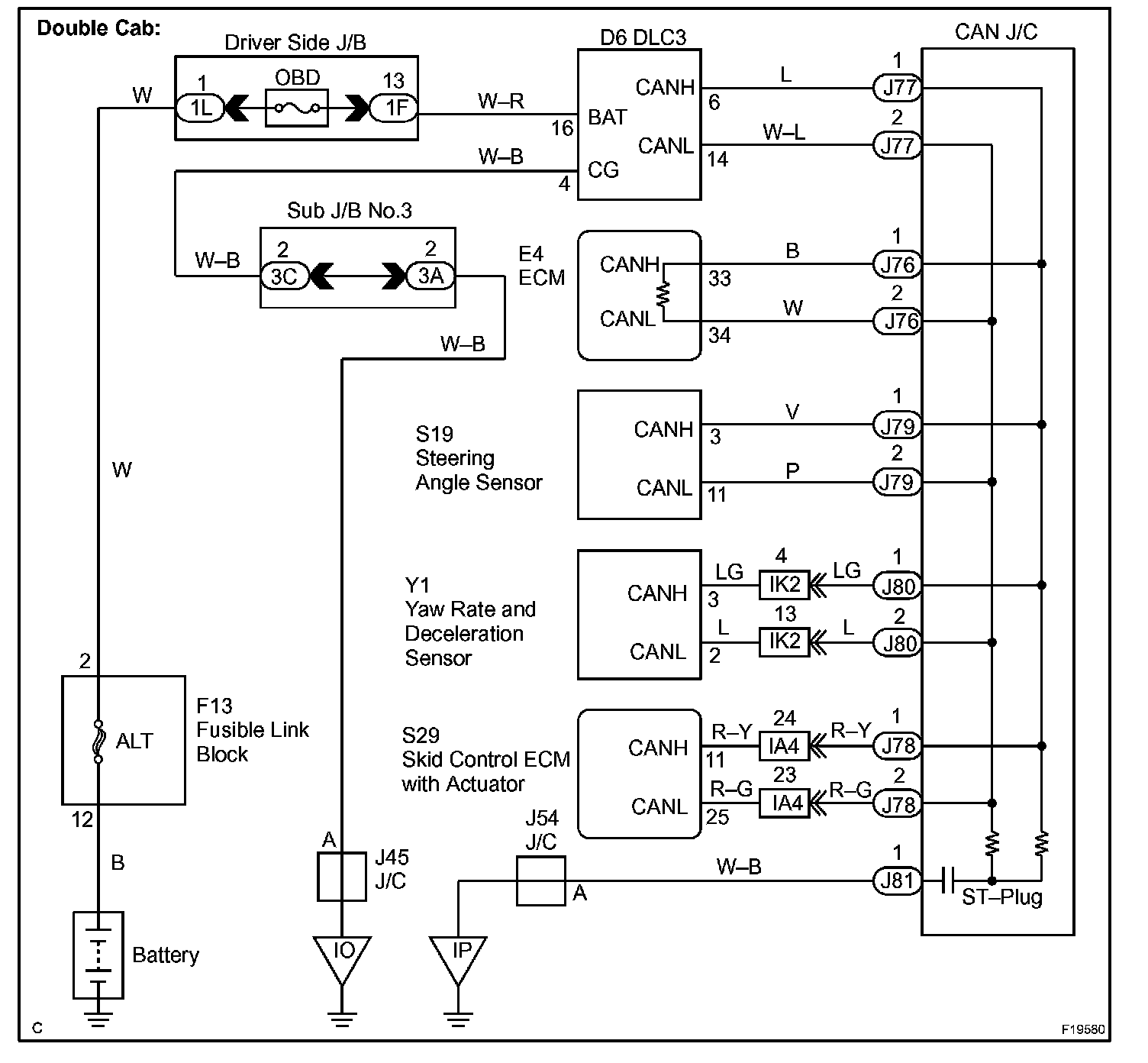

Wiring Diagram:

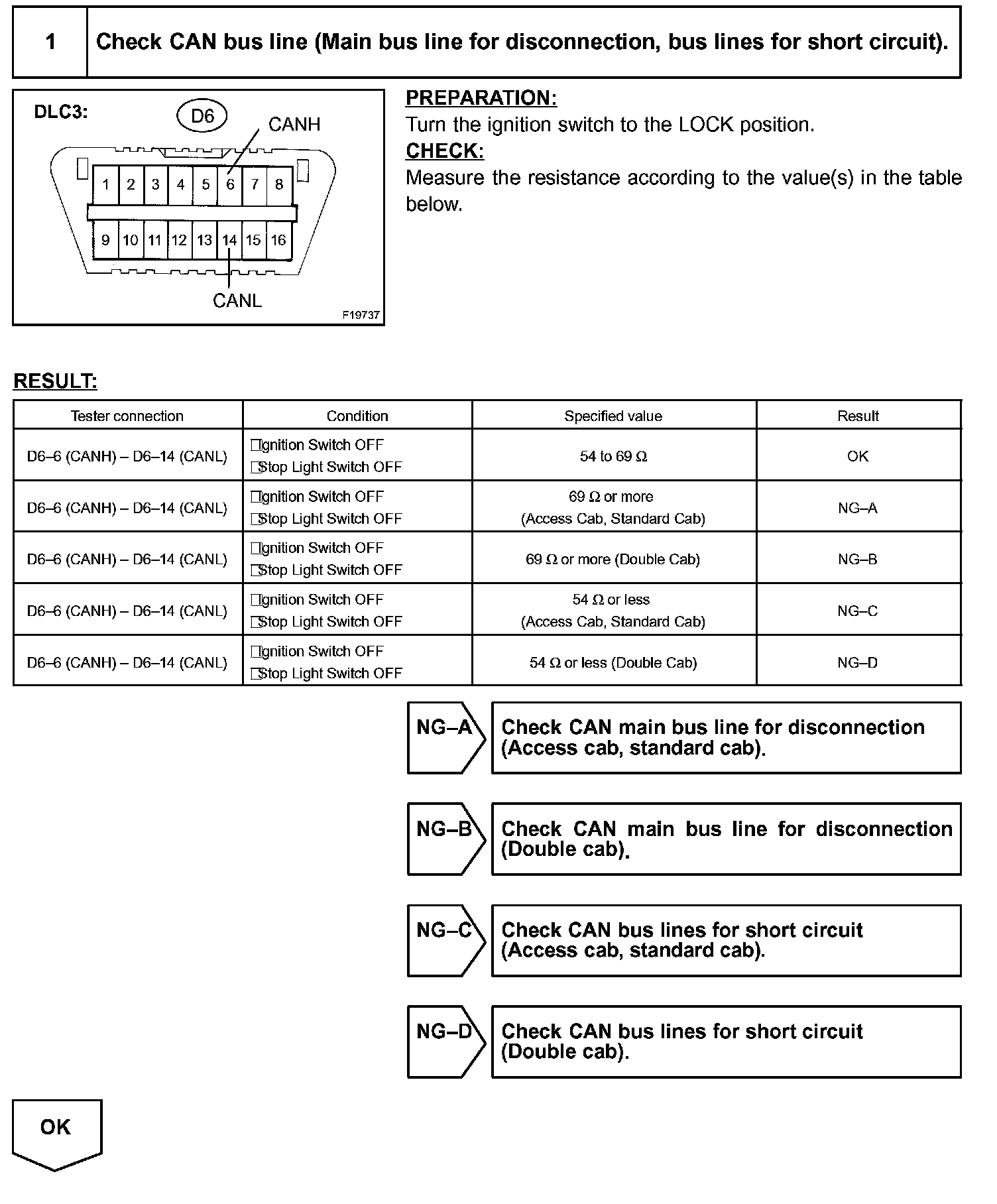

Step 1:

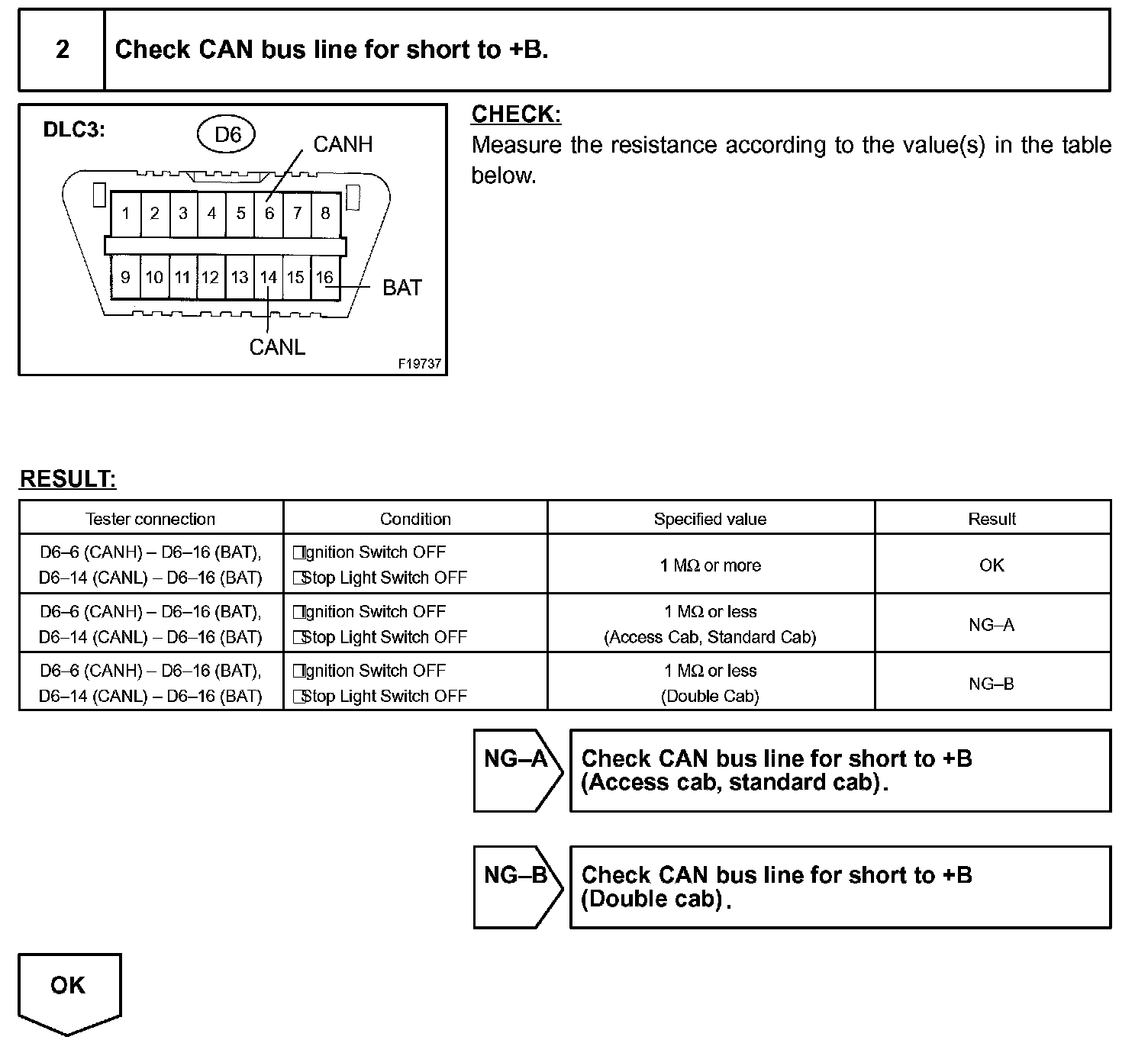

Step 2:

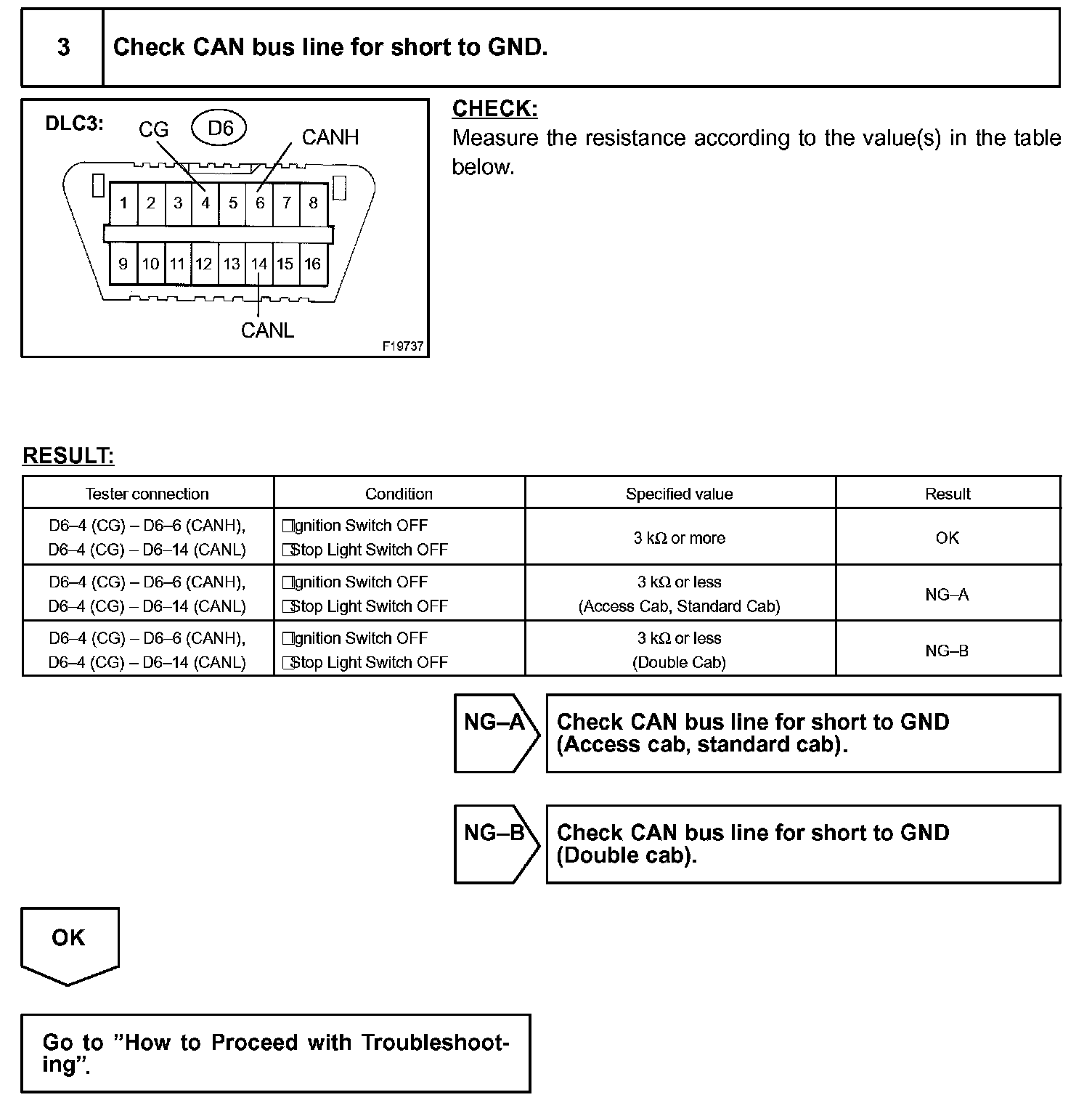

Step 3:
INSPECTION PROCEDURE
