PRECAUTION

1. STEERING SYSTEM HANDLING PRECAUTIONS
Care must be taken when replacing parts. Incorrect replacement could affect the performance of the steering system and result in hazardous driving.

2. SRS AIRBAG SYSTEM HANDLING PRECAUTIONS.
The vehicle is equipped with an SRS (Supplemental Restraint System), such as the driver's airbag and front passenger airbag. Failure to carry out service operations in correct sequence could cause unexpected SRS airbag deployment during servicing and may lead to a serious accident. Before servicing (including removal or installation of parts, inspection or replacement), be sure to read the precautionary notice for the SRS.

3. BUS LINE REPAIR

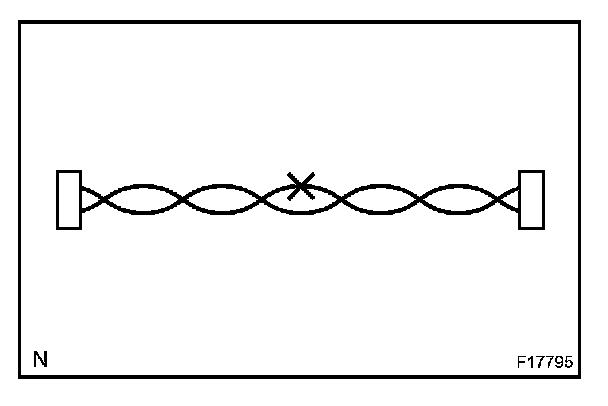

a. After repairing the bus line with a solder, wrap the repaired part with vinyl tape.

NOTE:
- The CANL bus line and CANH bus line must be installed together all the time.
When installing, make sure to twist them.
CAN bus lines are likely to be influenced by noise in the bus lines are not twisted.

- The difference in length of the CANL bus line and CANH bus line should be within 100 mm (3.937 in.).
- Leave approximately 80 mm (3.150 in.) loose in the twist around the connector.




b. Do not use a bypass wire between the connectors.

NOTE: The feature of the twisted wire harness will be lost if you use a bypass wire.

4. CONNECTOR HANDLING

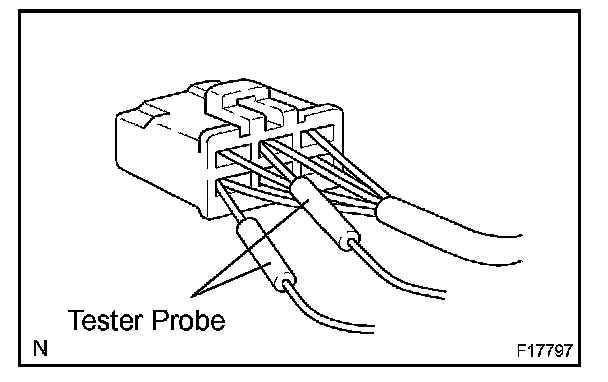

a. When inserting tester probes into a connector, insert them from the rear of the connector.

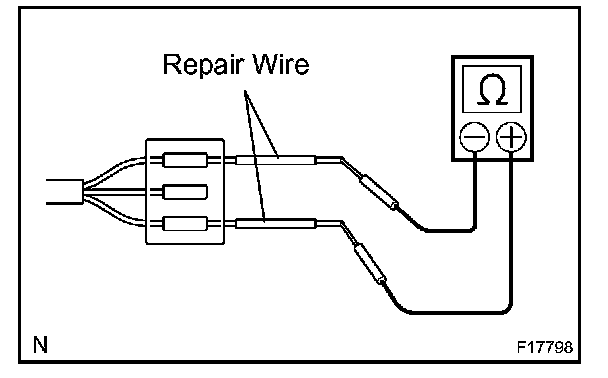

b. If it is impossible to check continuity from the rear of the connector, then use a repair wire to check the connector.
