Transmission Position Sensor/Switch: Service and Repair

PARK/NEUTRAL POSITION (PNP) SWITCH

ON-VEHICLE REPAIR
1. DISCONNECT PARK/NEUTRAL POSITION SWITCH CONNECTOR





2. REMOVE PARK/NEUTRAL POSITION SWITCH

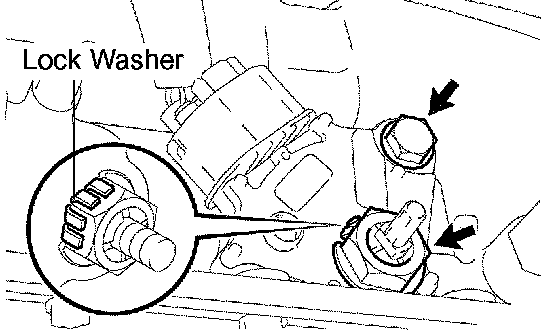

a. Pry off the lock washer and remove the nut.
b. Remove the bolt and park/neutral position switch.
3. INSTALL PARK/NEUTRAL POSITION SWITCH
a. Install the park/neutral position switch with the bolt.
Torque: 13 Nm (130 kgf-cm, 10 ft. lbs.)
b. Install a new lock washer and the nut.
Torque: 6.9 Nm (70 kgf-cm, 61 inch lbs.)
c. Bend the claws on the lock washer to stake the nut.
d. Adjust the park/neutral position switch. Initial Inspection (Basic Inspection)


4. CONNECT PARK/NEUTRAL POSITION SWITCH CONNECTOR
