Vehicle Speed Sensor: Service and Repair

SPEED SENSOR

ON-VEHICLE REPAIR





1. DISCONNECT SPEED SENSOR NT AND SP2 CONNECTOR
2. REMOVE SPEED SENSOR NT AND SP2

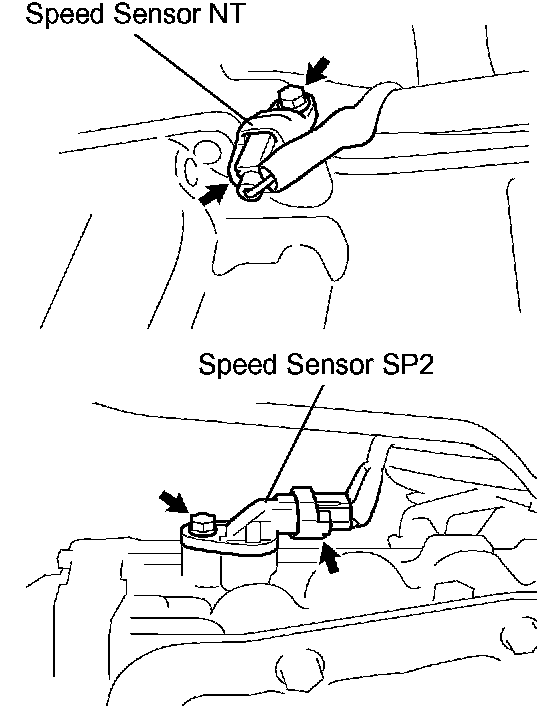

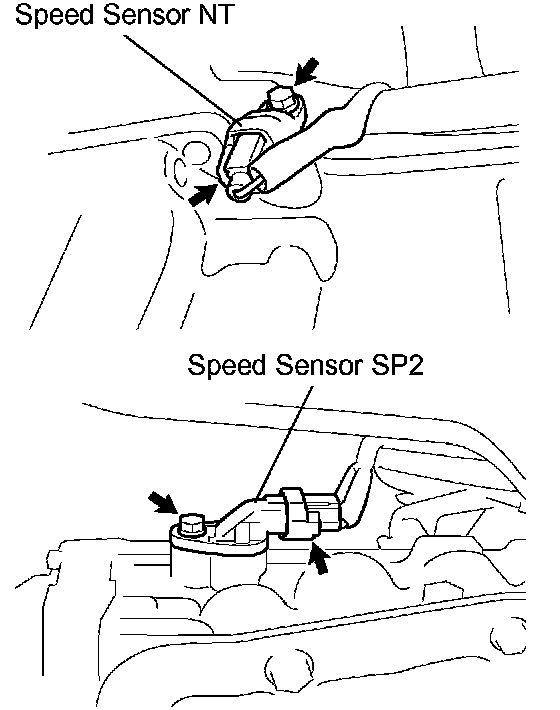

a. Remove the 2 bolts, speed sensors NT and SP2.

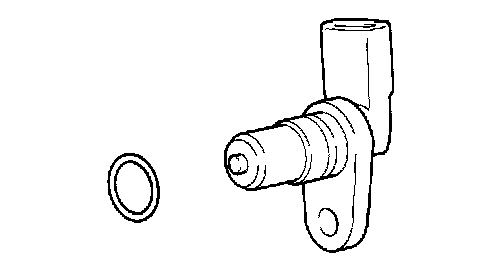

b. Remove the 2 O-rings from the speed sensors NT and SP2.
3. INSTALL SPEED SENSOR NT AND SP2
a. Coat 2 new O-rings with ATF and install them to the speed sensors NT and SP2.





b. Install the speed sensors NT and SP2 with the 2 bolts.
Torque: 5.4 Nm (55 kgf-cm, 48 inch lbs.)
4. CONNECT SPEED SENSOR NT AND SP2 CONNECTOR
