Anti-Lock Brake System
Anti-Lock Brake System

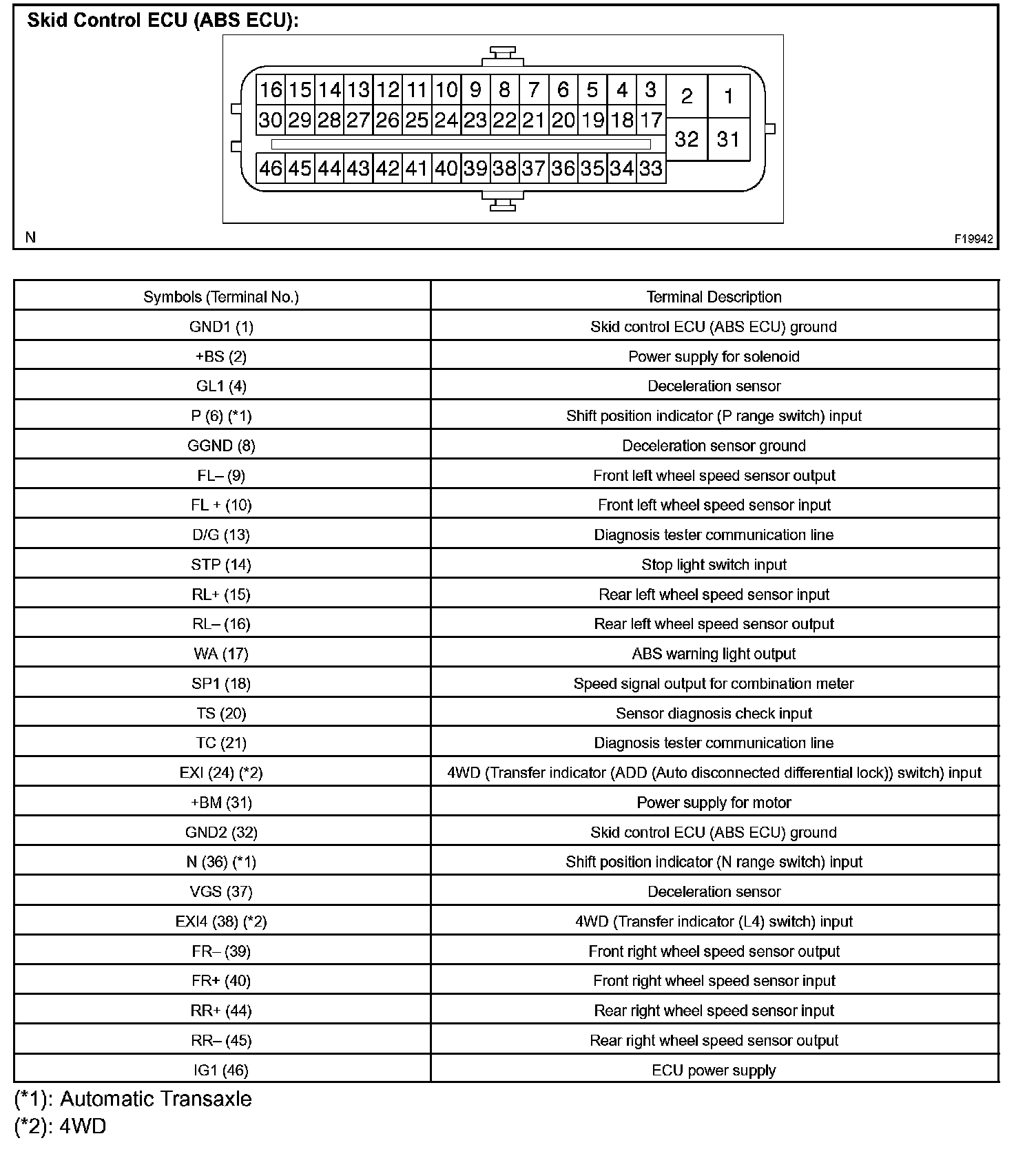

Terminals Of Control Module / Pinouts:

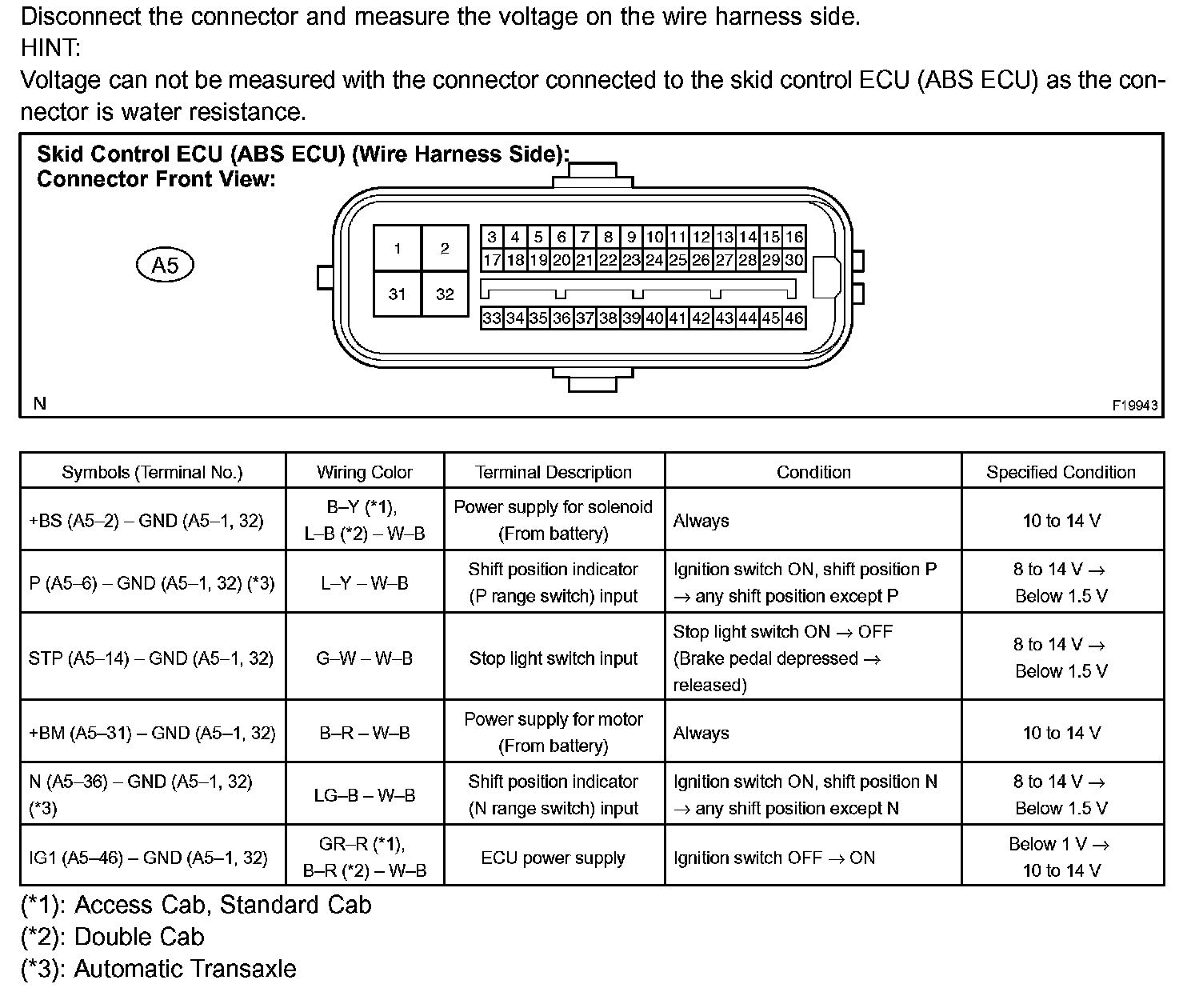

Terminals Of Control Module / Pinouts - Terminal Inspection:
