Body Control Module: Locations

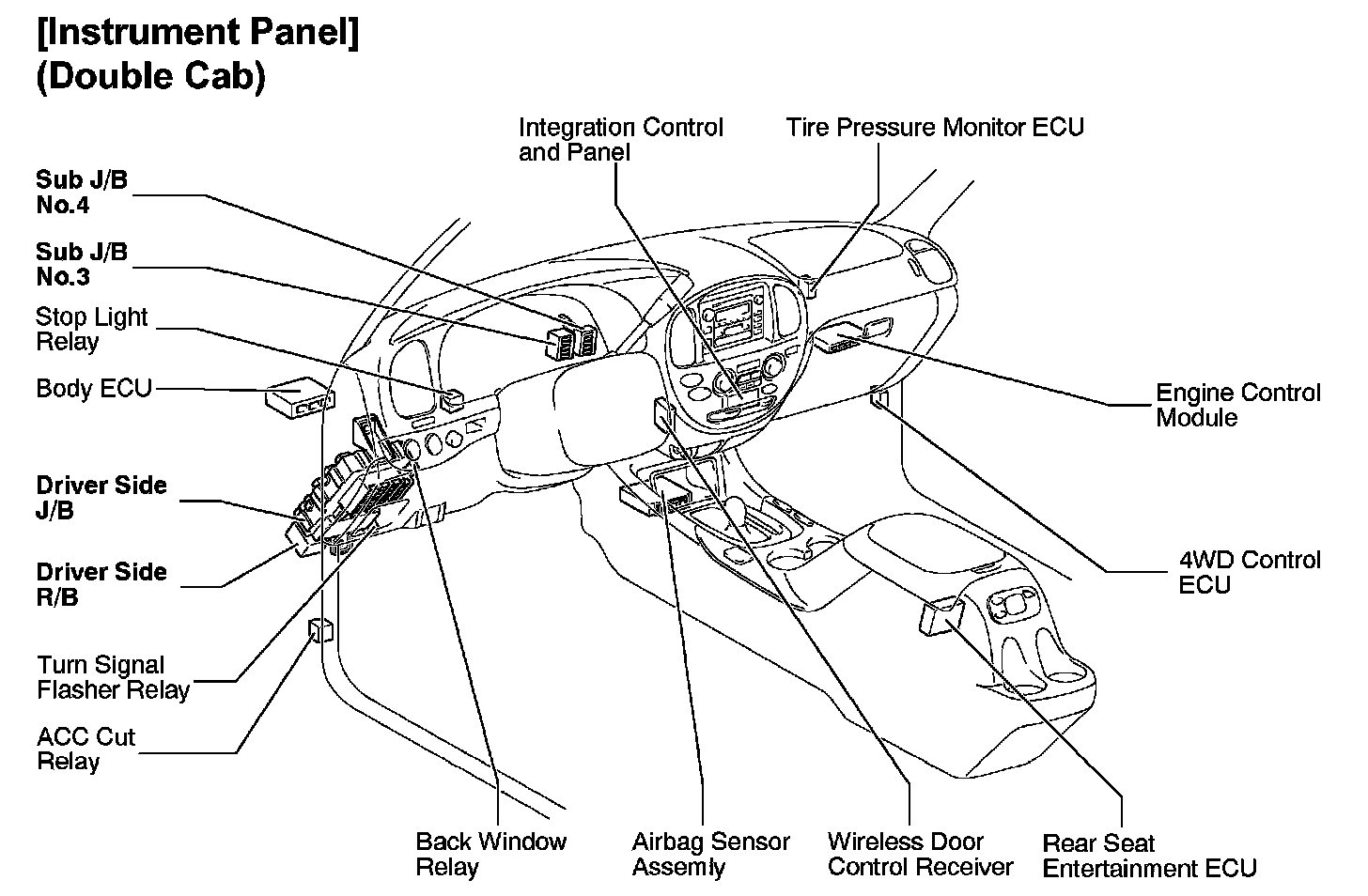

Instrument Panel:

A/C - Cu:

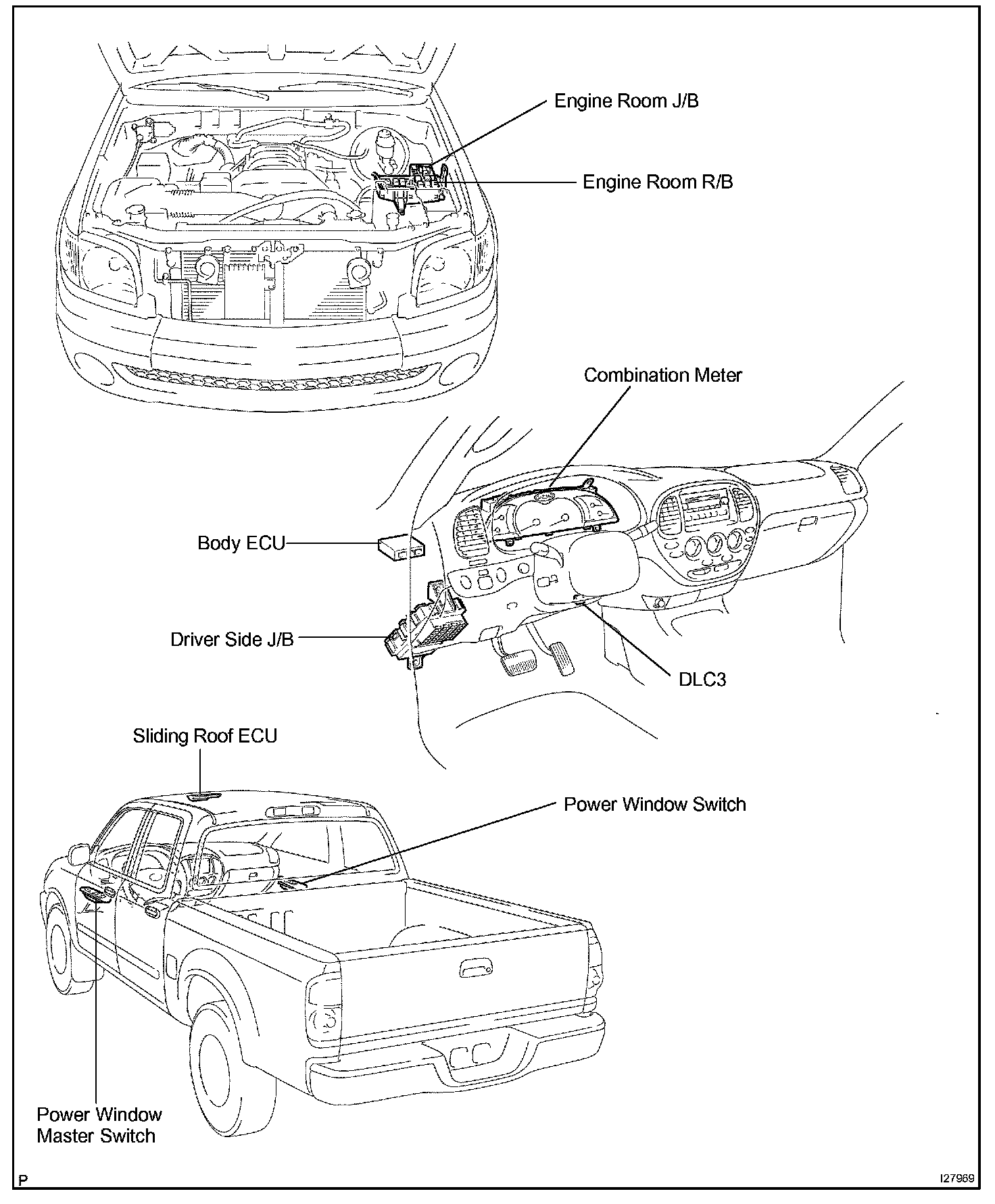

Body Control System:

Multiplex Communication System:
