System Specifications

CHAIN TENSIONER NO.2
Install the chain tensioner No.2 with the bolt.
Torque 19 Nm (194 kgf-cm, 14 ft. lbs.)

CHAIN TENSIONER NO.1
Install the chain tensioner with the 2 bolts.
Torque 10 Nm (102 kgf-cm, 7 ft. lbs.)

CRANKSHAFT PULLEY 245 Nm (2,500 kgf-cm, 181 ft. lbs.)

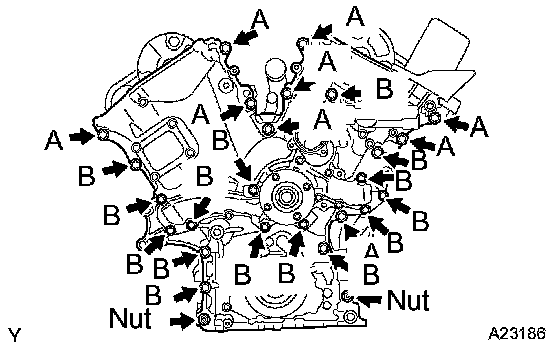

TIMING CHAIN COVER

Install the timing chain cover with the 24 bolts and 2 nuts. Tighten the bolts and nuts uniformly in several steps.
Torque 23 Nm (235 kgf-cm, 17 ft. lbs.)
