System Specifications

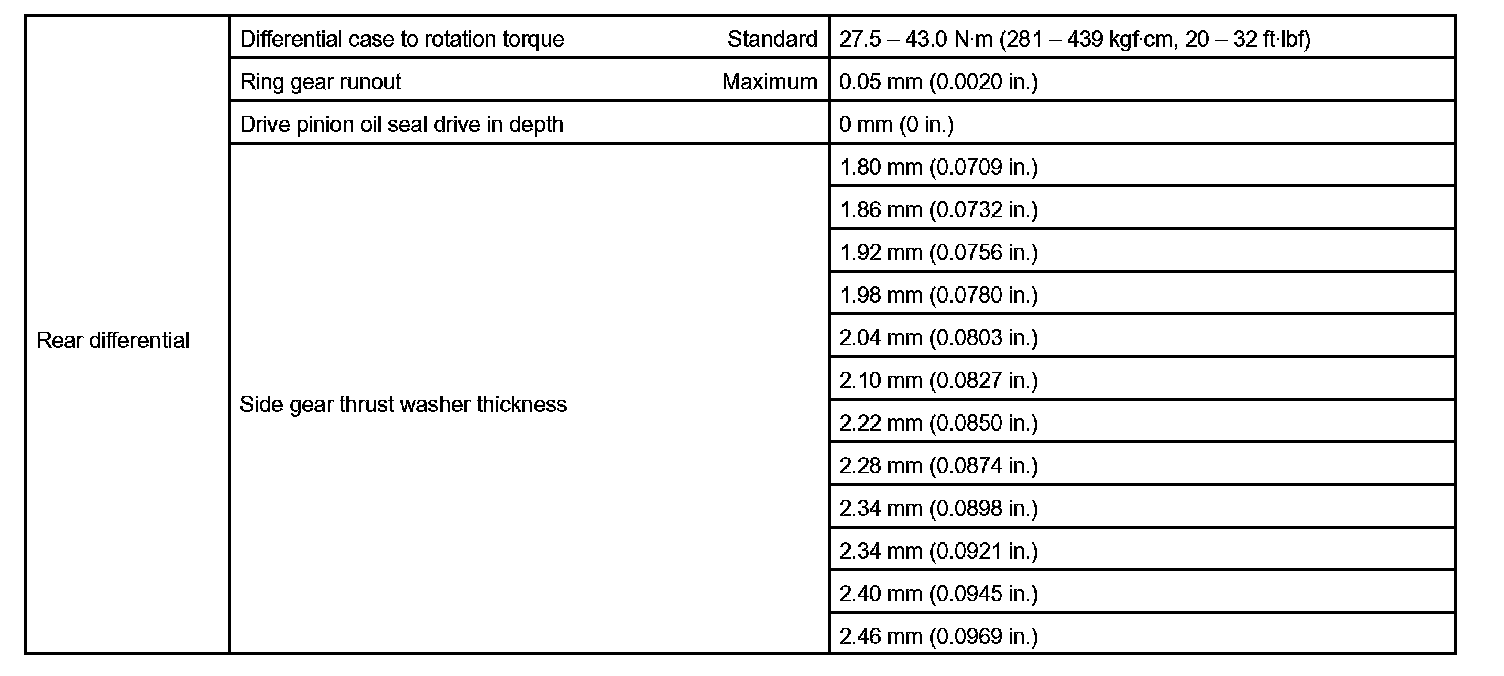

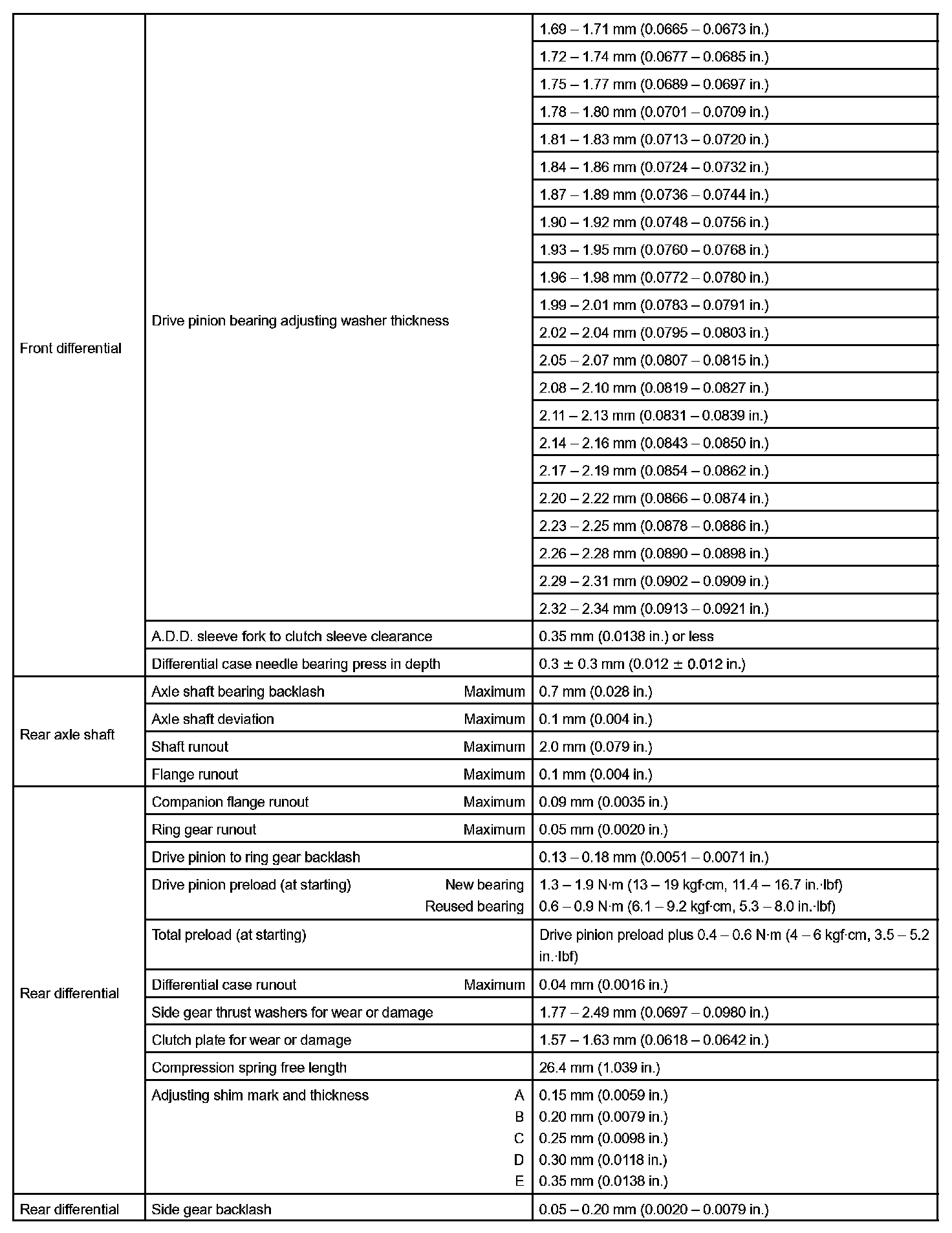

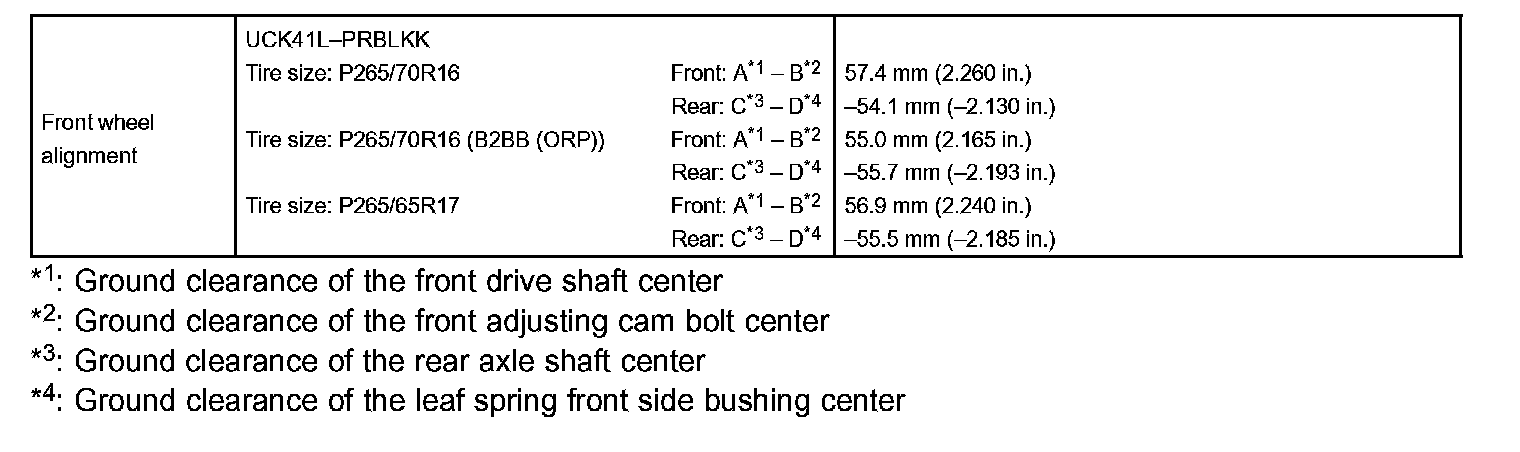

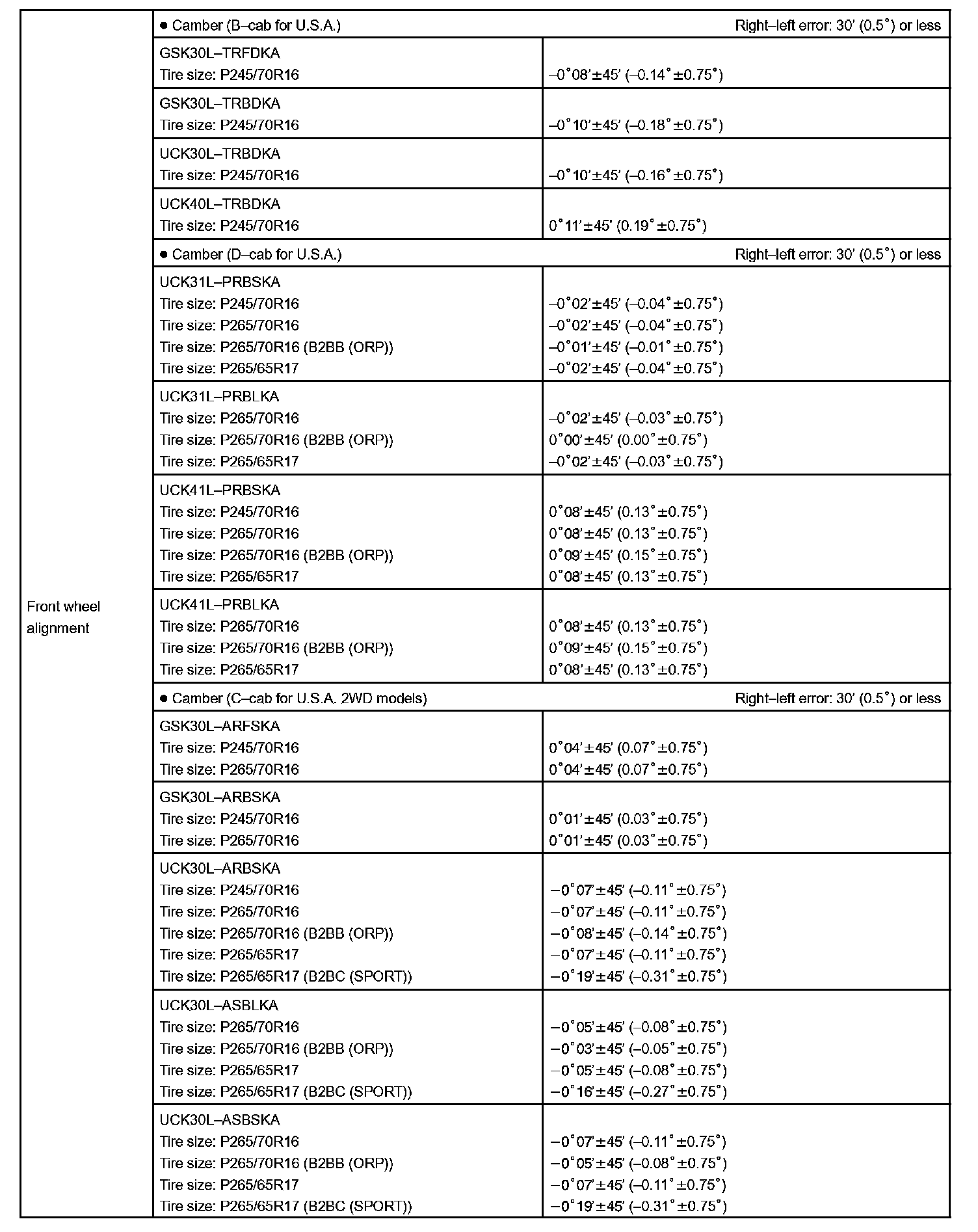

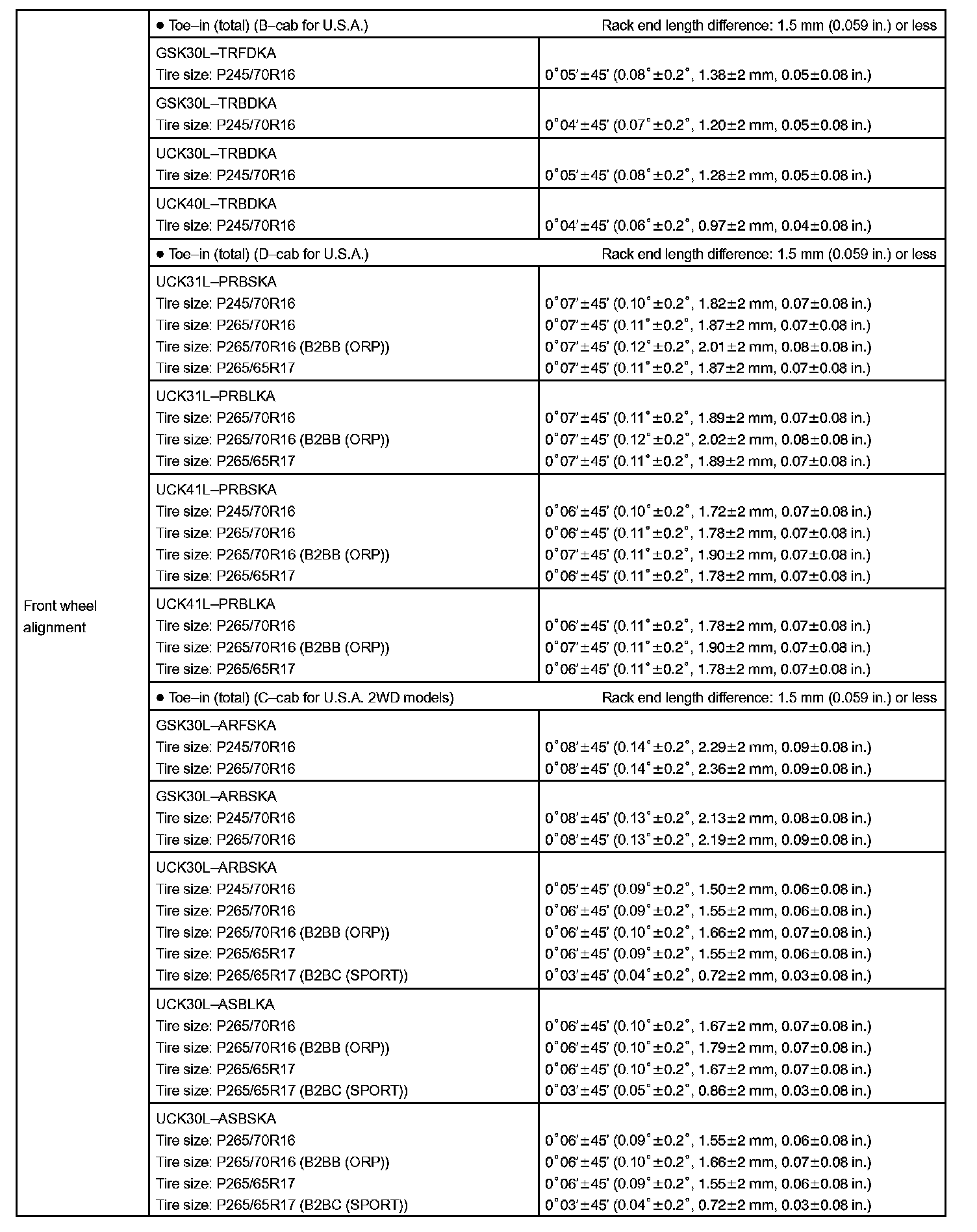

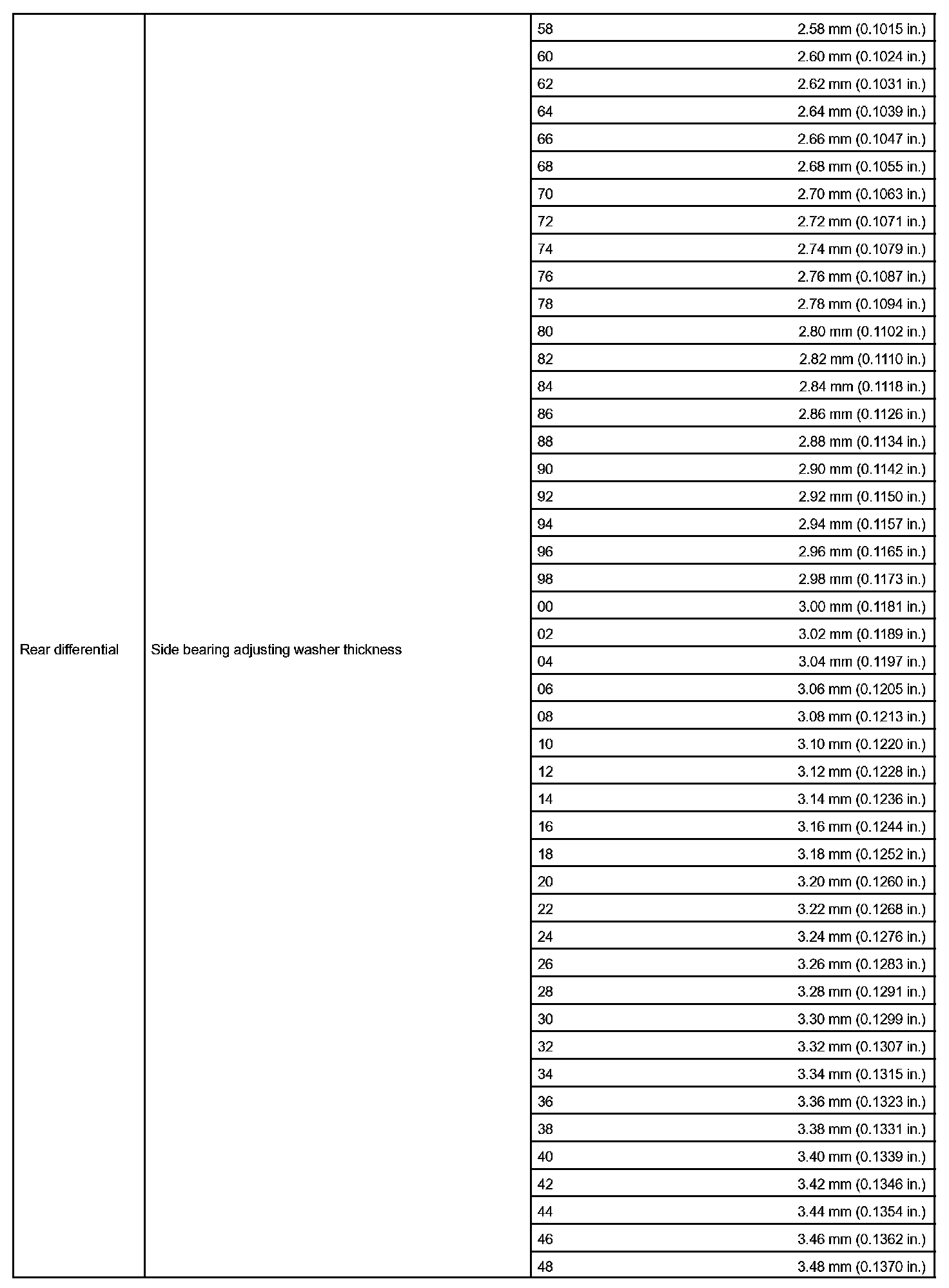

Suspension And Axle - Service Data Part 1:

Suspension And Axle - Service Data Part 2:

Suspension And Axle - Service Data Part 3:

Suspension And Axle - Service Data Part 4:

Suspension And Axle - Service Data Part 5:

Suspension And Axle - Service Data Part 6:

Suspension And Axle - Service Data Part 7:

Suspension And Axle - Service Data Part 8:

Suspension And Axle - Service Data Part 9:

Suspension And Axle - Service Data Part 10:

Suspension And Axle - Service Data Part 11:

Suspension And Axle - Service Data Part 12:

Suspension And Axle - Service Data Part 13:

Suspension And Axle - Service Data Part 14:

Suspension And Axle - Service Data Part 15:

Suspension And Axle - Service Data Part 16:

Suspension And Axle - Service Data Part 17:

Suspension And Axle - Service Data Part 18:

Suspension And Axle - Service Data Part 19:

Suspension And Axle - Service Data Part 20:

Suspension And Axle - Service Data Part 21:

Suspension And Axle - Service Data Part 22:

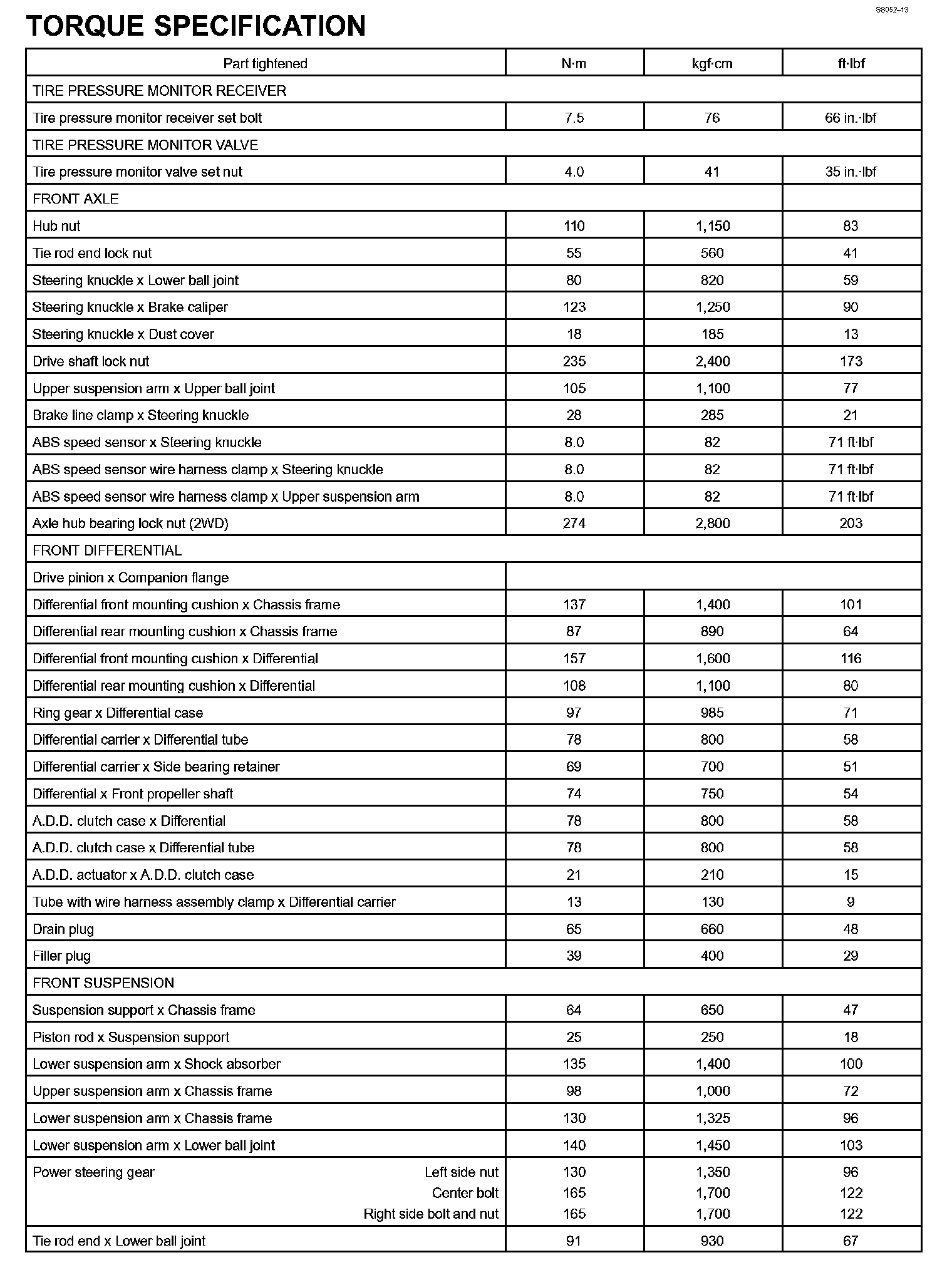

Suspension And Axle - Torque Specification Part 1:

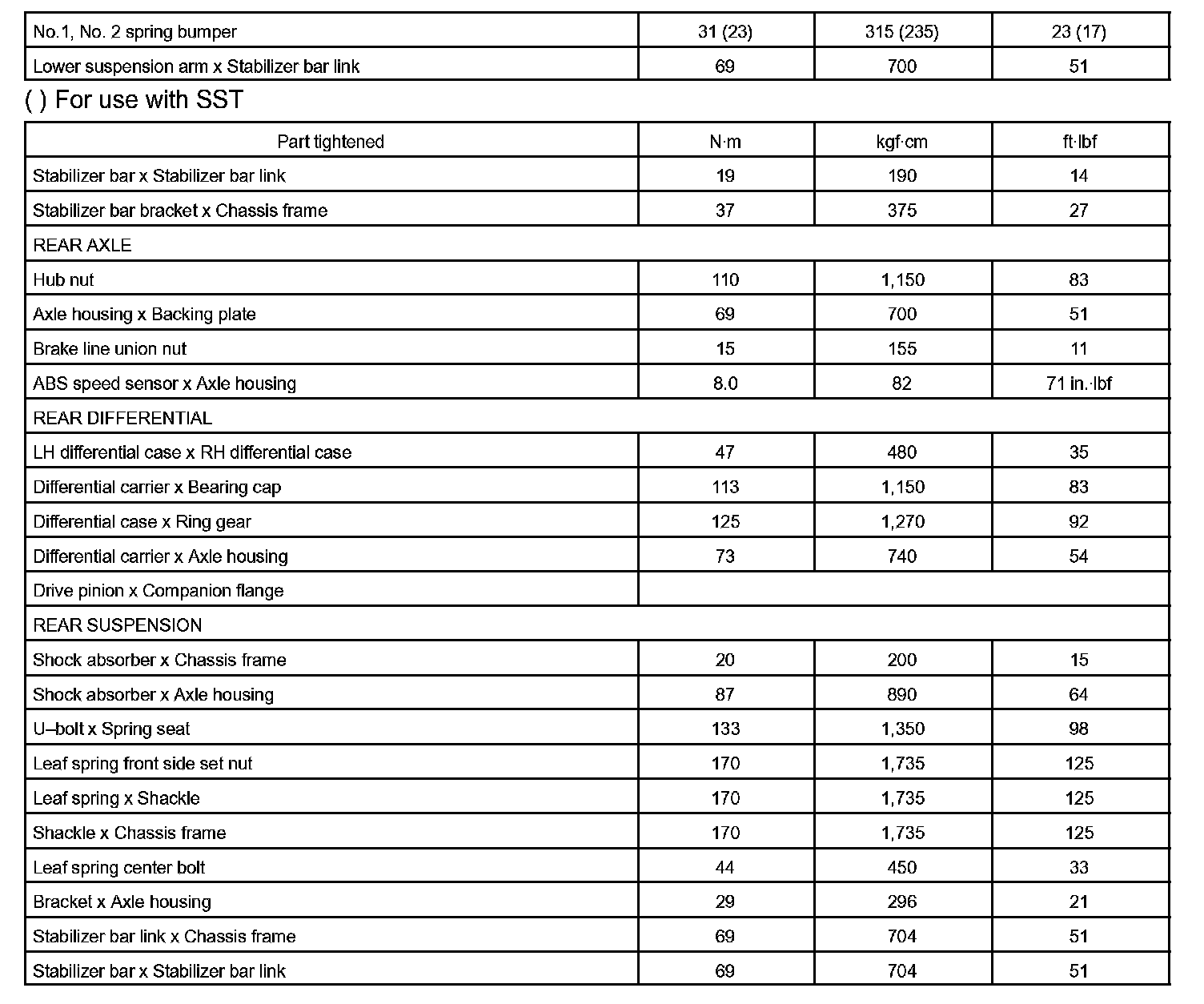

Suspension And Axle - Torque Specification Part 2:
