Control Module: Testing and Inspection

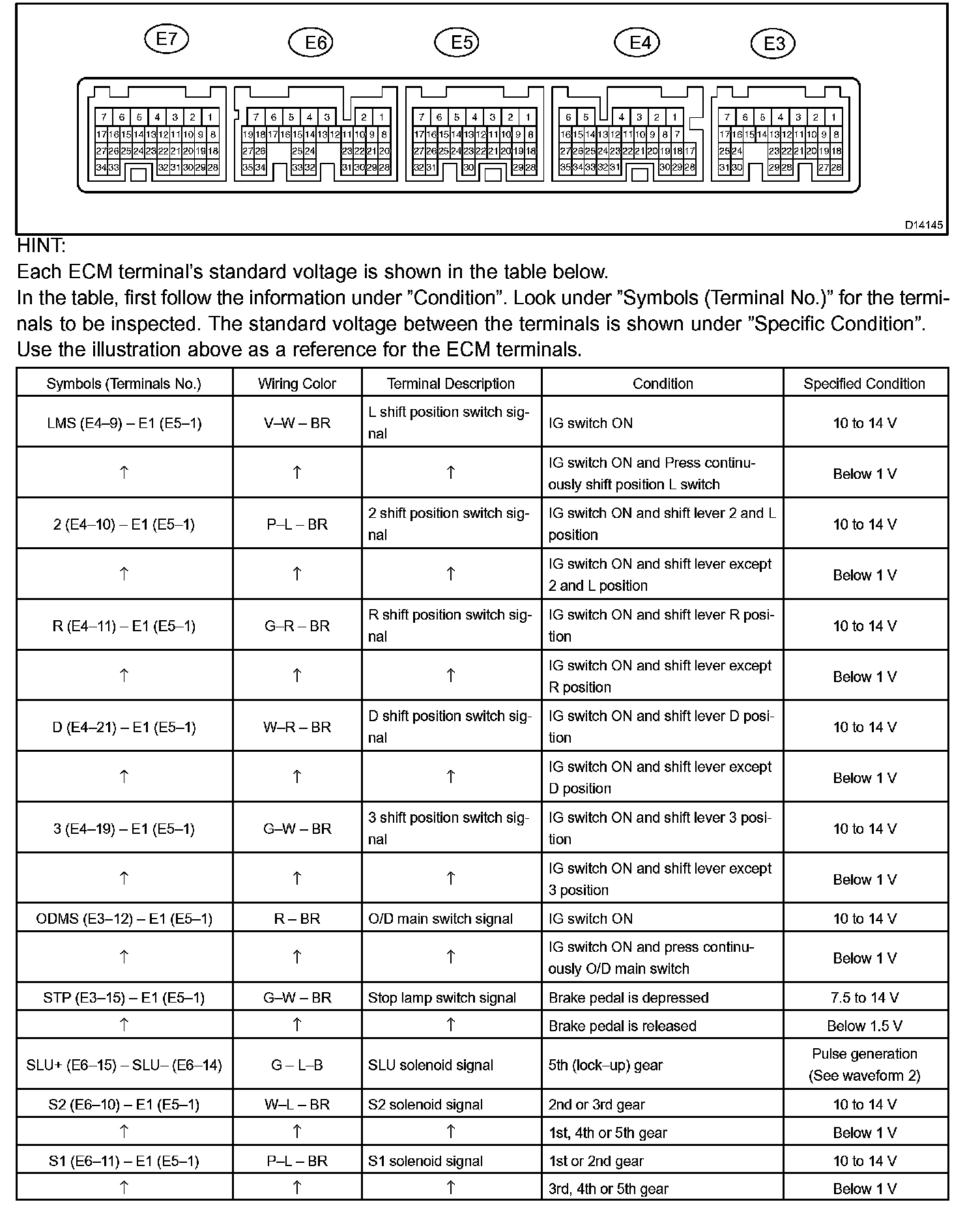

Terminals of ECM / Pinouts Part 1:

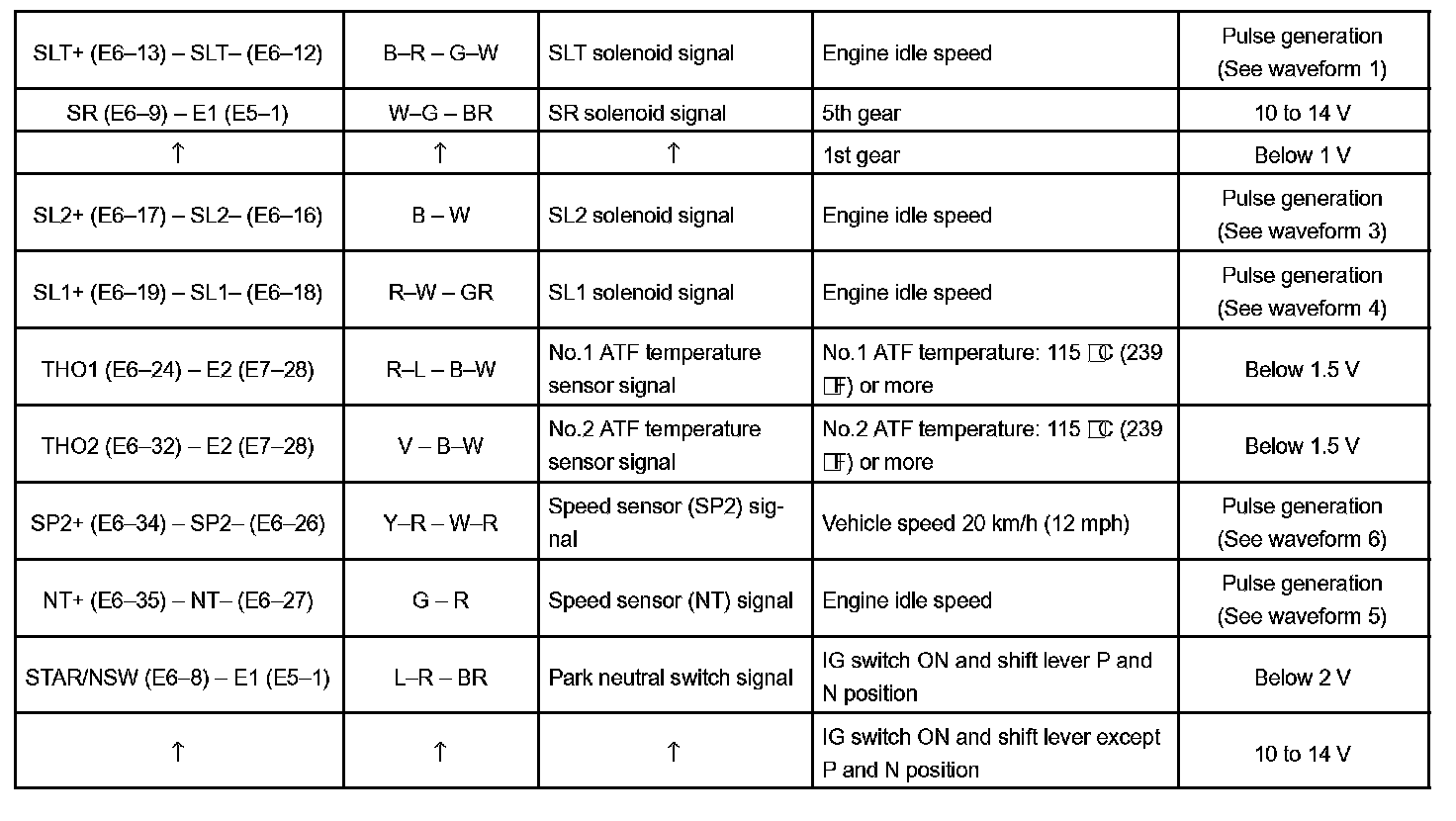

Terminals of ECM / Pinouts Part 2:

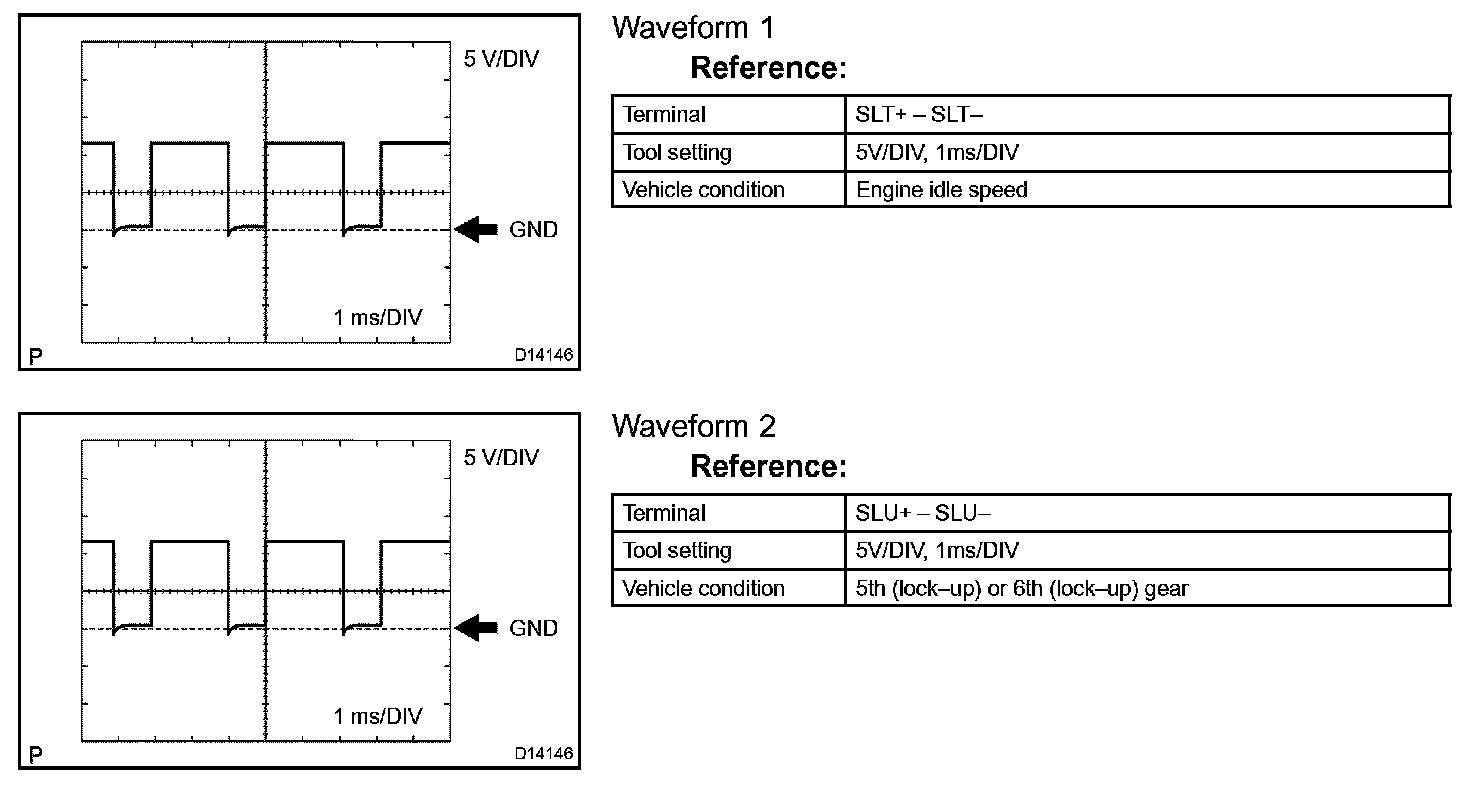

Oscilloscope Waveforms Part 1:

Oscilloscope Waveforms Part 2:
