Fuse Block

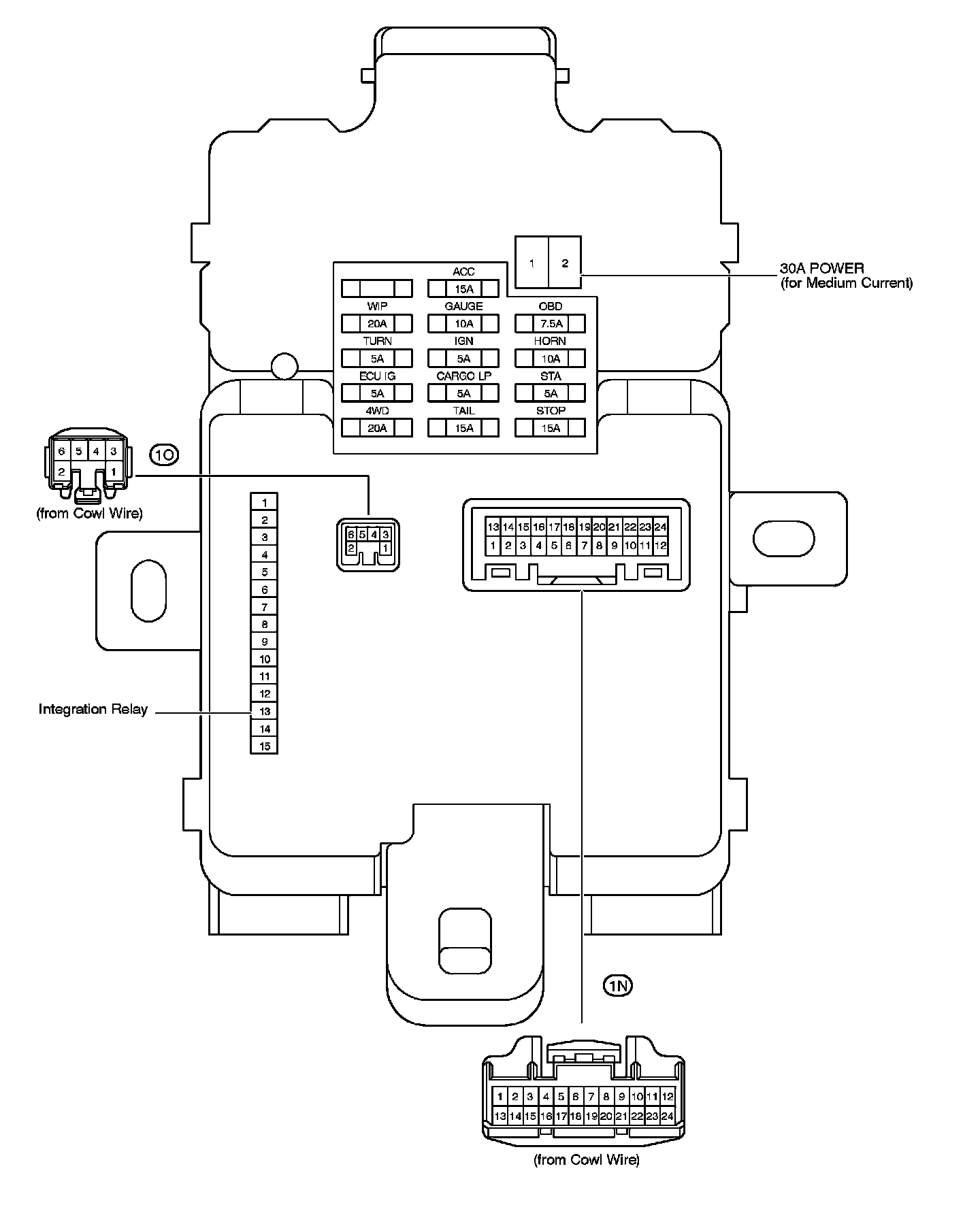

Driver Side J/B And Integration Relay - Lower Finish Panel:

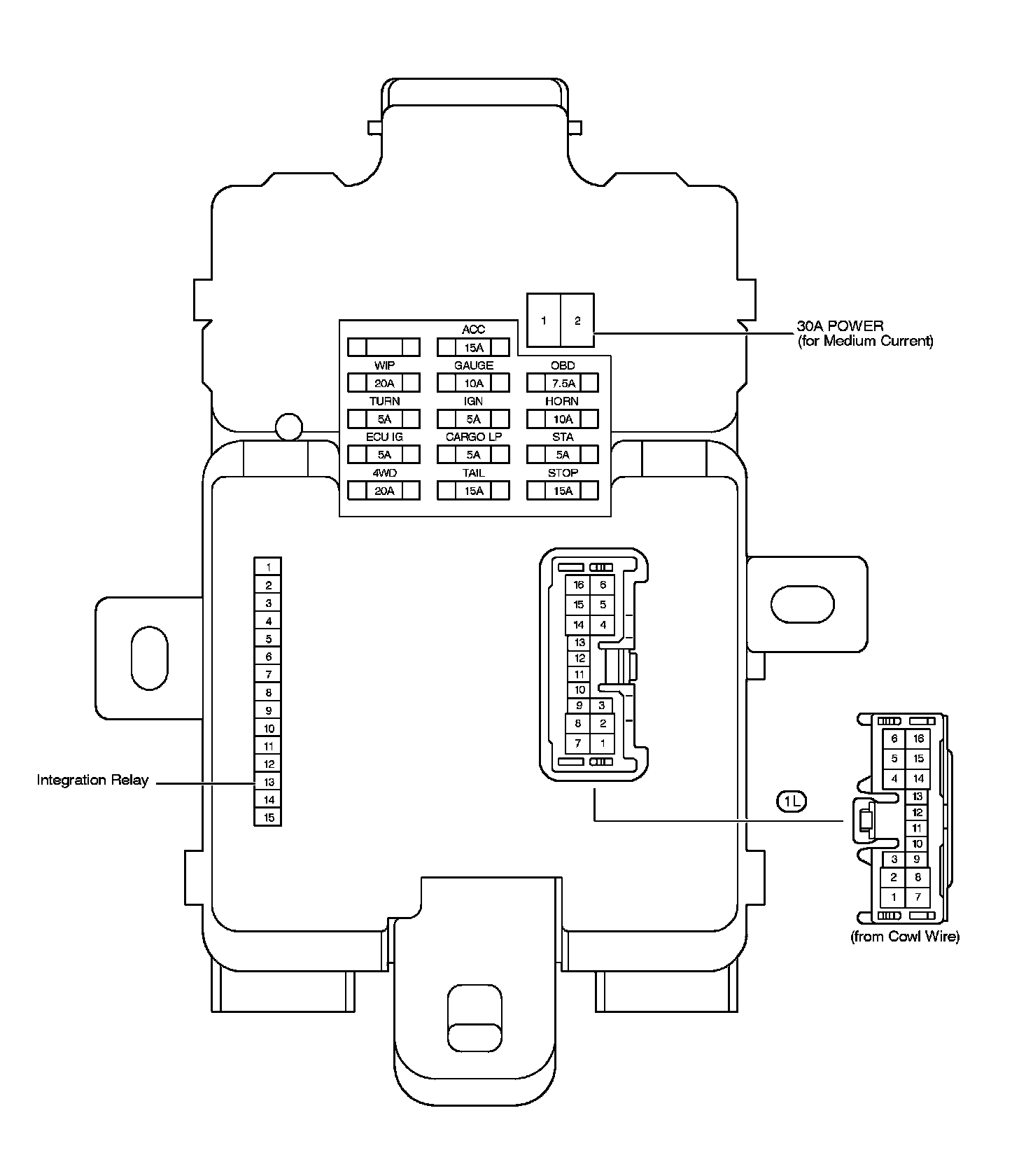

Driver Side J/B And Integration Relay - Lower Finish Panel:

Driver Side J/B And Integration Relay - Lower Finish Panel:

Driver Side J/B And Integration Relay - Lower Finish Panel:

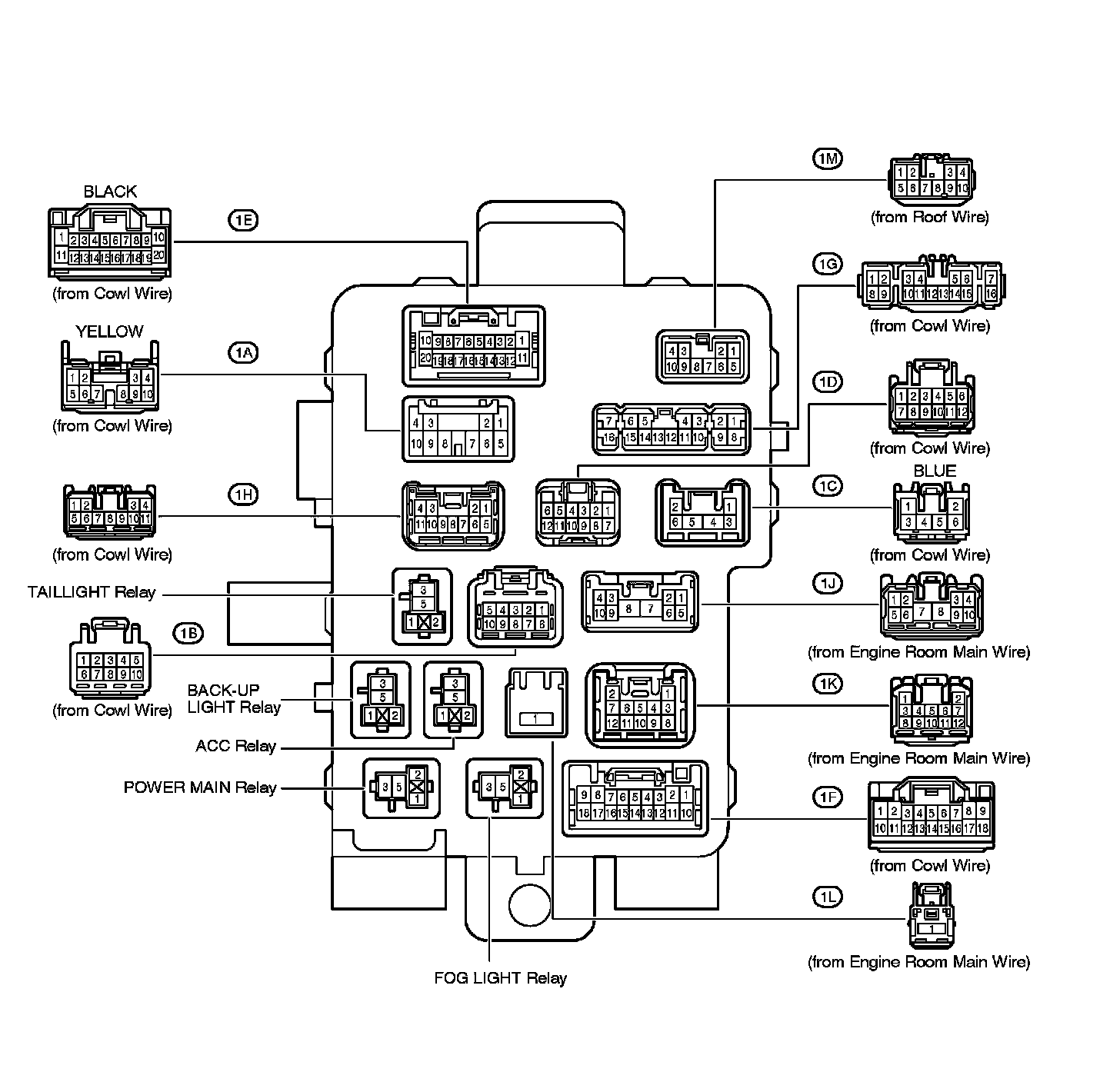

Engine Room J/B - Engine Compartment Left:

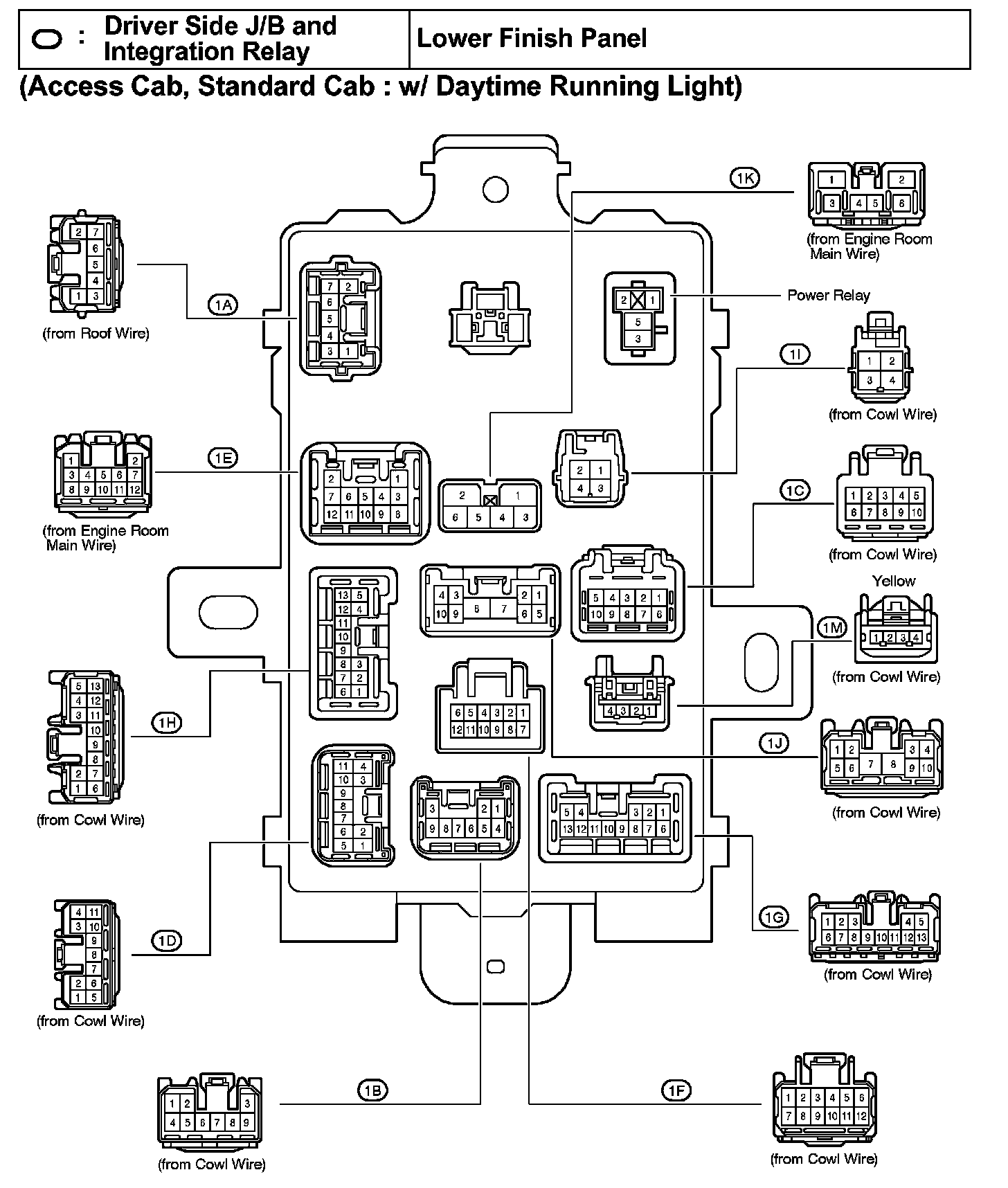

Driver Side J/B - Lower Finish Panel:

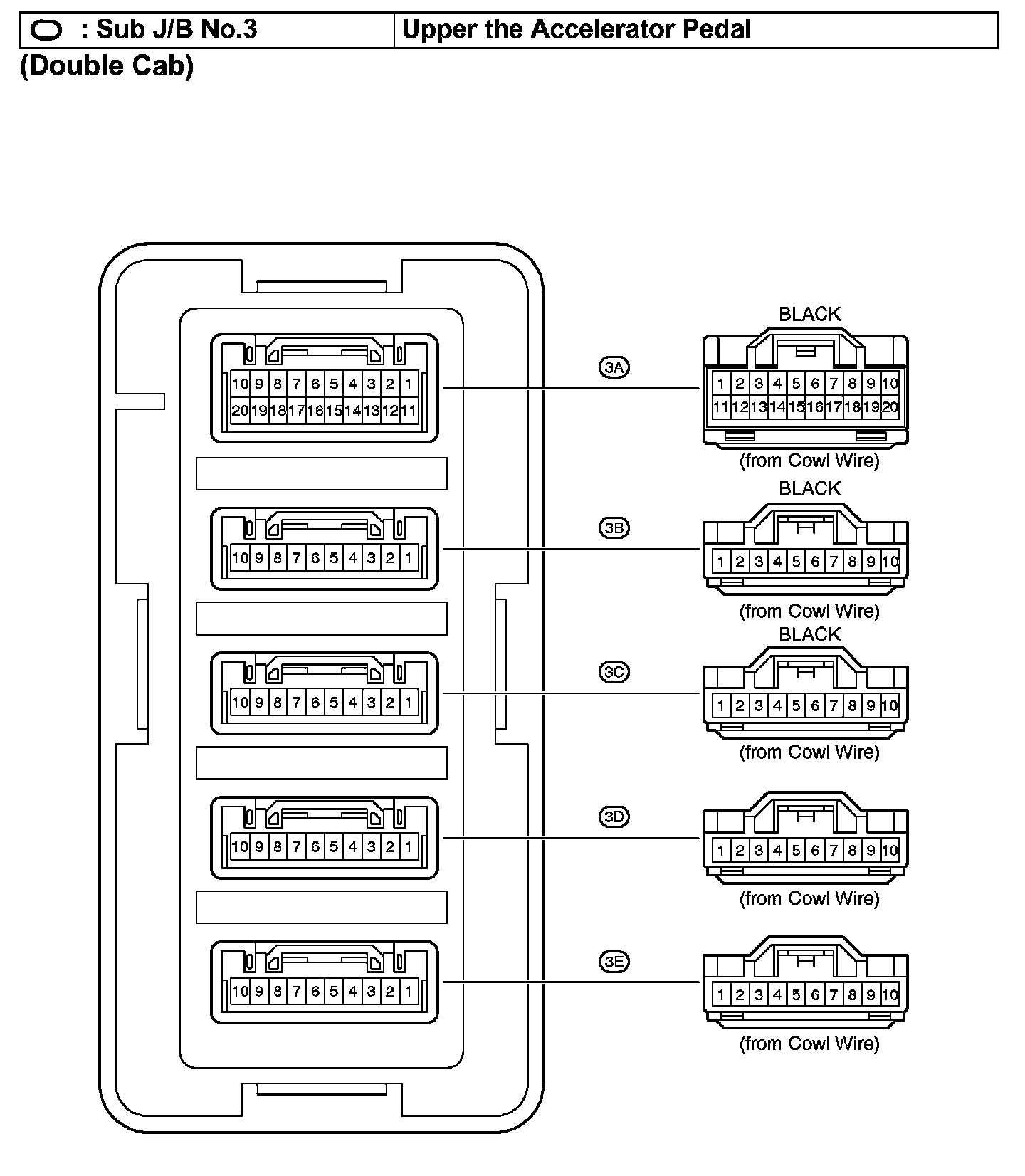

Sub J/B No. 3 - Upper The Accelerator Pedal:

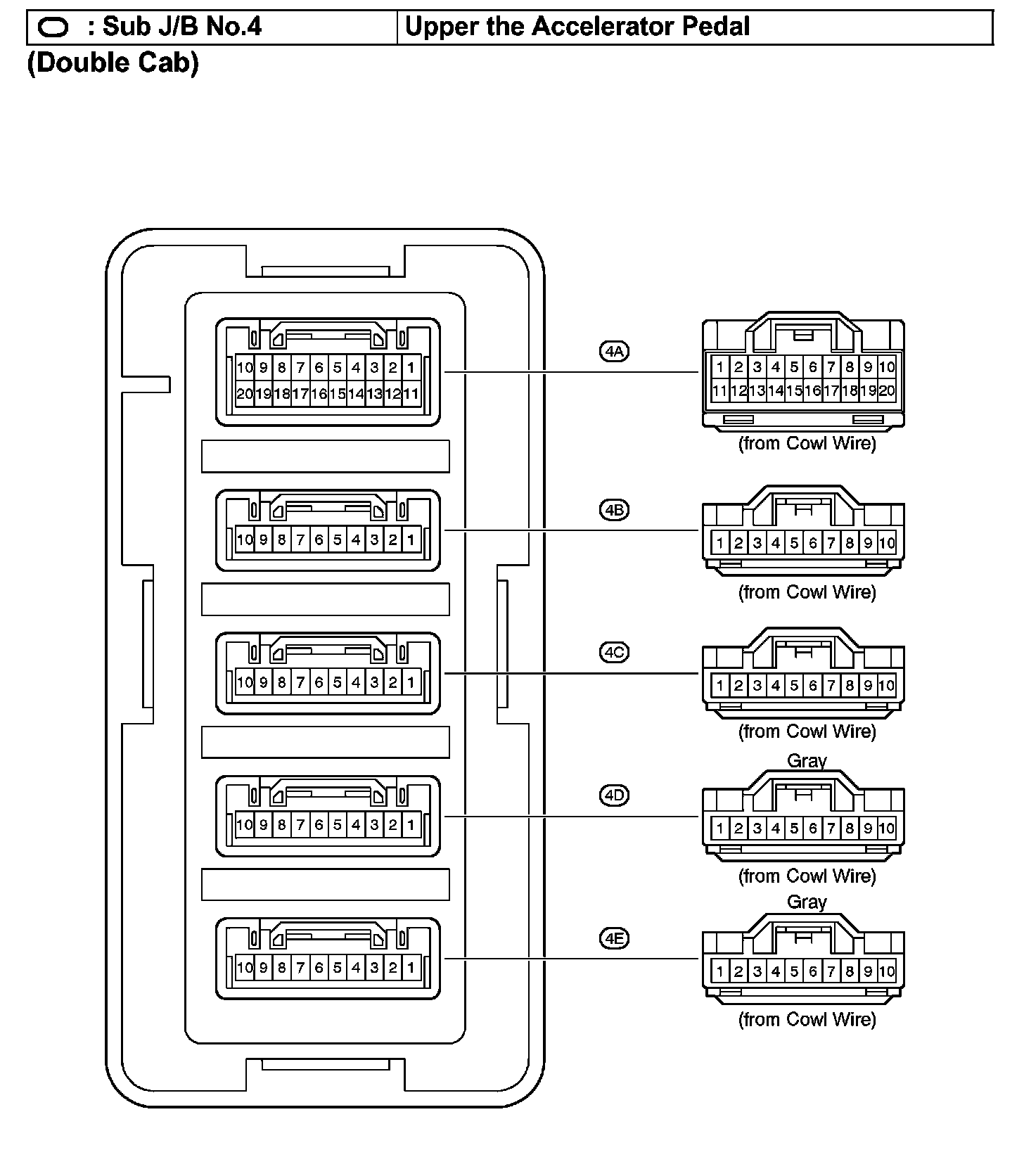

Sub J/B No. 4 - Upper The Accelerator Pedal:
