Alternator
Alternator

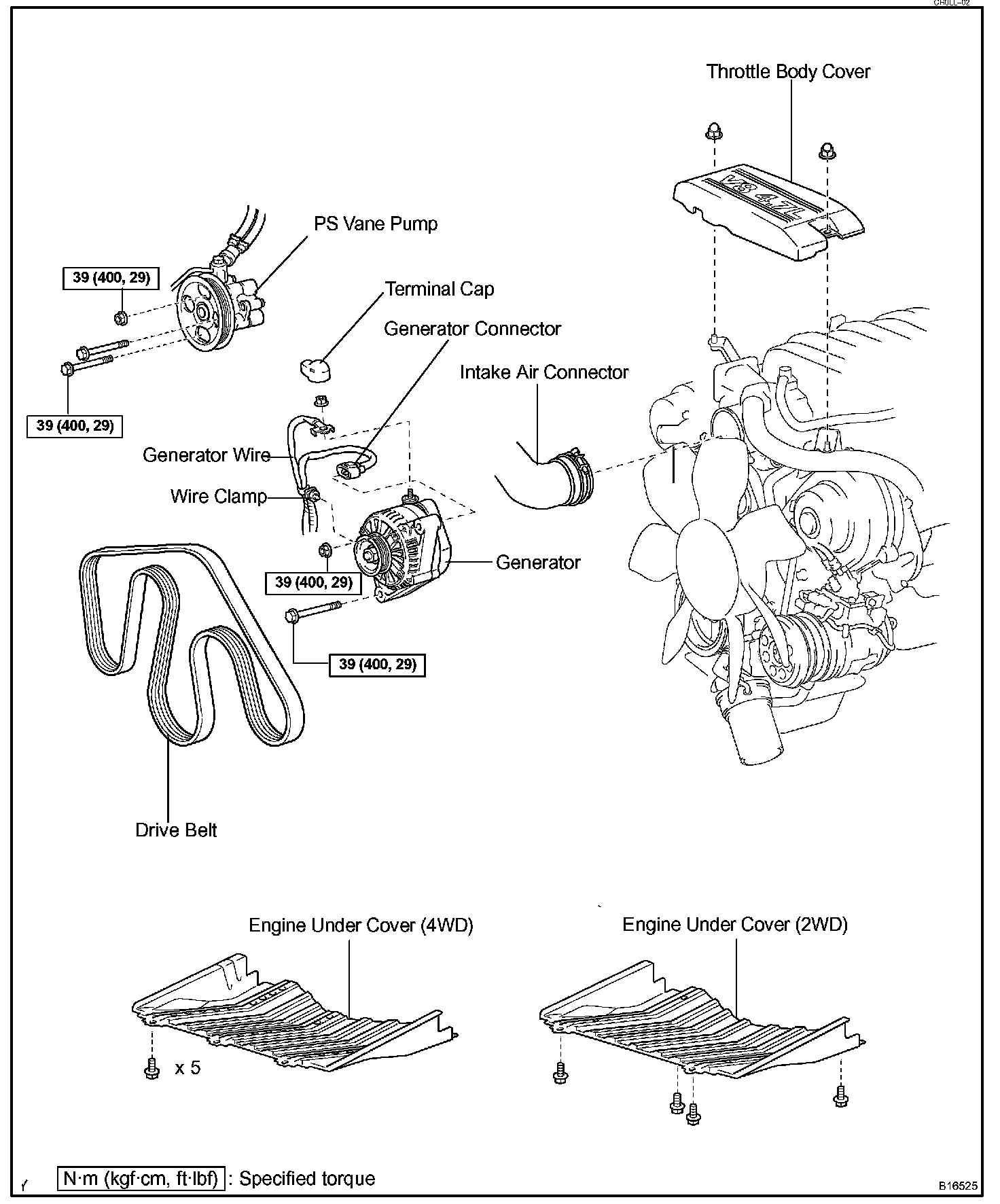

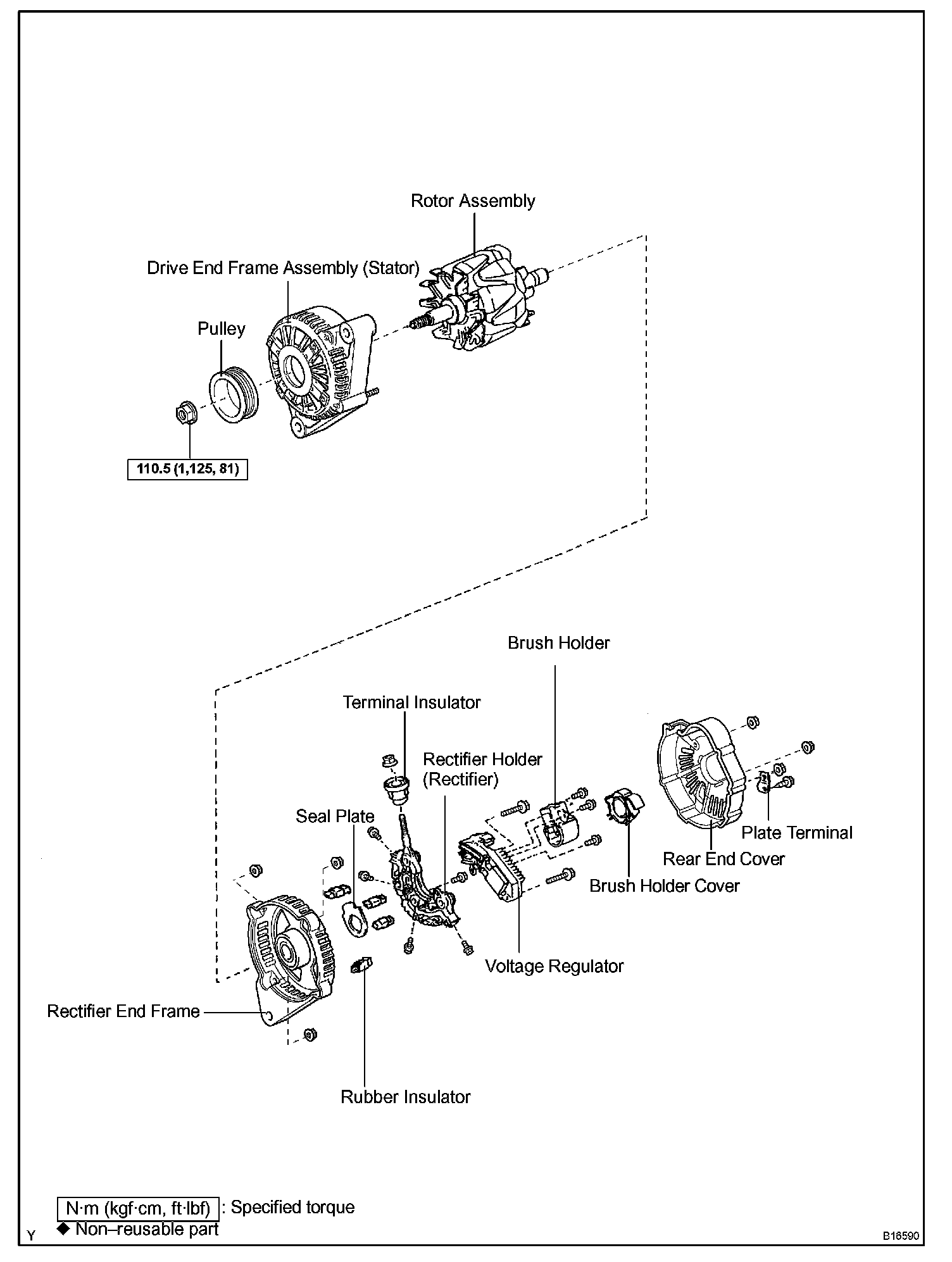

Generator (Standard Spec.) Part 1:
Generator (Standard Spec.) Part 2:

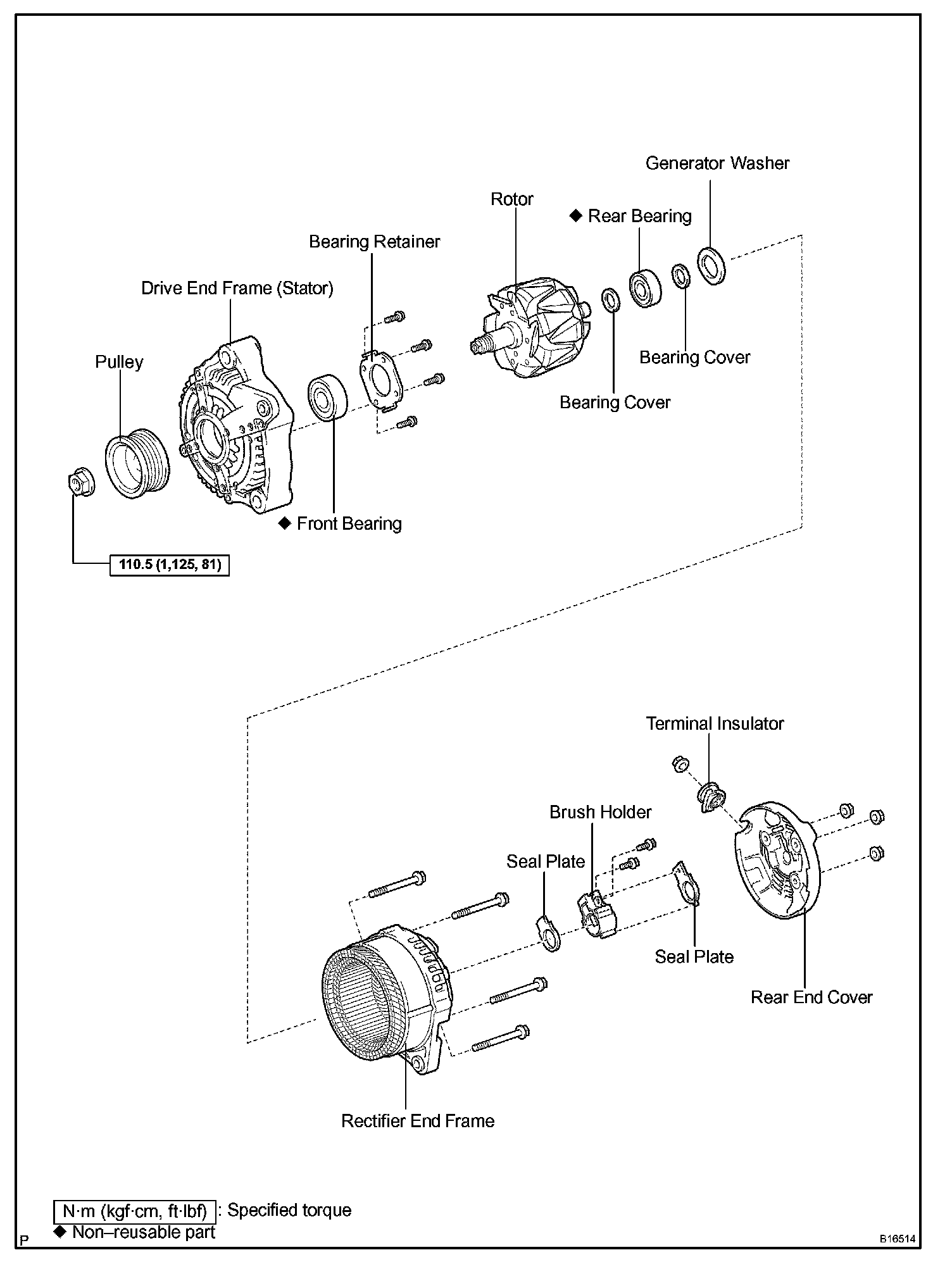

Generator (Towing Package Spec.) Part 1:
Generator (Towing Package Spec.) Part 2:
