Removal and Installation
REMOVALREMOVE CENTER CLUSTER INTEGRATION PANEL
a. Remove the 3 heater control knobs.
b. Remove the 5 screws.

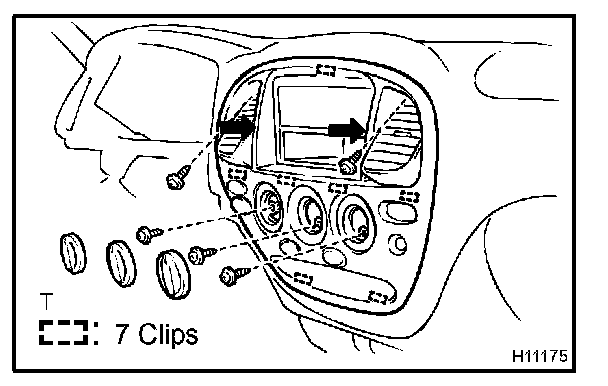

c. Remove the integration control panel by pulling the portions indicated by arrows in the illustration.
d. Disconnect the connector.
INSTALLATION
The installation procedures are the removal procedures in reverse order.
