Fuse Block: Locations

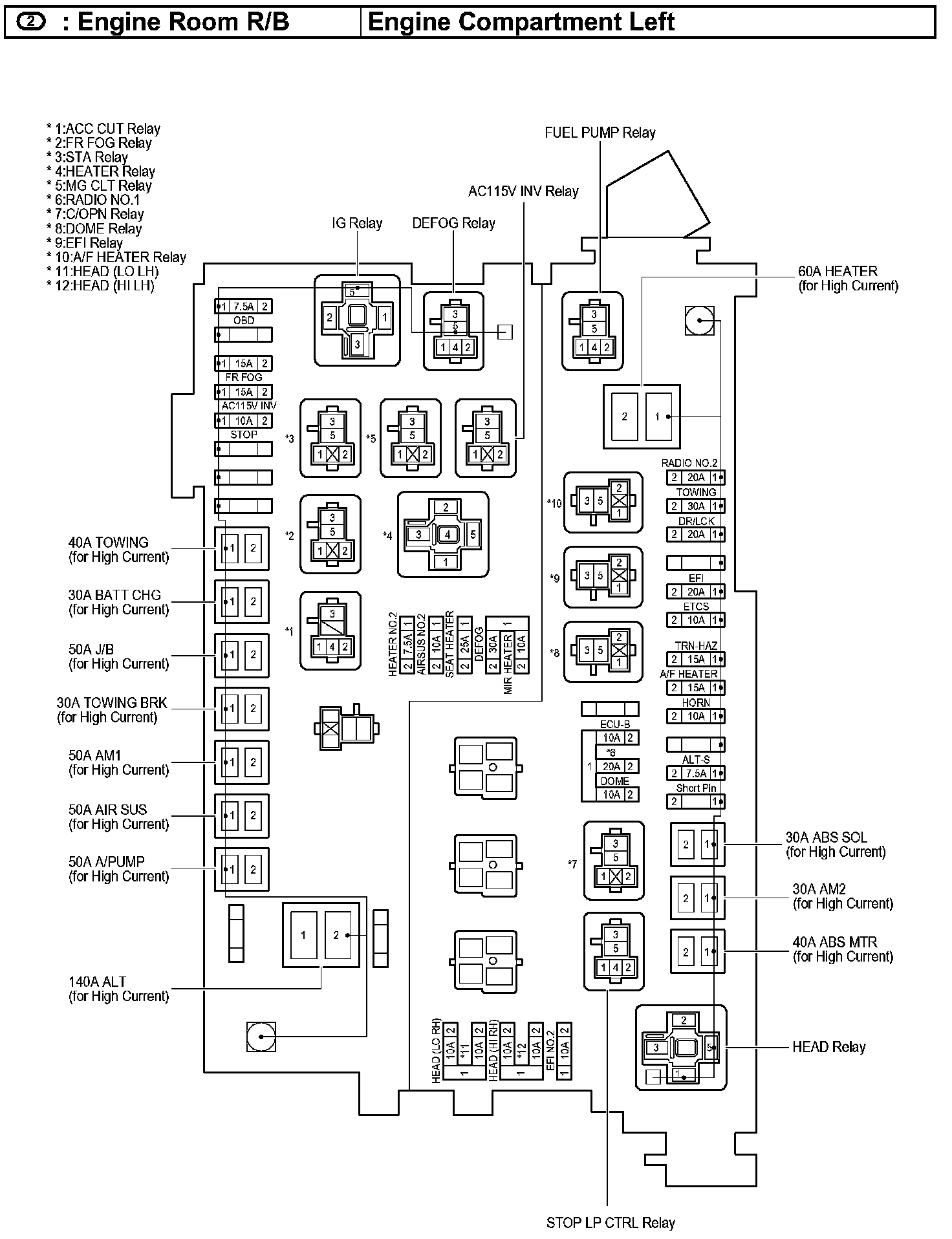

Engine Room R/B - Left:

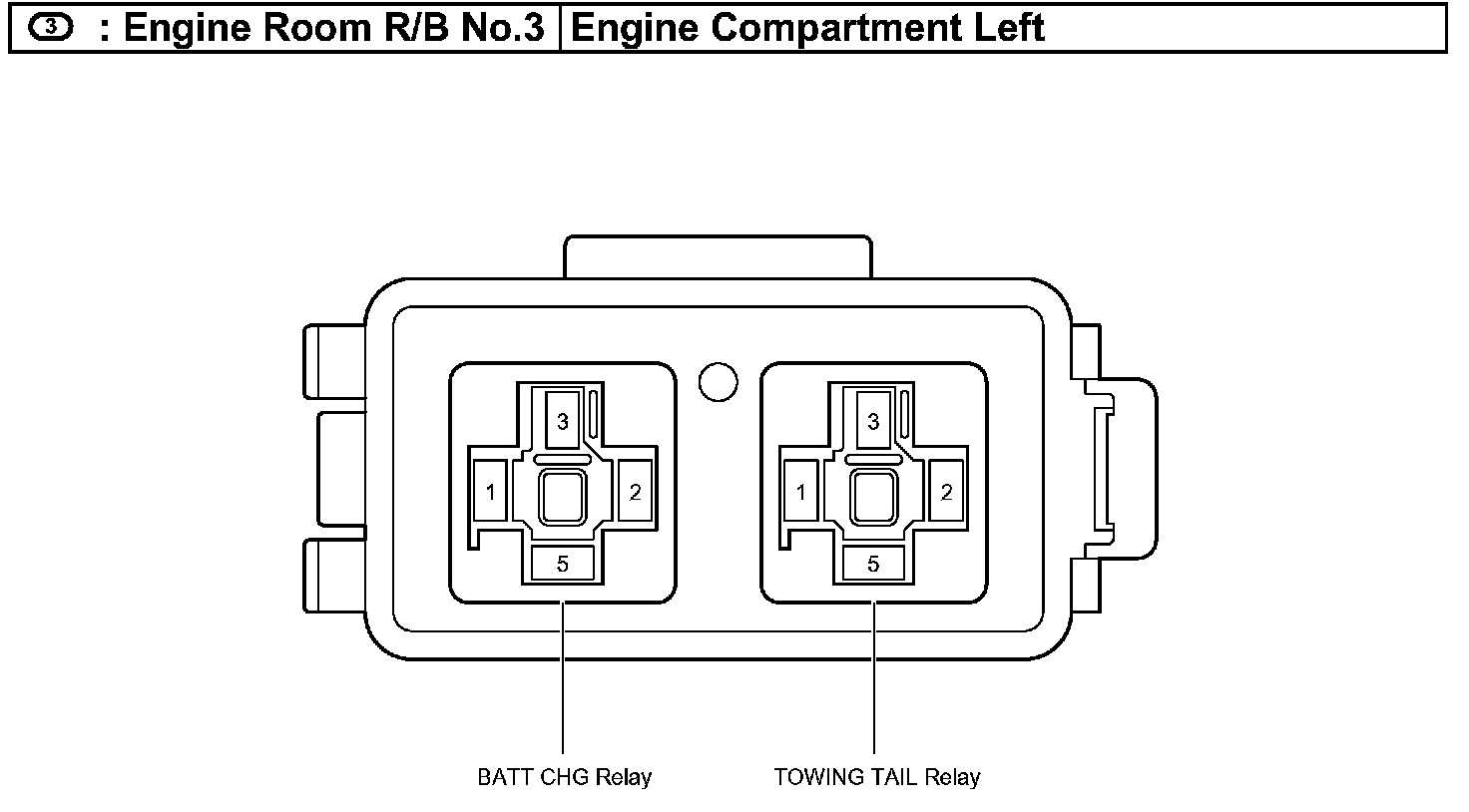

Engine Room R/B 3 Left:

Engine Room R/B 4 Left:

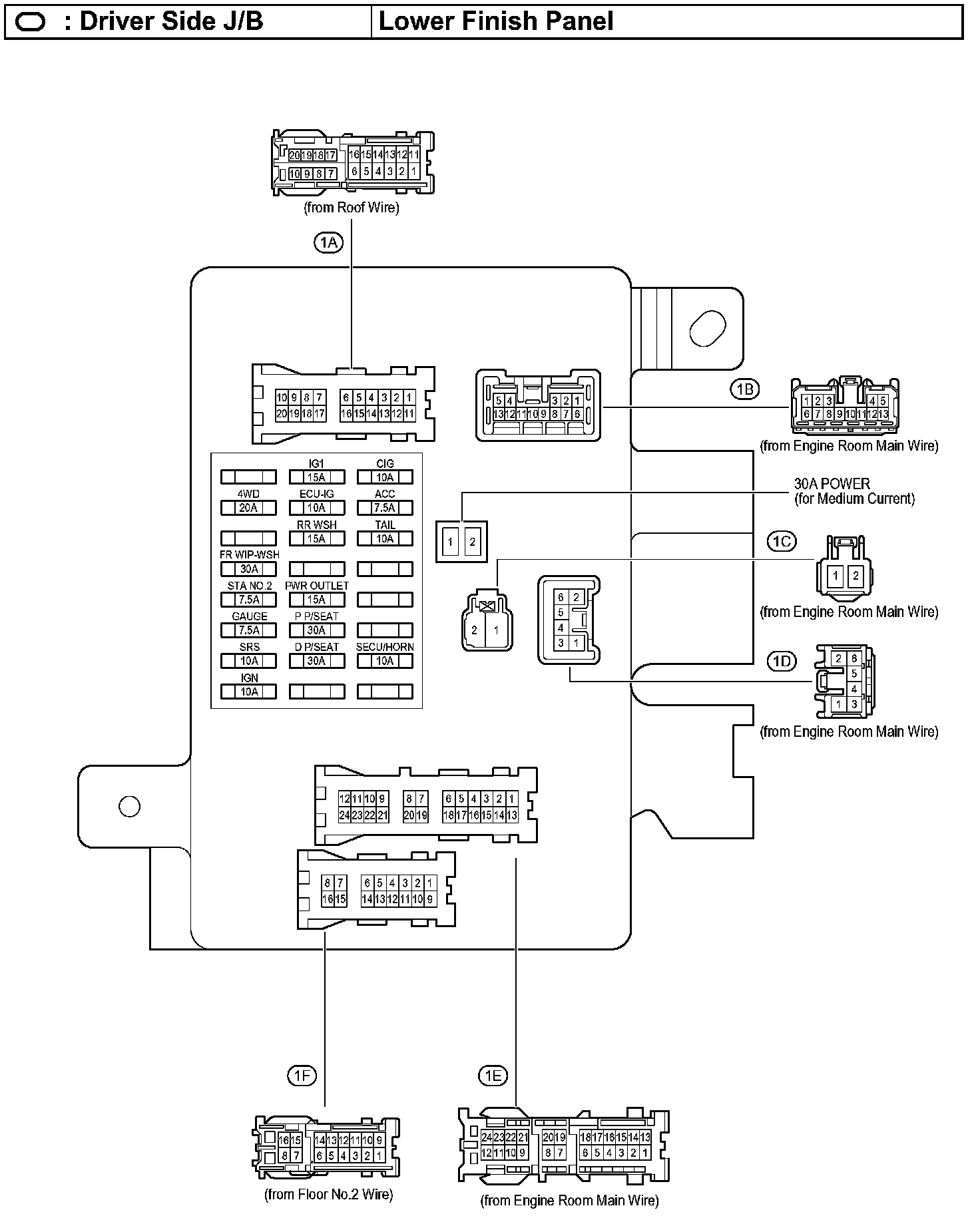

Driver Side J/B - Lower Finish Panel:

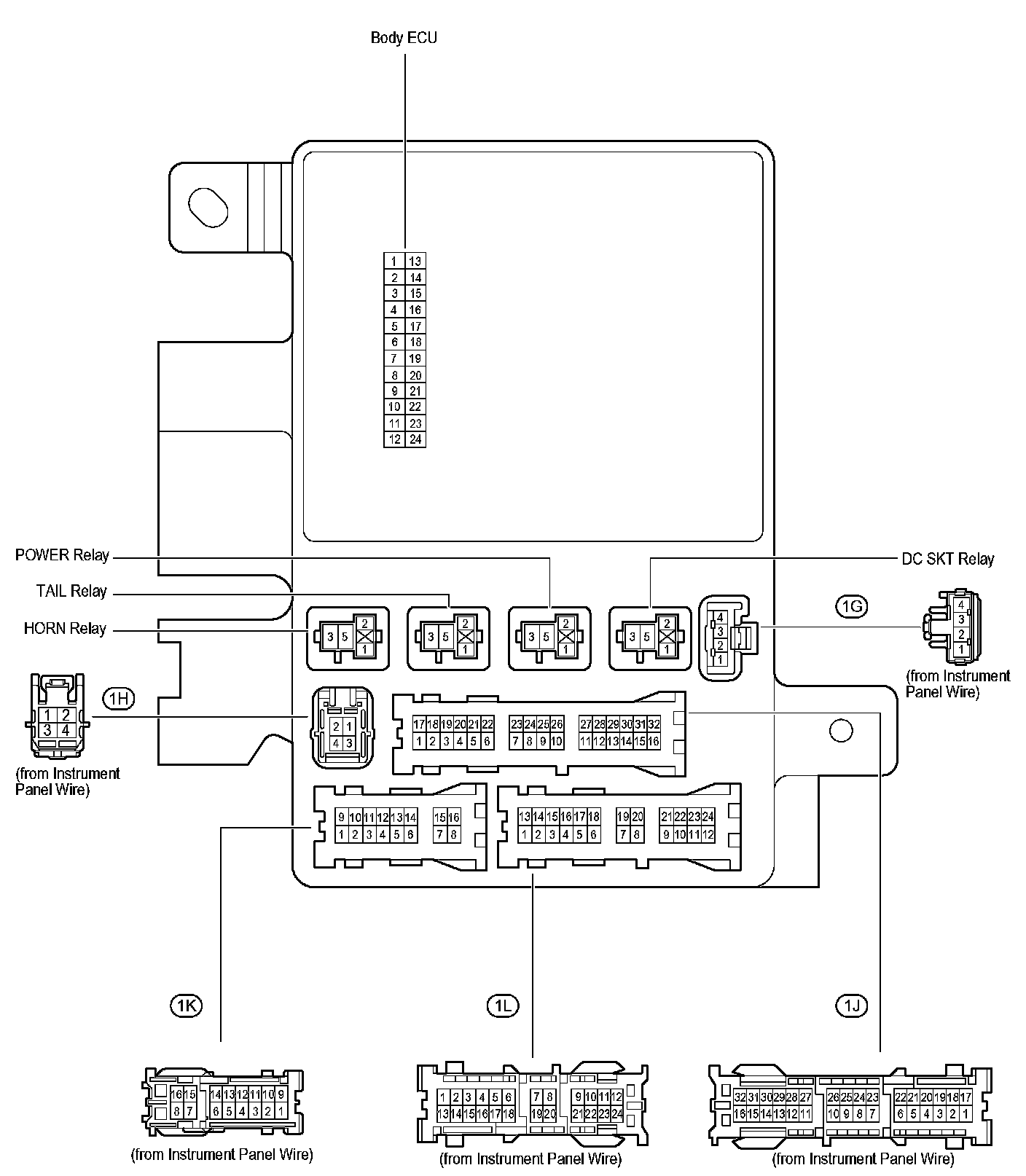

Driver Side J/B - Lower Finish Panel:

Details

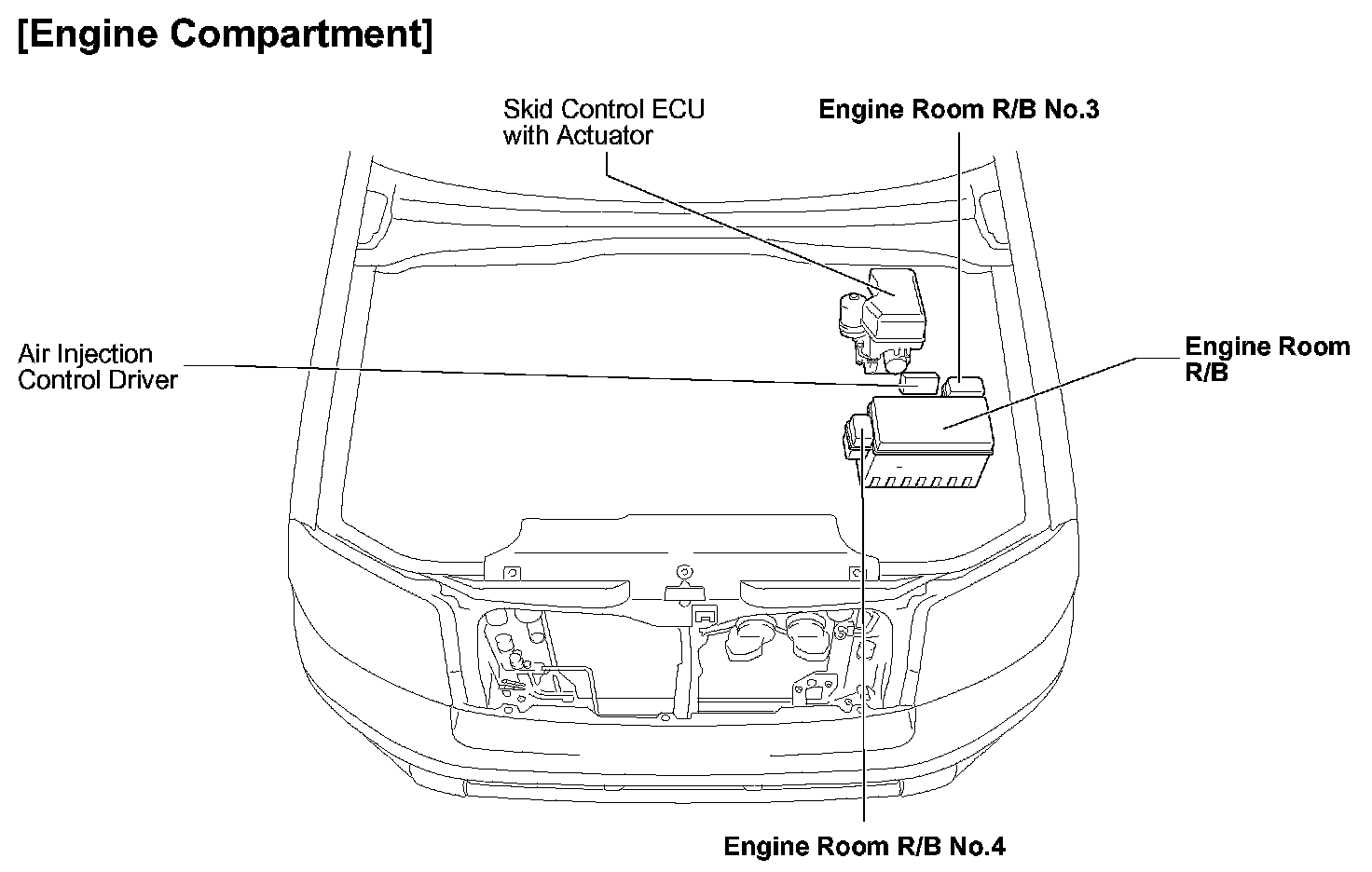

Engine Compartment:

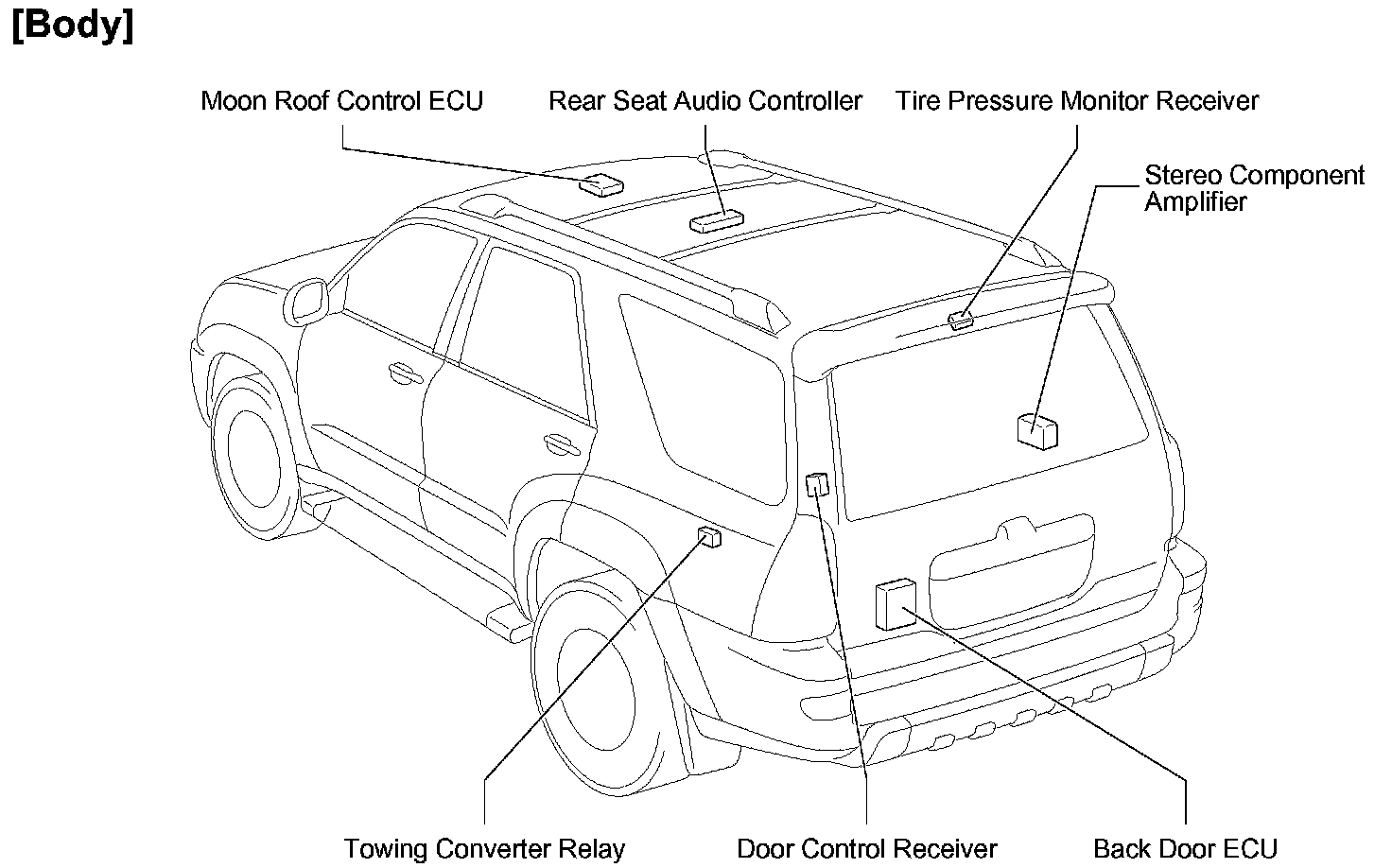

Body:

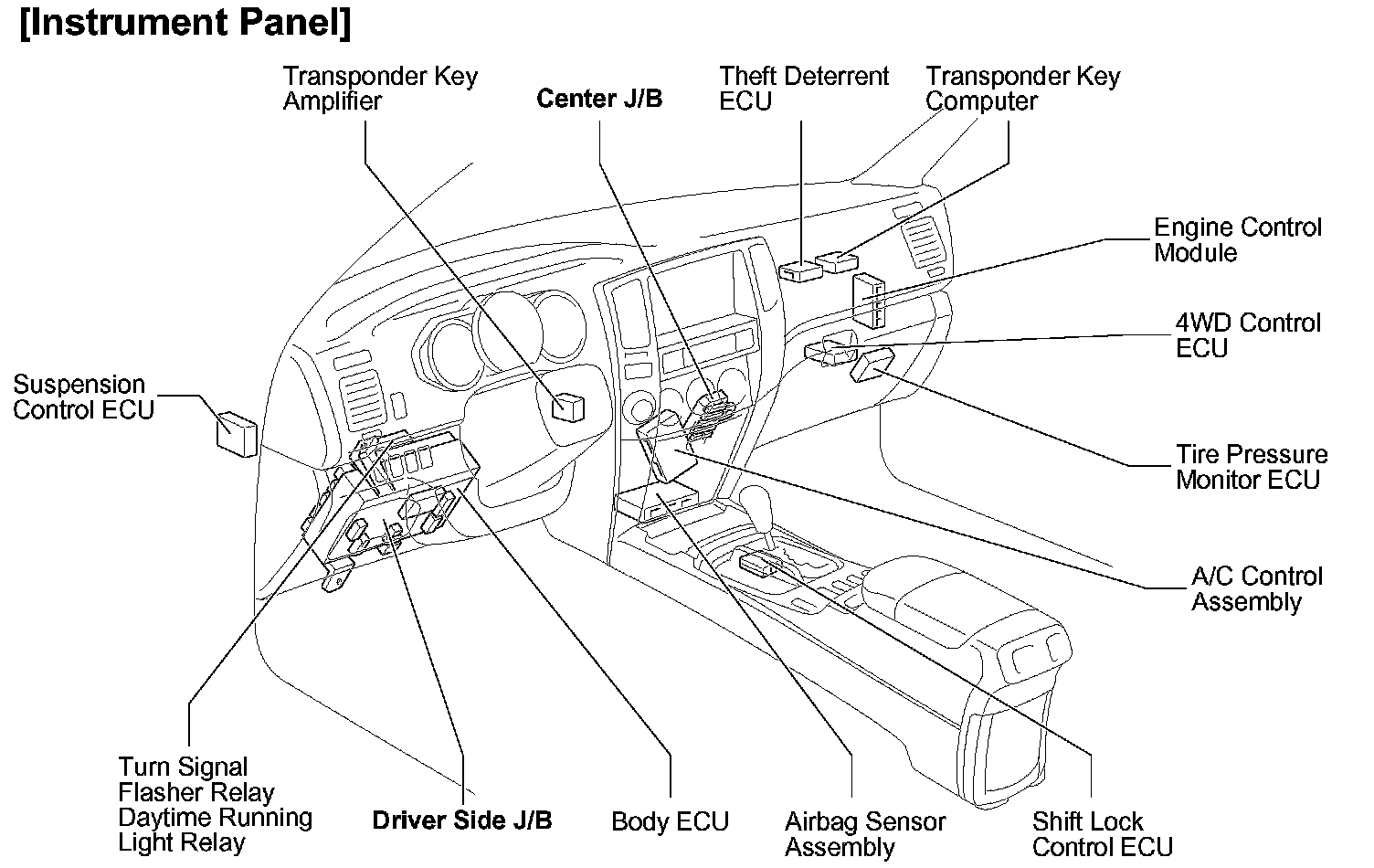

Instrument Panel:

Locations
