Coolant Temperature Sensor/Switch (For Computer): Testing and Inspection

INSPECT ENGINE COOLANT TEMPERATURE SENSOR

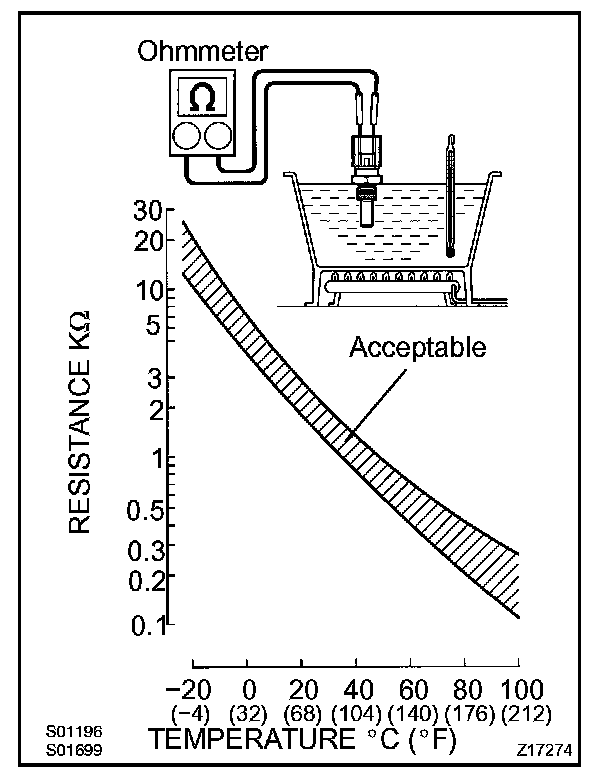

a. Resistance inspection.
1. Using an ohmmeter, measure the resistance between terminals.

Resistance:
2.32 - 2.59 kOhms at 20 degrees C (68 degrees F)
0.310 - 0.326 kOhms at 80 degrees C (176 degrees F)

NOTE: When inspecting the water temperature sensor in water, prevent water flow into the terminals. After inspection, wipe the water off from the sensor.
