Multiplex Communication System
Multiplex Communication System

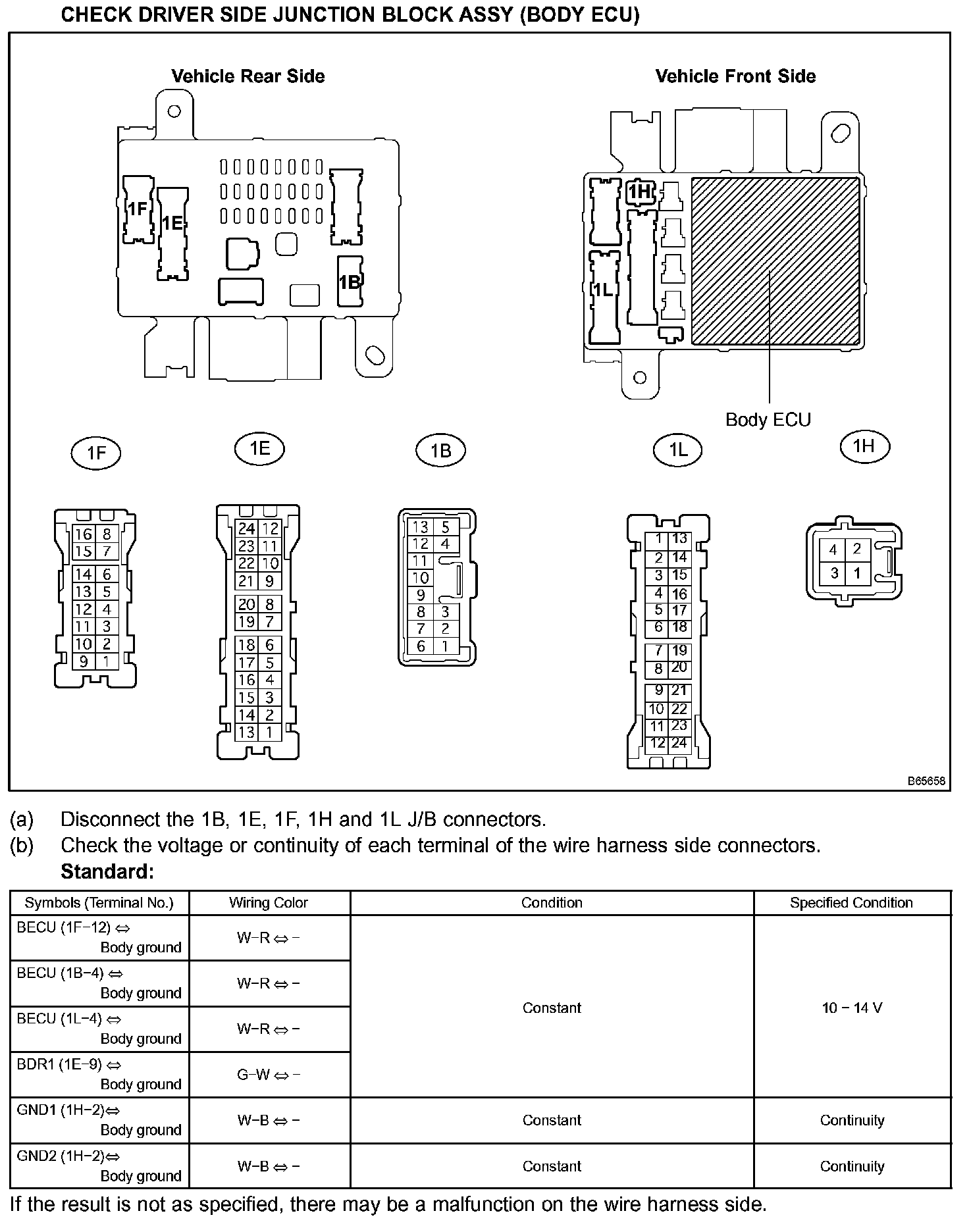

Terminals Of Control Module/Pinouts:

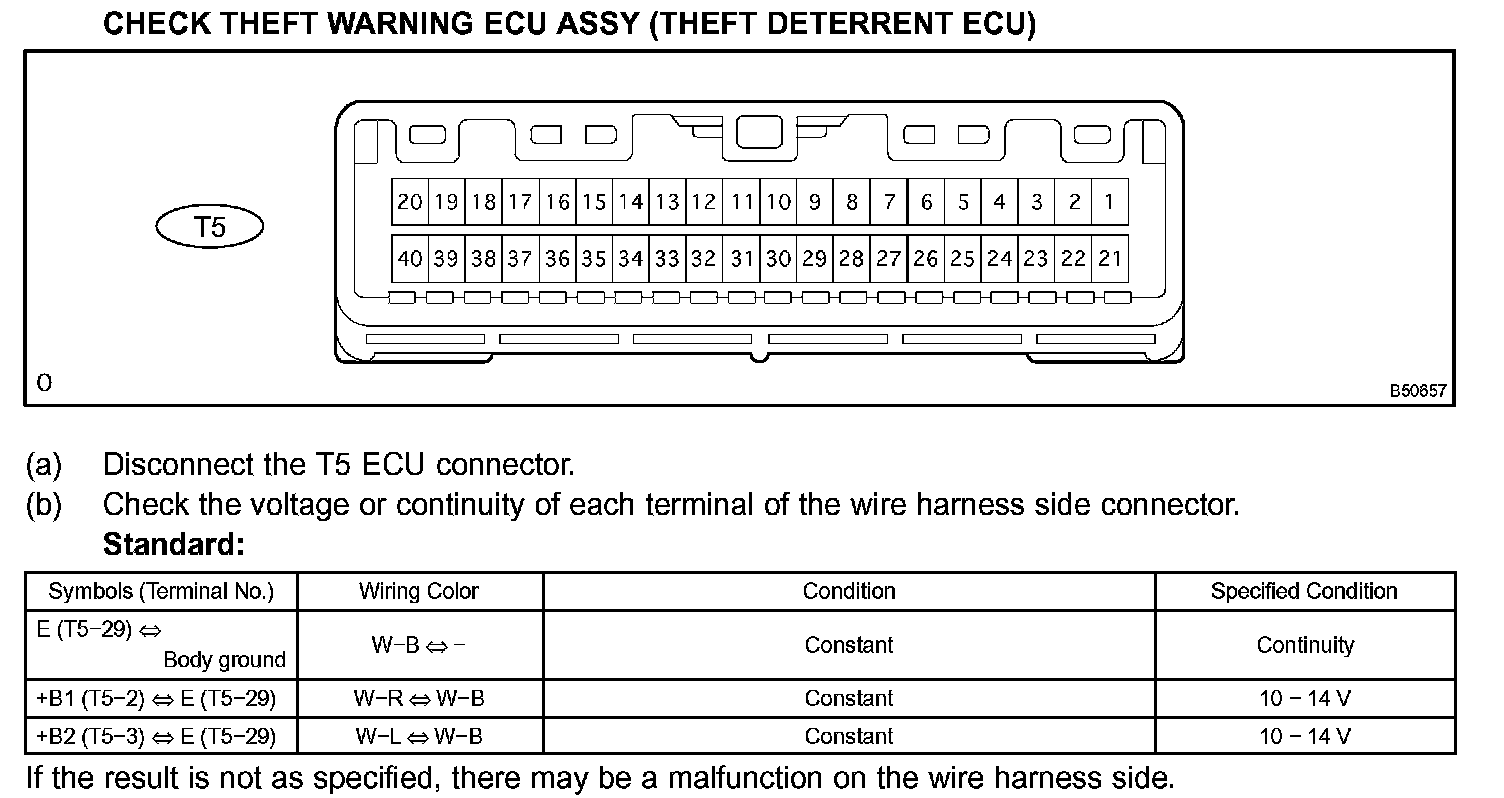

Terminals Of Control Module/Pinouts:
Terminals Of Control Module/Pinouts:
