CAN Communication Systems
PROBLEM SYMPTOMS TABLE1. COMMUNICATION STOP MODE TABLE
a. Complete "CHECK CAN BUS LINE" to confirm that there is no malfunction in the CAN bus line. Select "BUS CHECK" on the hand-held tester via the CAN VIM.
b. Check the communication stop mode of the ECUs or sensors not displayed among the following: "ENGINE", "ABS/VSC/TRAC", "YAW /DECELERATE" or "STEERING SENSOR".
NOTE: If 2 or more ECUs or sensors are not displayed on the hand-held tester via the CAN VIM, perform troubleshooting for the communication stop mode of each un-displayed ECU or sensor. (Either side of the CAN sub bus lines may be open)

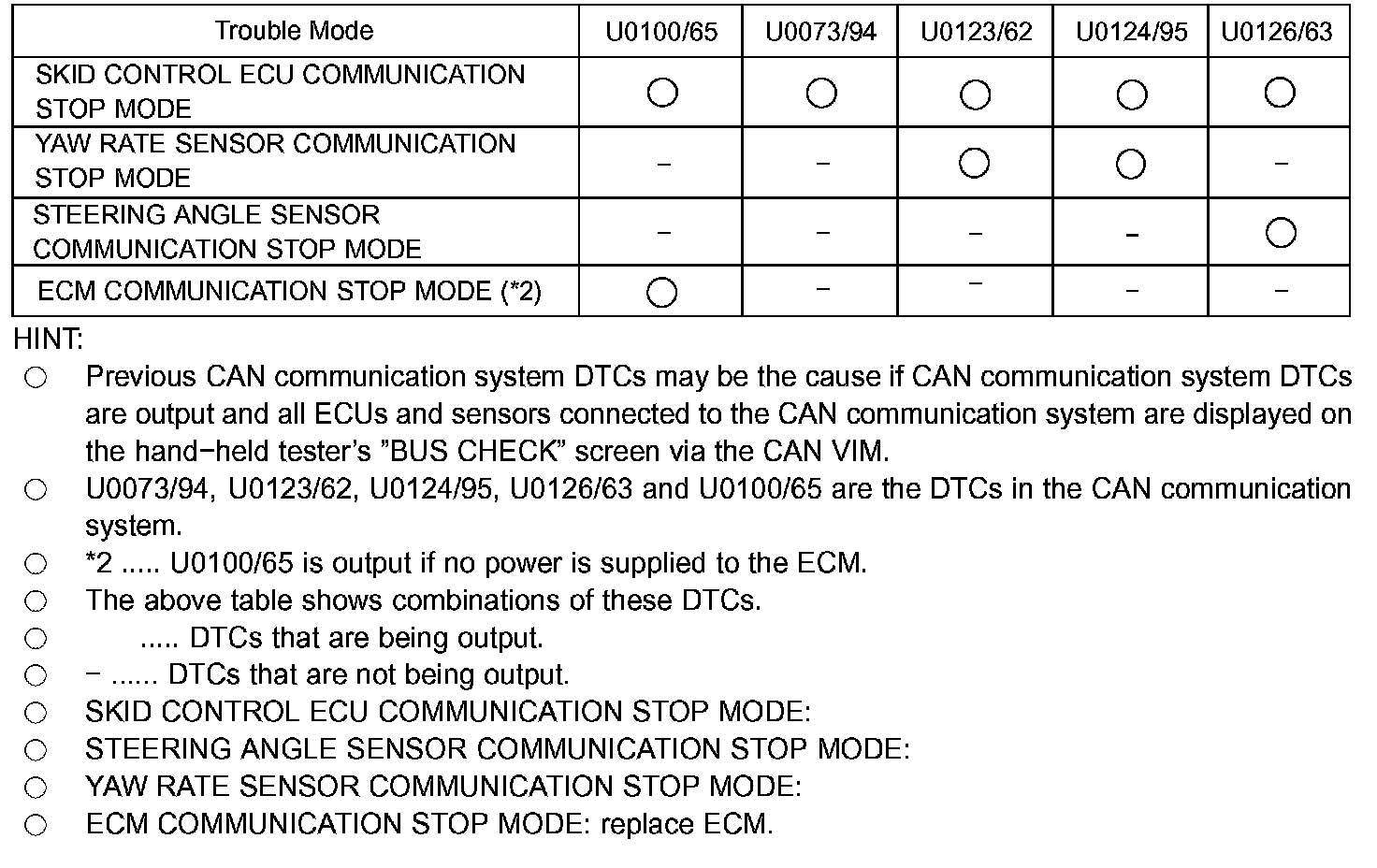

2. DTC COMBINATION TABLE
a. Perform troubleshooting according to the combination of DTCs output.
