Main Relay (Computer/Fuel System): Testing and Inspection

INSPECT EFI RELAY







a. Continuity inspection.

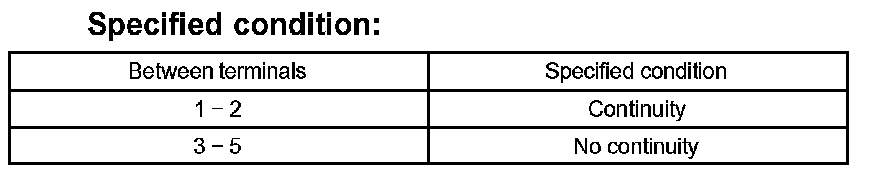

1. Using an ohmmeter, check for continuity between each terminal.
2. Using an ohmmeter, check for continuity between terminals 3 and 5 when the battery voltage is applied across terminals 1 and 2.

Specified condition: Continuity
