Power Trunk / Liftgate Control Module: Locations

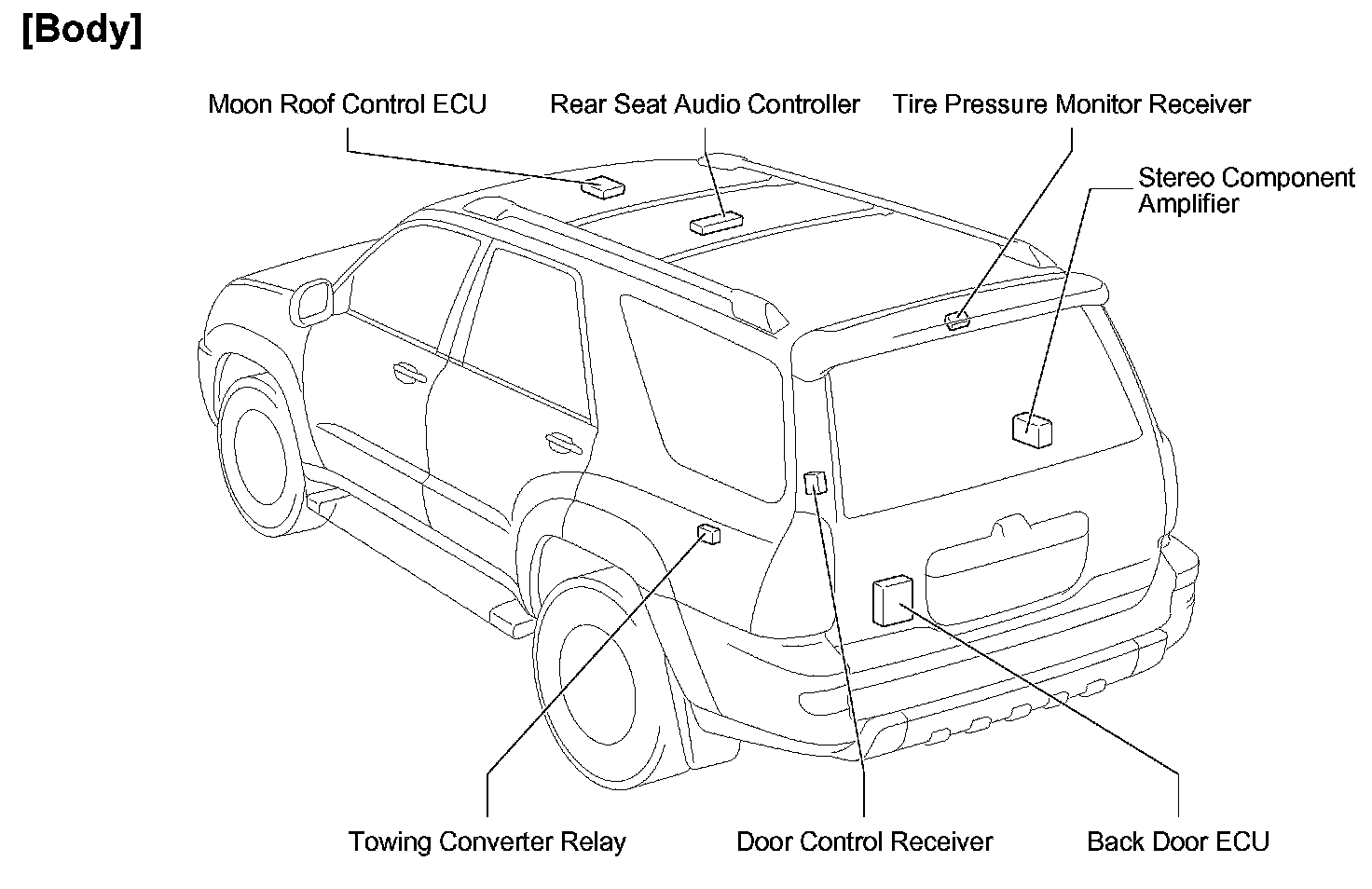

Body:

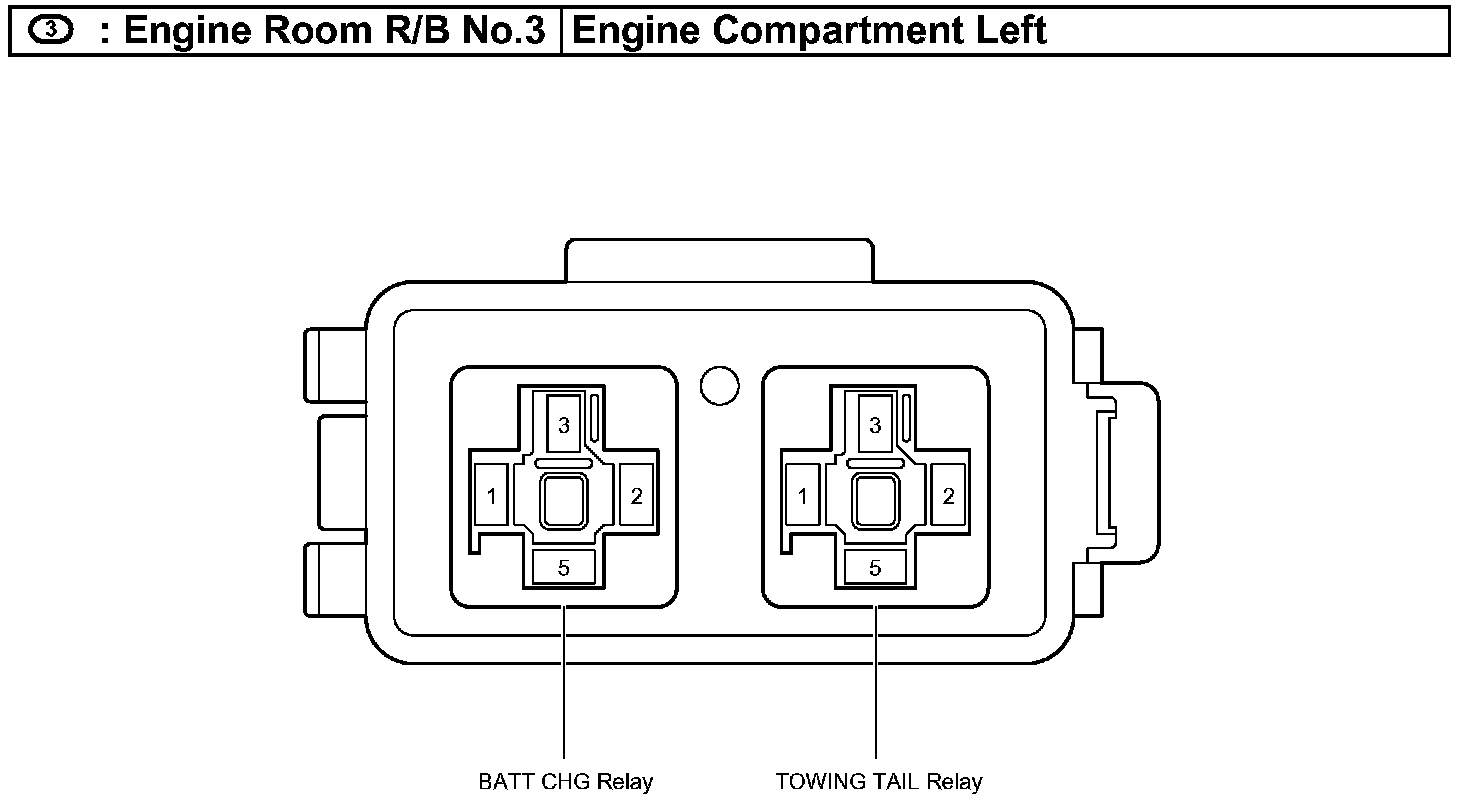

Engine Room R/B No.3 - Engine Compartment Left:

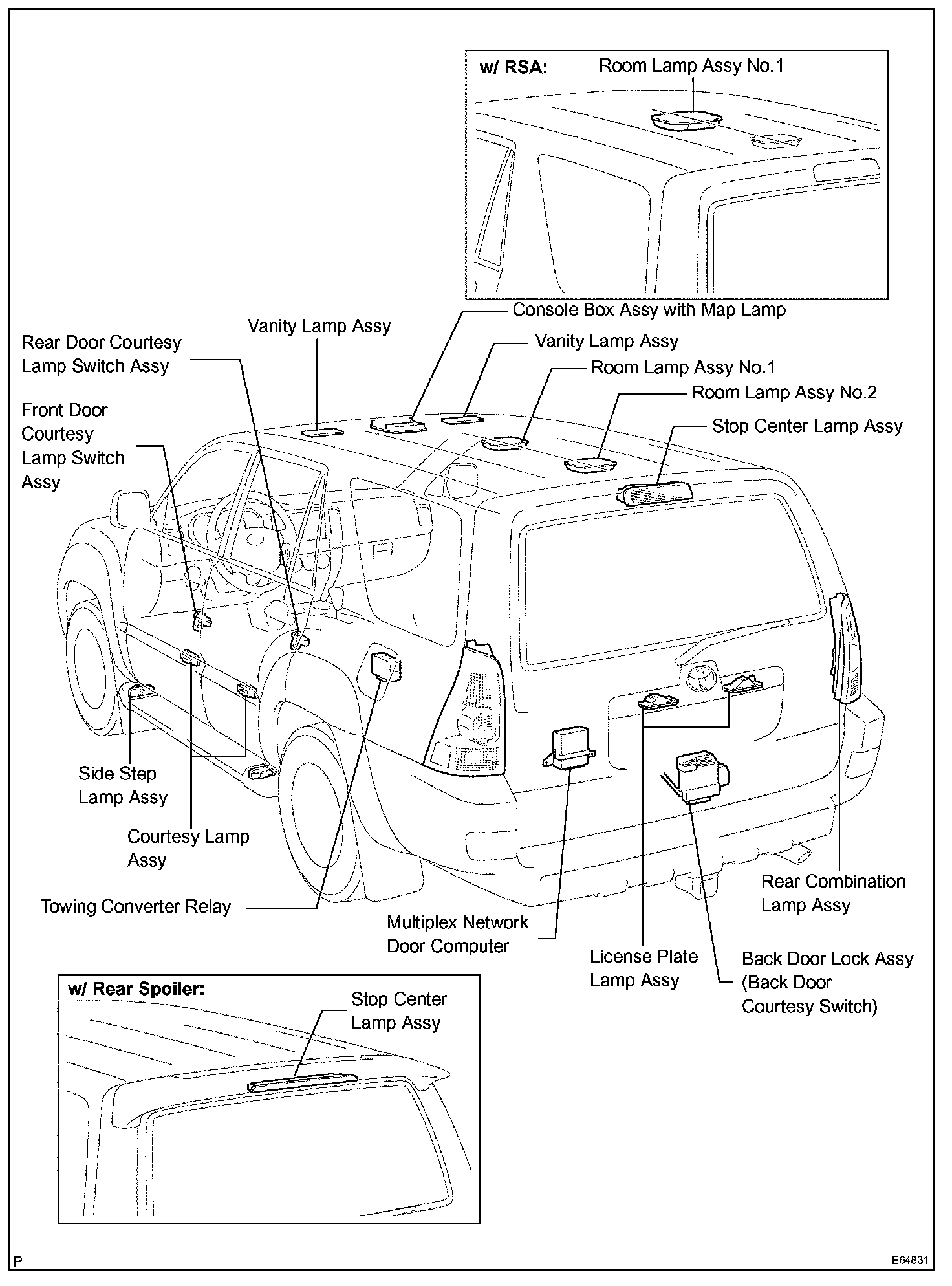

Lighting System:
