Electronic Brake Control Module: Testing and Inspection

TERMINAL INSPECTION

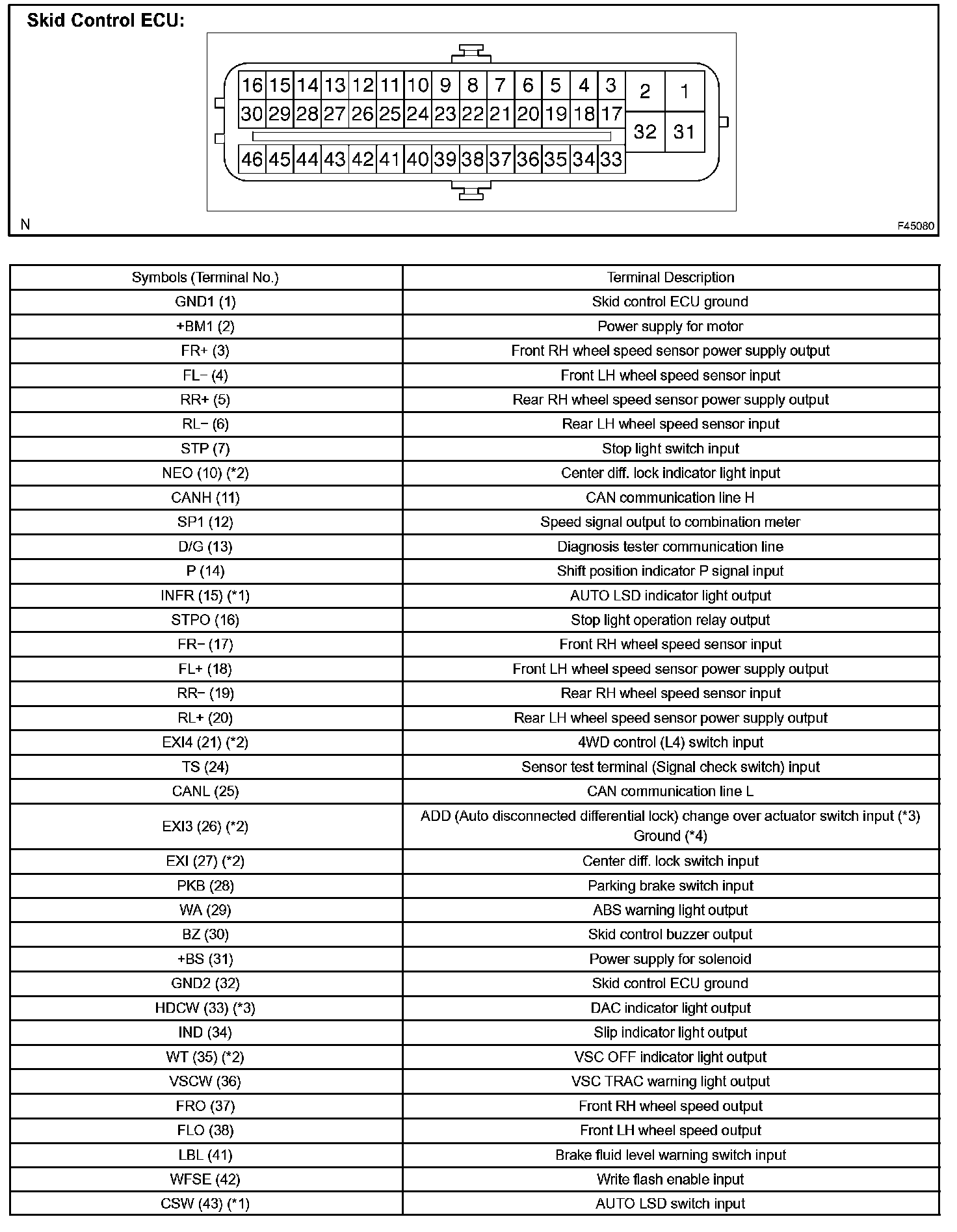

Terminals Of Control Module/Pinouts (Part 1):

Terminals Of Control Module/Pinouts (Part 2):

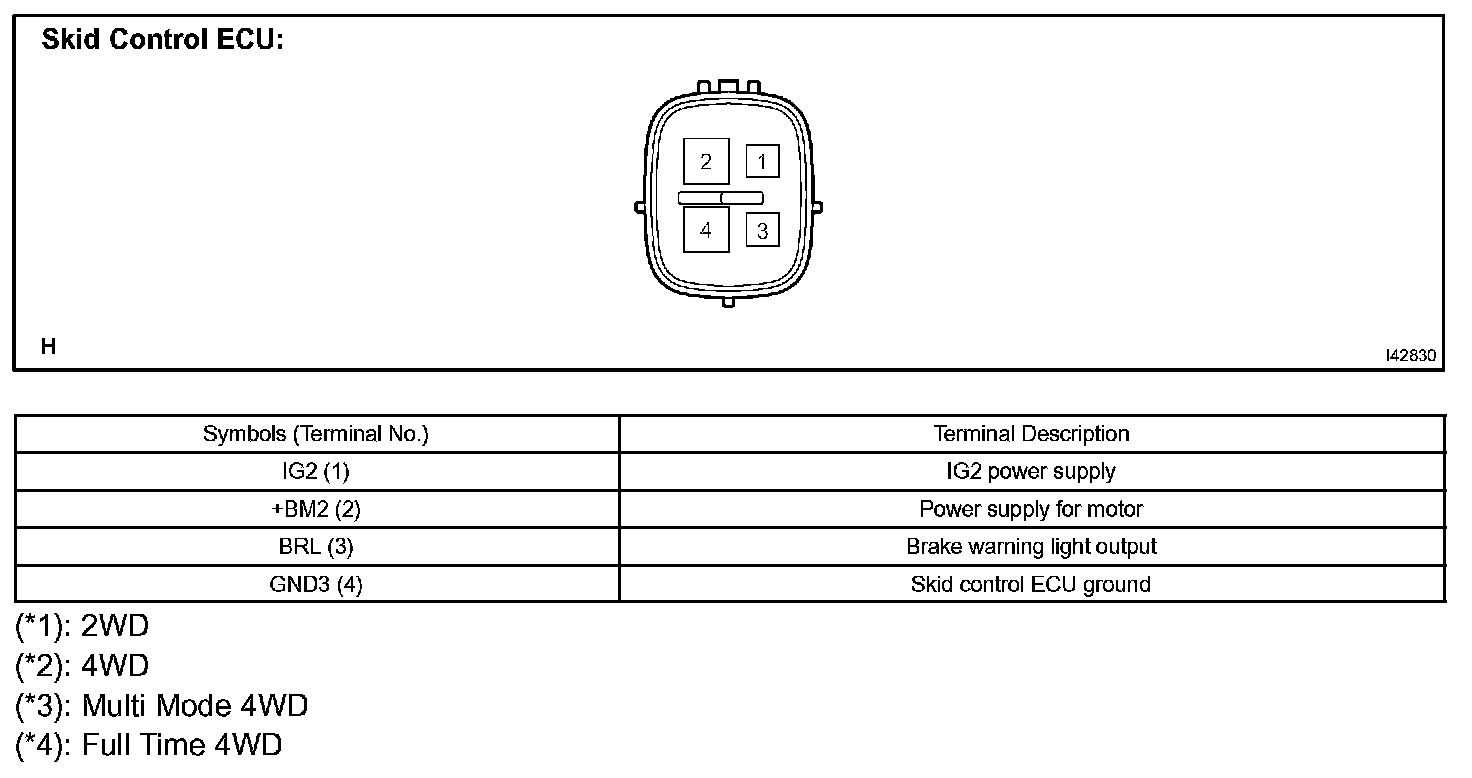

Terminals Of Control Module/Pinouts:

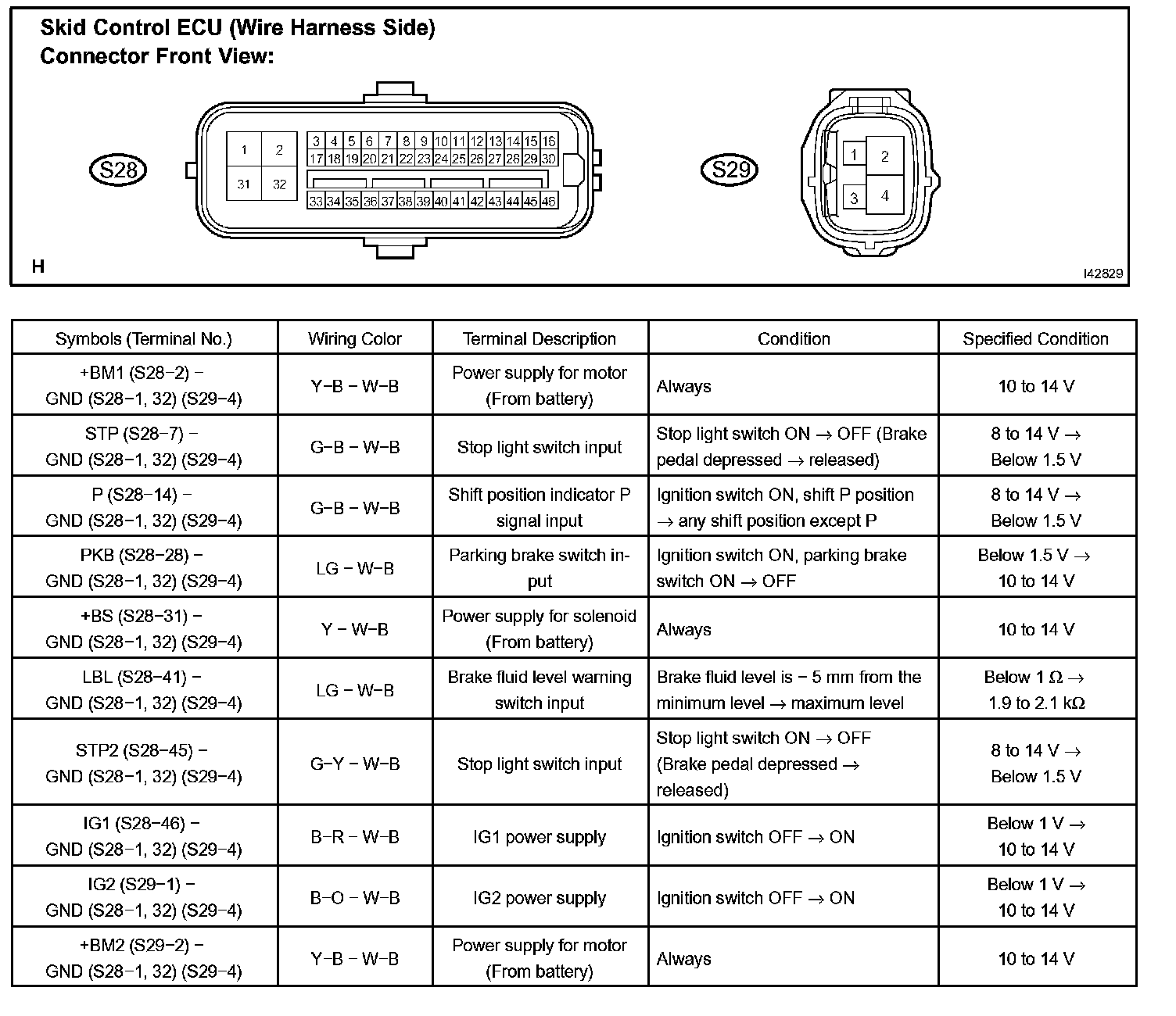

Terminals Of Control Module/Pinouts - Terminal Inspection:

Disconnect the connector and measure the voltage or resistance on the wire harness side.

HINT: Voltage can not be measured with the connector connected to the skid control ECU as the connector is water resistance.
