Control Module: Testing and Inspection

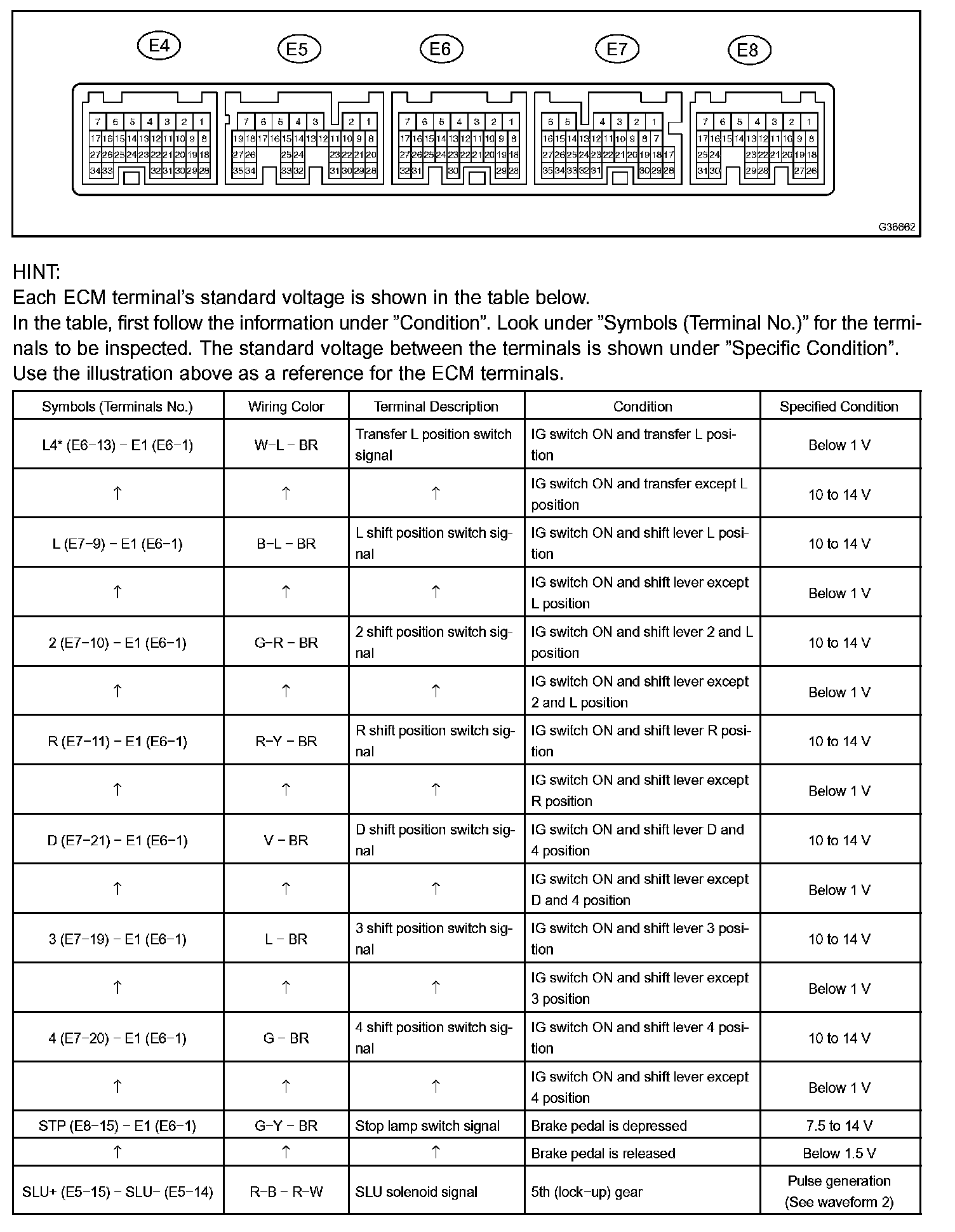

Terminals Of ECM/Pinouts (Part 1):

Terminals Of ECM/Pinouts (Part 2):

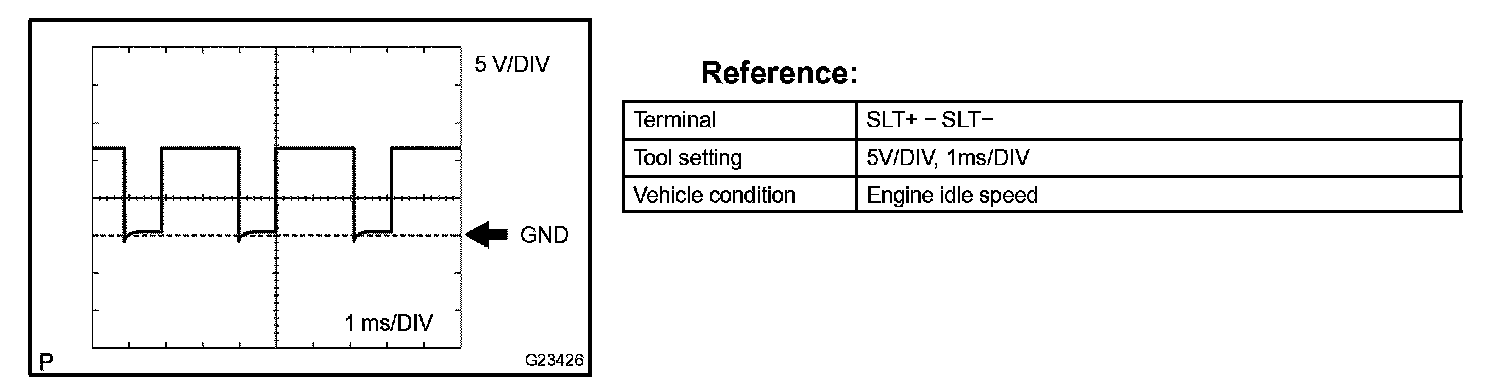

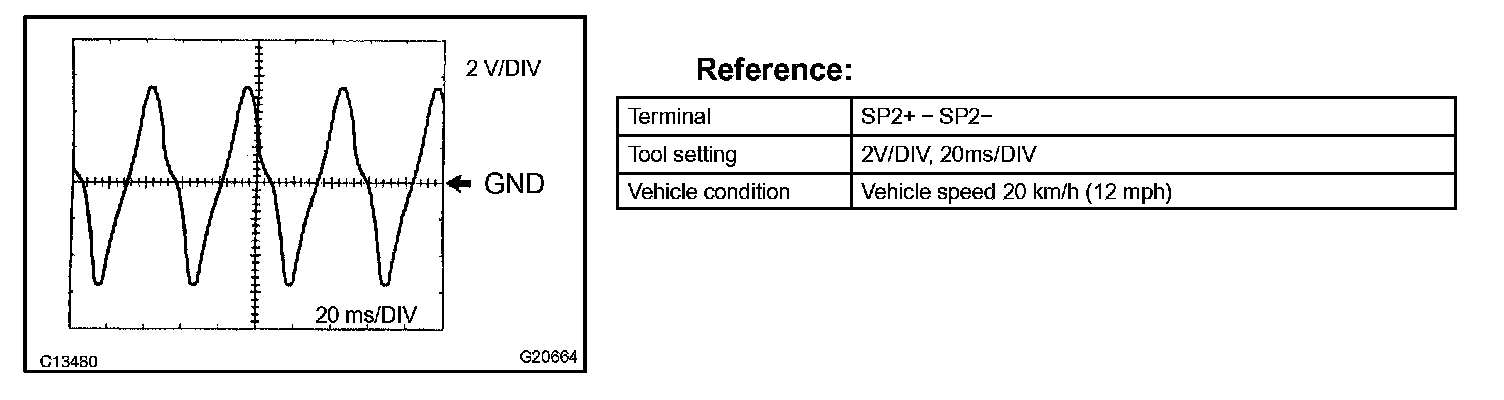

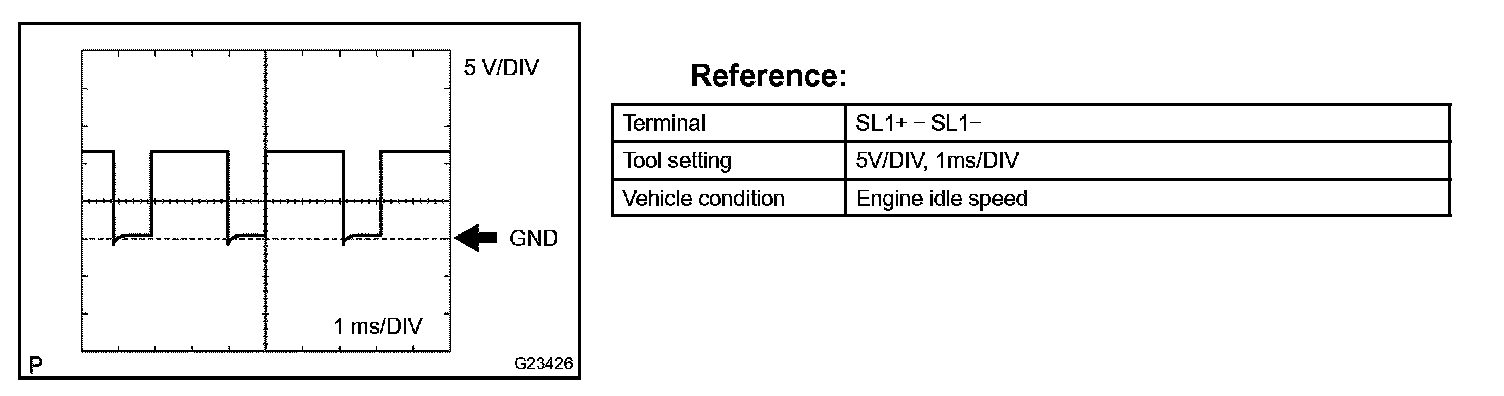

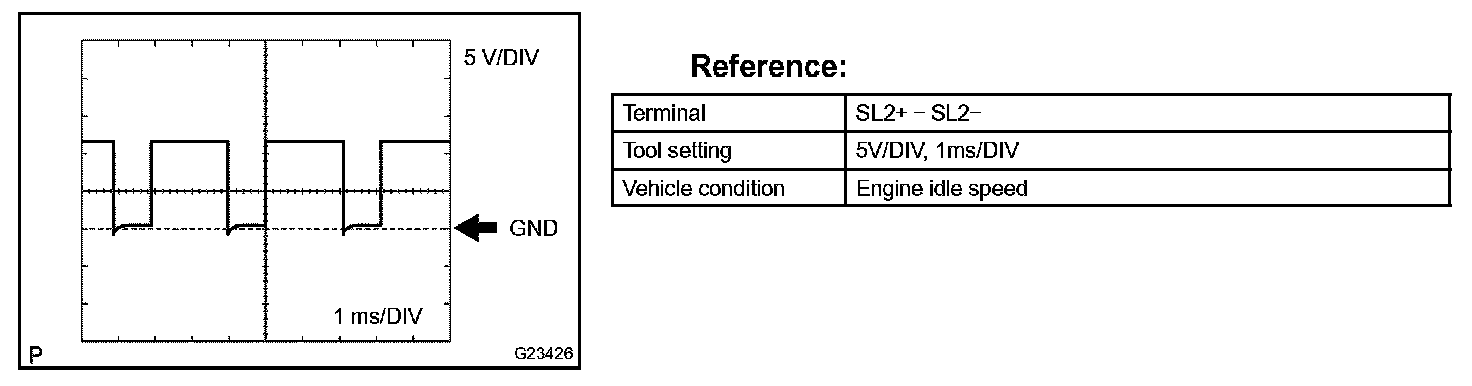

Oscilloscope Waveform (Part 1):

Oscilloscope Waveform (Part 2):

Oscilloscope Waveform (Part 3):

Oscilloscope Waveform (Part 4):

Oscilloscope Waveform (Part 5):

Oscilloscope Waveform (Part 6):
