Air Injection Control Valve
Air Injection Control Valve

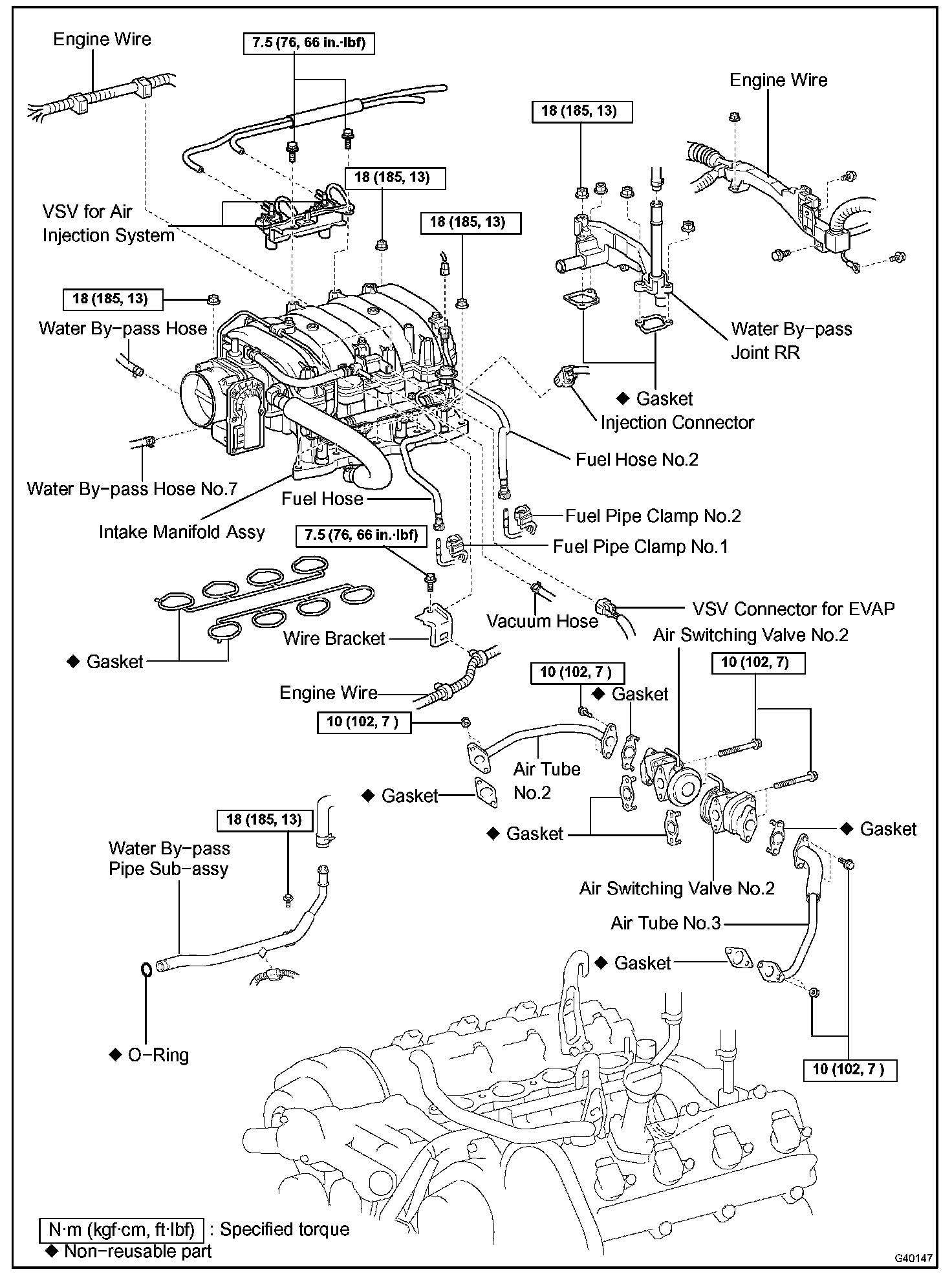

Air Switching Valve No.2 (From November, 2004):
Air Switching Valve No.2 (From November, 2004):
