Power Seat Control Module: Testing and Inspection

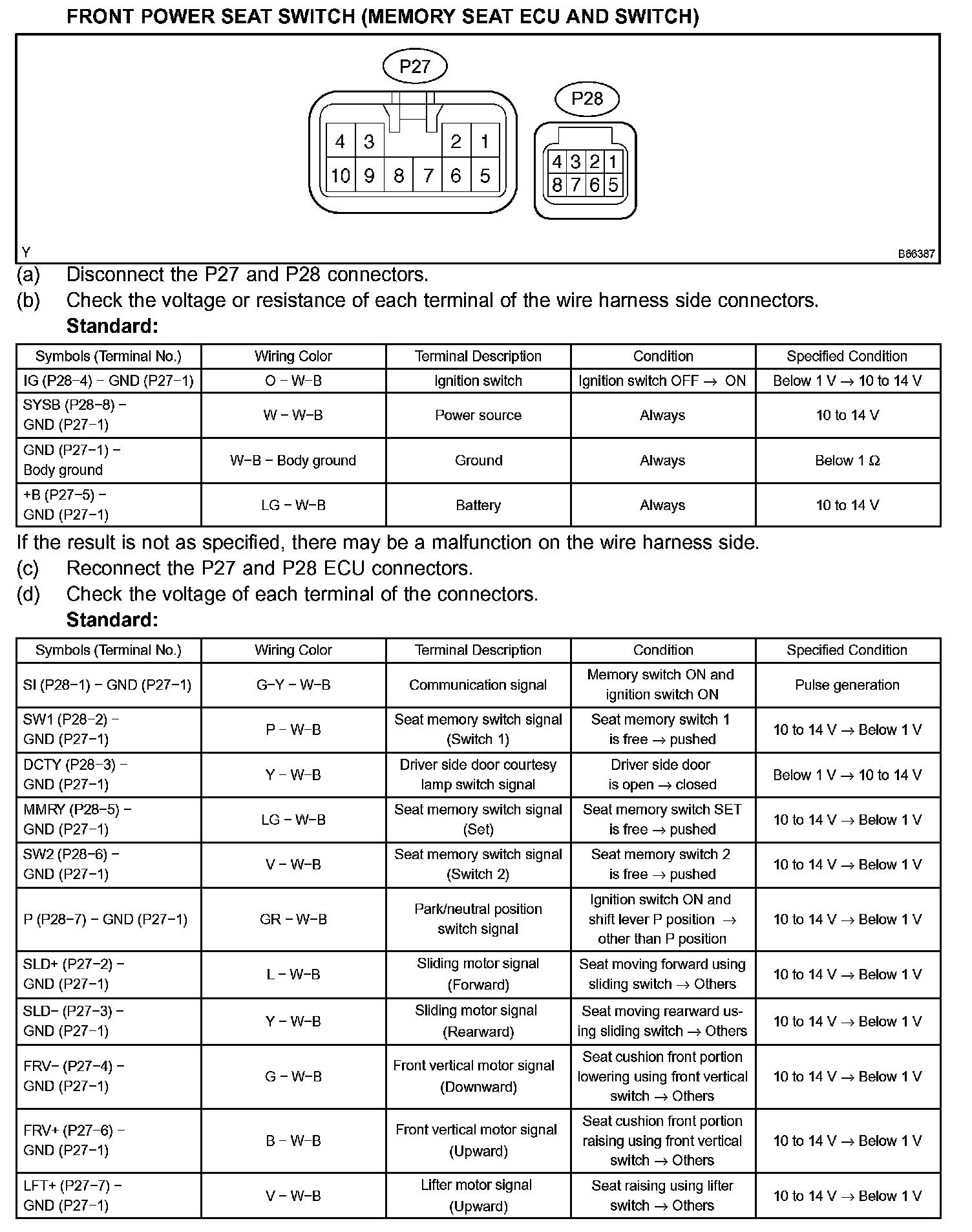

Terminals Of Control Module/Pinouts (Part 1):
Terminals Of Control Module/Pinouts (Part 2):
