Knock Sensor: Testing and Inspection

INSPECT KNOCK SENSOR

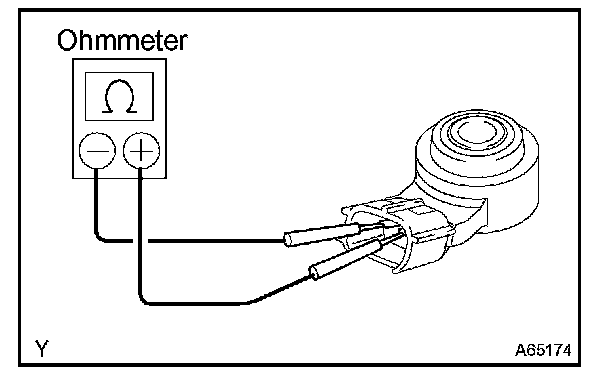

a. Using an ohmmeter, measure the resistance between terminals.

Resistance: 120 - 280 kOhms at 20 degrees C (68 degrees F)

HINT: If the resistance is not as specified, replace the sensor.
